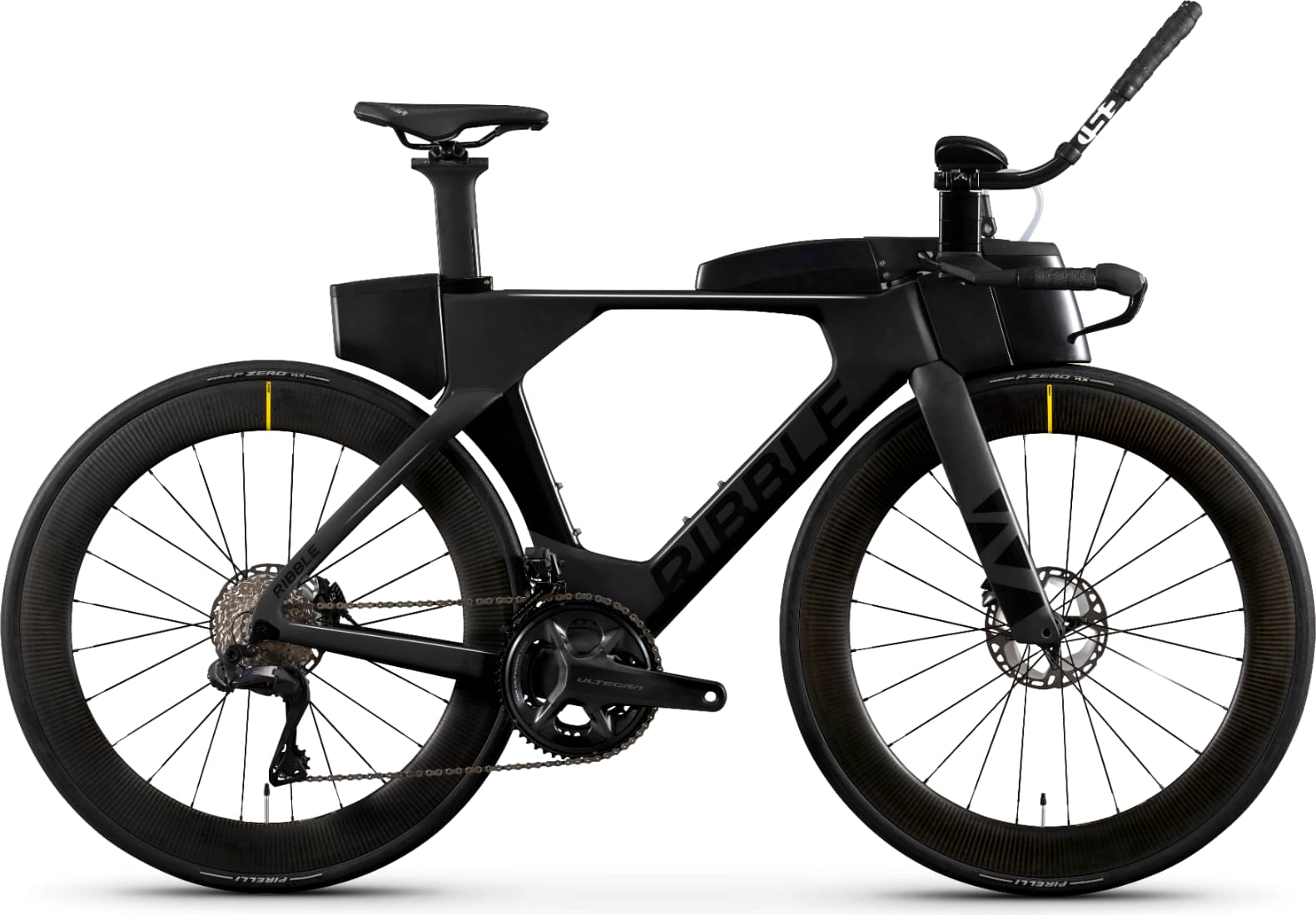

Ribble Ultra Tri Disc – Enthusiast 2025
2025 E-bike
Estimate price |
7,451$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Dura-Ace Di2, Ultegra -
Suspension Rigid -
Motor hub-drive -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
153cm - 164cm
SM
162cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

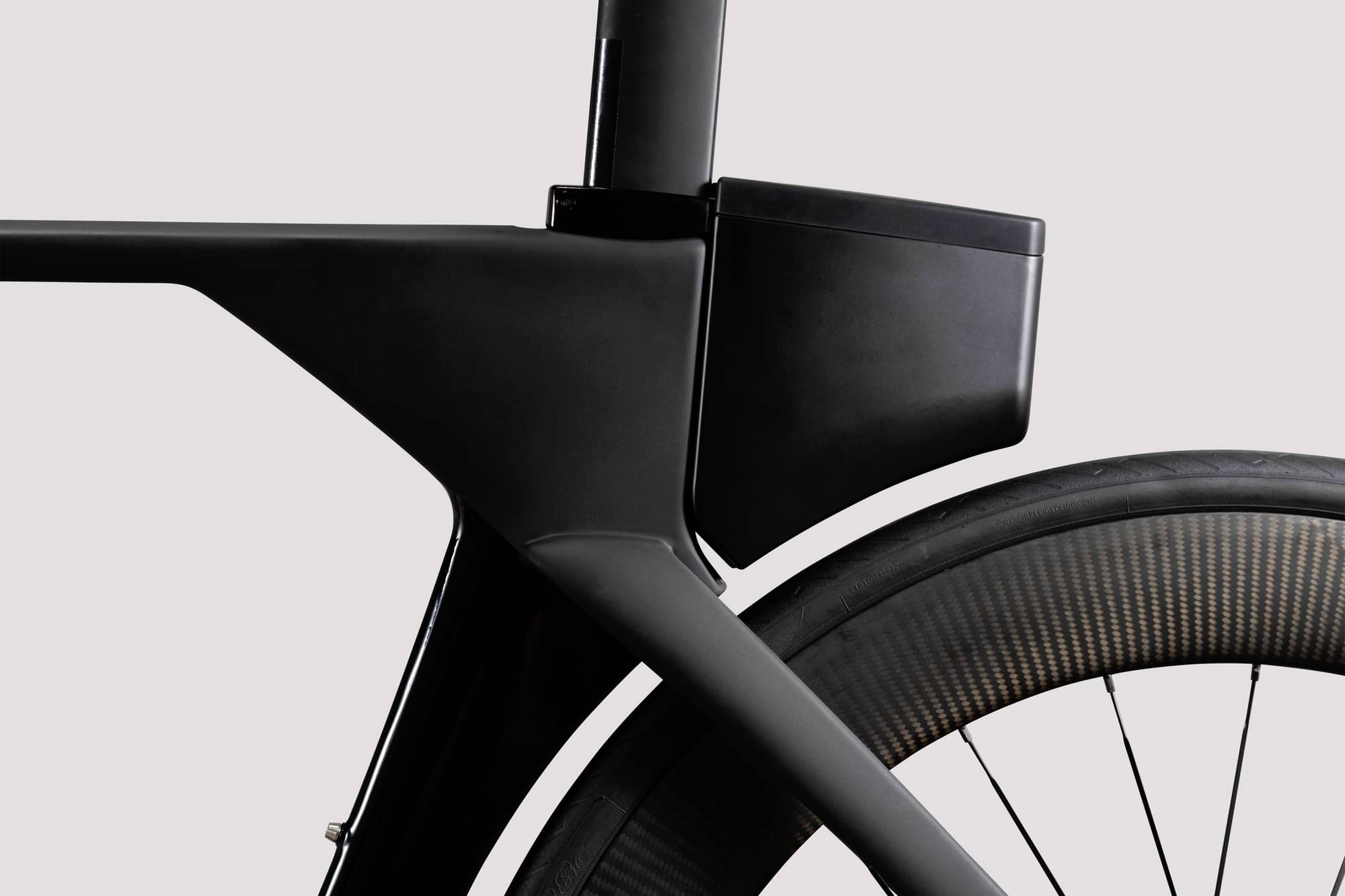

Ultra Tri Disc Frame Black XSM 50cm
Suspension Fork
Ultra Tri Disc Fork V2

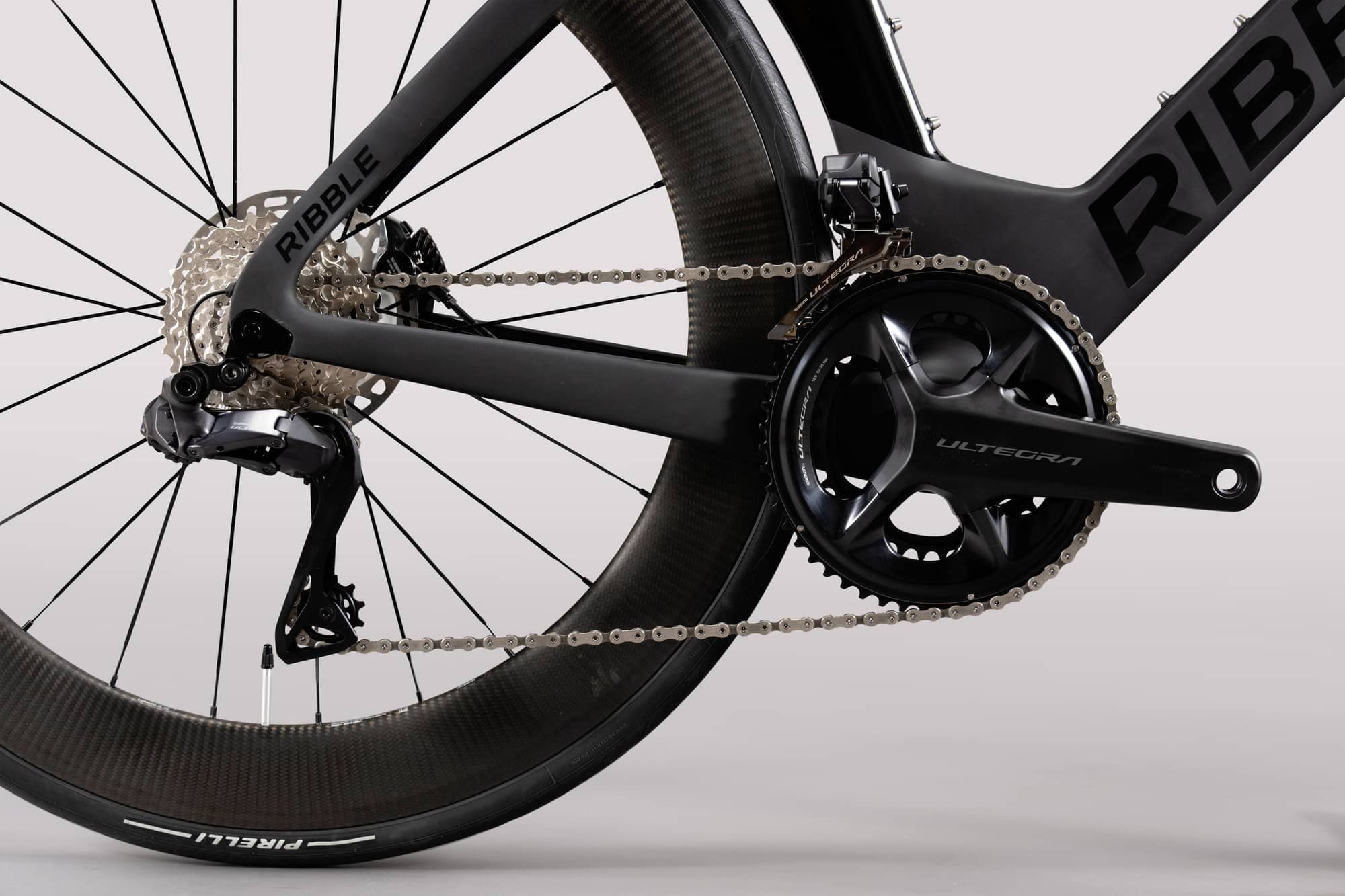

Drivetrain
Rear Derailleur
RD-R8150 Ultegra Di2 12spd Rear Derailleur
Front Derailleur
FD-R8150 Ultegra Di2 12spd FR Derailleur Braze On
Shift Levers
SL-R9160 Dura-Ace Di2 TT Bar End Shifters 11spd PR
Cassette
CS-R8101 Ultegra 12spd Cassette HG 11-34T

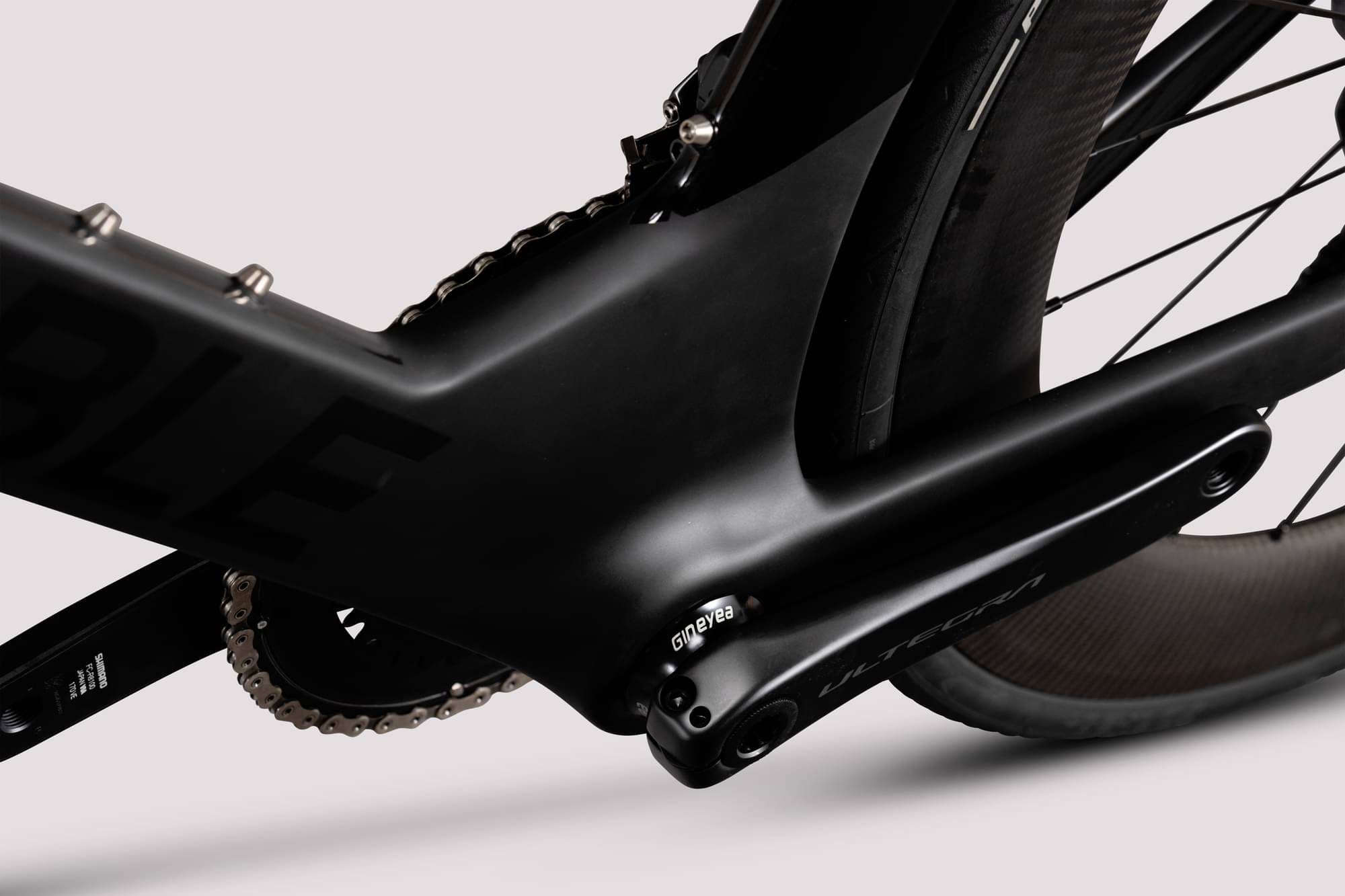

Crank
FC-R8100 Ultegra 12spd Chainset 170mm 52-36T
Bottom Bracket
Road PF BB30 68x46mm BB Cups
Chain
CN-M8100 XT Chain 126 Links
Wheels
Rims

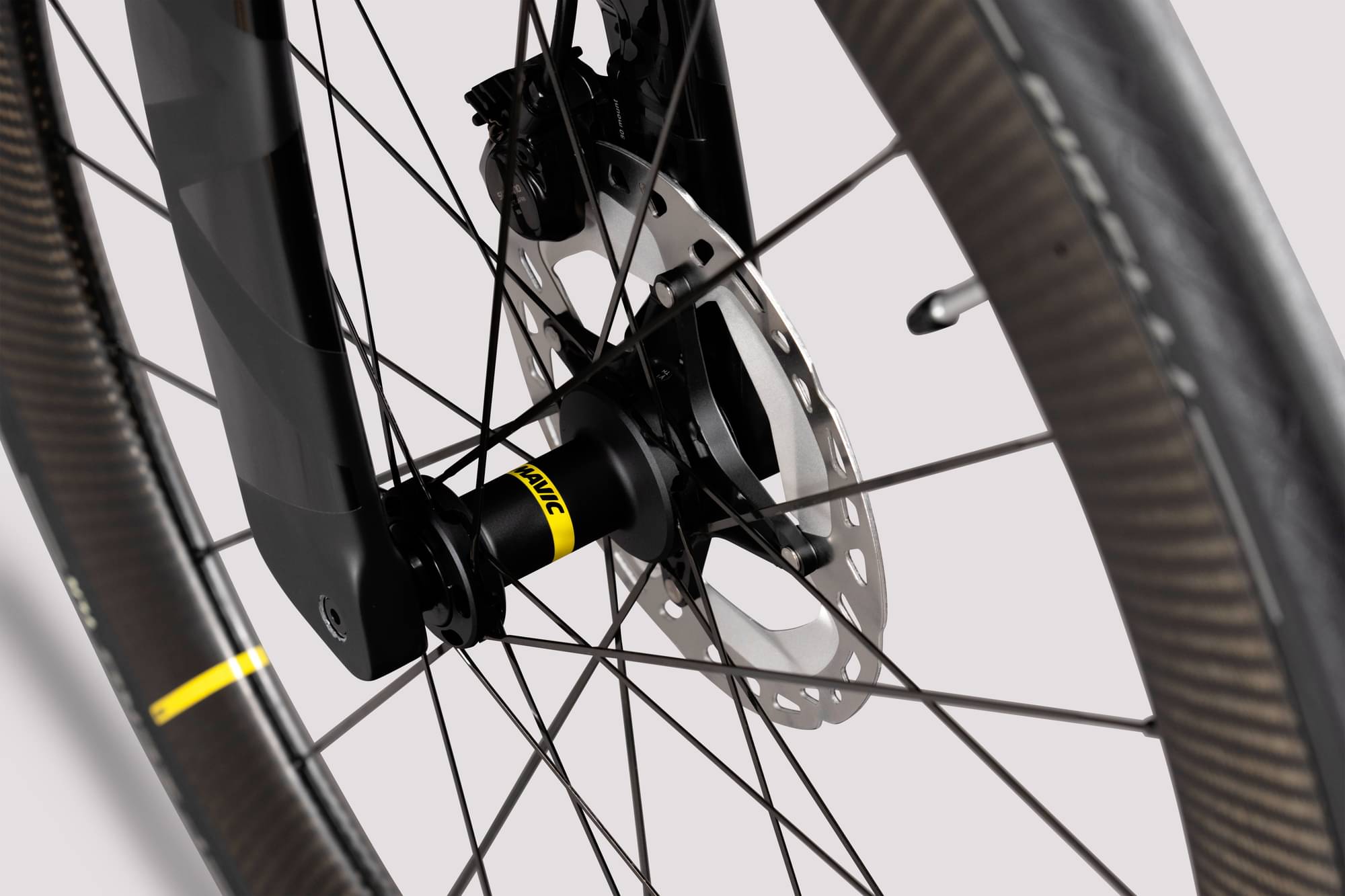

Cosmic SL 65 Disc Rear Wheel 700c CL HG
Tires
P Zero Road TLR Black 700x28mm

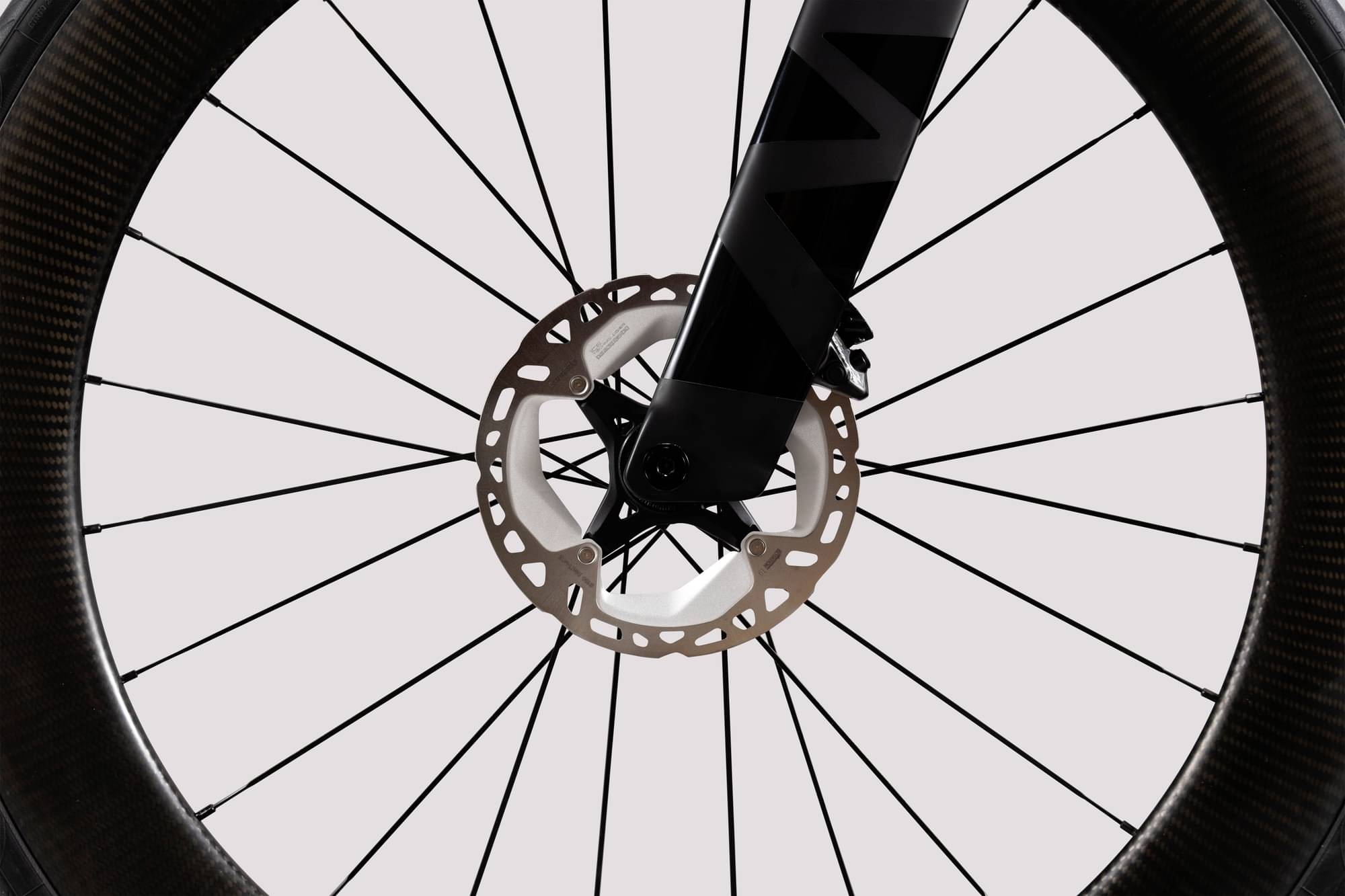

Brakes
Brakes
Disc Brake Hose Parts-Connector Insert Bulk 2.1mm

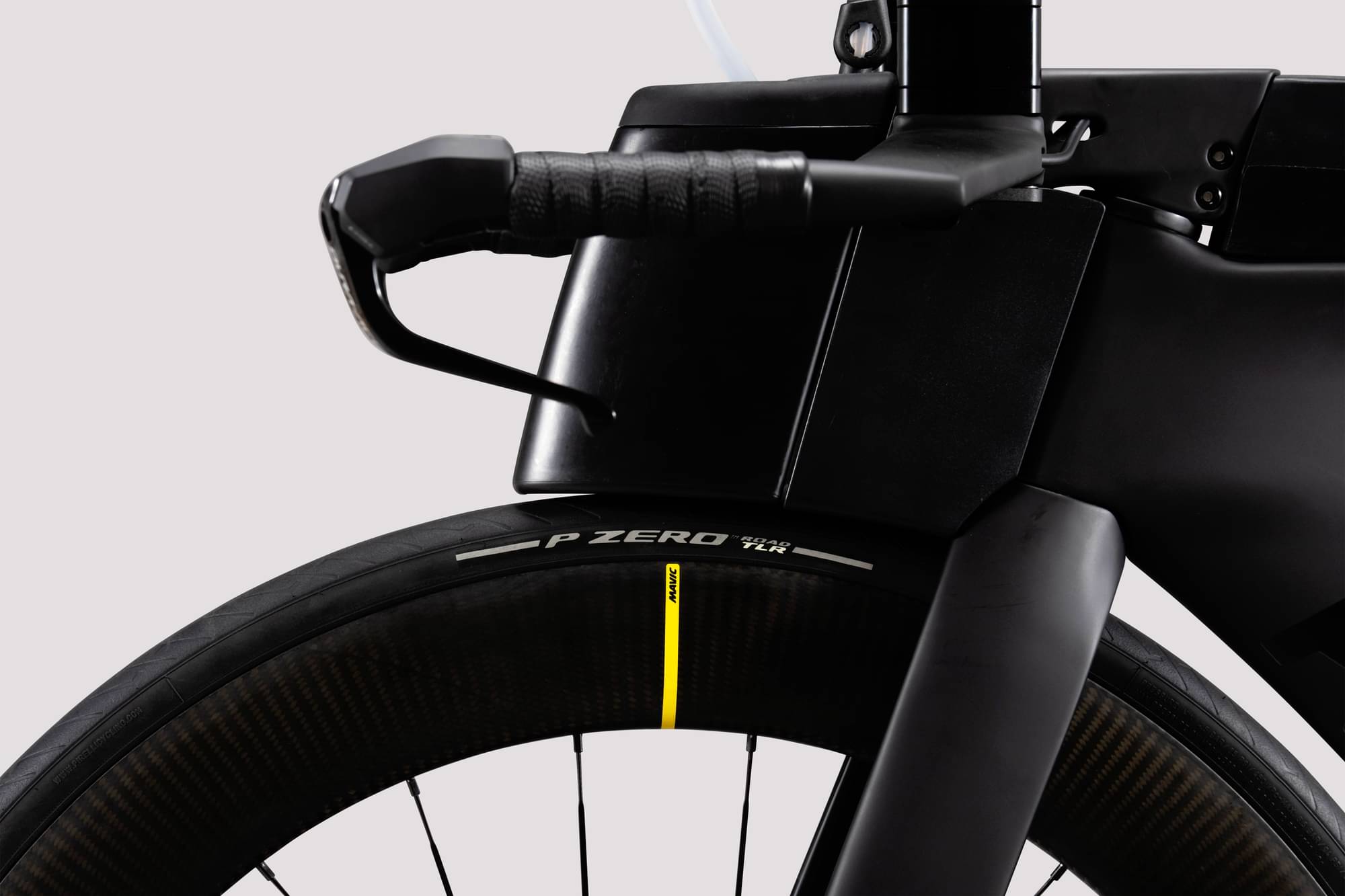

Brake Levers
ST-R9180 Dura-Ace Di2 STI Lever TT 2X LH

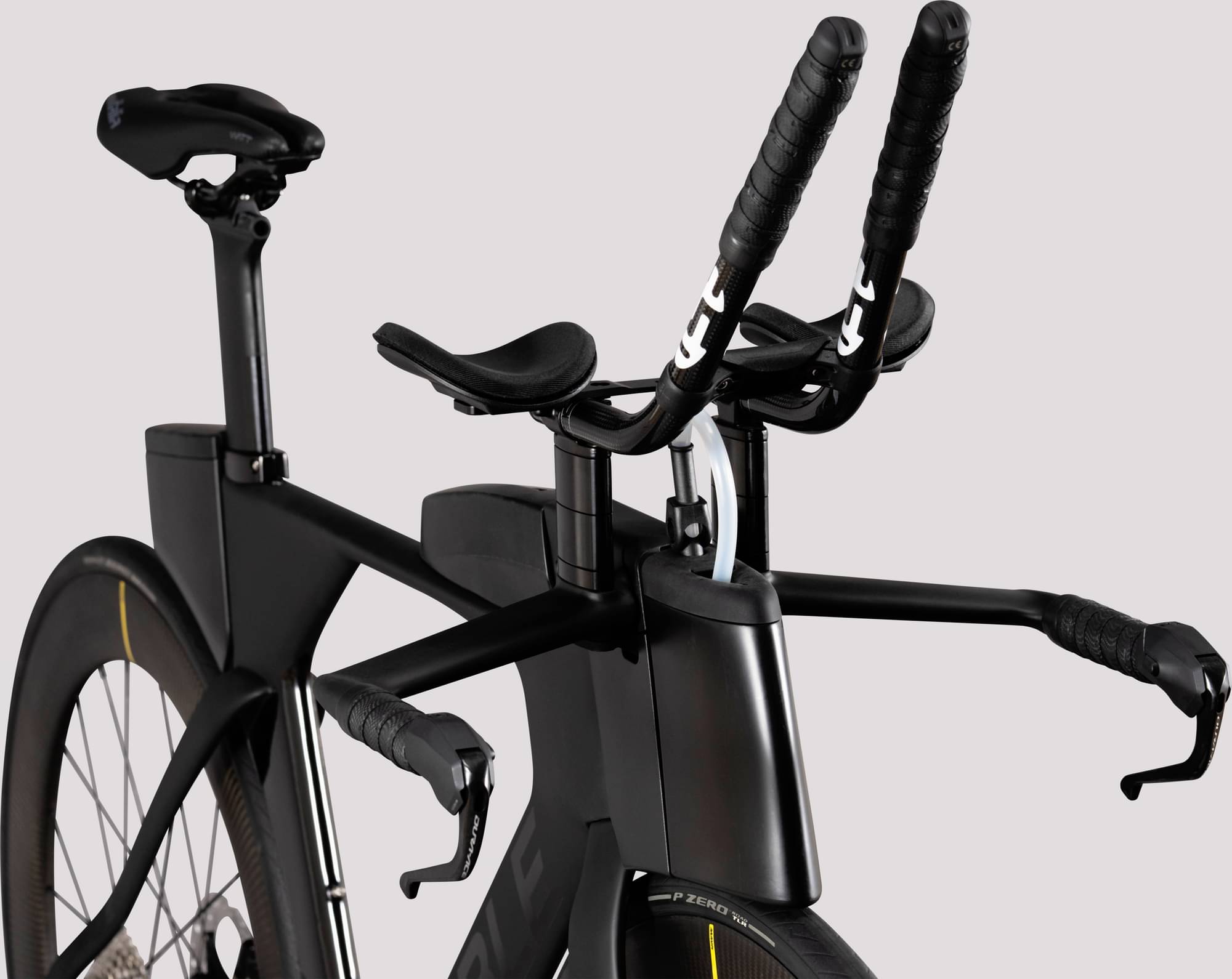

Cockpit
Stem
Stem For Ultra Tri Disc 90mm Matt Black

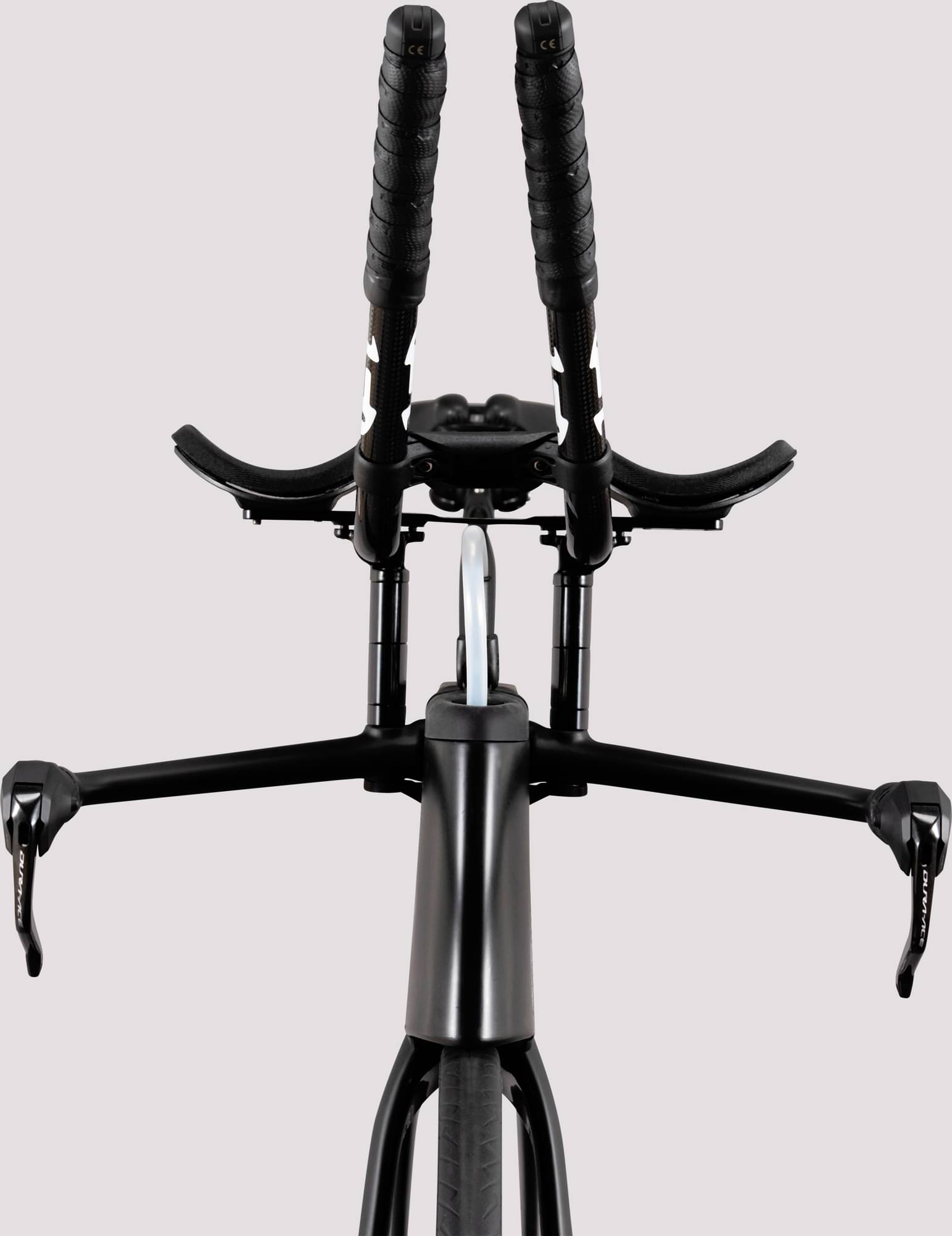

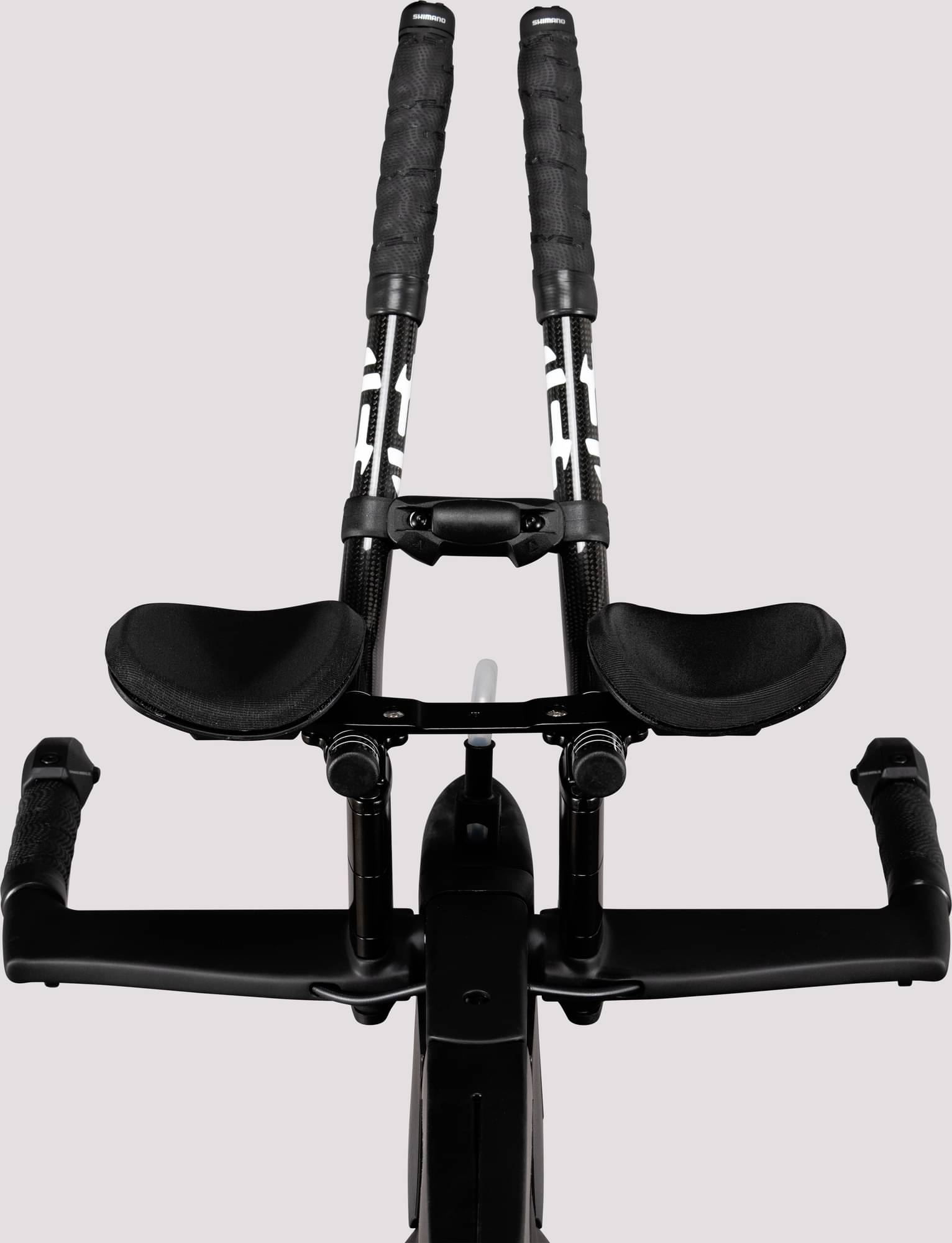

Handlebar

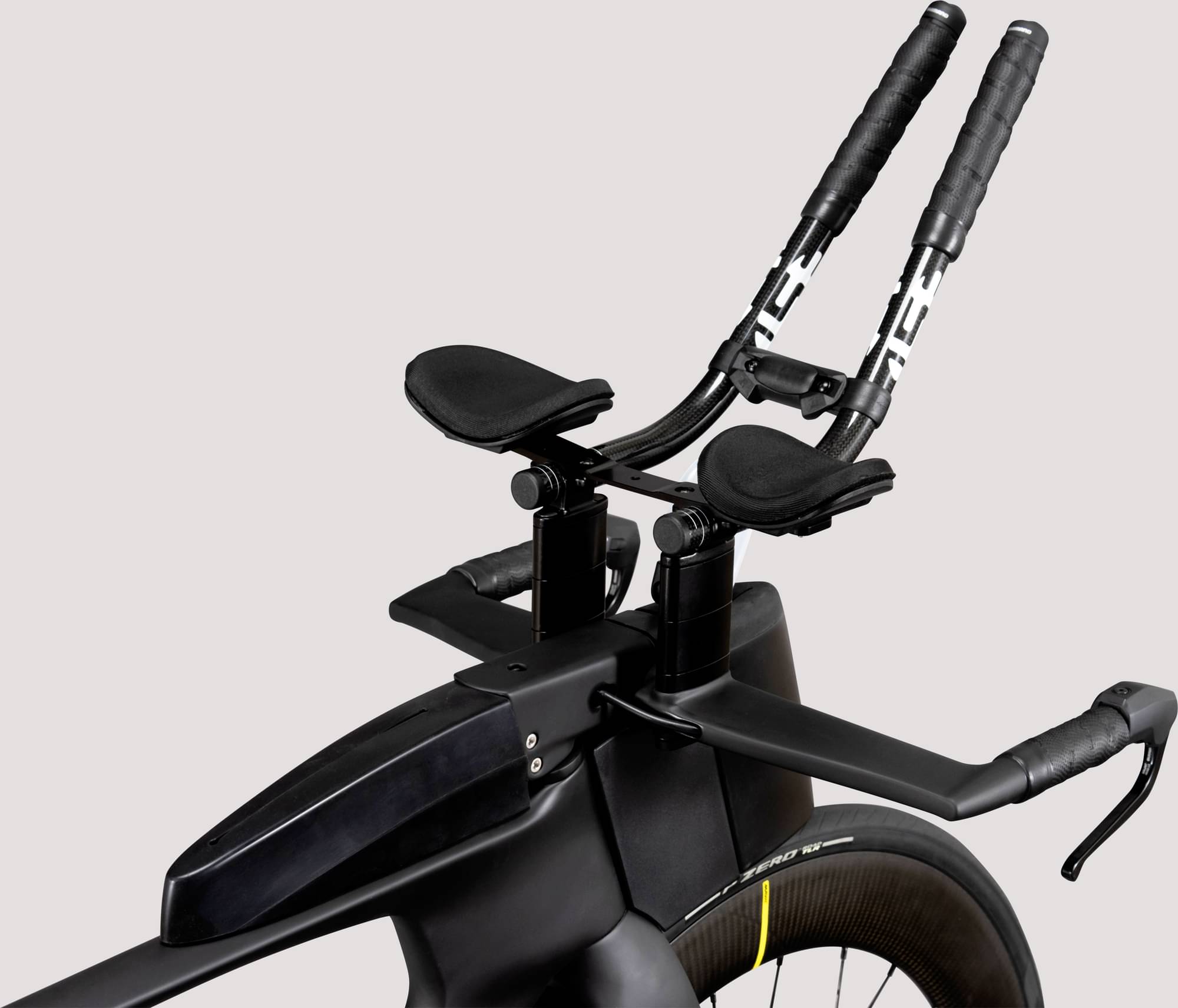

Ultra Tri Disc Carbon Base Bar - 40cm
Grips
Embossed Black Bar Tape
Headset
Expander For Carb Steerer 1-1/8 x 25mm (short)
Seat
Saddle

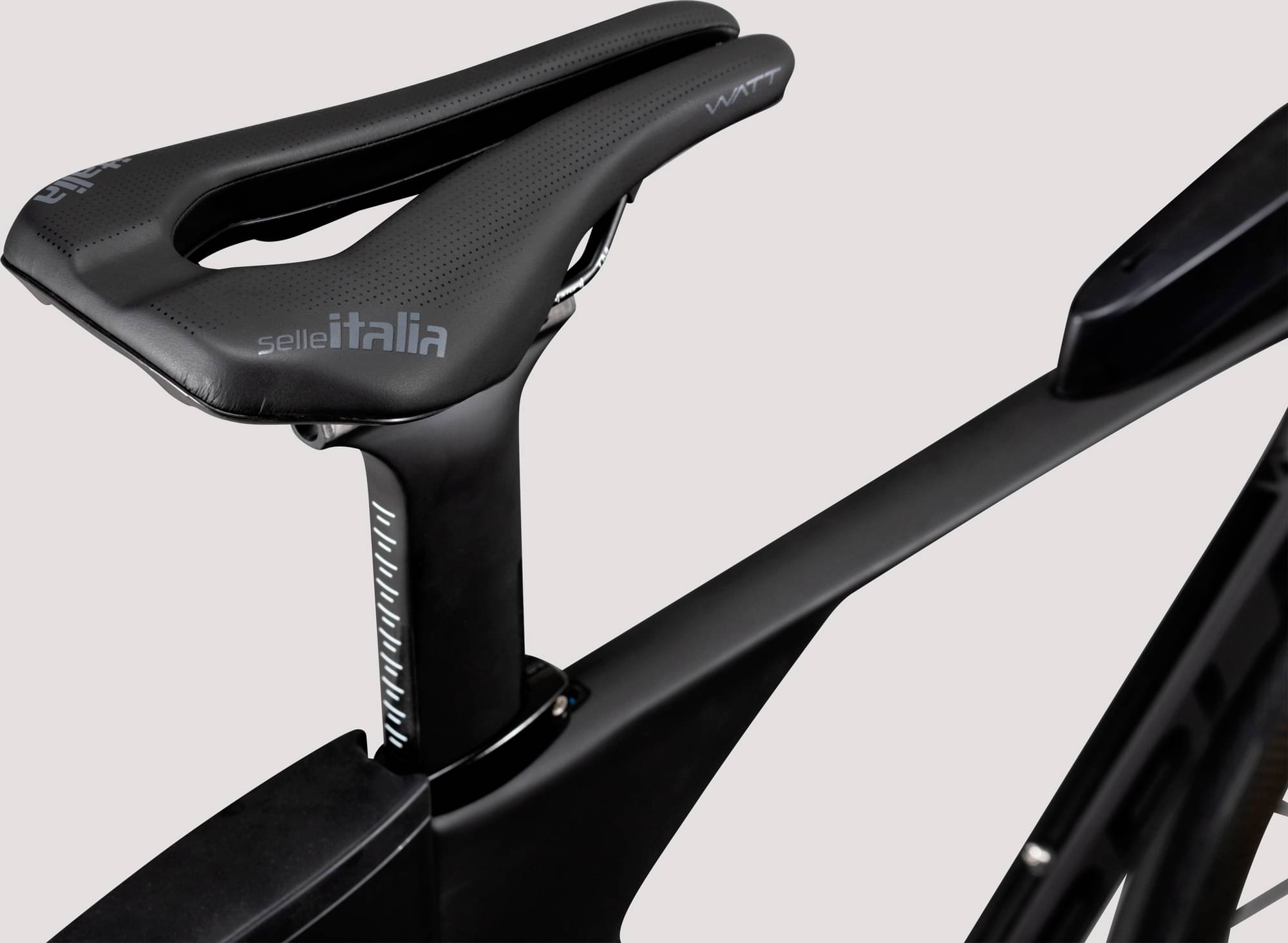

Watt Saddle
Seatpost
Ultra Tri Disc Seatpost Matt Black
Motor & Battery
Motor
JC41 Di2 Junction Box
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.288 mm | 1.203 mm | 1.219 mm | 1.234 mm | 1.248 mm |
| Stack | 479 mm | 480 mm | 506 mm | 532 mm | 558 mm |
| Reach | 372 mm | 399 mm | 415 mm | 431 mm | 447 mm |
| Top Tube Length | 492 mm | 520 mm | 540 mm | 565 mm | 585 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Head Tube Length | 80 mm | 80 mm | 107 mm | 134 mm | 161.4 mm |
| Chainstay Length | 387 mm | 387 mm | 387 mm | 387 mm | 387 mm |
| Wheelbase | 929 mm | 954 mm | 978 mm | 1002 mm | 1027 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 162 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 164 cm | 171 cm | 179 cm | 186 cm | 193 cm |
