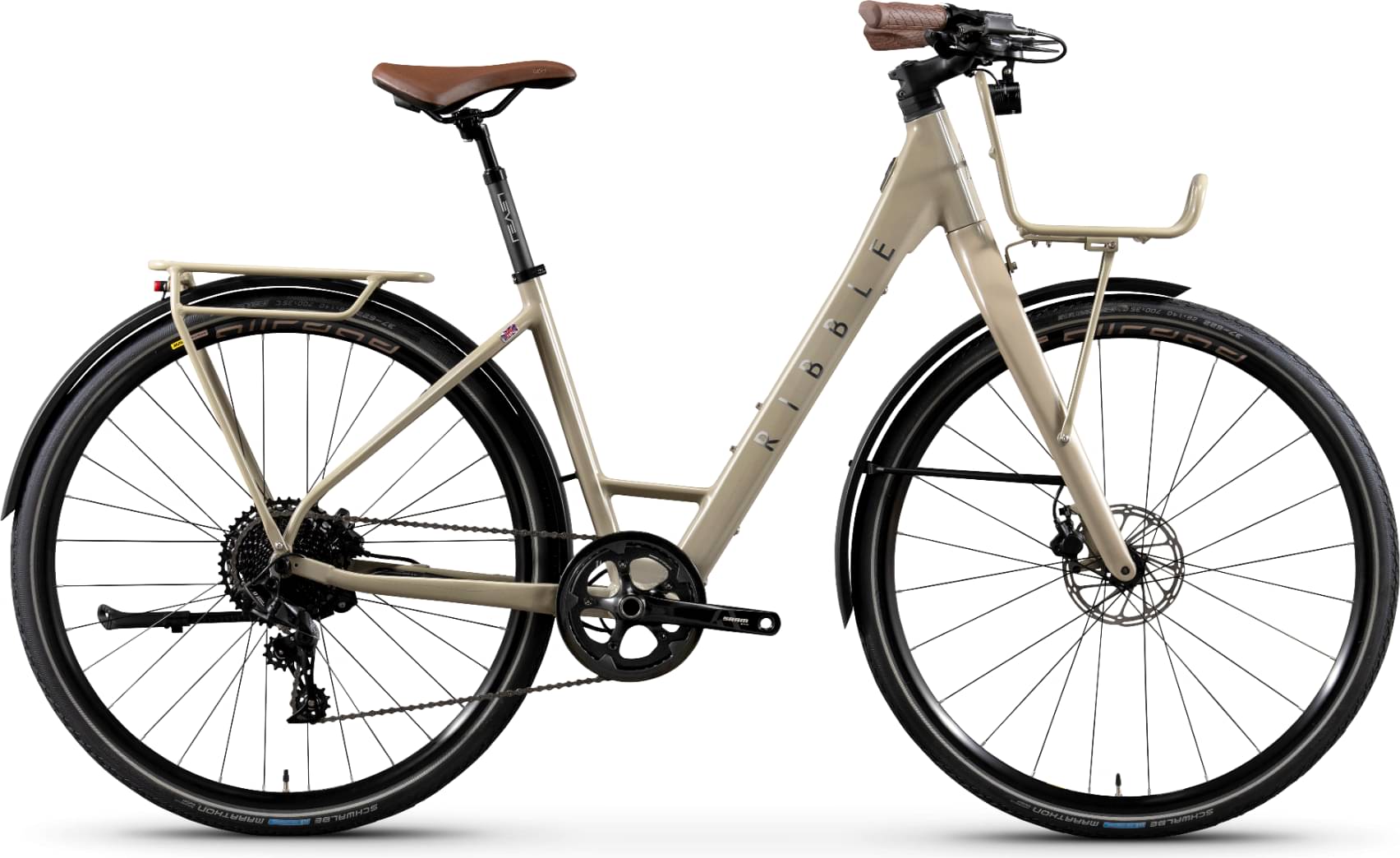

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset NX, Apex -
Suspension Rigid -
Motor hub-drive -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 169cm
MD
167cm - 179cm
LG
177cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Urban AL e Fork
Drivetrain
Shift Levers
NX Trigger Shifter With Discrete Clamp 11spd RH
Cassette
PG-1130 Cassette HG 11-42T
Crank
Apex 1 Chainset GXP 172.5mm 42T
Brakes
Brakes
Attack U Hydraulic Disc Brake Front Right PM
Motor & Battery
Motor
X35 Motor Lock Nut
Remote
X35 Manual - One Remote
Charger
X35 Charger C Without Wire
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.718 mm | 1.68 mm | 1.612 mm |
| Stack | 610 mm | 630 mm | 640 mm |
| Reach | 355 mm | 375 mm | 397 mm |
| Top Tube Length | 555 mm | 580 mm | 605 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1045 mm | 1070 mm | 1096 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 153 cm | 167 cm | 177 cm |
| Rider Max Height | 169 cm | 179 cm | 188 cm |
