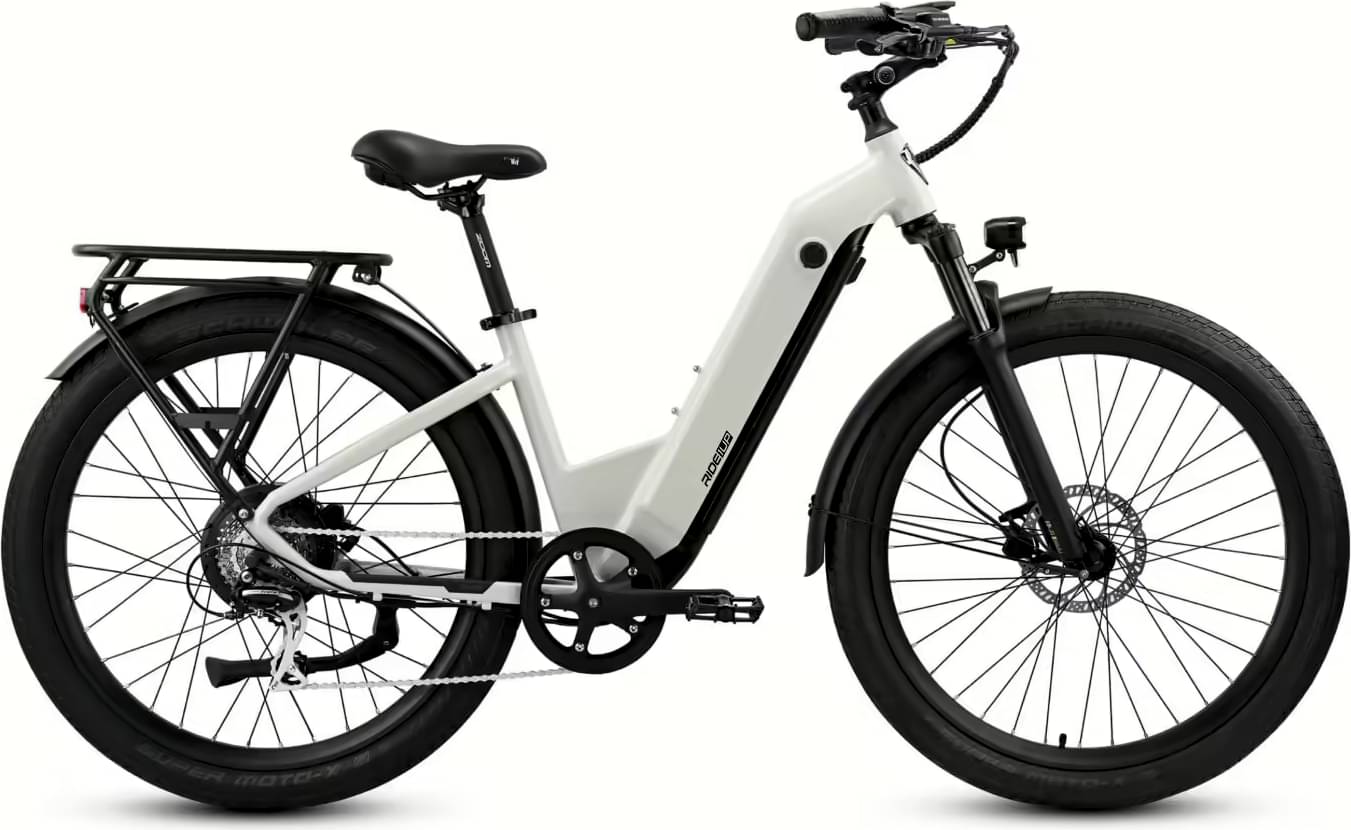

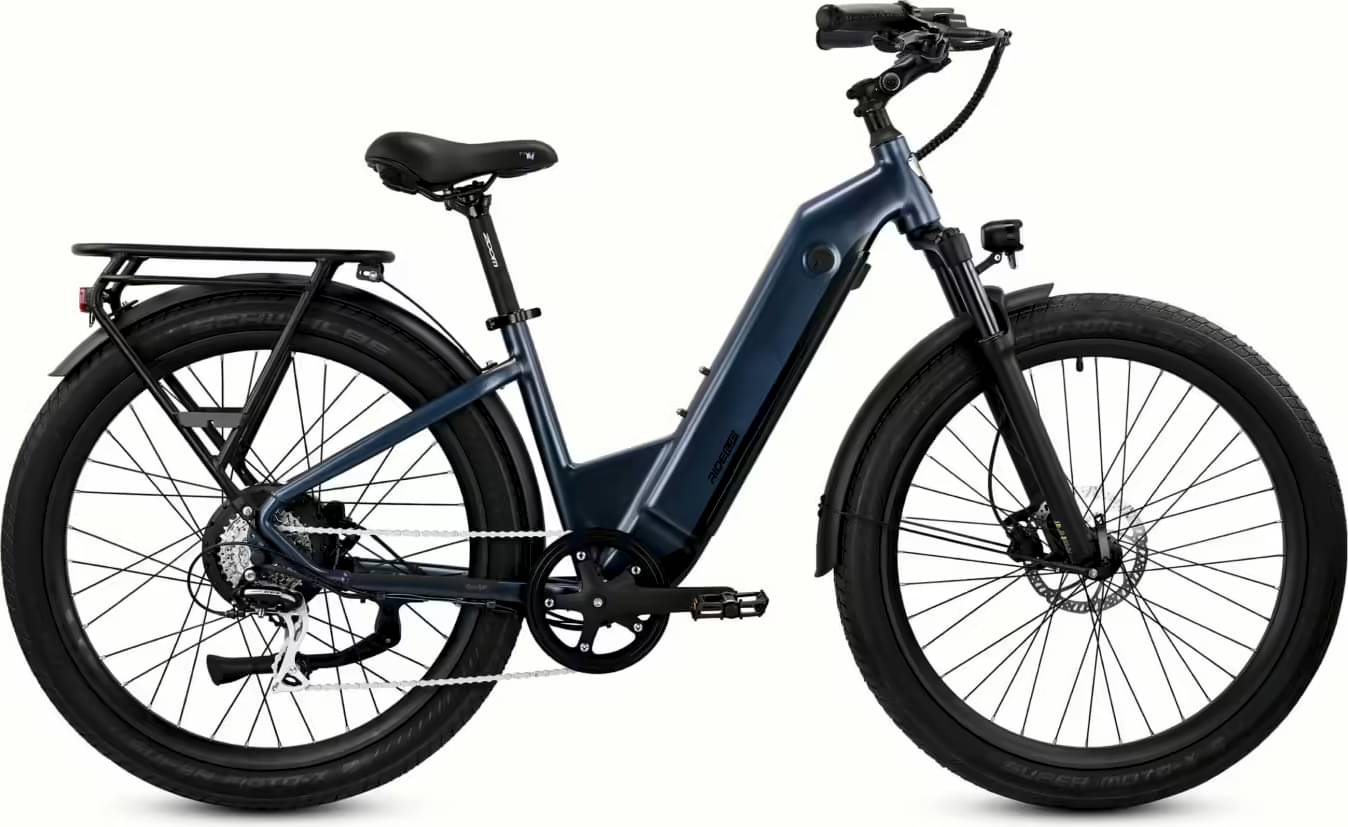

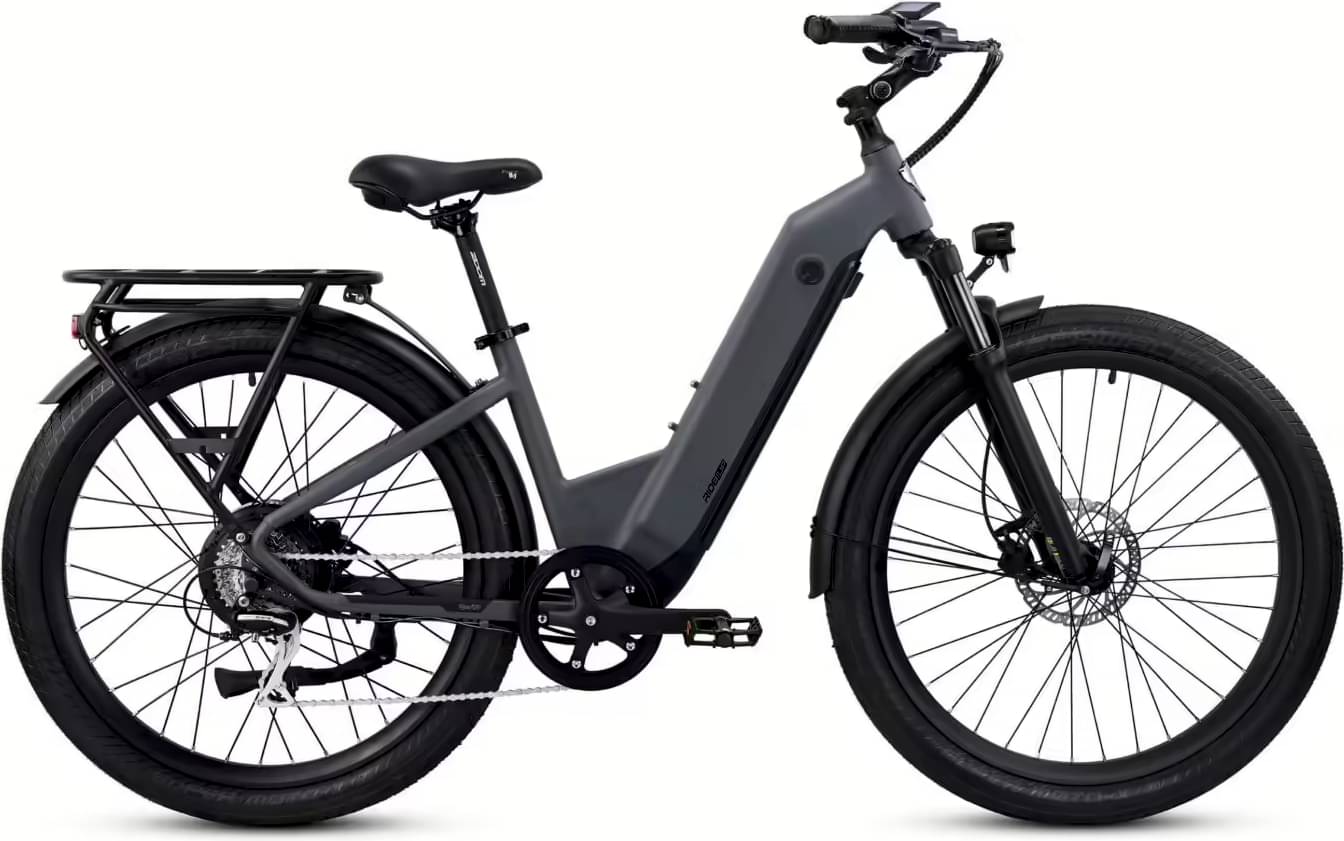

Ride1Up 700 Series ST 2024
2024 E-bike
Estimate price |
1,595$
Weight | 28.12 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Groupset Acera -
Suspension Hardtail -
Motor 750W hub-drive -
Battery 48V 15ah Reention Rhino, 39 x 21700 Samsung Cells. UL 2271 Certified -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
ST
152cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Mozo Hydraulic Lockout, 100mm Suspension Travel
Drivetrain
Rear Derailleur
Shimano Acera RD-M3000
Shift Levers
Shimano Acera 8-speed trigger shifter
Cassette
11-30T Shimano Cassette
Chain
KMC Professional 8-Speed Chain
Pedals
Wellgo Alloy Pedals
Wheels
Rims
3D Double Wall Rim, 33mm Width
Spokes
Stainless steel, 12G rear, 13G front
Tires
27.5”x2.4” High Performance Schwalbe Super-Moto X Tires
Brakes
Brakes
Tektro Dual Piston 180mm Hydraulic Brakes w/ Electric Cut-Off Sensor
Cockpit
Handlebar
ST Frame: City/Café Upright Handlebars XR Frame: Riser Bars, 31.8mm Bar, with 25mm Rise
Grips
VELO Faux-Leather Grips
Seat
Saddle
Selle Royal Freeway Plush Gel
Seatpost
Promax 31.6mm x 350mm Adjustable Angle
Motor & Battery
Motor
48V Angled Gear Hub AKM Motor 750w Sustained
Battery
48V 15ah Reention Rhino, 39 x 21700 Samsung Cells. UL 2271 Certified
Fit data
Geometry
