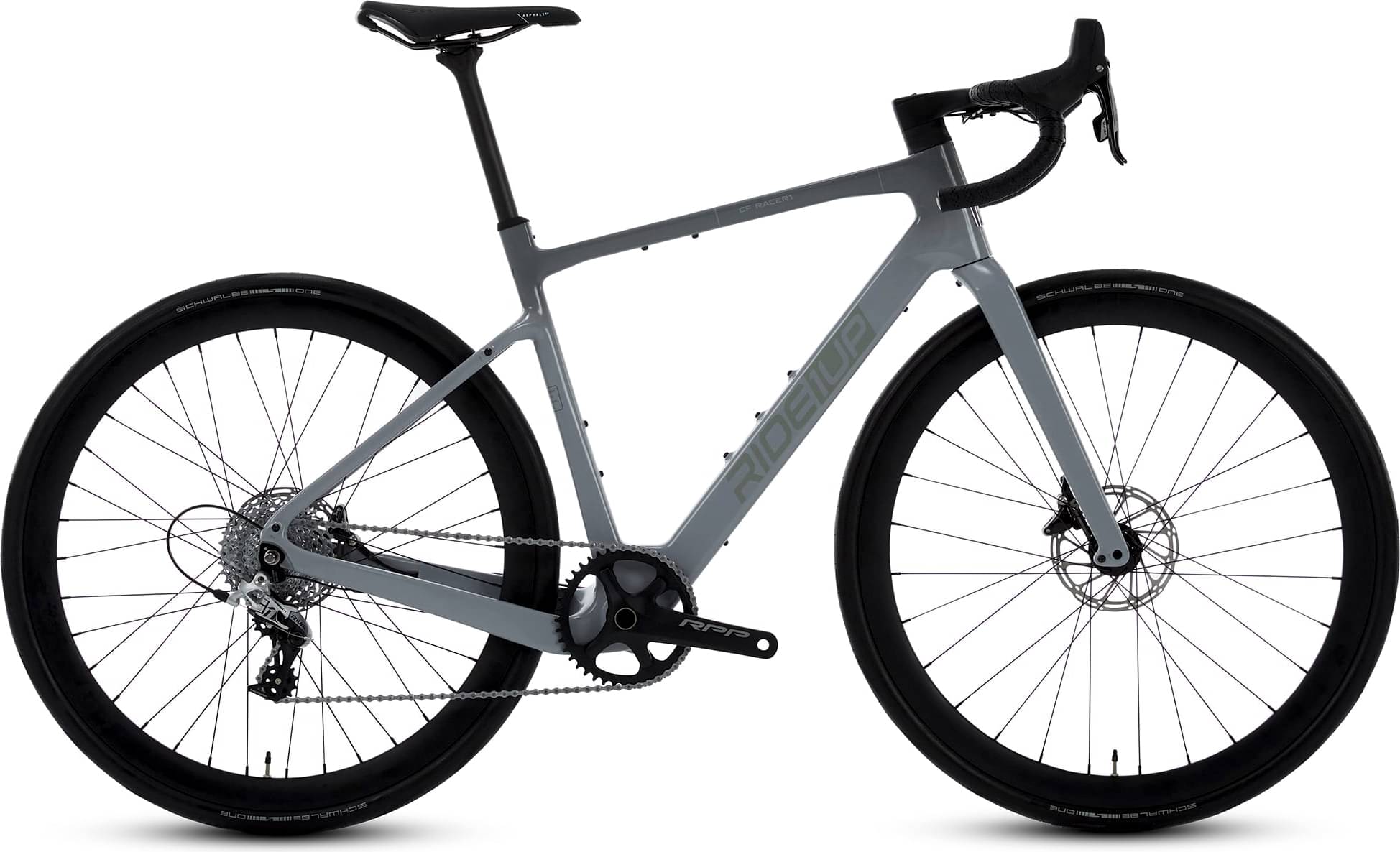

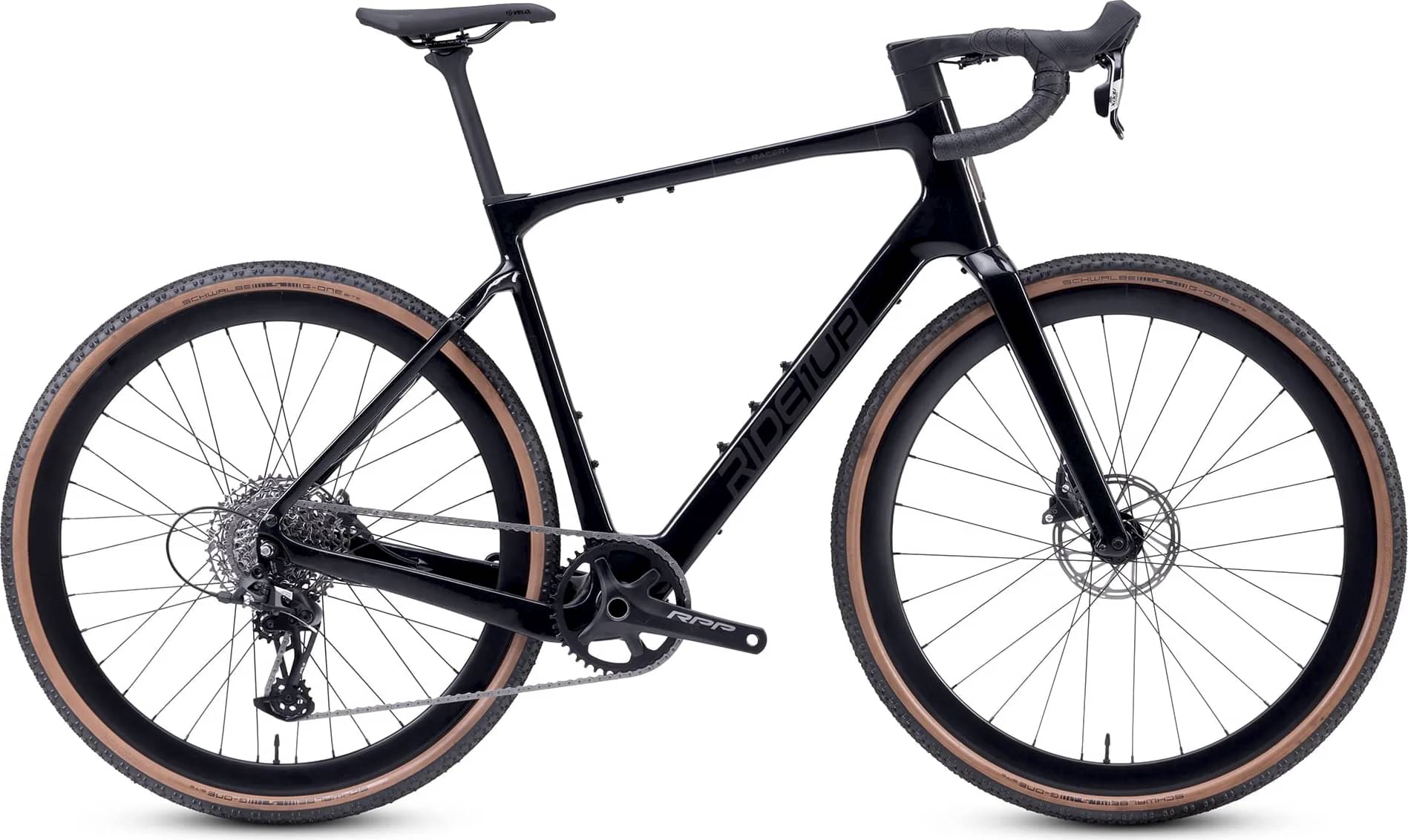

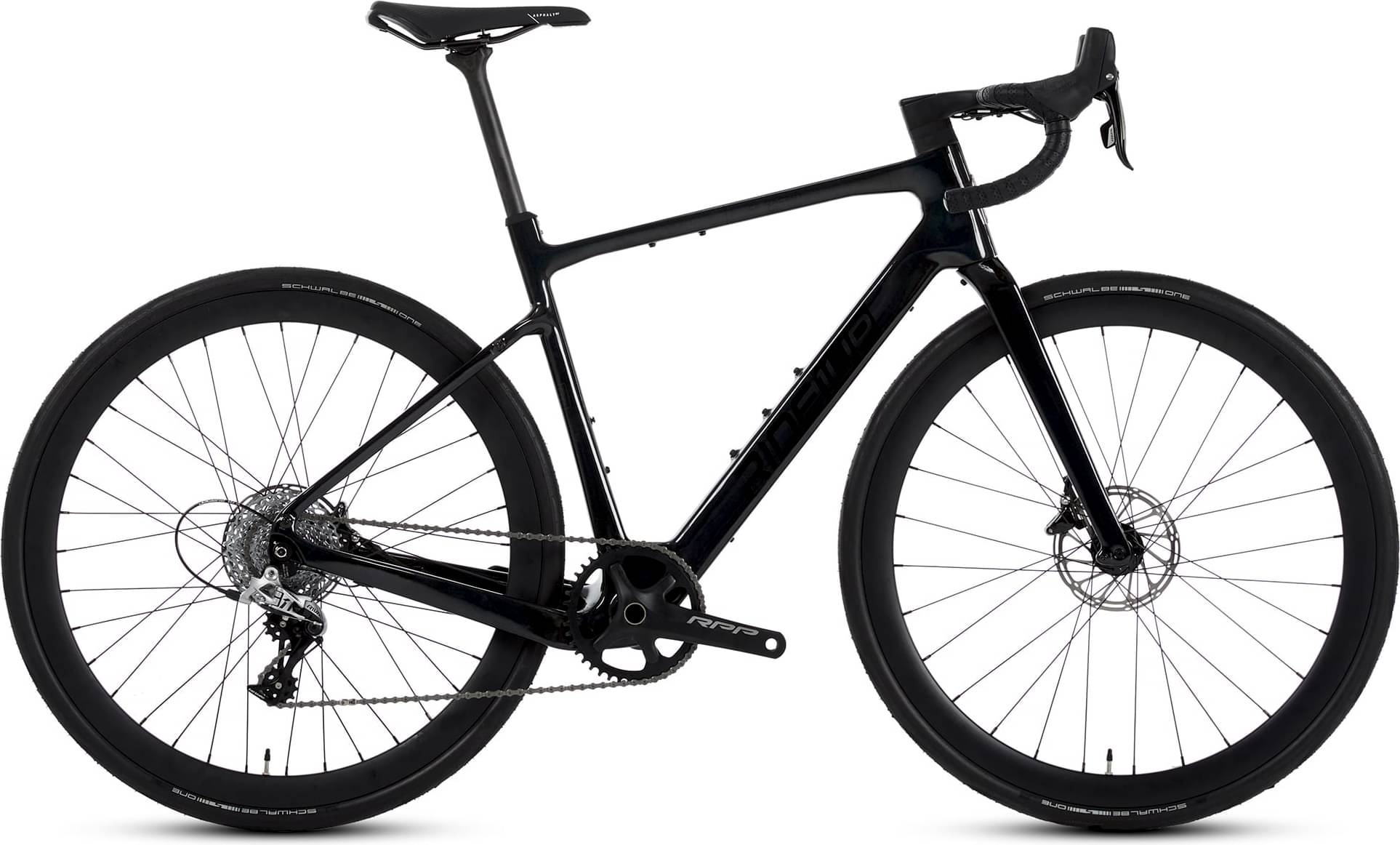

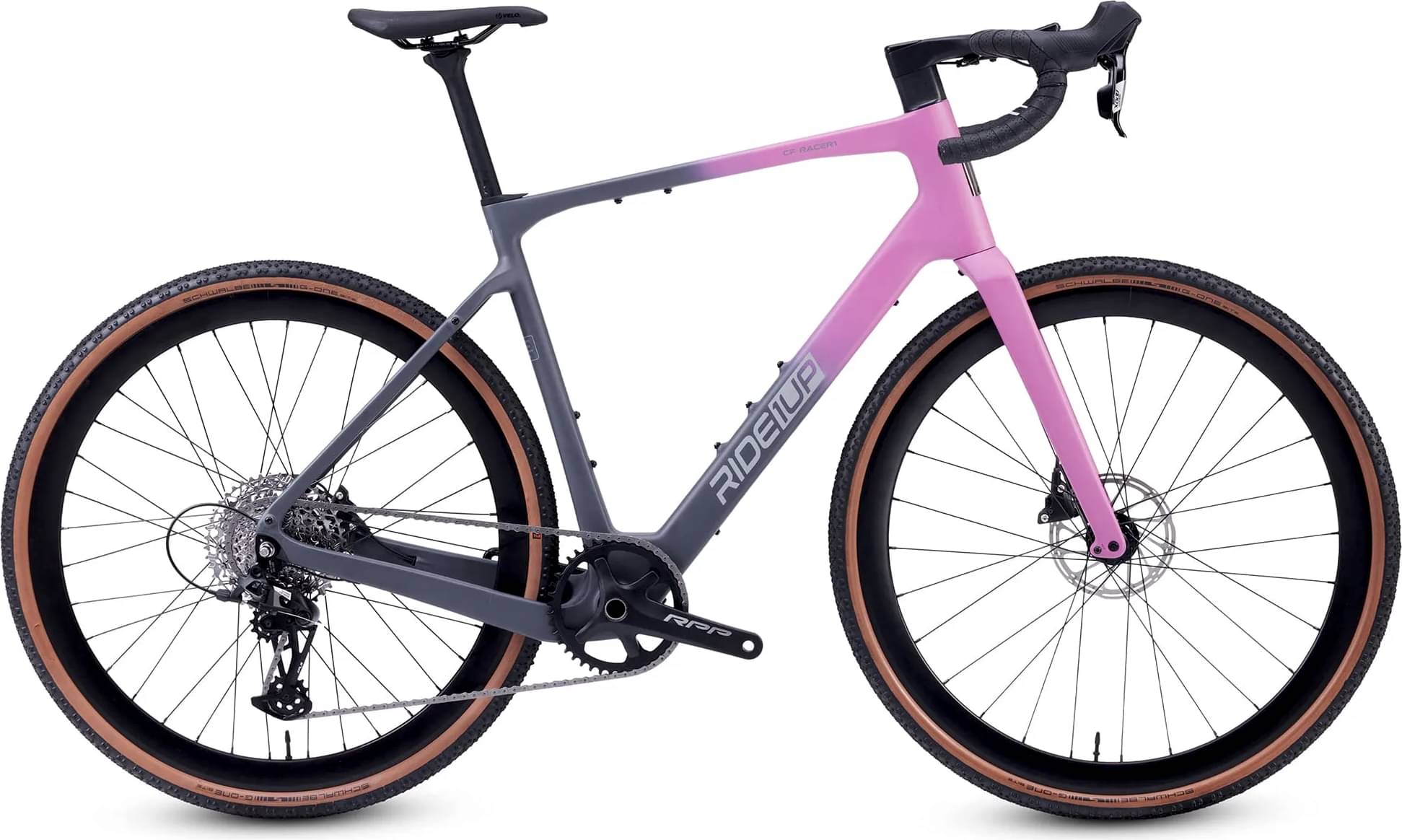

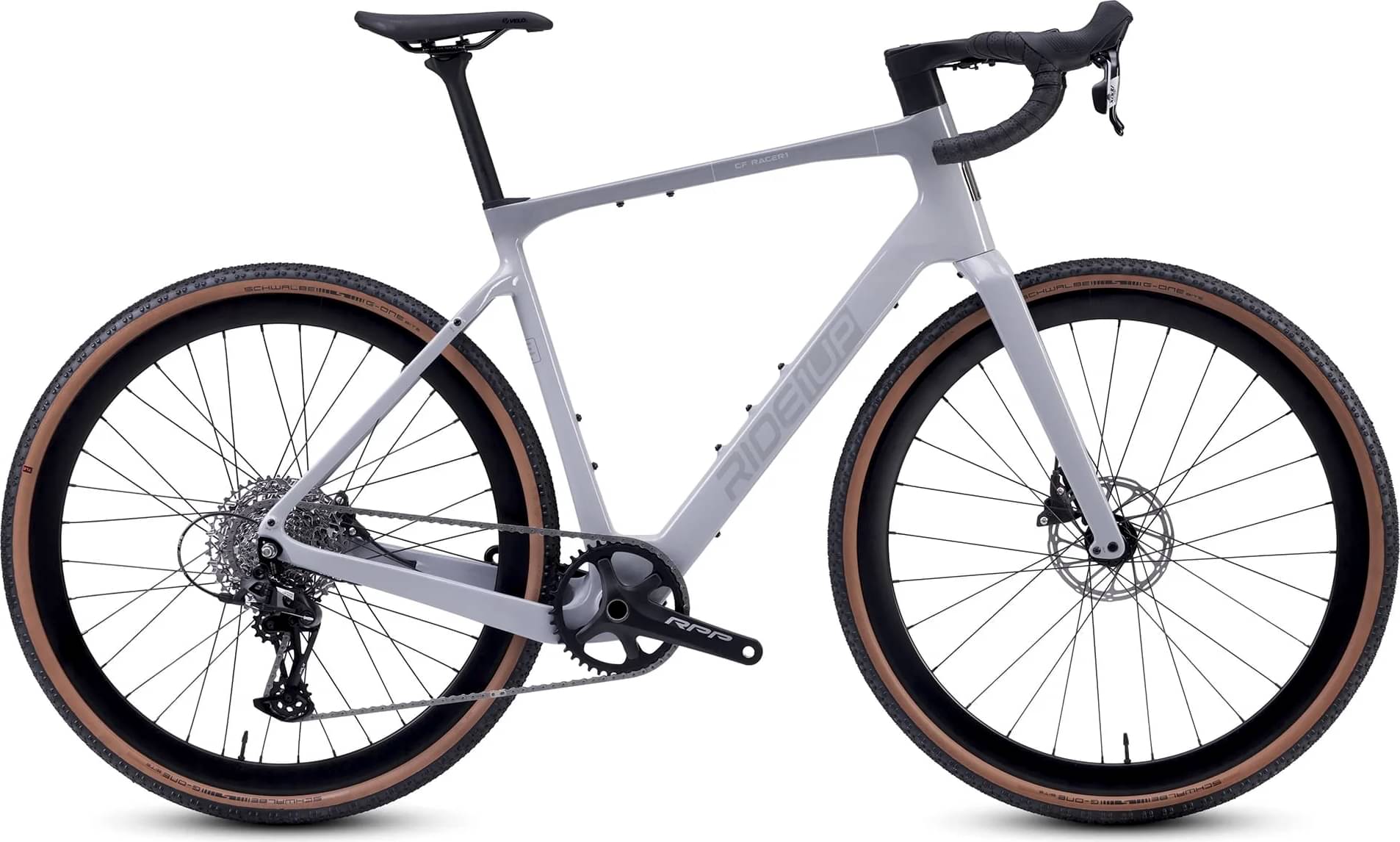

Ride1Up CF Racer1 2025
2025 E-bike
Estimate price |
2,295$
Weight | 12.97 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Apex -
Suspension Rigid -
Motor 250W 42Nm hub-drive -
Battery 36V 7Ah Internally Housed - Samsung Cells -
Brakes SRAM Apex Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 174cm
LG
171cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rigid Carbon
Drivetrain
Rear Derailleur
11-speed SRAM Apex
Shift Levers
SRAM Apex 11-Speed Doubletap Shifters
Cassette
Gravel: SRAM PG1130 11-42T, Road: SRAM PG1130 11-36T
Chain
SRAM 11-Speed
Pedals
Flat Platform Flange Pedals
Wheels
Rims
Double Walled Aluminum, 40mm deep, 19.5mm internal width
Spokes
Sapim 14G
Tires
Schwalbe G-One Tubeless 700x40c
Brakes
Brakes
160mm SRAM Apex Hydraulic Disc
Cockpit
Stem
90mm extension, single-piece carbon fiber
Grips
PU Leather Bar Wrap
Seat
Saddle
Selle Royale Asphalt GF
Seatpost
Carbon 27.2x300mm
Motor & Battery
Motor
36V 250W Geared Hub Motor, 42nm torque
Battery
36V 7Ah Internally Housed - Samsung Cells
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.524 mm | 1.602 mm |
| Stack | 573 mm | 615 mm |
| Reach | 376 mm | 384 mm |
| Top Tube Length | 545.5 mm | 572 mm |
| Seat Tube Angle | 73.5 ° | 73 ° |
| Seat Tube Length | 500 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° |
| Head Tube Length | 150 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm |
| Wheelbase | 1028 mm | 1040 mm |
| Standover Height | 751 mm | 806 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 160 cm | 171 cm |
| Rider Max Height | 174 cm | 190 cm |
