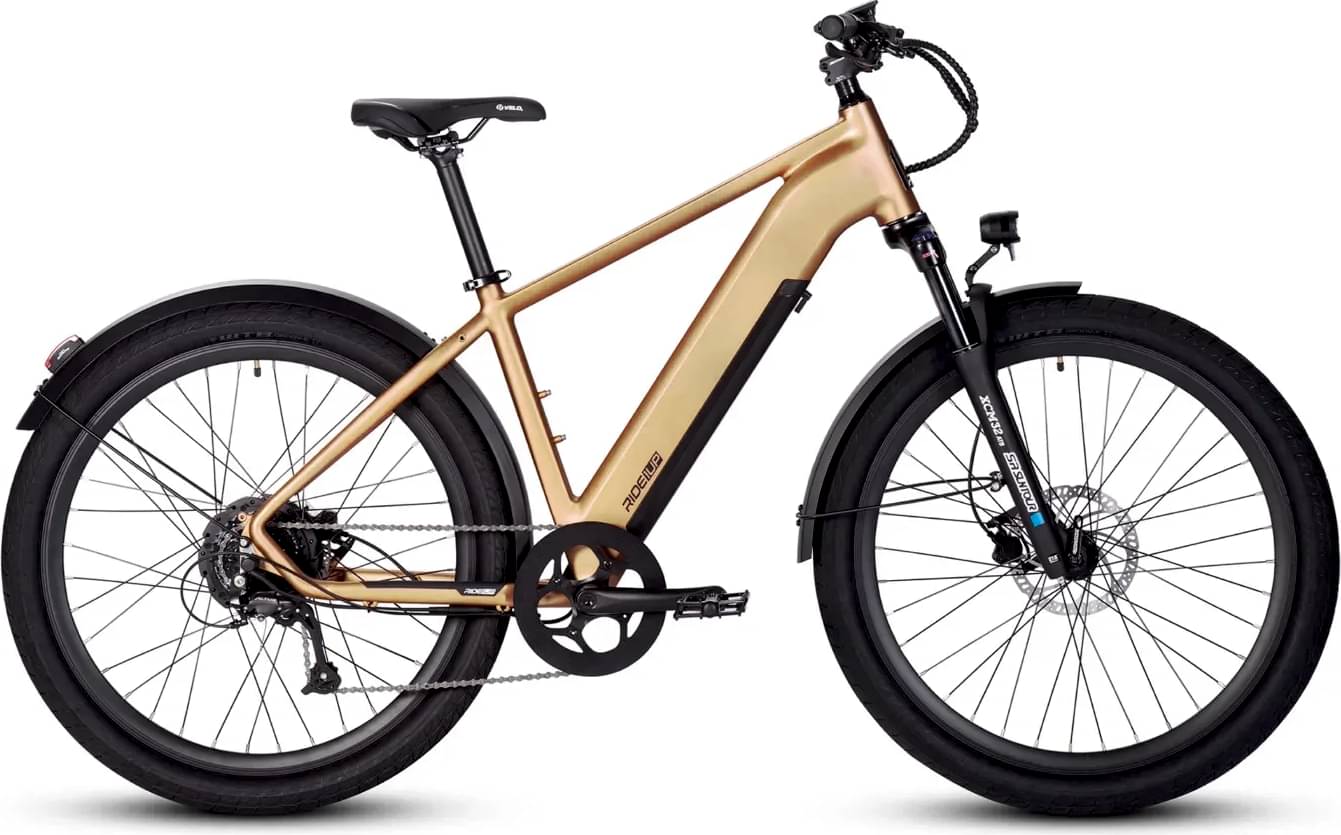

Ride1Up LMT’D V2 XR 2025
2025 E-bike
Estimate price |
1,595$
Weight | 24.95 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor 750W 90Nm hub-drive -
Battery 48V 14Ah Reention Prism LG Cells, Smart BMS. UL 2271 Certified -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
XR
167cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
SR Suntour XCM32 ATB 100mm travel coil suspension fork with adjustable preload and hydraulic lockout
Drivetrain
Rear Derailleur
Shimano RD-M370
Shift Levers
Shimano 8-speed rapidfire plus
Cassette
Shimano CS-HG200-8, 8-speed
Chain
KMC Z8.3 8-speed chain
Wheels
Spokes
Black stainless steel, 13G
Tires
WTB GROOV-E 27.5"x2.4"
Brakes
Brakes
Tektro HD-M285 180mm hydraulic
Cockpit
Stem
Promax 28.6mm, 45mm ext. 31.8mm bar clamp
Grips
Ergonomic locking rubber grips
Seat
Saddle
Velo comfort gel
Seatpost
350mm x 31.6mm Dual Bolt
Motor & Battery
Motor
48V Angled-Gear Hub 90 Nm Torque AKM Motor 750w Sustained
Battery
48V 14Ah Reention Prism LG Cells, Smart BMS. UL 2271 Certified
Fit data
Geometry
