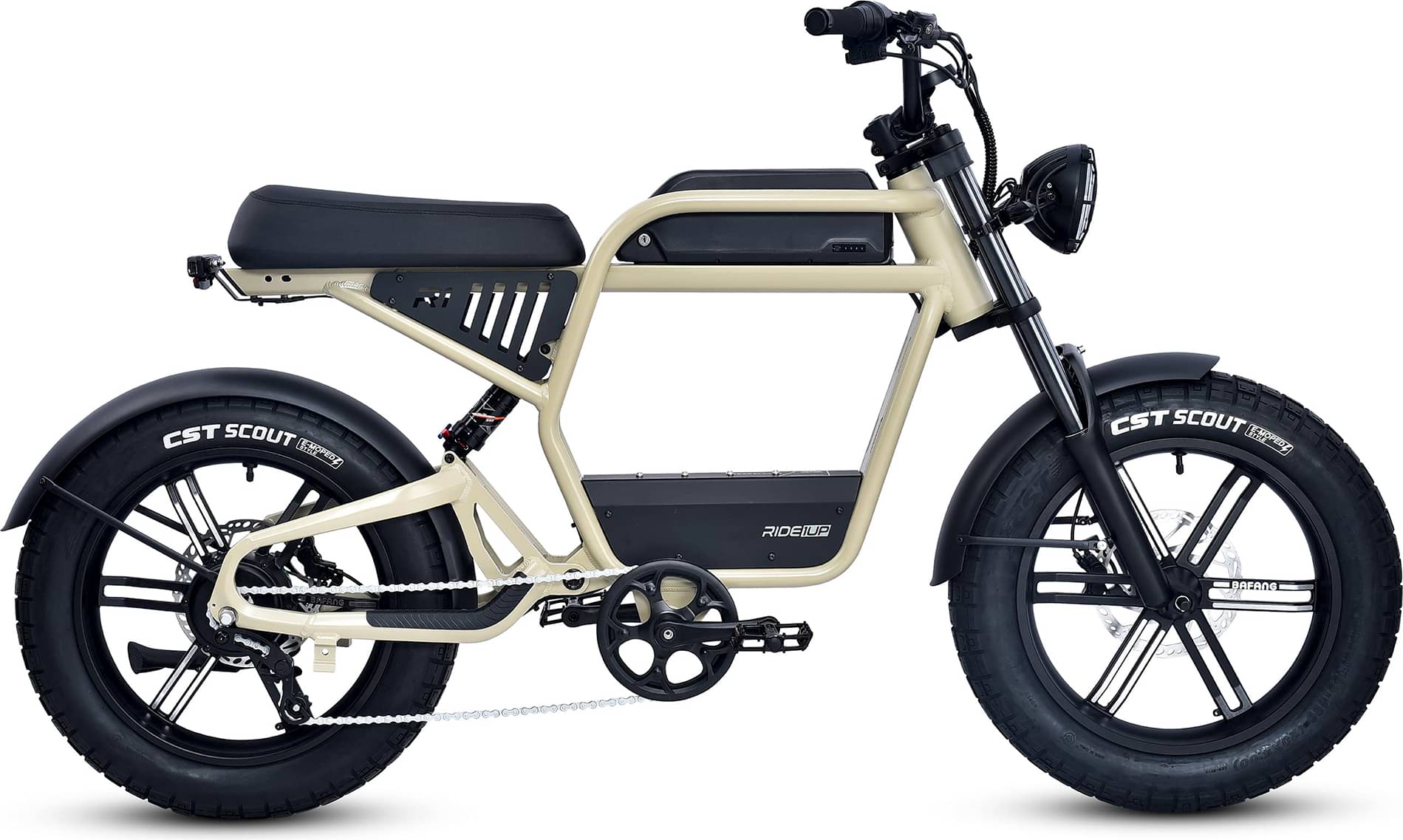

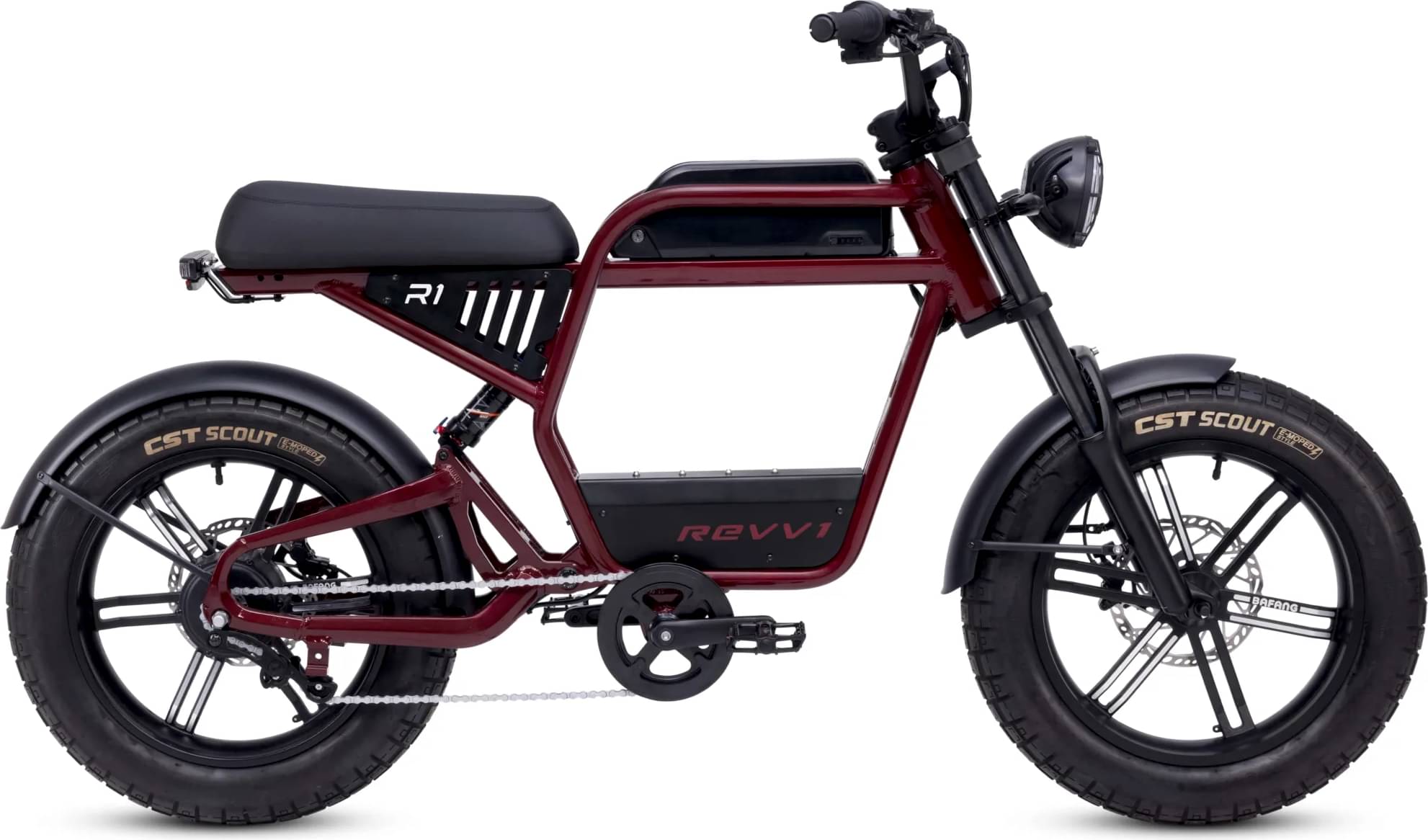

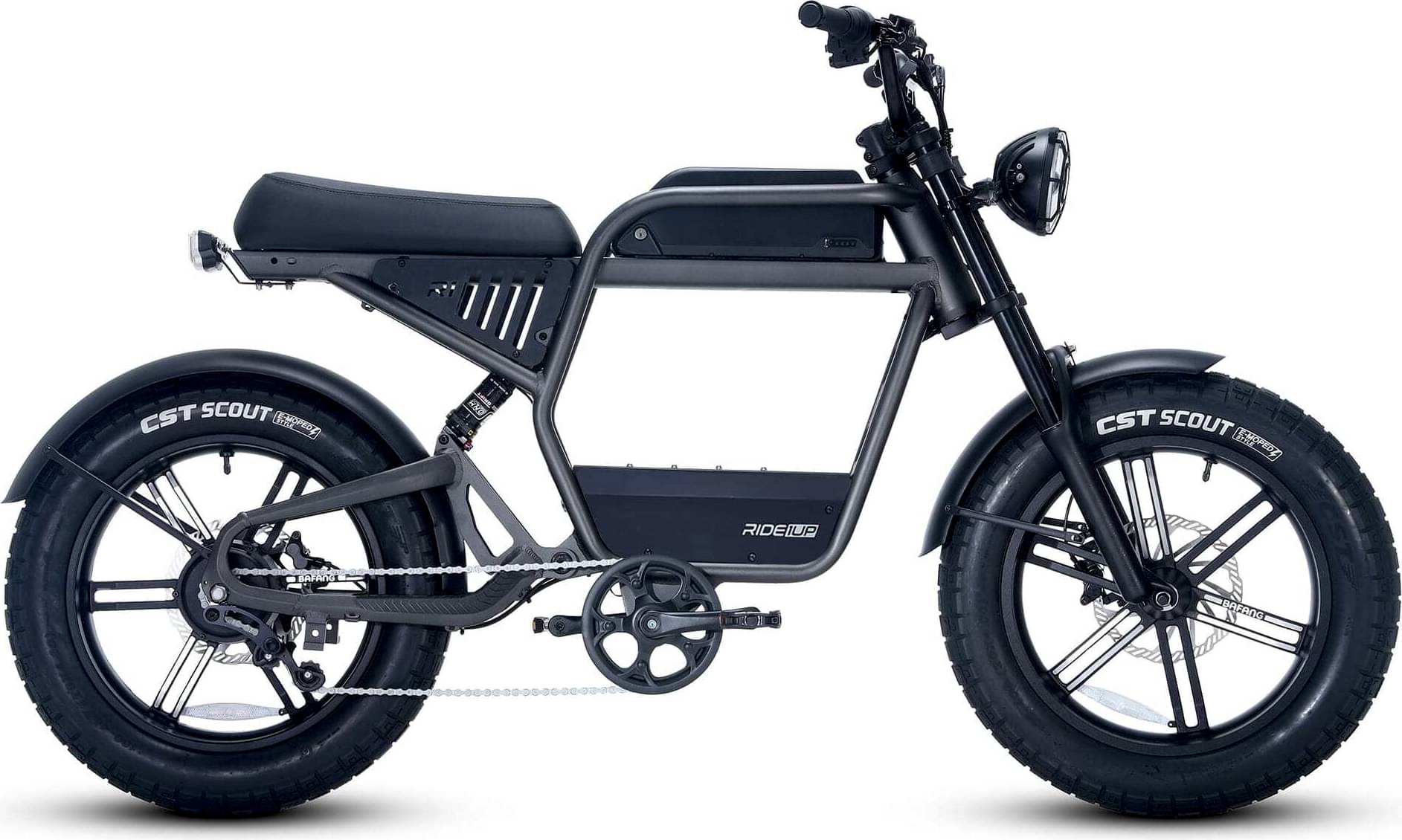

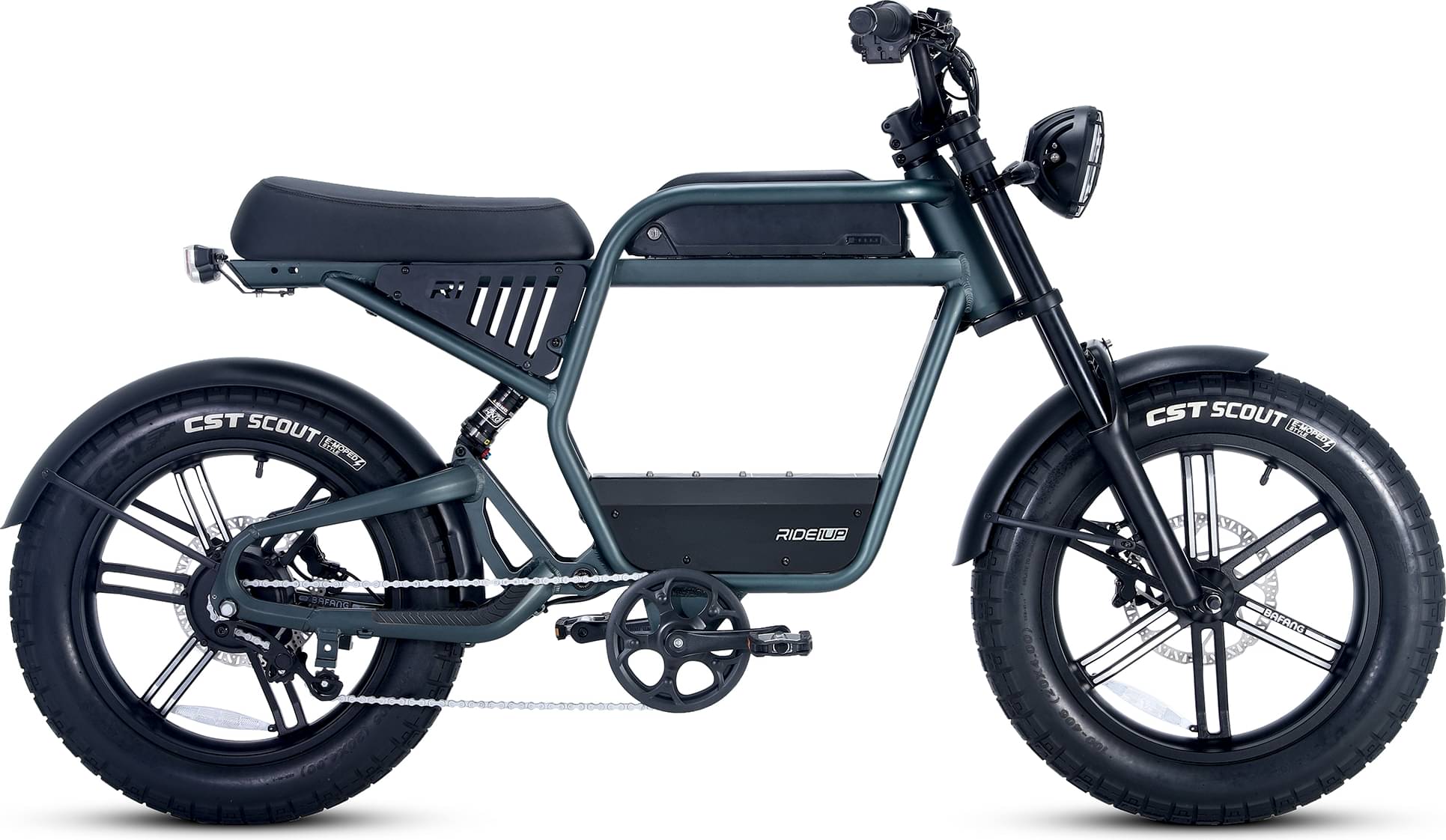

Ride1Up Revv 1 FS 2025
2025 E-bike
Estimate price |
2,495$
Weight | 42.18 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Suspension Hardtail -
Motor Bafang hub-drive -
Battery 52V 15ah, Samsung 50E 21700 Cells (42 cells). UL 2271 Certified -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
FS
157cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
100mm, Rebound adjust and hydraulic lockout
Drivetrain
Crank
42T Chainring w/127mm cranks
Chain
KMC Pro
Pedals
Alloy Black Pedals
Wheels
Spokes
12G Stainless Steel
Tires
Kenda Krusade 20x4.0"
Brakes
Brakes
4-piston LBN 203mm Hydraulic Disc Brakes w/ Electric Cut-Off Sensor
Cockpit
Stem
Promax. Height: 45mm, Rise: 6°
Handlebar
Width: 720mm, Sweep: 25°, Rise: 120mm
Grips
Anti-slip Rubber Grips
Seat
Saddle
Customized cafe style saddle
Motor & Battery
Motor
52V Bafang RM G0F4.1000
Battery
52V 15ah, Samsung 50E 21700 Cells (42 cells). UL 2271 Certified
Fit data
Geometry
