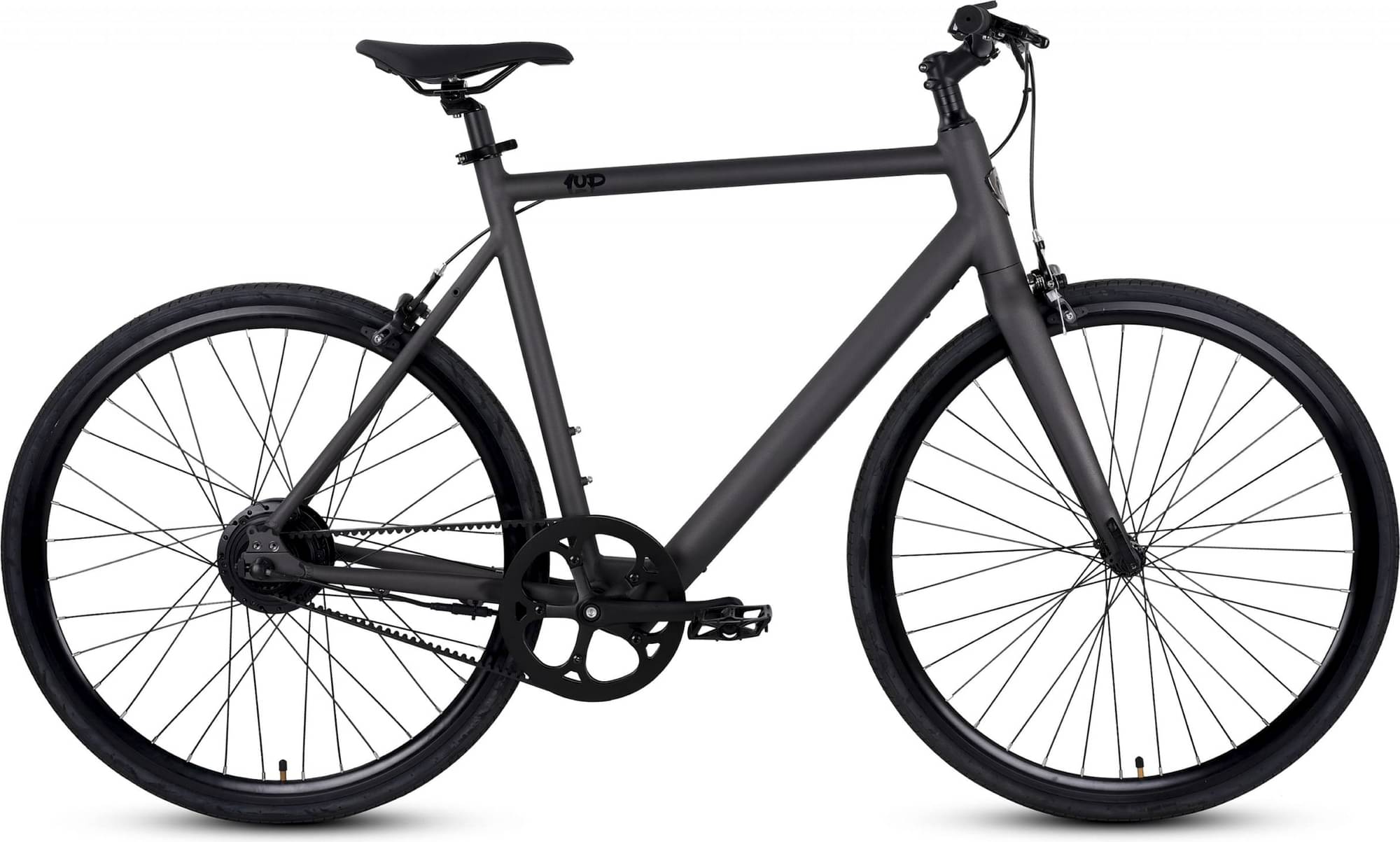

Ride1Up Roadster v2 2024
2024 E-bike
Estimate price |
895$
Weight | 14.97 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Motor 350W hub-drive -
Battery 36V 7.0ah Samsung 35e Cells -
Brakes Rim
Sizing
Recommended size guide.
SM
160cm - 174cm
LG
171cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Pedals
9/16" Wellgo Alloy
Wheels
Spokes
13G Black Stainless Steel
Tires
Kenda Kwest 700Cx28
Brakes
Brakes
Tektro R315 Dual Pivot Brakes
Brake Levers
Alloy with Rubber-pad Inserts
Cockpit
Stem
60mm x 20° - 25.4mm handlebar clamp, 28.6mm tube clamp
Handlebar
25.4 mm x 550 mm Narrow Road Riser Bars
Grips
Durable Rubber Velo Round Grips
Seat
Saddle
Custom Gel Ergonomic Road Saddle
Seatpost
350 mm x 30.4 mm
Motor & Battery
Motor
500w (peak) 350w (nominal) Geared Hub Shengyi
Battery
36V 7.0ah Samsung 35e Cells
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG |
|---|---|---|
| Stack Reach Ratio | 1.521 mm | 1.436 mm |
| Stack | 575 mm | 599 mm |
| Reach | 378 mm | 417 mm |
| Top Tube Length | 548 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 500 mm | 560 mm |
| Head Tube Angle | 70 ° | 71 ° |
| Head Tube Length | 160 mm | 180 mm |
| Chainstay Length | 424 mm | 424 mm |
| Wheelbase | 1026 mm | 1054 mm |
| Standover Height | 774 mm | 838 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 160 cm | 171 cm |
| Rider Max Height | 174 cm | 190 cm |
