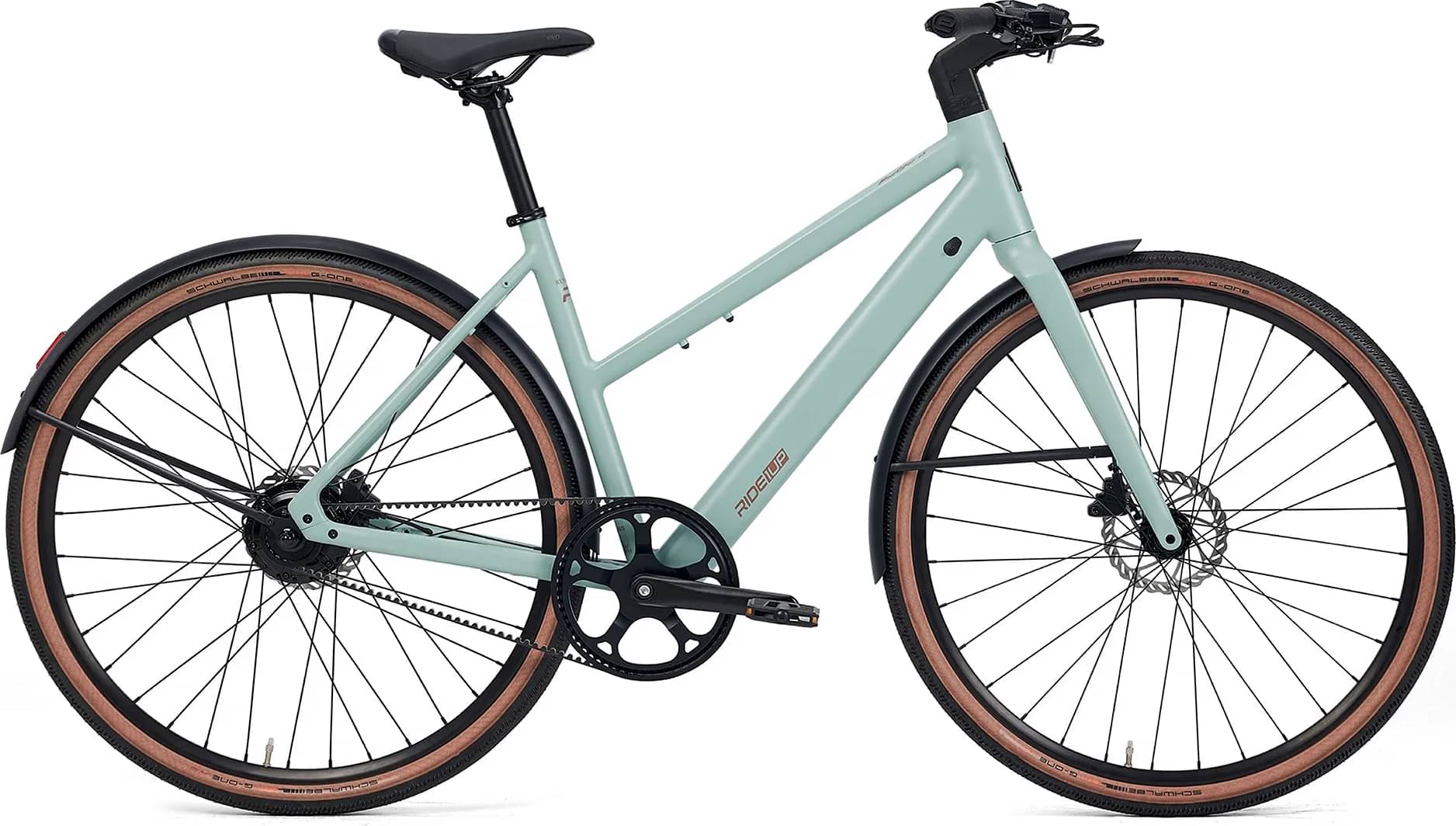

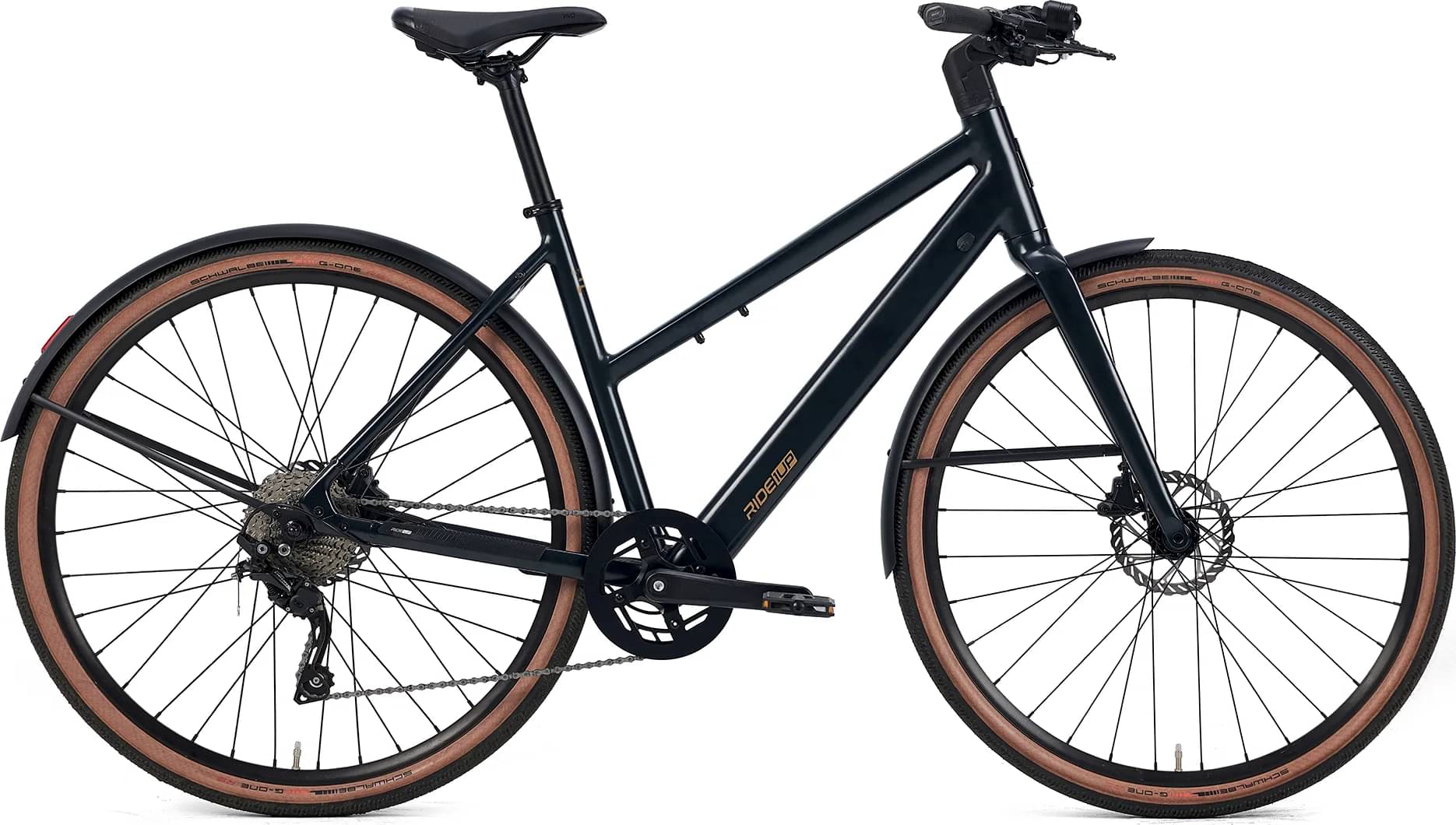

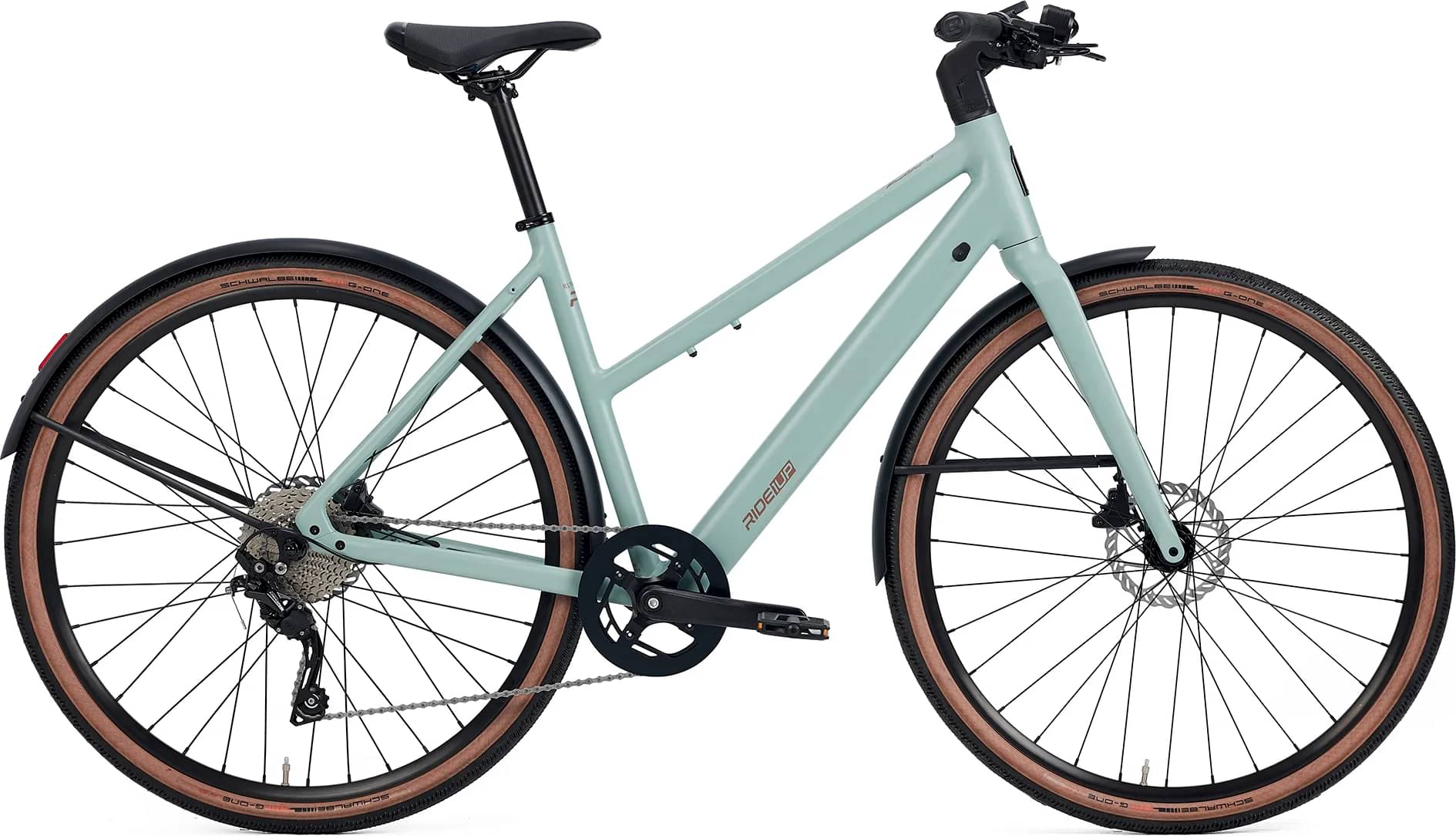

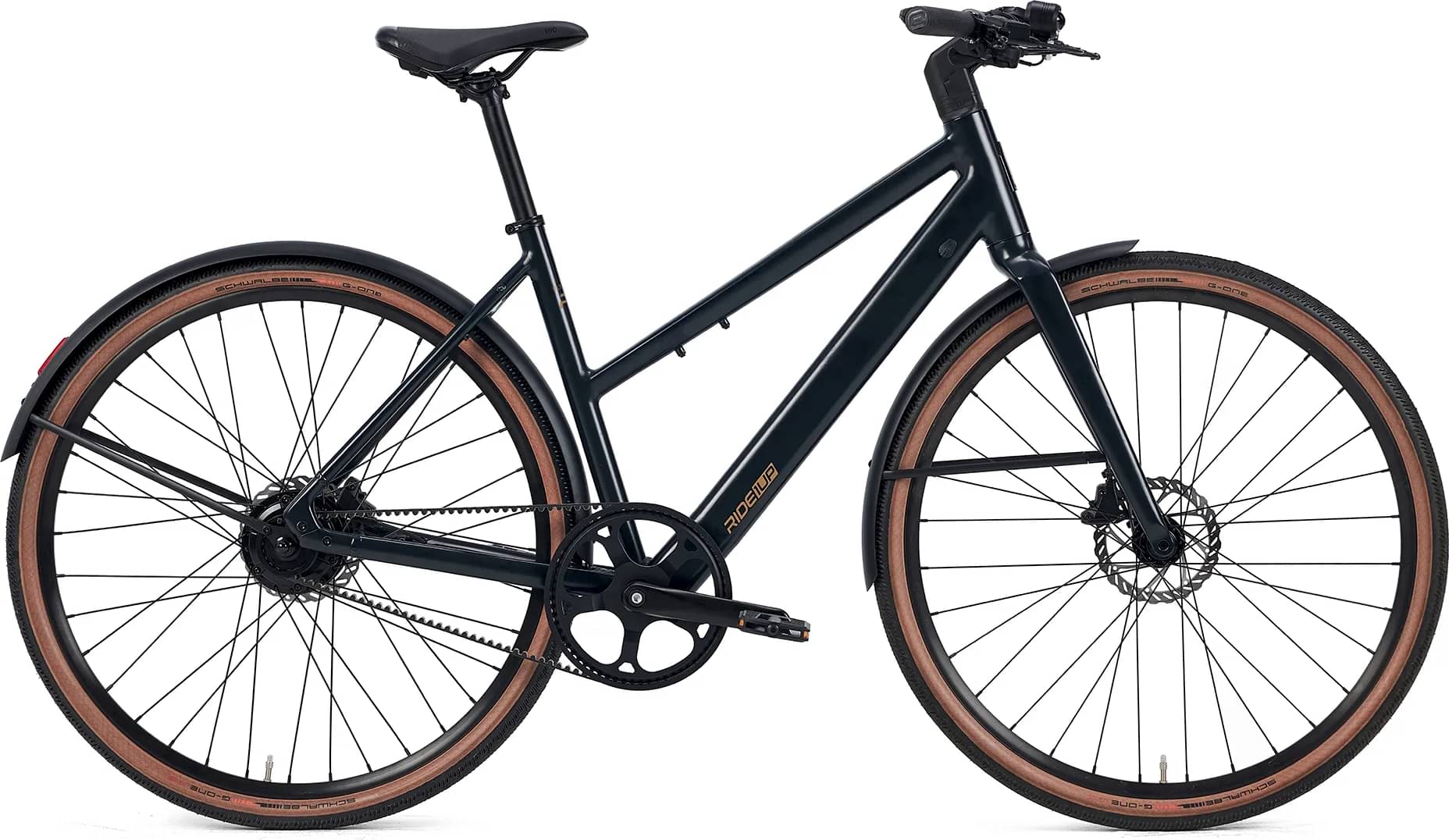

Ride1Up Roadster v3 LOW-STEP 2024
2024 E-bike
Estimate price |
1,295$
Weight | 17.69 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Motor 500W 50Nm hub-drive -
Battery 10Ah Samsung 50GB, 21700 cells removable battery with smart BMS. UL 2271 Certified -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LOW-STEP
154cm - 177cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
6061 aluminum hydroform Thru Axle fork with integrated wiring
Drivetrain
Shift Levers
Shimano Deore 10-speed Rapidfire trigger shifter
Cassette
Shimano 11-36T cassette
Wheels
Spokes
Stainless steel 13G front/14G rear
Tires
700x45c Schwalbe G-One RS gravel tires
Brakes
Brakes
Tektro HD-R285, 2-piston hydraulic brakes
Cockpit
Stem
15° rise; 31.8mm bar hidden cable stem
Handlebar
Straight bars; 680mm width; 0mm rise; 31.8mm bar clamp; 15° sweep
Grips
Ergonomic grips by Ergotec
Seat
Saddle
Selle Royale Vivo
Seatpost
28.6mm x 350mm seat post
Motor & Battery
Motor
500W Angled gear quiet MIVICE hub motor with 50nm of torque
Battery
10Ah Samsung 50GB, 21700 cells removable battery with smart BMS. UL 2271 Certified
Fit data
Geometry
