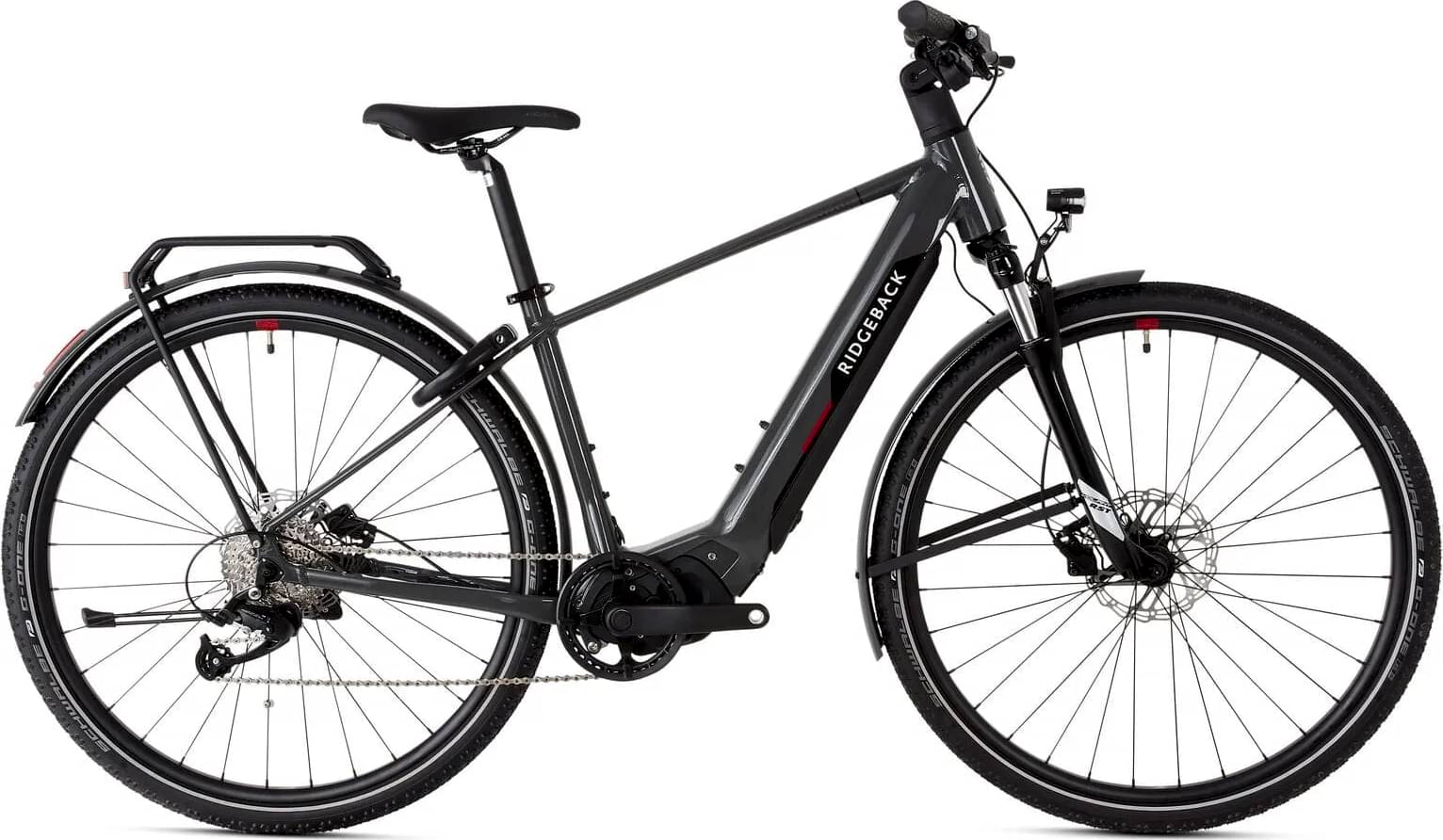

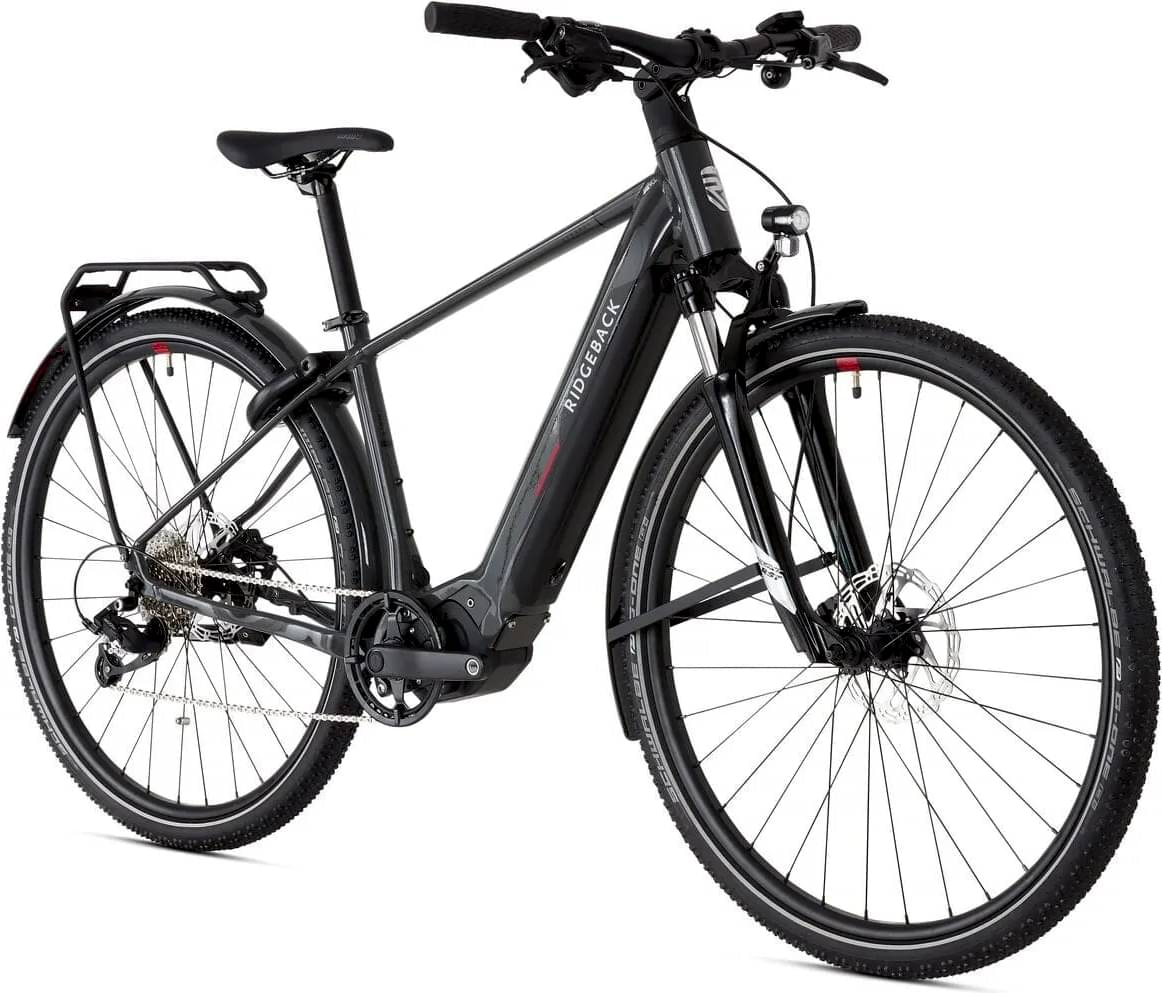

ridgeback Advance 1 2024
2024 E-bike
Estimate price |
4,013$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 60mm -
Fork RST VOLANT
-
Groupset microSHIFT Mezzo -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery DARFON INTERNAL 504wh -
Drivetrain 1 × 9 -
Brakes Rim
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork

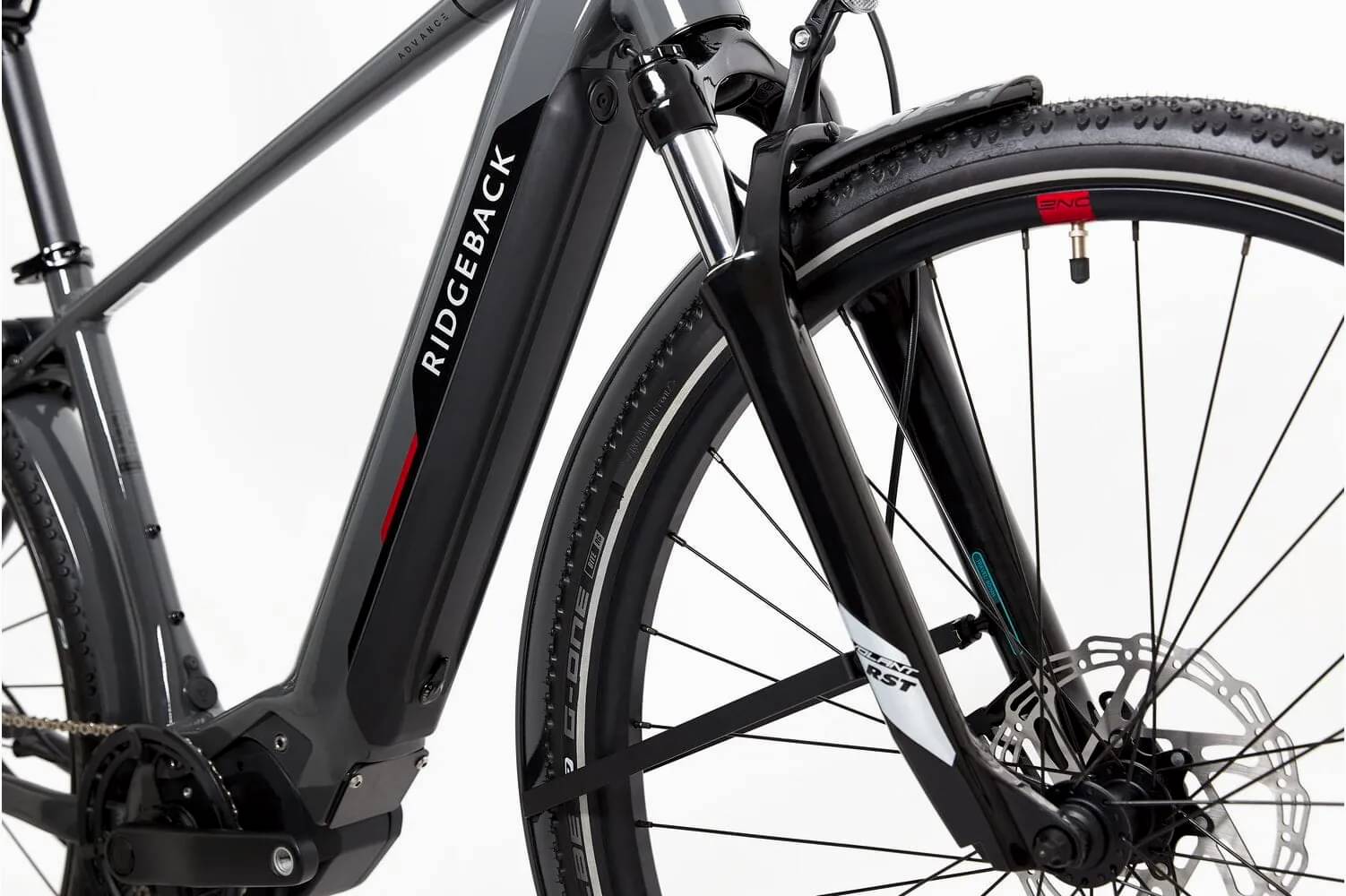

RST Volant PLS-TNL 60mm
Drivetrain
Rear Derailleur
microSHIFT Mezzo RD-M36L 9-Speed
Shift Levers

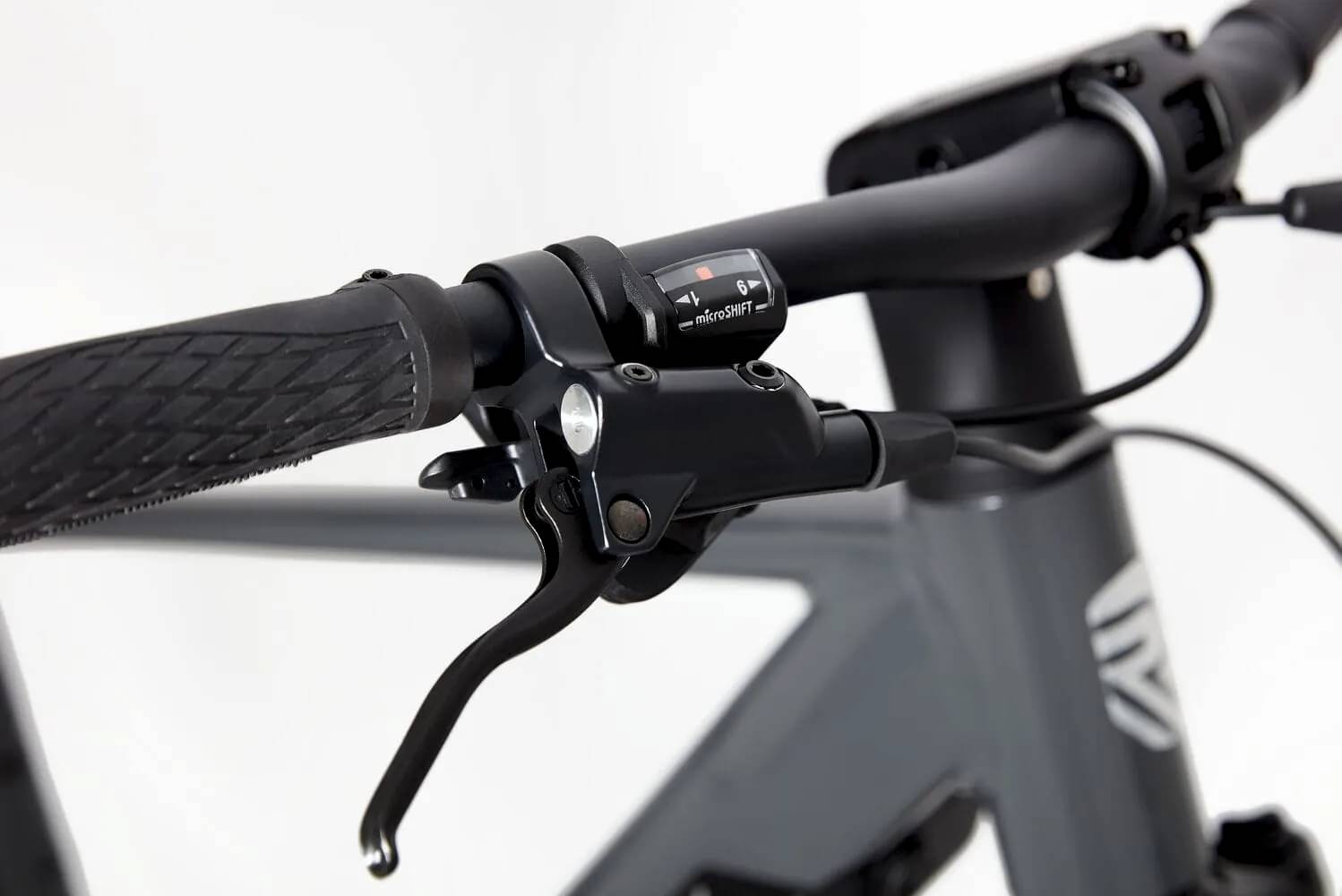

microSHIFT Mezzo TS39 9-Speed
Cassette
microSHIFT CS-H092 11-36 9-Speed
Chain
KMC X9EPT
Pedals
Resin Metro
Wheels
Front Hub
KT TC7 32h
Rear Hub
KT TC7 32h
Rims
STARS J26S 32h
Spokes
Steel 14 g
Tires
Schwalbe G-One Bite 700x50c
Brakes
Brakes

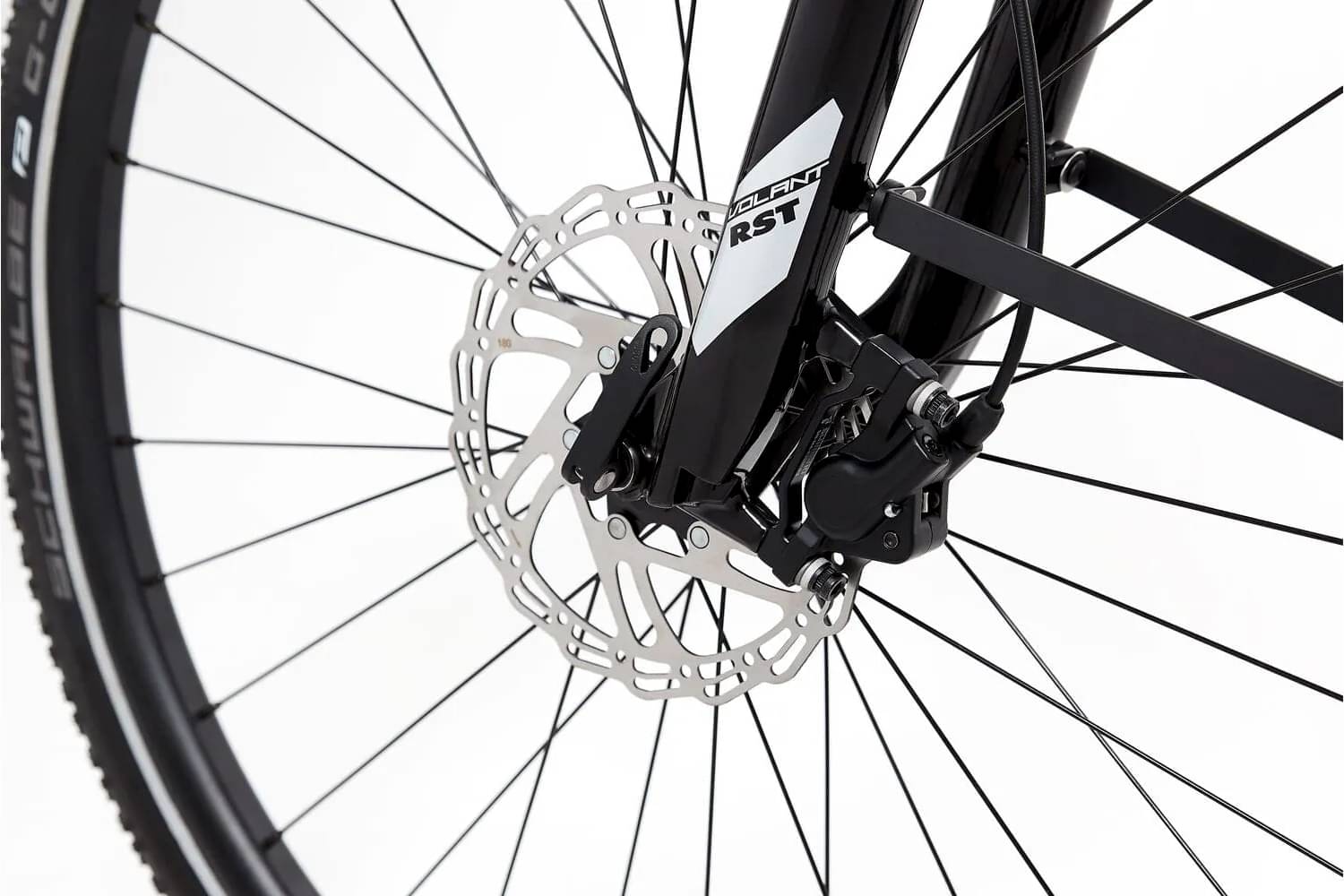

Alhonga AHJ-OD5
Brake Levers
Alhonga AHJ-OD5
Cockpit
Stem
Integrated Adjustable Ahead
Handlebar
Alloy 680 x 20mm 15 degree Backsweep
Headset
ACROS AZX-585 ZS56/ZS56
Seat
Seatpost

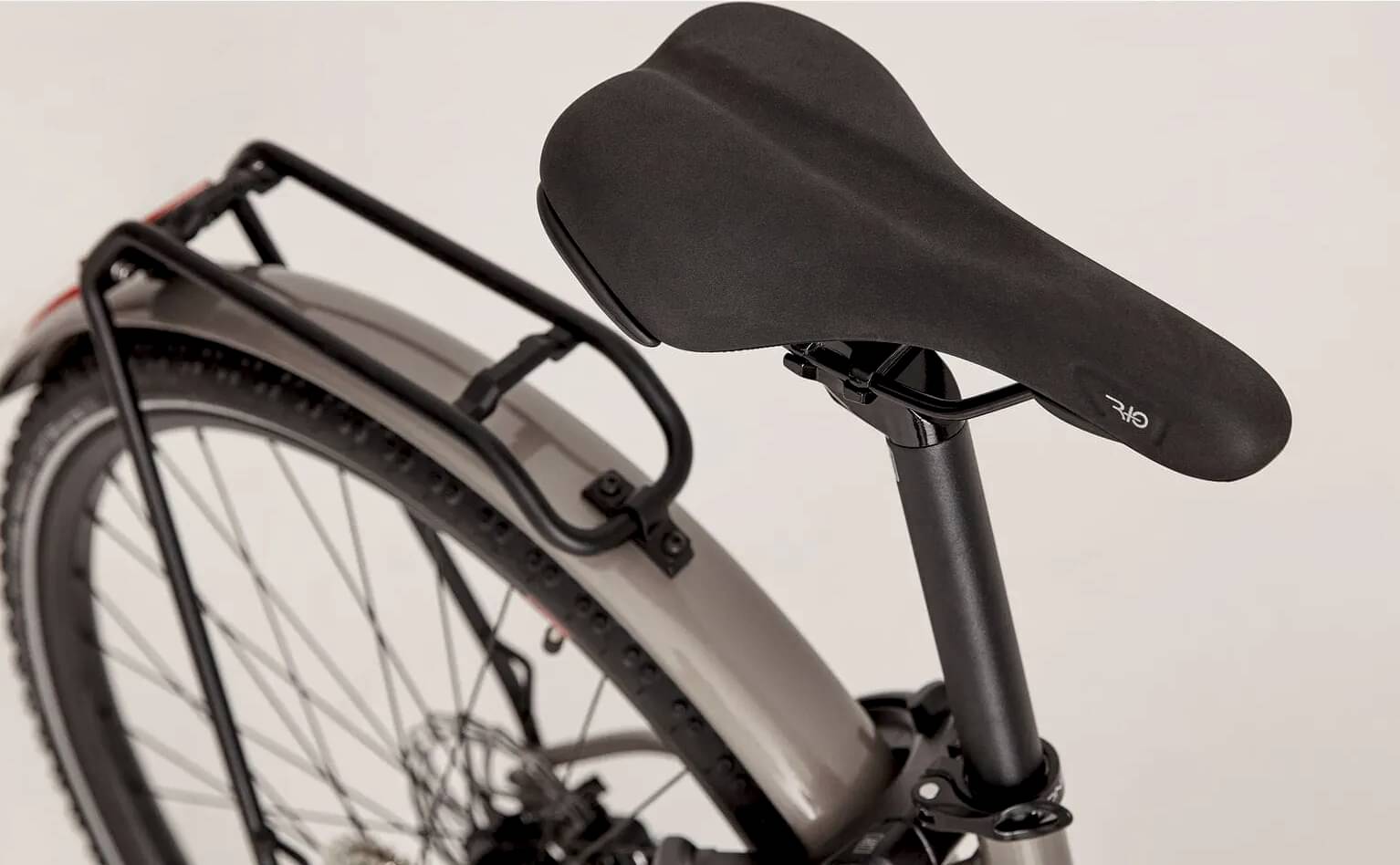

Alloy 30.9x350mm
Motor & Battery

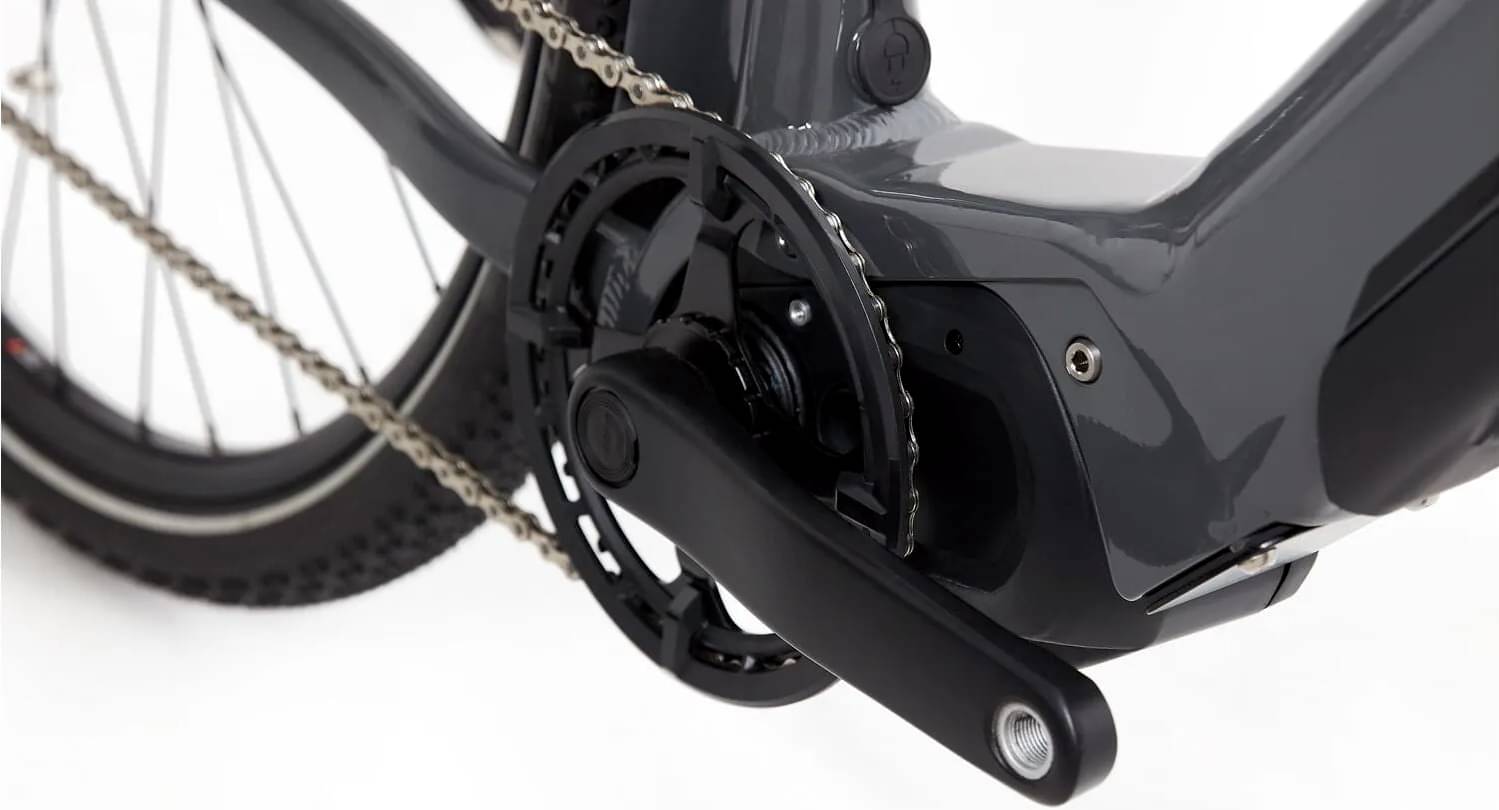

Motor

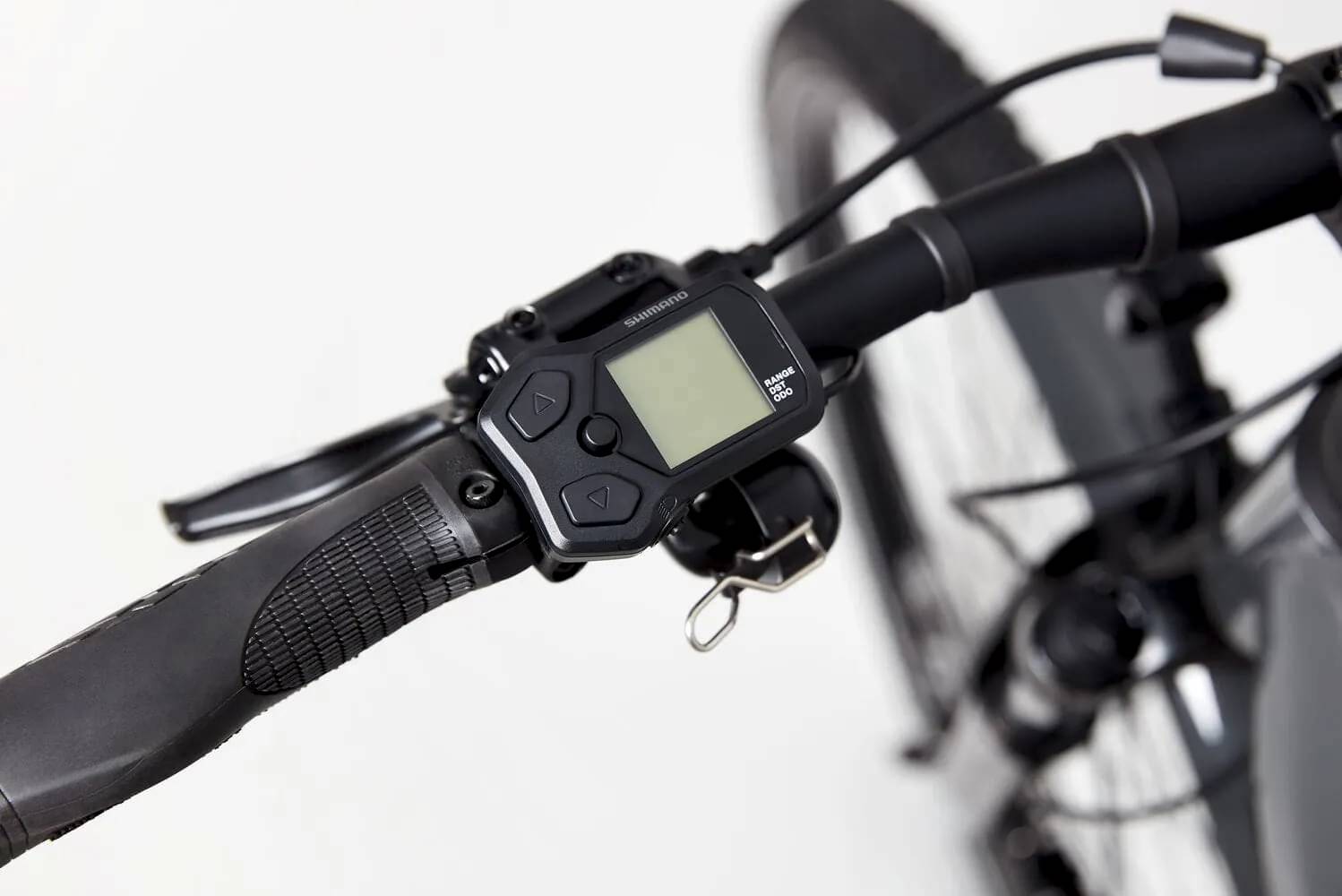

Shimano STEPS DU-E5000 250w 40Nm
Battery
DARFON INTERNAL 504wh
Charger
DARFON 2AH Smartcharger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.491 mm | 1.422 mm | 1.359 mm |
| Front Center | 684 mm | 703 mm | 724 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 91 mm | 92 mm | 91 mm |
| Stack | 610 mm | 610 mm | 610 mm |
| Reach | 409 mm | 429 mm | 449 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 431 mm | 482 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 130 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1127 mm | 1146 mm | 1167 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
