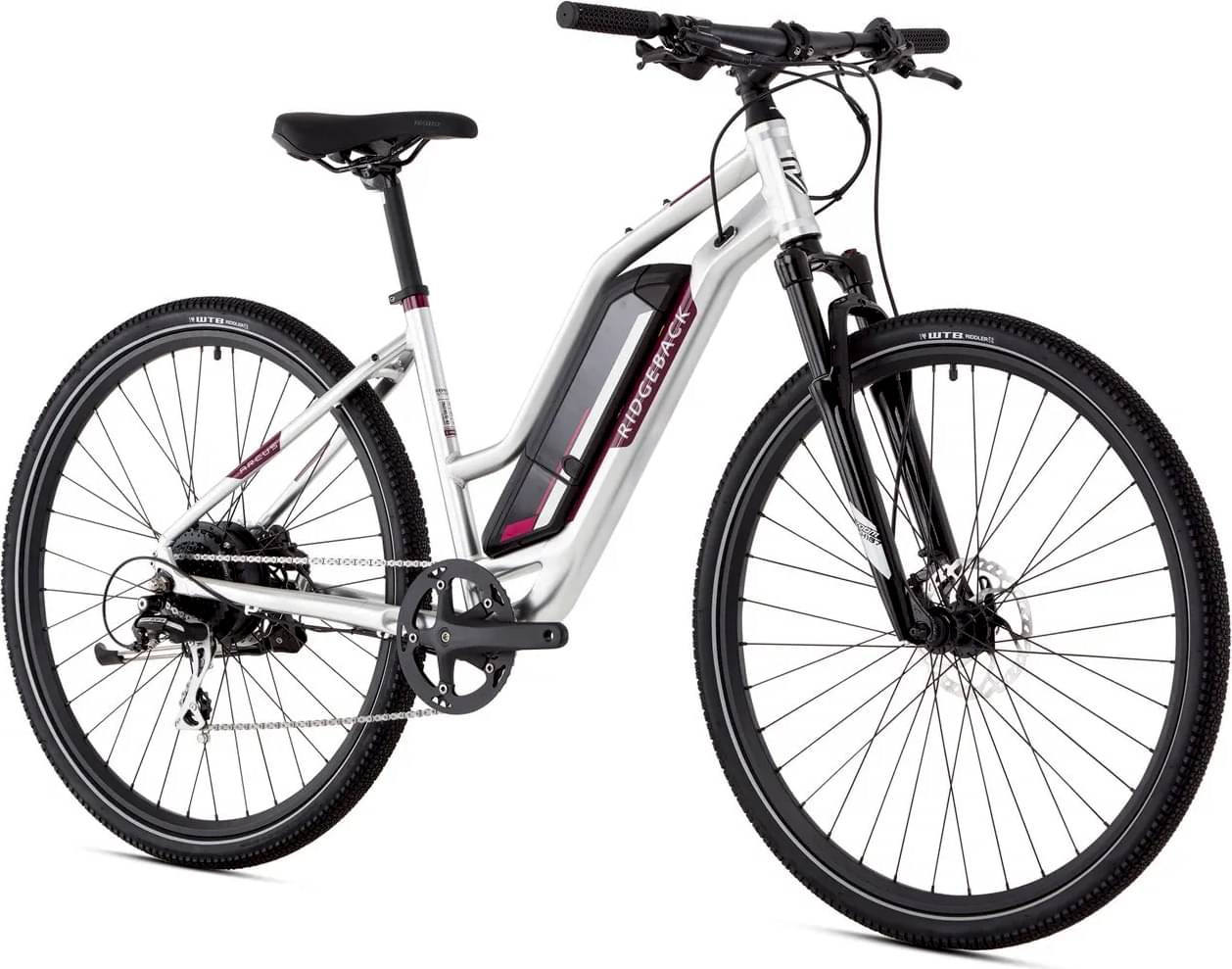

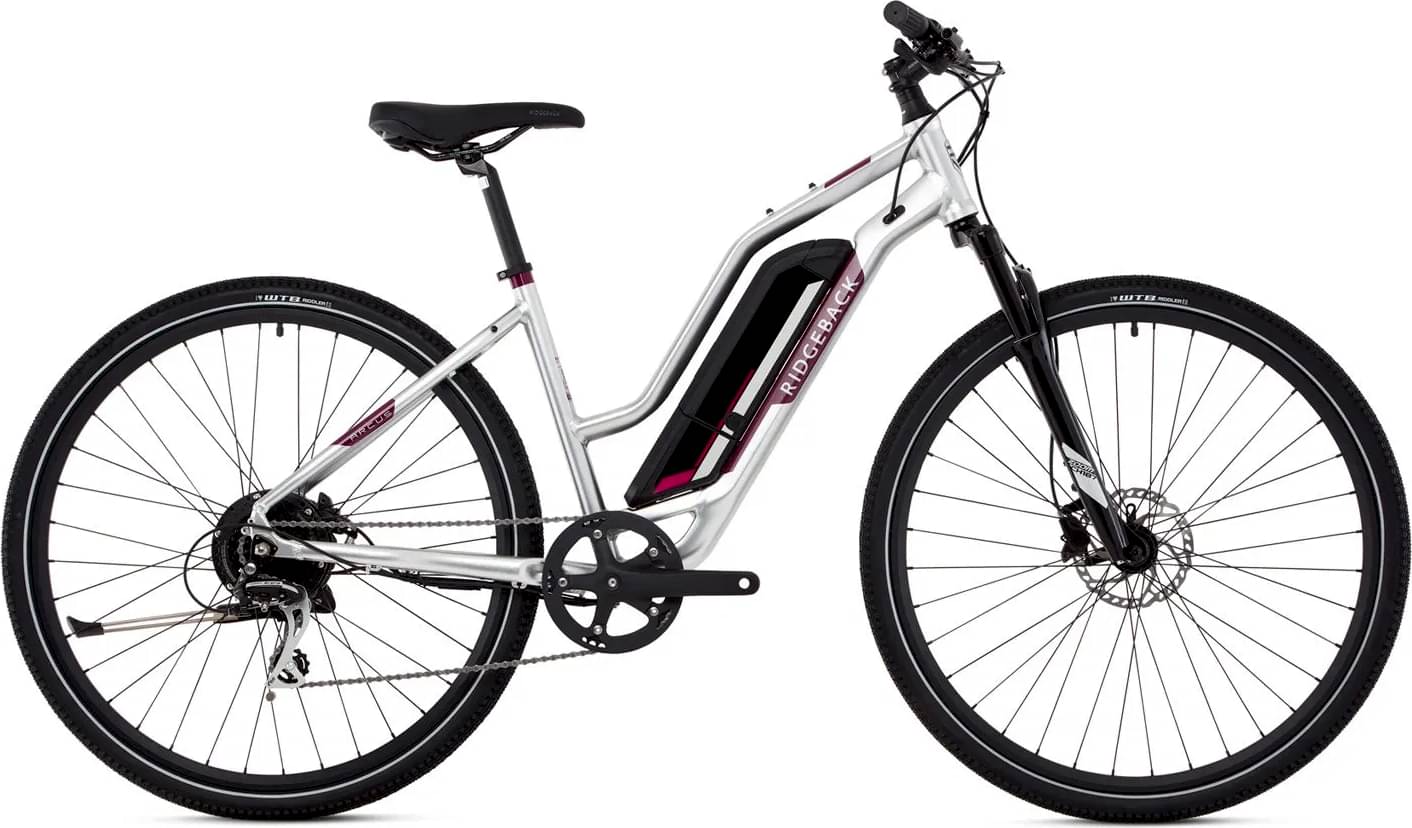

ridgeback Arcus 1 Open Frame 2024
2024 E-bike
Estimate price |
2,031$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST VOLANT -
Groupset microSHIFT Mezzo -
Suspension Hardtail -
Motor 250W 40Nm hub-drive -
Battery Sportdrive 313wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
RST Volant 63mm Travel
Drivetrain
Rear Derailleur
microSHIFT Mezzo RDM36L 8 Speed
Shift Levers
microSHIFT Mezzo TS39-8R 8 Speed
Cassette
microSHIFT Mezzo CSH082 11-34T 8 Speed
Chain
KMC X8E
Pedals
Resin Metro
Wheels
Front Hub
KT-TC7F / Sportdrive M155
Rear Hub
KT-TC7F / Sportdrive M155
Spokes
Steel 14 g
Tires
WTB Riddler 700 x 45c Reflex
Brakes
Brakes
Alhonga AHJ-OD05 Hydraulic Disc Brake
Cockpit
Stem
Alloy 65 mm +9deg
Headset
FSA HS NO.10 1-1/8 inch
Seat
Seatpost
Alloy 27.2 x 350 mm
Motor & Battery
Motor
Sportdrive M155 250W 40Nm
Battery
Sportdrive 313wh
Charger
Sportdrive 2AH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.468 mm | 1.505 mm |
| Front Center | 668 mm | 678 mm |
| Rake | 45 mm | 45 mm |
| Trail | 86 mm | 85 mm |
| Stack | 599 mm | 617 mm |
| Reach | 408 mm | 410 mm |
| Top Tube Length | 580 mm | 600 mm |
| Seat Tube Angle | 74 ° | 73 ° |
| Seat Tube Length | 431 mm | 483 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm |
| Wheelbase | 1117 mm | 1127 mm |
| Bottom Bracket Drop | 55 mm | 55 mm |
| Wheels | 700 | 700 |
