Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RST
-
Groupset microSHIFT Mezzo -
Suspension Hardtail -
Motor 250W 95Nm mid-drive -
Battery SportDrive Internal 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
RST Air Sprung with lockout 80mm
Drivetrain
Rear Derailleur
microSHIFT Mezzo RD-M36L 9-speed
Shift Levers
microSHIFT Mezzo TS39 9-speed
Cassette
Microshift CS-H092 11-36t 9-speed
Chain
KMC X9EPT
Pedals
Resin Metro
Wheels
Front Hub
Front: Shimano HB-M6010 32h 15mm / Rear: Shiamno FH-M4050 32h QR
Rear Hub
Front: Shimano HB-M6010 32h 15mm / Rear: Shiamno FH-M4050 32h QR
Rims
WTB SX19 32h
Spokes
Steel 14g
Tires
WTB Nineline 29x2.25"

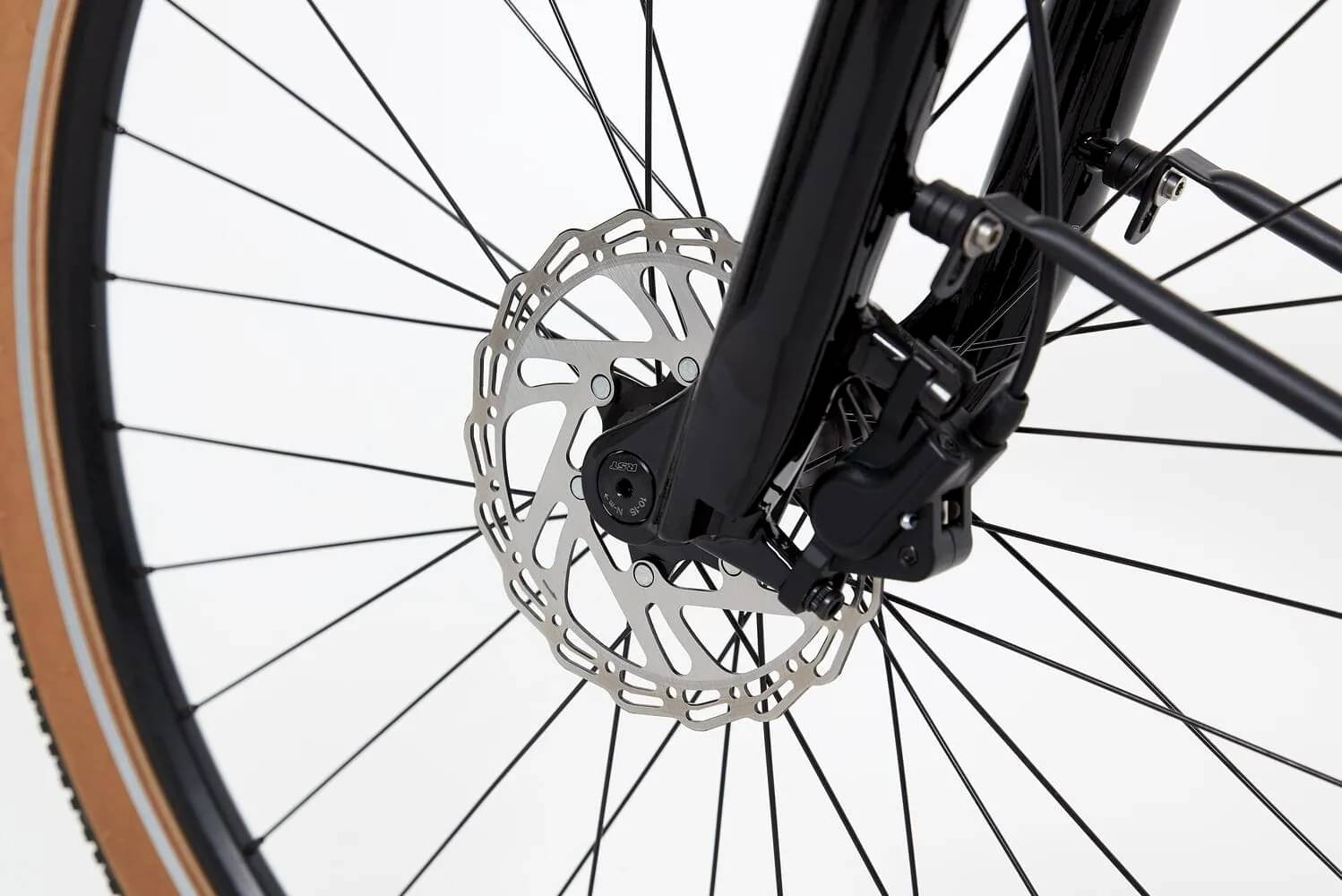

Brakes
Brakes
ALHONGA AHJ-OD07 Hydraulic Disc Brake

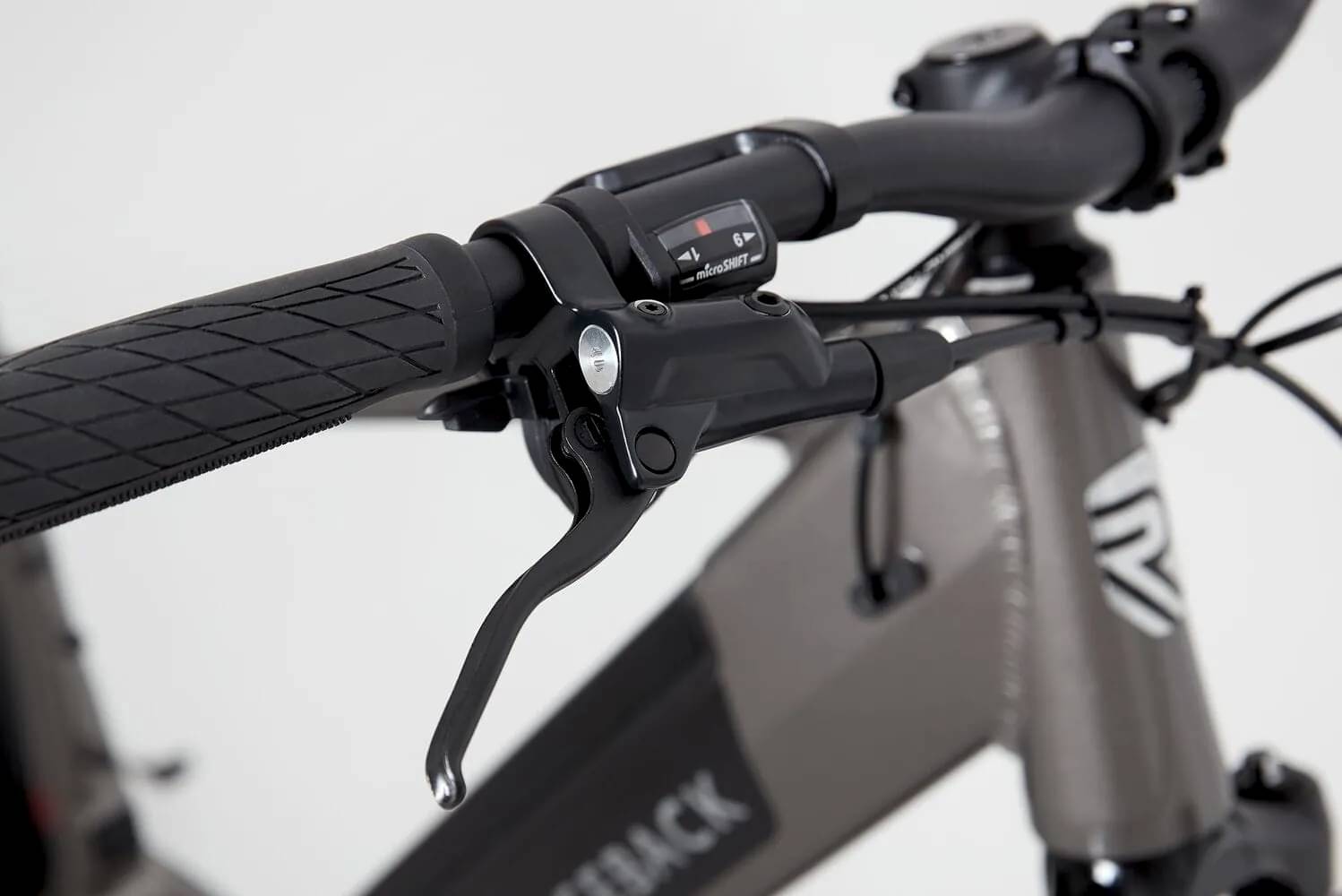

Brake Levers
ALHONGA AHJ-OD07 Hydraulic Disc Brake
Cockpit
Stem
Ridgeback Alloy 45mm x 3 degrees
Headset
FSA Orbit 1.5E No.57B Zero Stack
Seat
Seatpost
ONE1 Alloy SPS 405 Suspension 30.9mm x 350mm
Motor & Battery

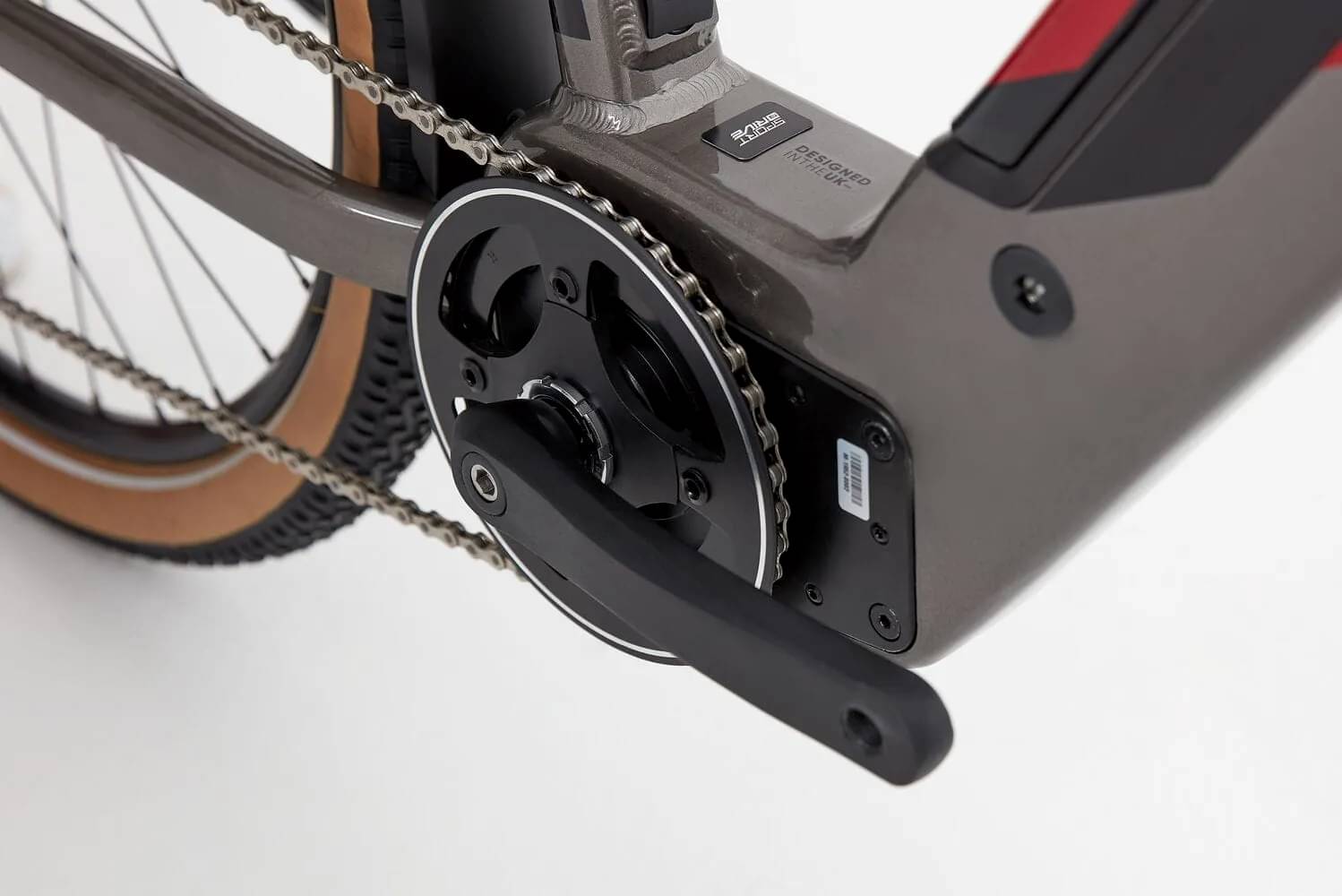

Motor
SportDrive MD250S 36v 95Nm 250W

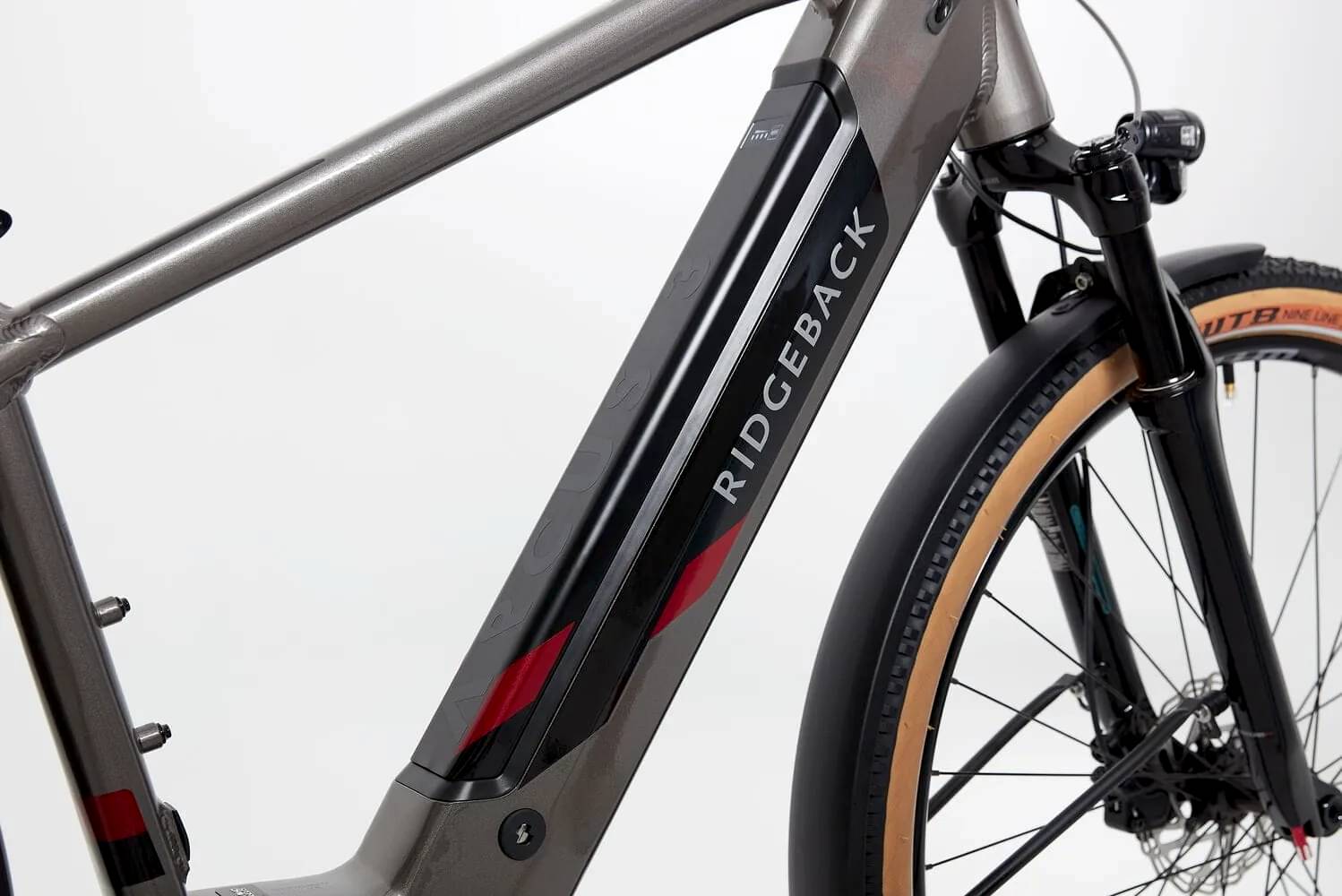

Battery
SportDrive Internal 500Wh
Charger
SportDrive 2Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.341 mm |
| Front Center | 741 mm | 771 mm |
| Rake | 58 mm | 58 mm |
| Trail | 85 mm | 85 mm |
| Stack | 625 mm | 625 mm |
| Reach | 436 mm | 466 mm |
| Top Tube Length | 615 mm | 645 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 432 mm | 475 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 175 mm | 175 mm |
| Chainstay Length | 480 mm | 480 mm |
| Wheelbase | 1215 mm | 1245 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
