Bike details
Overview
Key information split into simple groups.

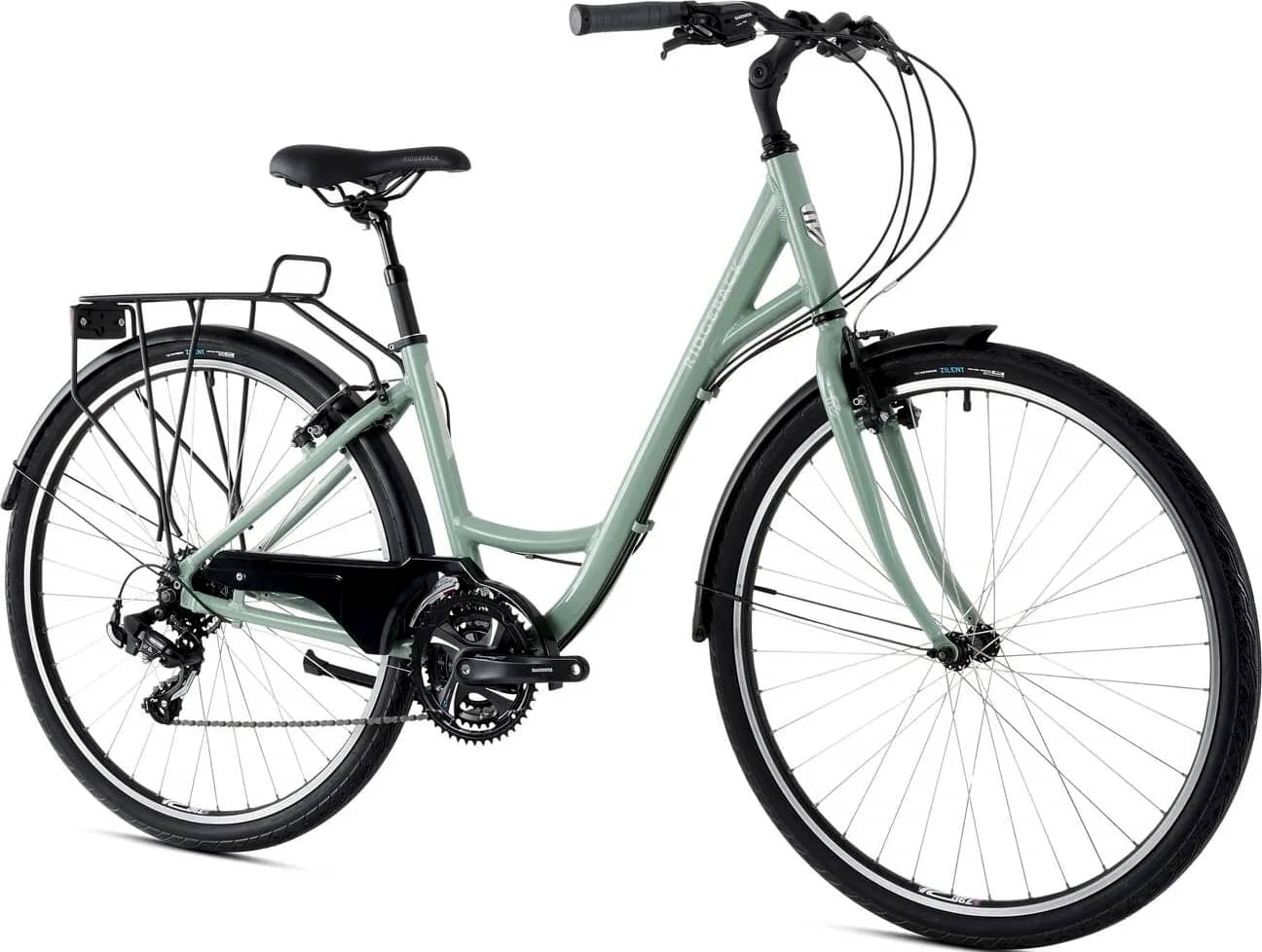

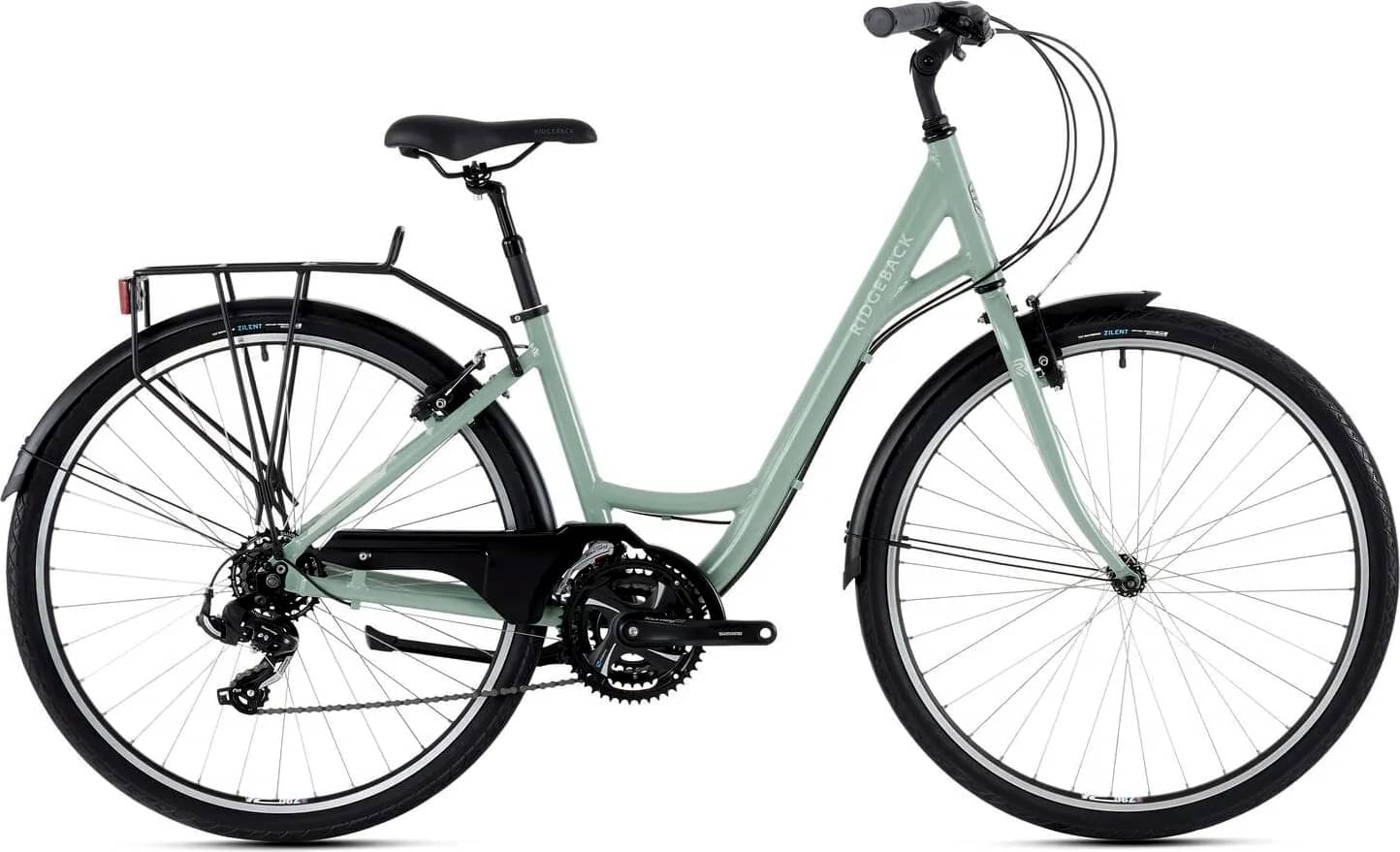

Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tourney, Shimano -
Suspension Rigid -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
Steel / Mudguard Eyelets
Drivetrain

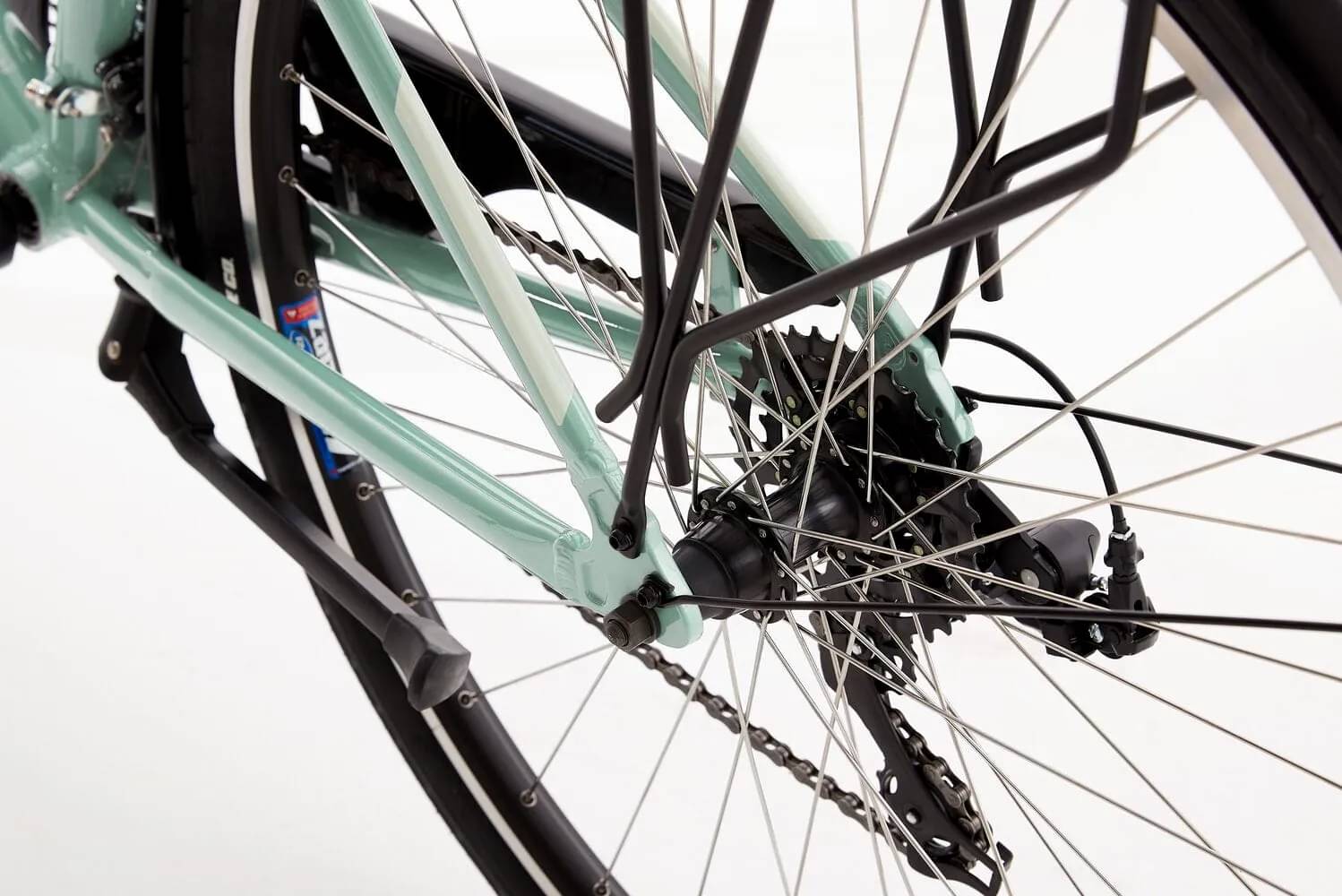

Rear Derailleur
Shimano Tourney RD-TY500

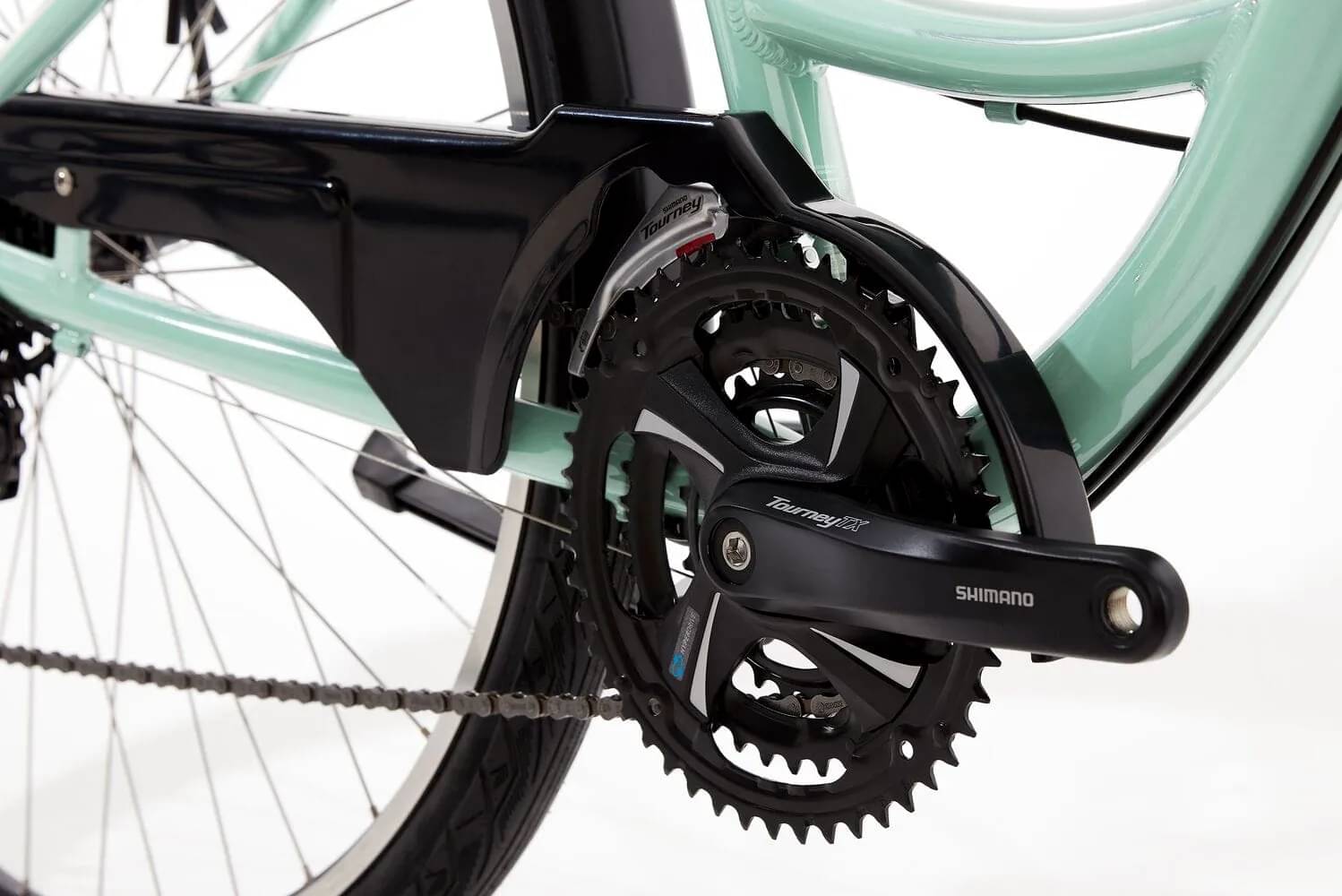

Front Derailleur
Shimano Tourney FD-TY510-TS3

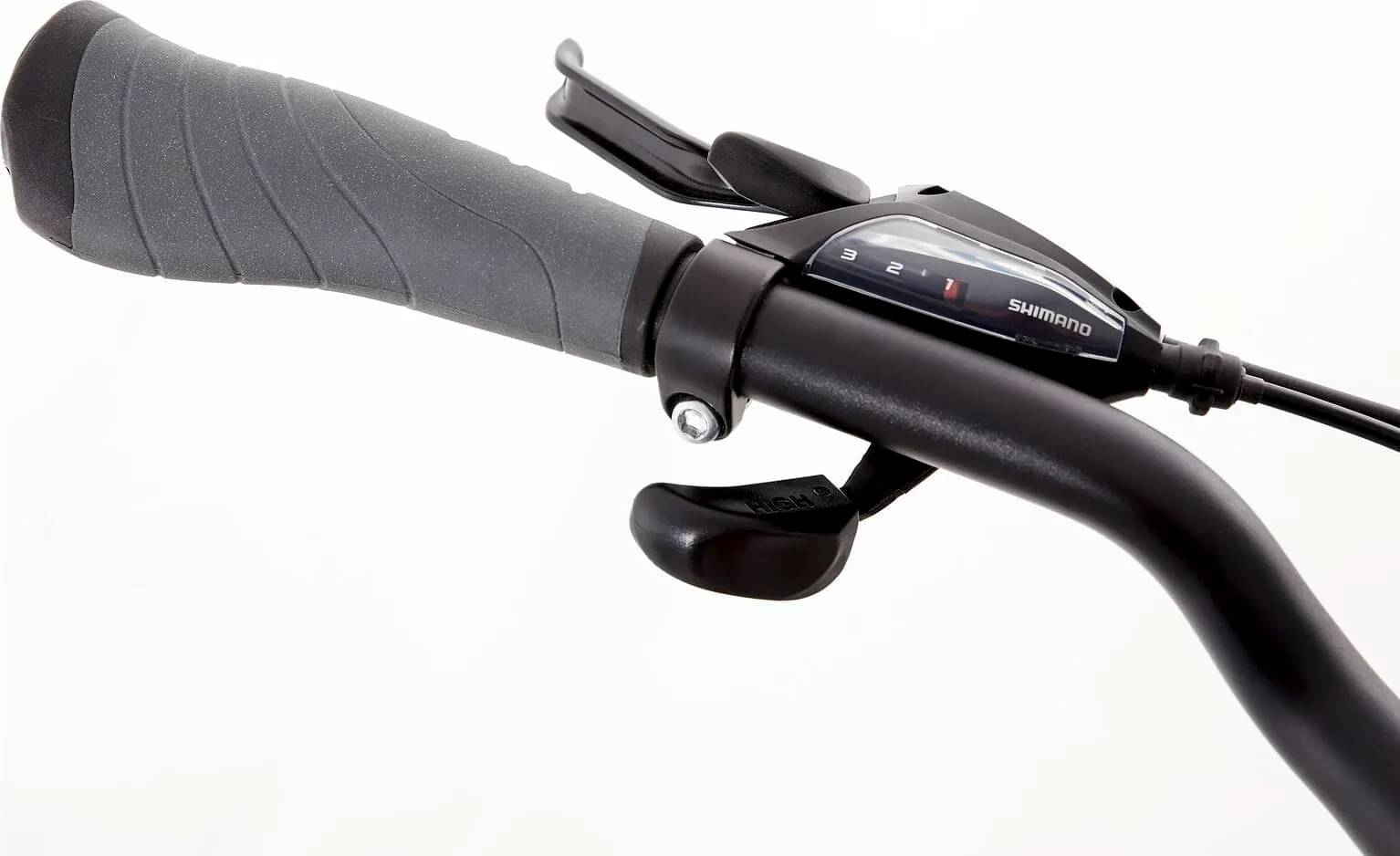

Shift Levers
Shimano ST-EF500 EZ-Fire 3 x 7 Speed
Cassette
Shimano CS-HG200-7 12-32T
Bottom Bracket
VP BC-73 122.5mm
Chain
KMC Z-610HX
Pedals
Resin Metro
Wheels
Rims
Ryde Rigida ZAC-21SL /
Spokes
Steel 14 g
Tires
Kenda Kwick Journey 700 x 40c
Brakes

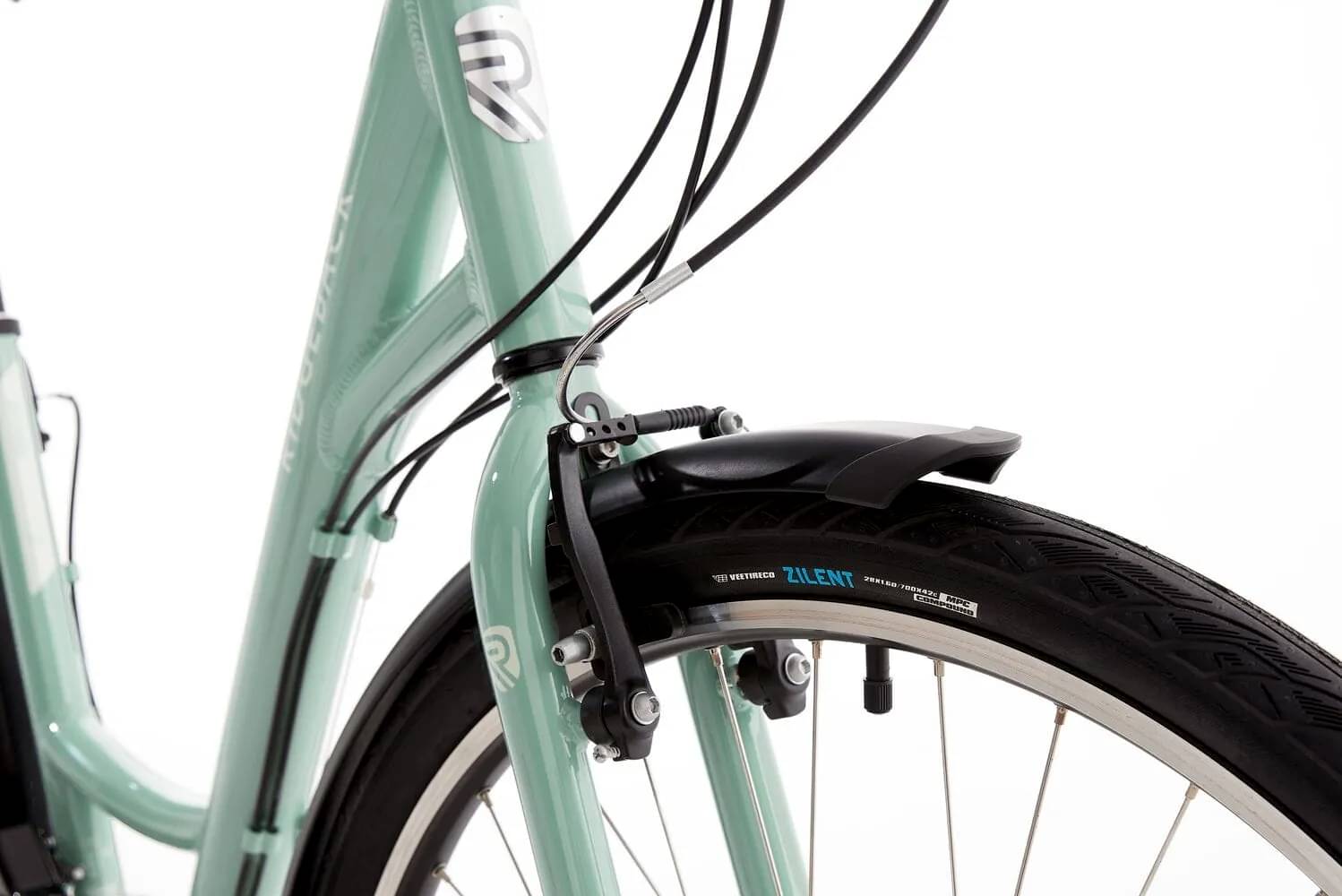

Brakes
Promax TX-107C V-Brake
Brake Levers
Promax LM-48
Cockpit
Stem
Promax MQ-521 Adjustable Quill 85 mm
Headset
FPD H-841SW
Seat

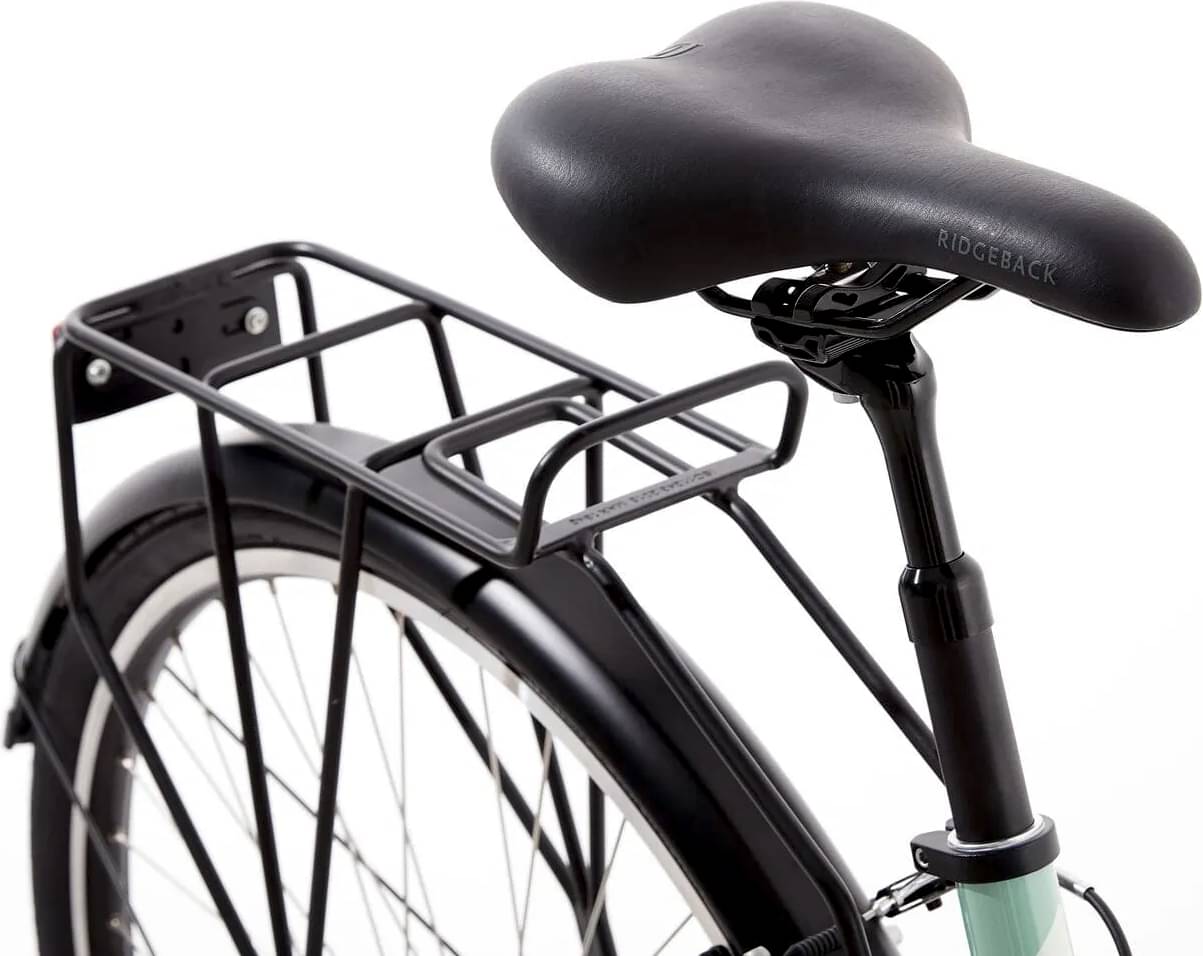

Saddle
Ridgeback Custom
Seatpost
Promax Suspension Post 27.2 x 305 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.587 mm | 1.582 mm | 1.598 mm | 1.633 mm |
| Front Center | 653 mm | 658 mm | 668 mm | 674 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 72 mm | 83 mm | 83 mm | 82 mm |
| Stack | 611 mm | 625 mm | 639 mm | 653 mm |
| Reach | 385 mm | 395 mm | 400 mm | 400 mm |
| Top Tube Length | 577 mm | 592 mm | 601 mm | 605 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 385 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.3 ° | 69.3 ° |
| Head Tube Length | 180 mm | 195 mm | 210 mm | 225 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1099 mm | 1104 mm | 1114 mm | 1120 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
