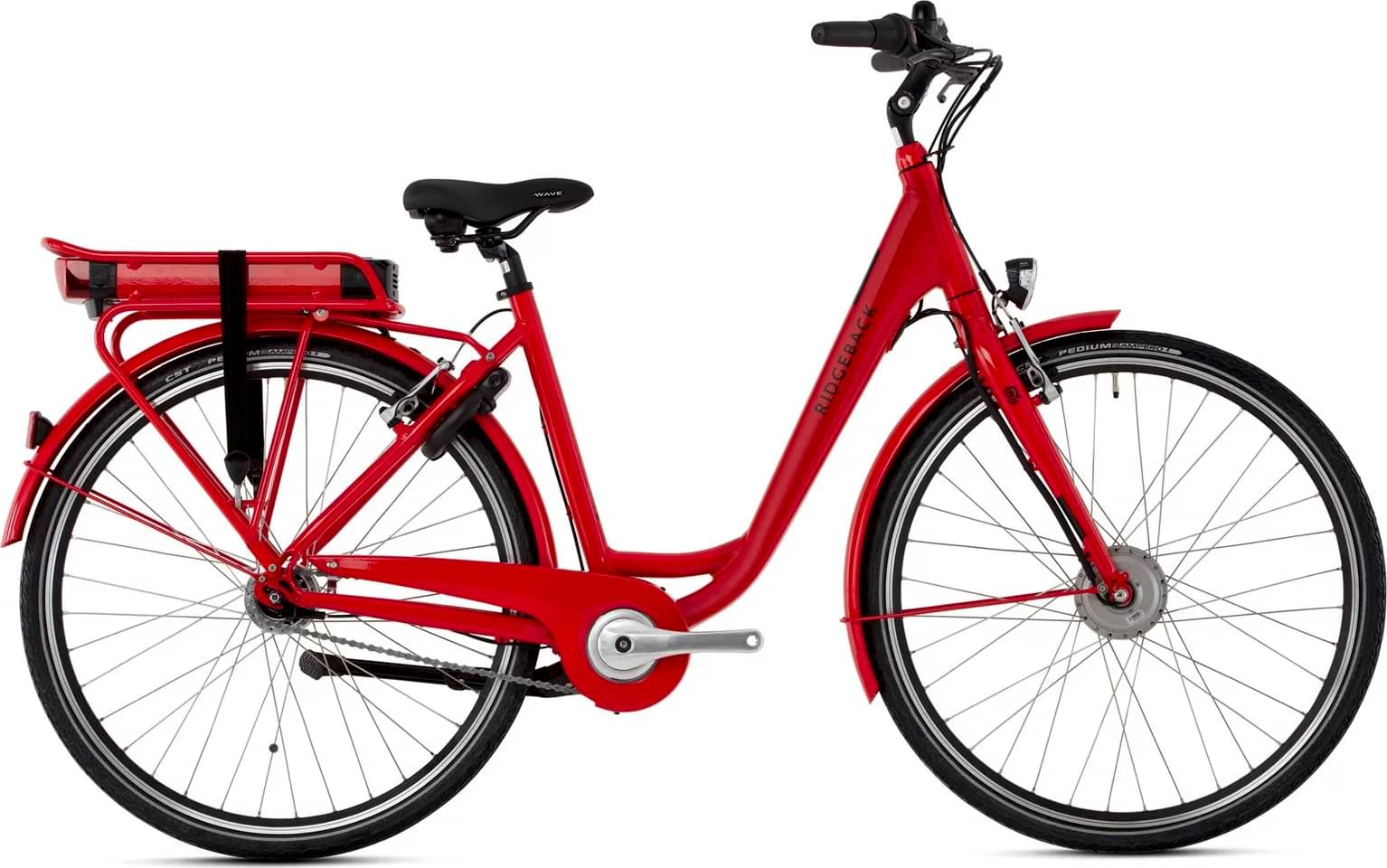

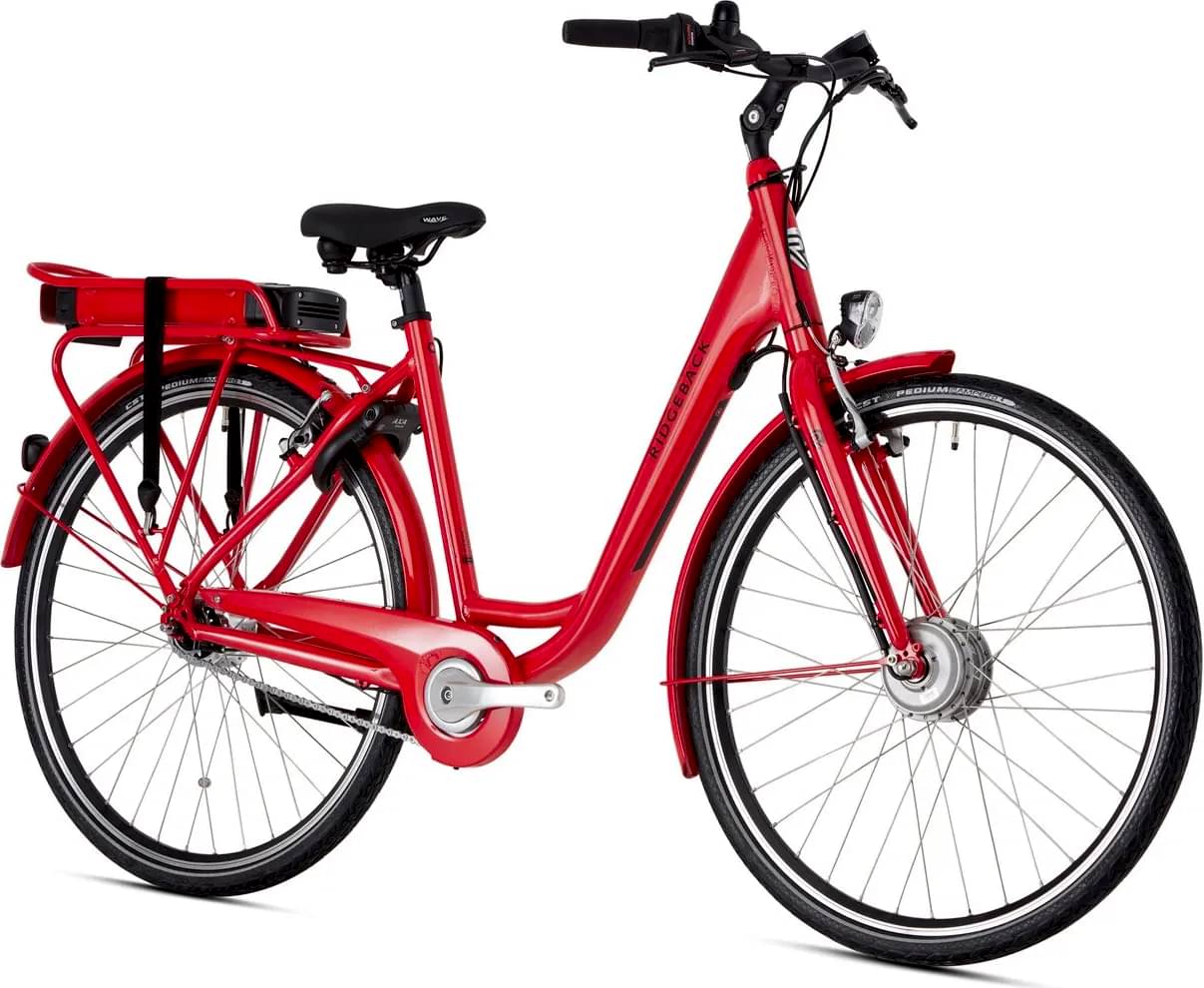

ridgeback Electron Front Hub Drive 2024
2024 E-bike
Estimate price |
1,872$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Nexus -
Suspension Rigid -
Motor 250W 30Nm hub-drive -
Battery Sportdrive 313wh -
Drivetrain Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
Steel
Drivetrain
Shift Levers
Shimano Nexus SL-C3000 7 Speed
Cassette
Shimano 18T
Pedals
Resin Metro
Wheels
Front Hub
Sportdrive M123 / Shimano Nexus SG-C300
Rear Hub
Sportdrive M123 / Shimano Nexus SG-C300
Rims
Alloy J19SZR
Spokes
Steel 14 g
Tires
CST Ampero 700 x 40c
Brakes
Brakes
Shimano BR-T4000 V-Brake
Brake Levers
Shimano BR-T4000 V-Brake
Cockpit
Stem
Alloy Adjustable 90 mm
Headset
FSA TH-805ST 1-1/8 inch
Seat
Saddle
Ridgeback Metro
Seatpost
Alloy 30 x 300 mm
Motor & Battery
Motor
Sportdrive M123 250w 30nm
Battery
Sportdrive 313wh
Charger
Sportdrive 2AH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | SM |
|---|---|---|
| Stack Reach Ratio | 1.661 mm | 1.586 mm |
| Front Center | 651 mm | 651 mm |
| Rake | 45 mm | 45 mm |
| Trail | 78 mm | 79 mm |
| Stack | 643 mm | 625 mm |
| Reach | 387 mm | 394 mm |
| Top Tube Length | 584 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 460 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 160 mm |
| Chainstay Length | 465 mm | 465 mm |
| Wheelbase | 1109 mm | 1109 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 700 | 700 |
