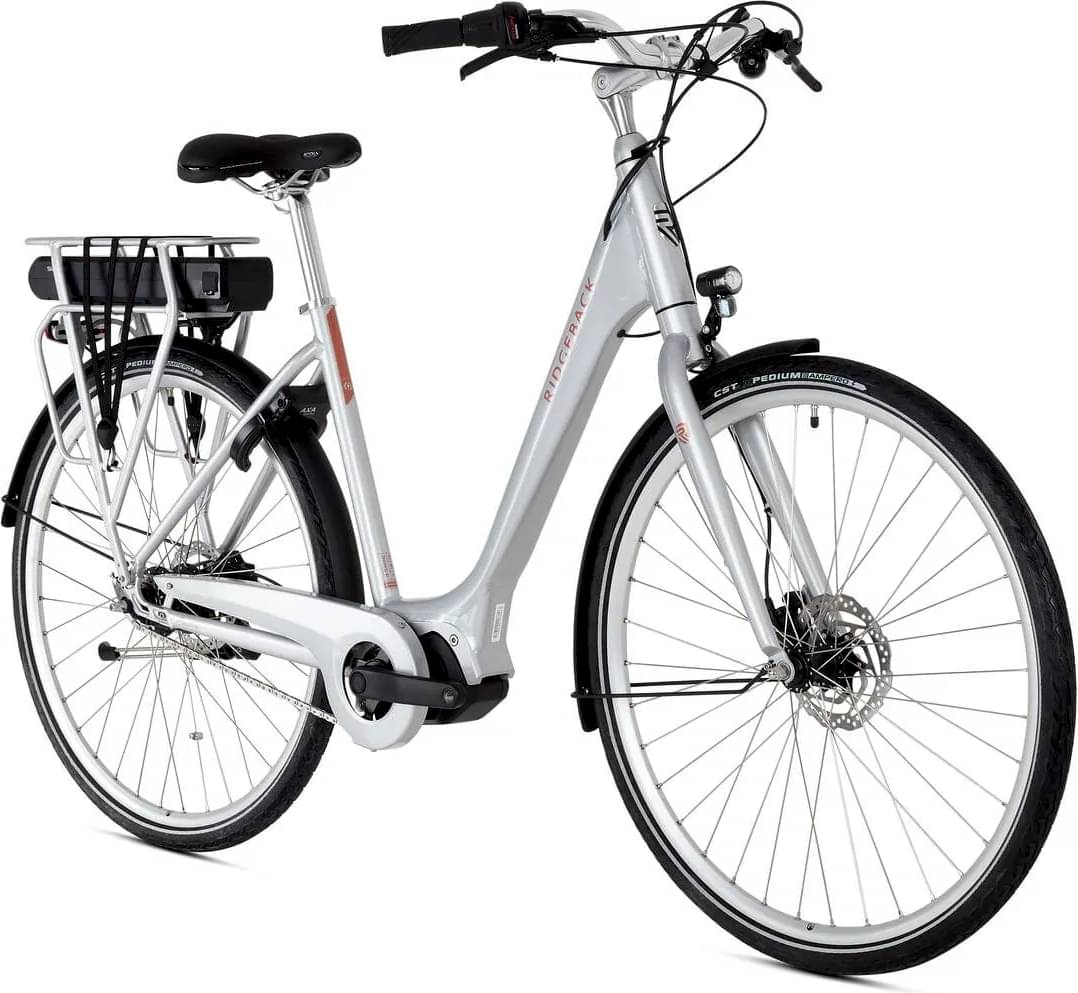

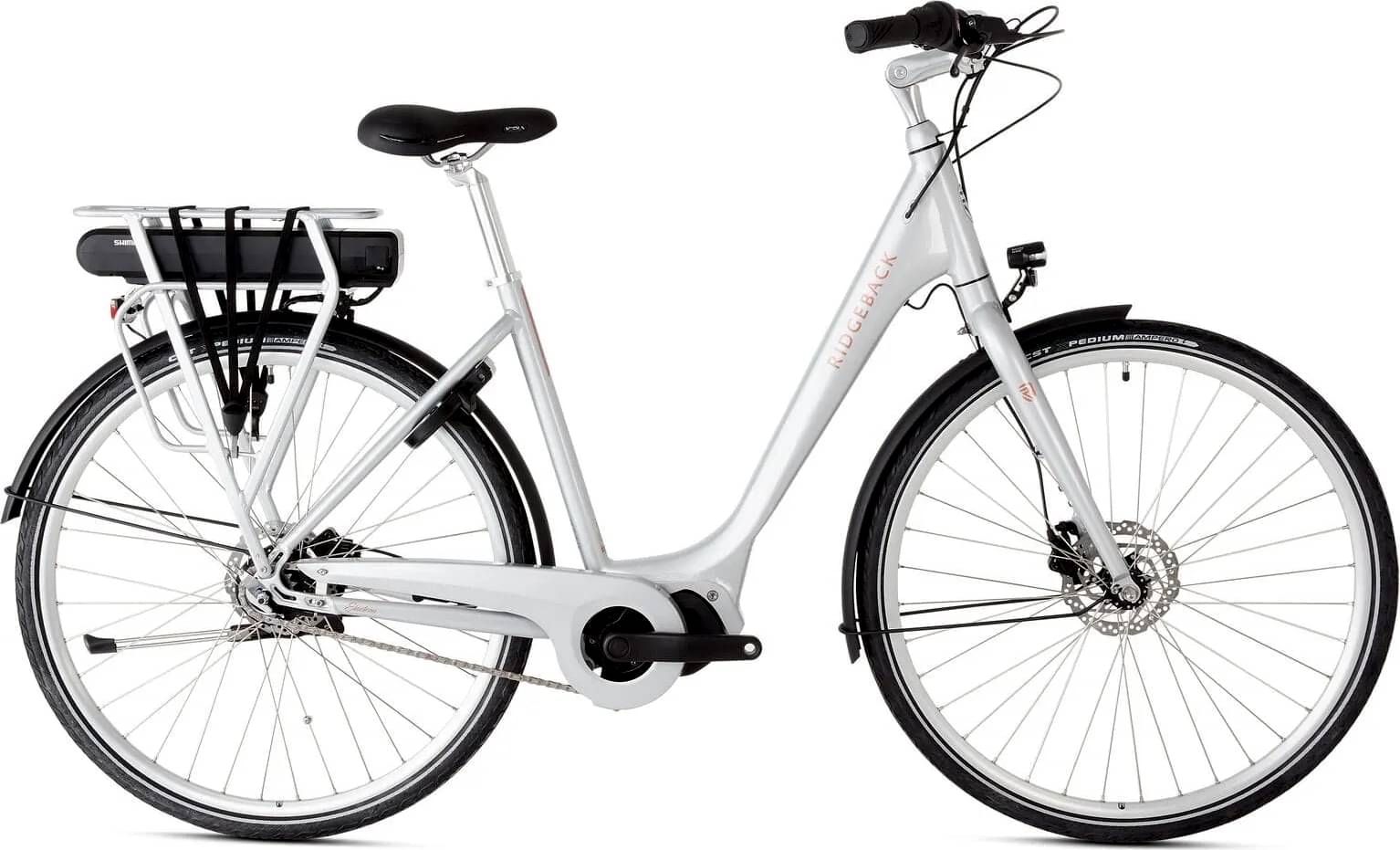

ridgeback Electron S1 2024
2024 E-bike
Estimate price |
3,521$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Nexus -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano BT-E6000 418wh -
Drivetrain Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Drivetrain
Shift Levers
Shimano Nexus SL-C3000-7 RevoShift
Cassette
Shimano 18t Nexus sprocket
Chain
KMC Z1EHX
Wheels
Front Hub
Front: KT TC6F 36h Rear: Shimano SG-C3001-7 36h
Rear Hub
Front: KT TC6F 36h Rear: Shimano SG-C3001-7 36h
Rims
J19ZK 36h
Spokes
Steel 14g

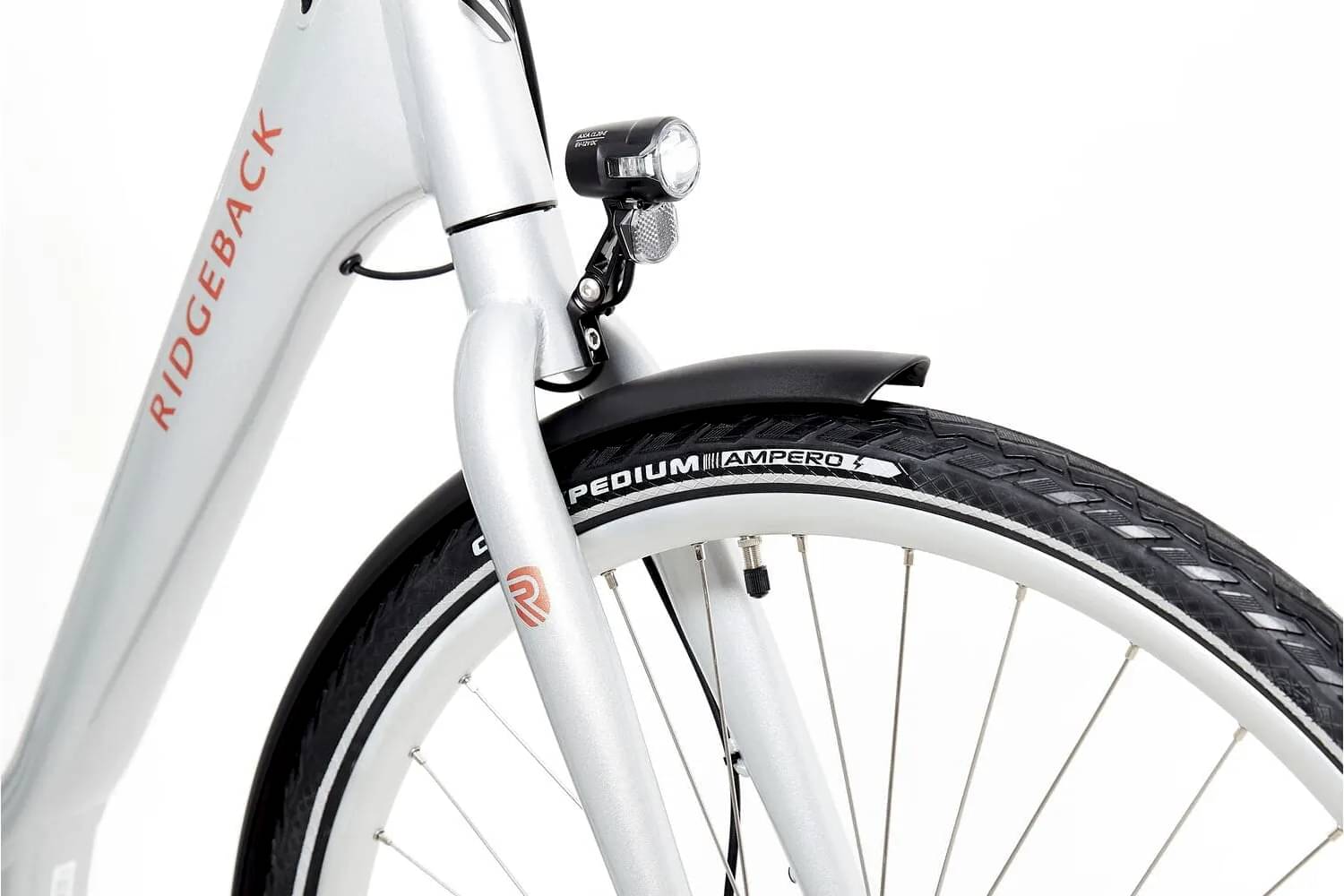

Tires
CST Ampero 700x40c

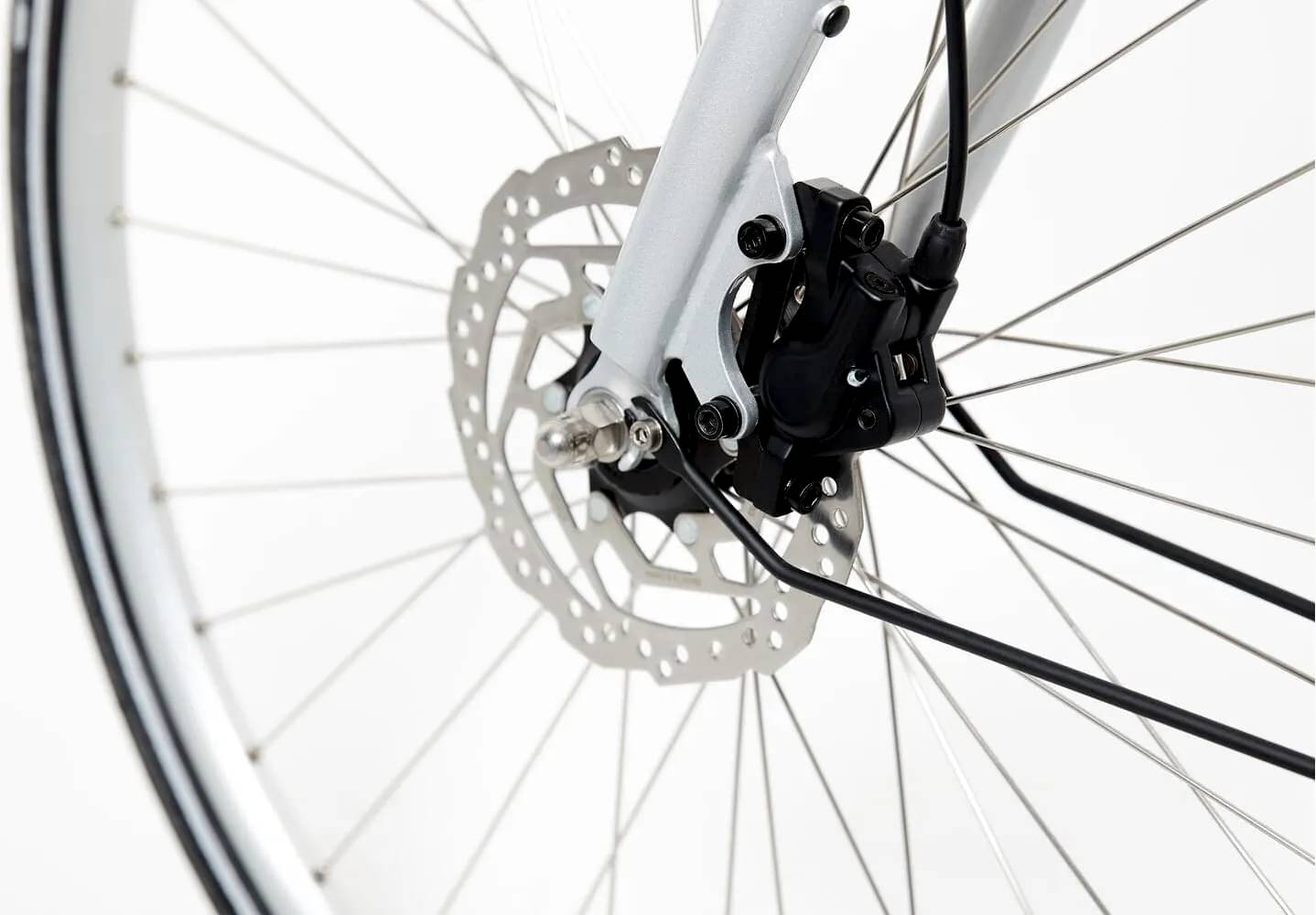

Brakes
Brakes
Alhonga AHJ-OD7
Brake Levers
Alhonga AHJ-OD7

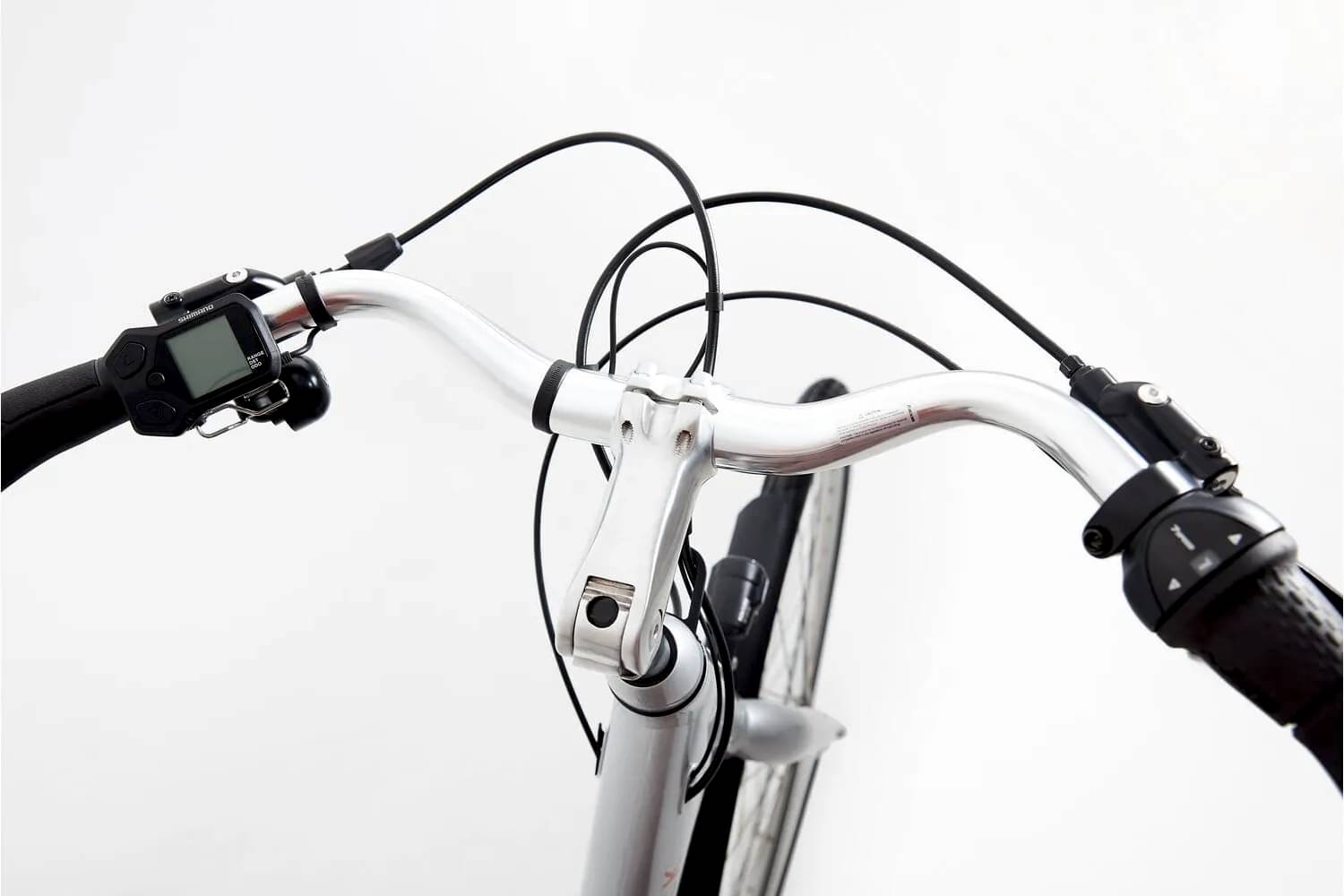

Cockpit
Stem
Adjustable quill 90mm
Handlebar
Alloy with 21mm rise 38 degree backsweep 620mm wide
Headset
FSA TH-805ST 1-1/8"
Seat
Seatpost
Alloy 30.9 x 300mm
Motor & Battery
Motor
Shimano STEPS DU-E5000 40Nm 250W

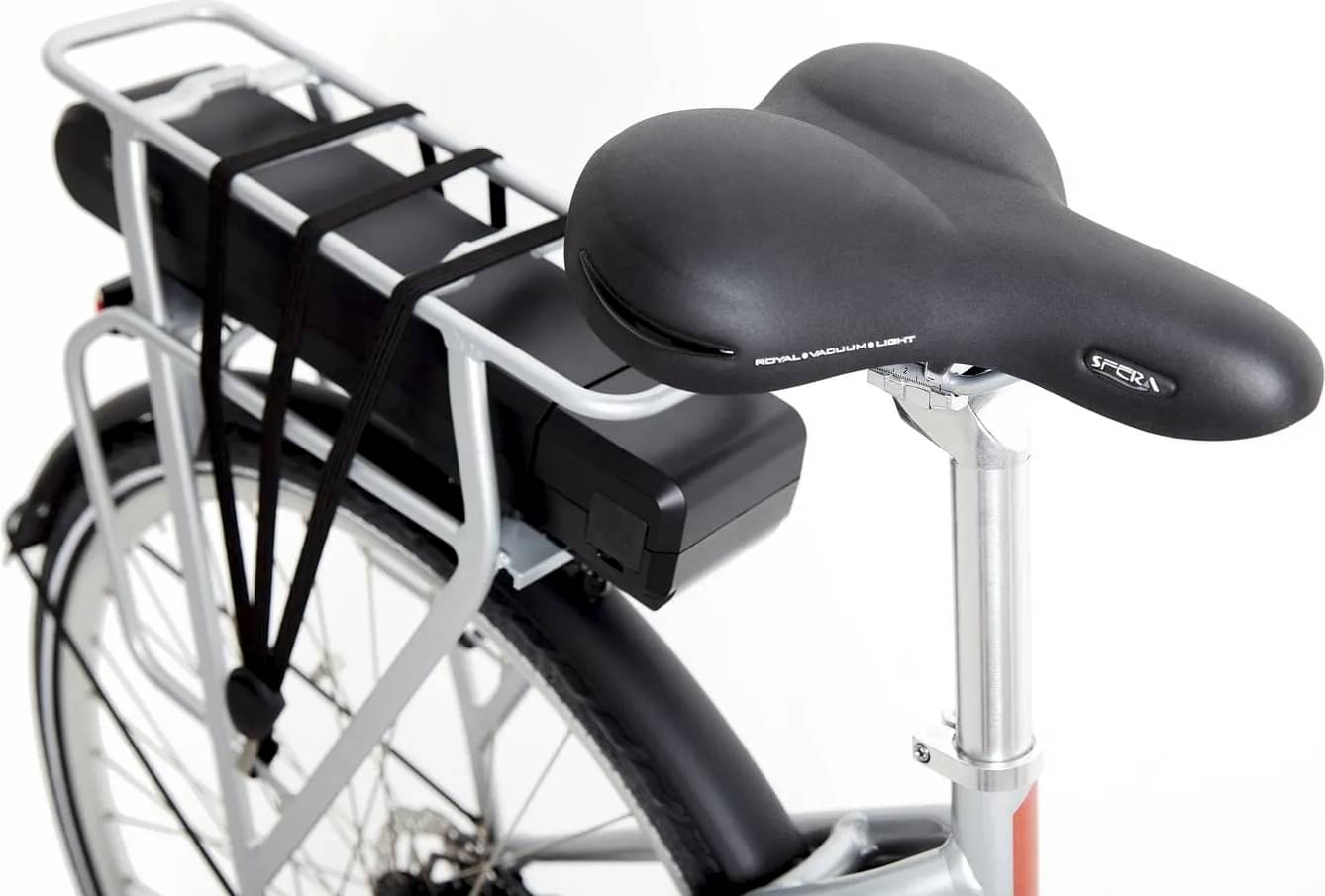

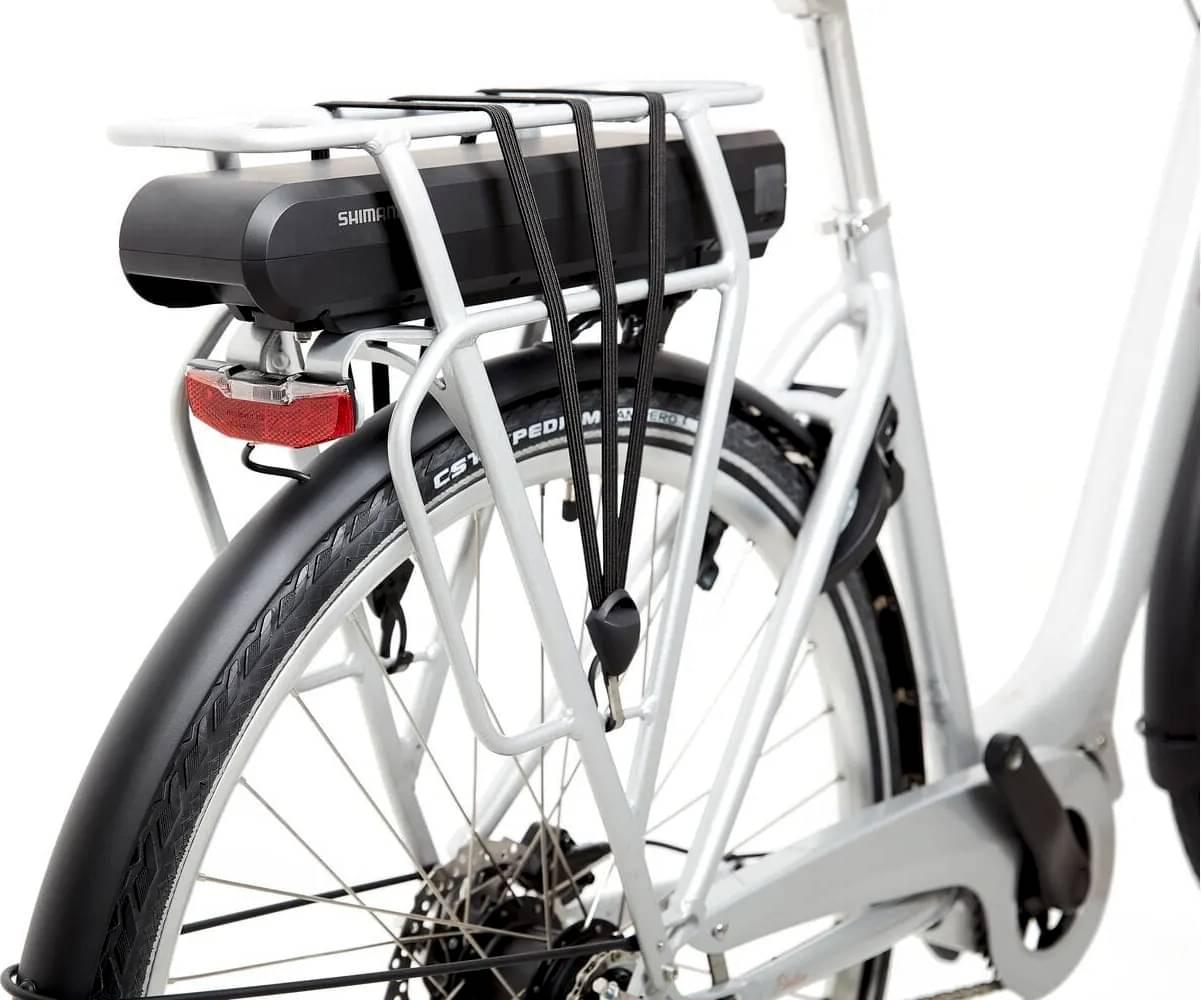

Battery
Shimano BT-E6000 418wh
Charger
Shimano STEPS 2AH
Fit data
Geometry
