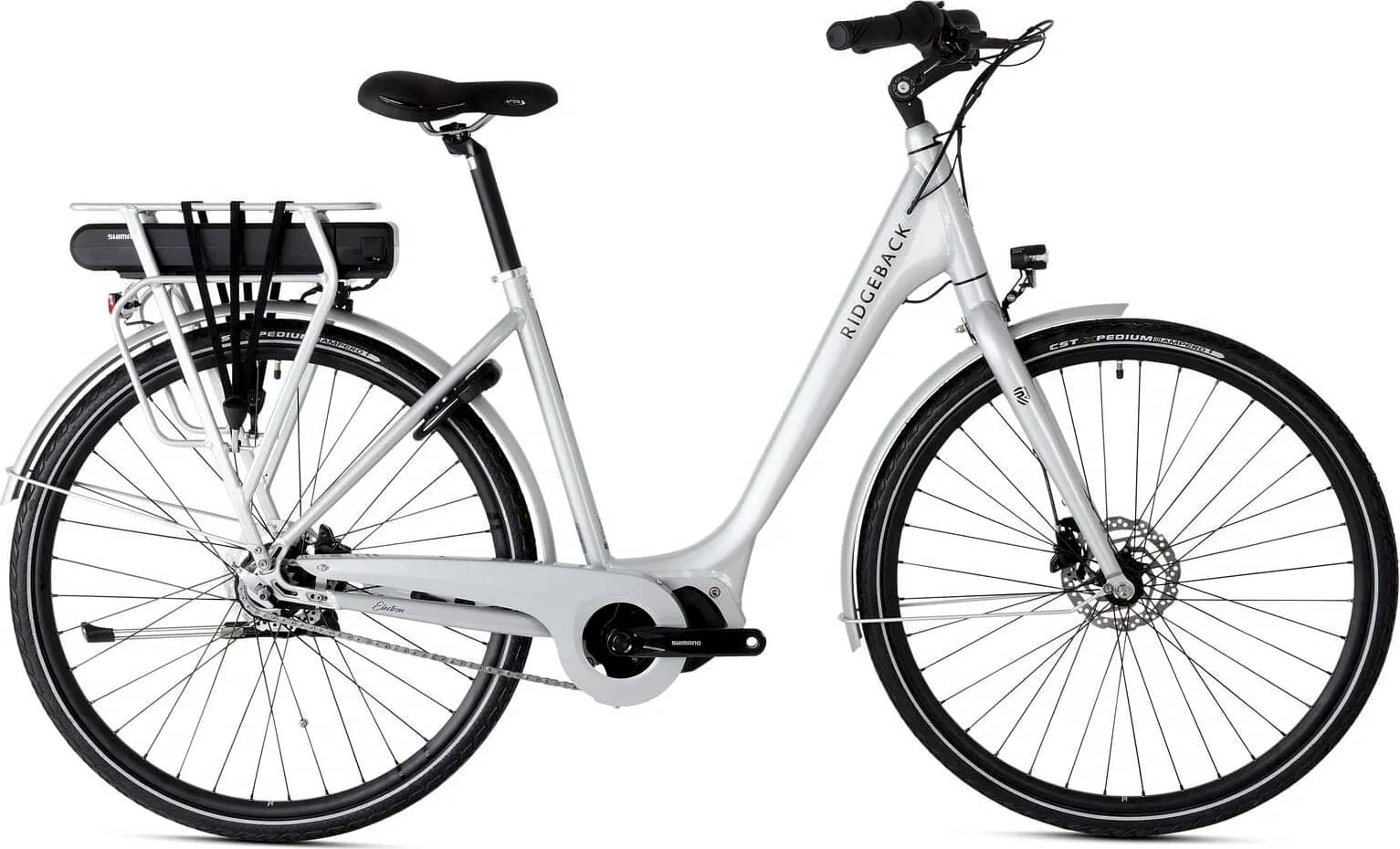

ridgeback Electron+ Grey 2024
2024 E-bike
Estimate price |
3,521$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Nexus -
Suspension Rigid -

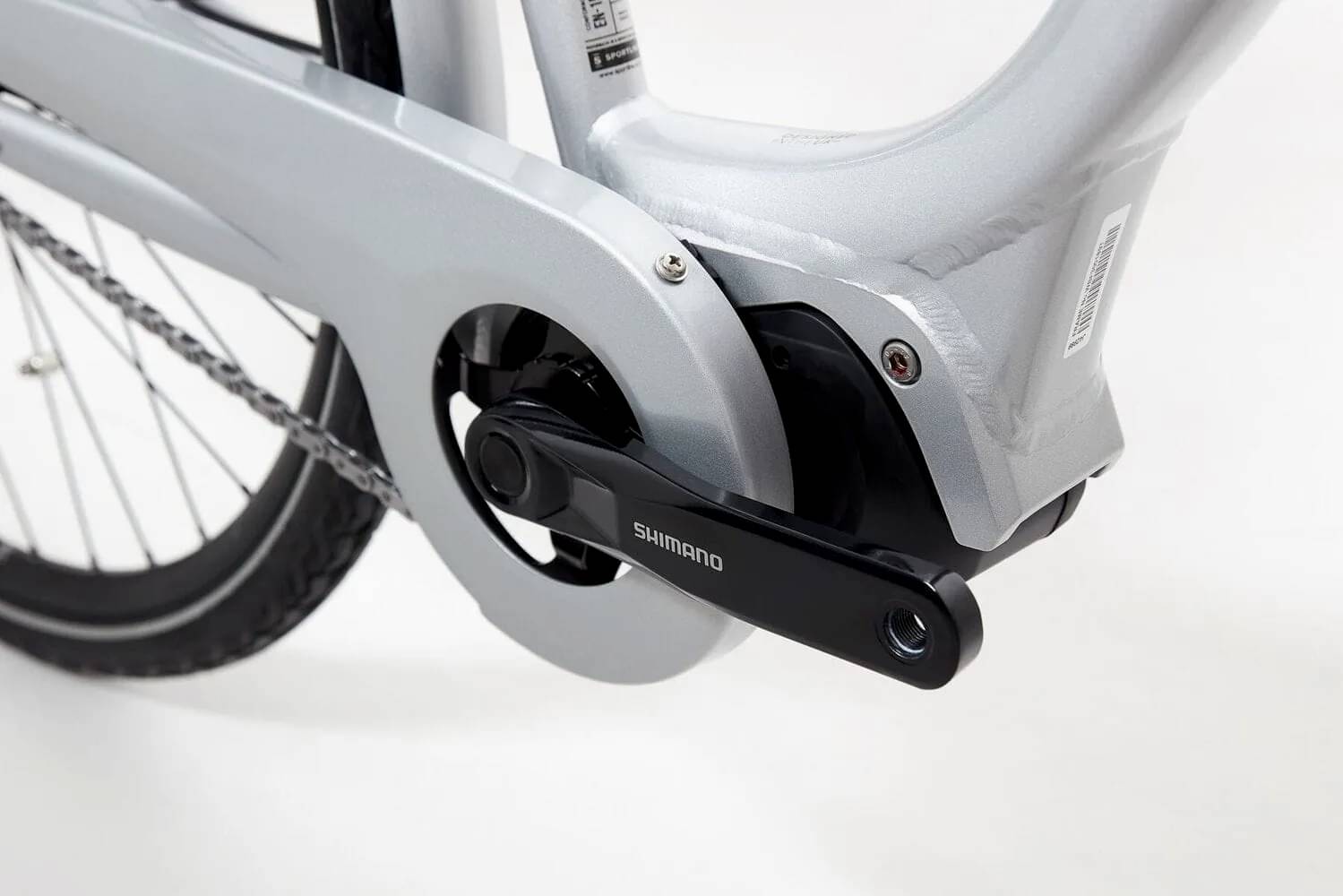

Motor Shimano 250W 40Nm mid-drive -
Battery Shimano BT-E6000 418wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
rigid
Drivetrain
Shift Levers
Shimano Nexus SL-C3000-7 RevoShift
Cassette
Shimano 18T Nexus sproket
Bottom Bracket
Shimano STEPS DU-E5000 36v / 40nm / 250w
Chain
KMC Z1EHX
Pedals
Resin Metro
Wheels
Front Hub
Shimano HB-TX505 / SG-C3001-7D / front / rear
Rear Hub
Shimano HB-TX505 / SG-C3001-7D / front / rear
Rims
J19ZK /
Spokes
Steel 14 g
Tires

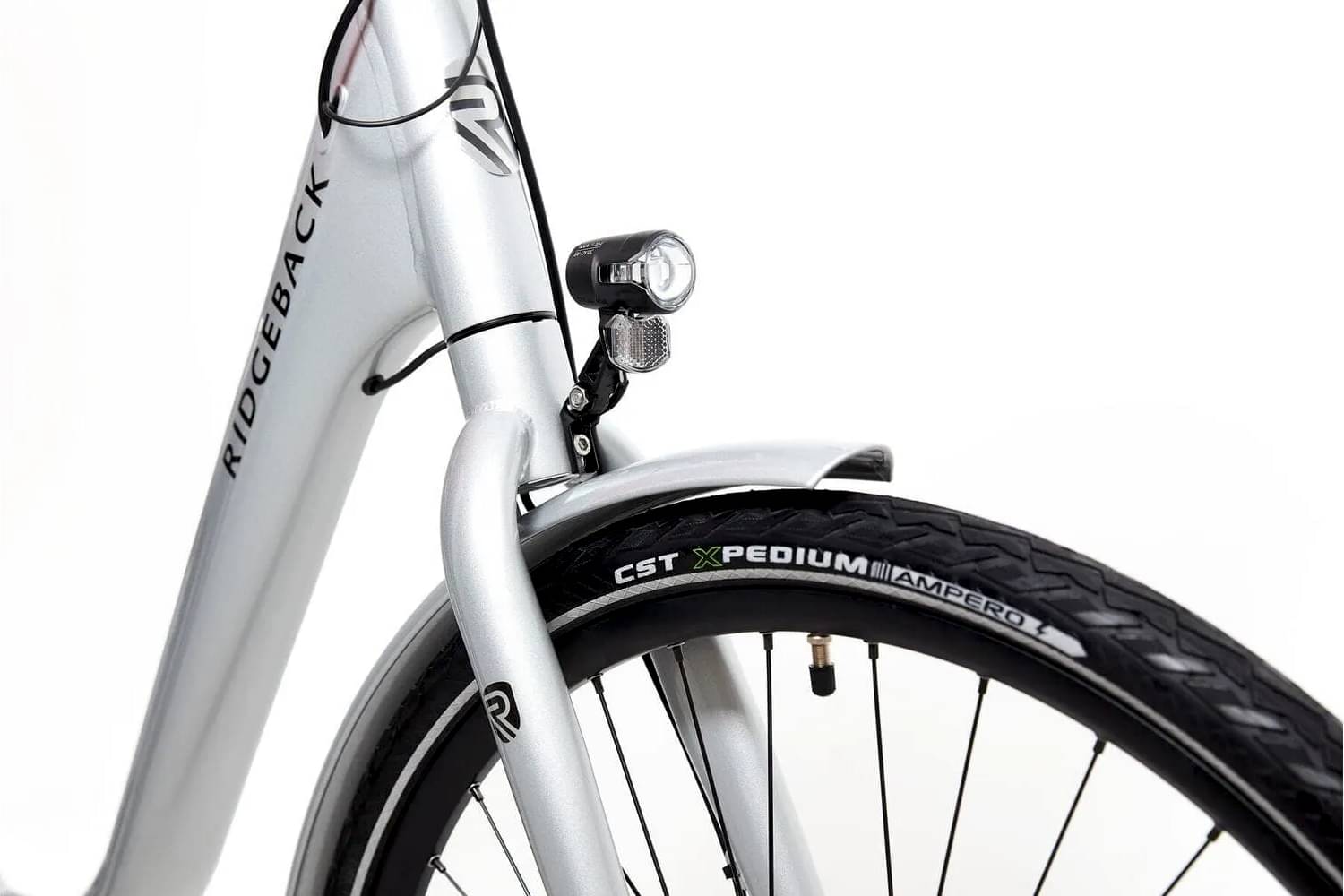

CST Xpedium Ampero 700 x 38c
Brakes
Brakes

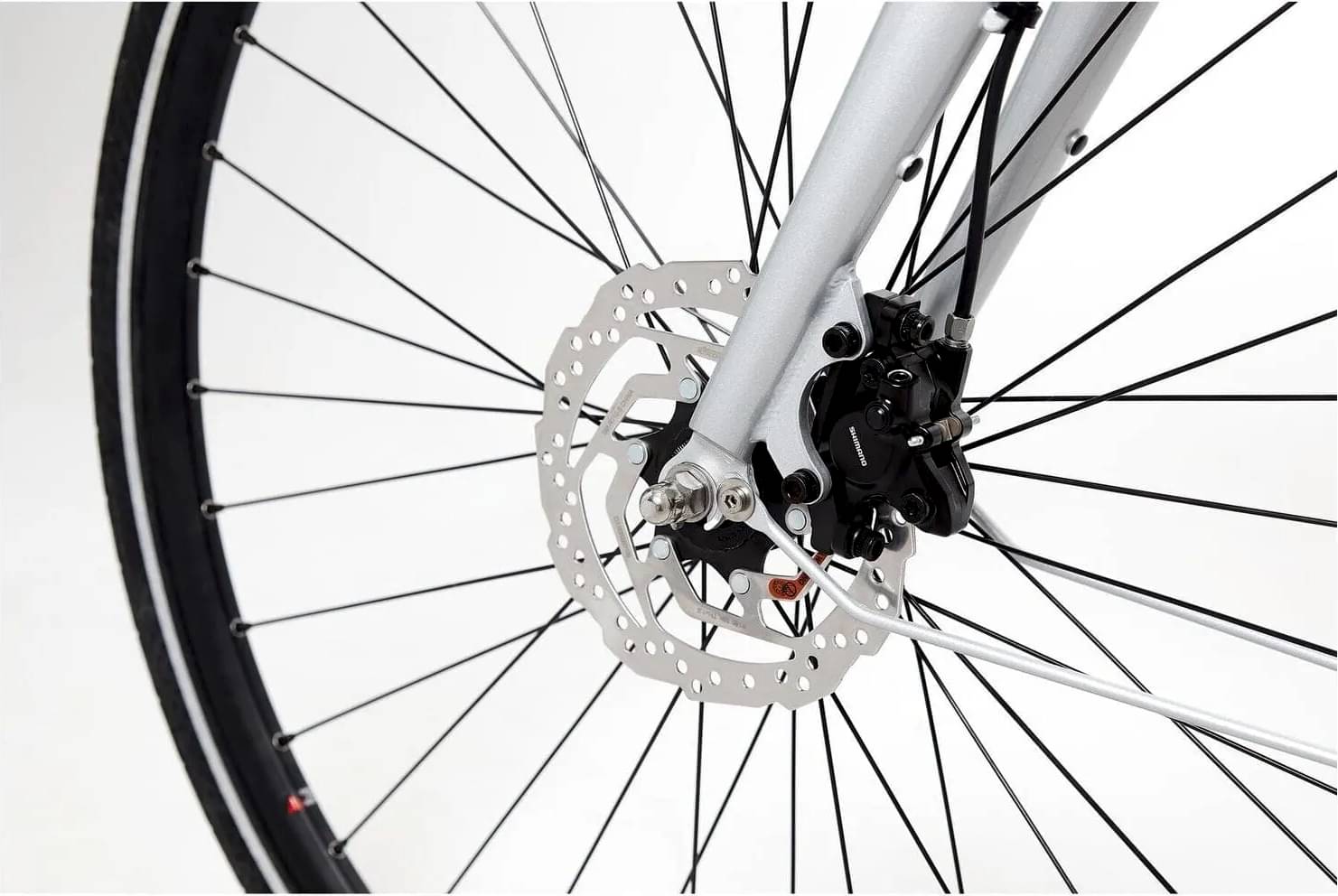

Shimano BR-MT200 Hydraulic Disc Brake
Brake Levers
Shimano BL-MT200 Hydraulic Brakes
Cockpit
Stem
Adjustable Quill 90 mm
Handlebar
Alloy / 26 mm rise x 33deg backsweep / 25.4 mm barbore / 600 mm
Headset
FSA TH-805ST 1-1/8 inch
Seat
Saddle
Ridgeback
Seatpost
Alloy 30.2 x 300 mm
Motor & Battery
Motor
Shimano STEPS DU-E5000 36v / 40nm / 250w
Battery

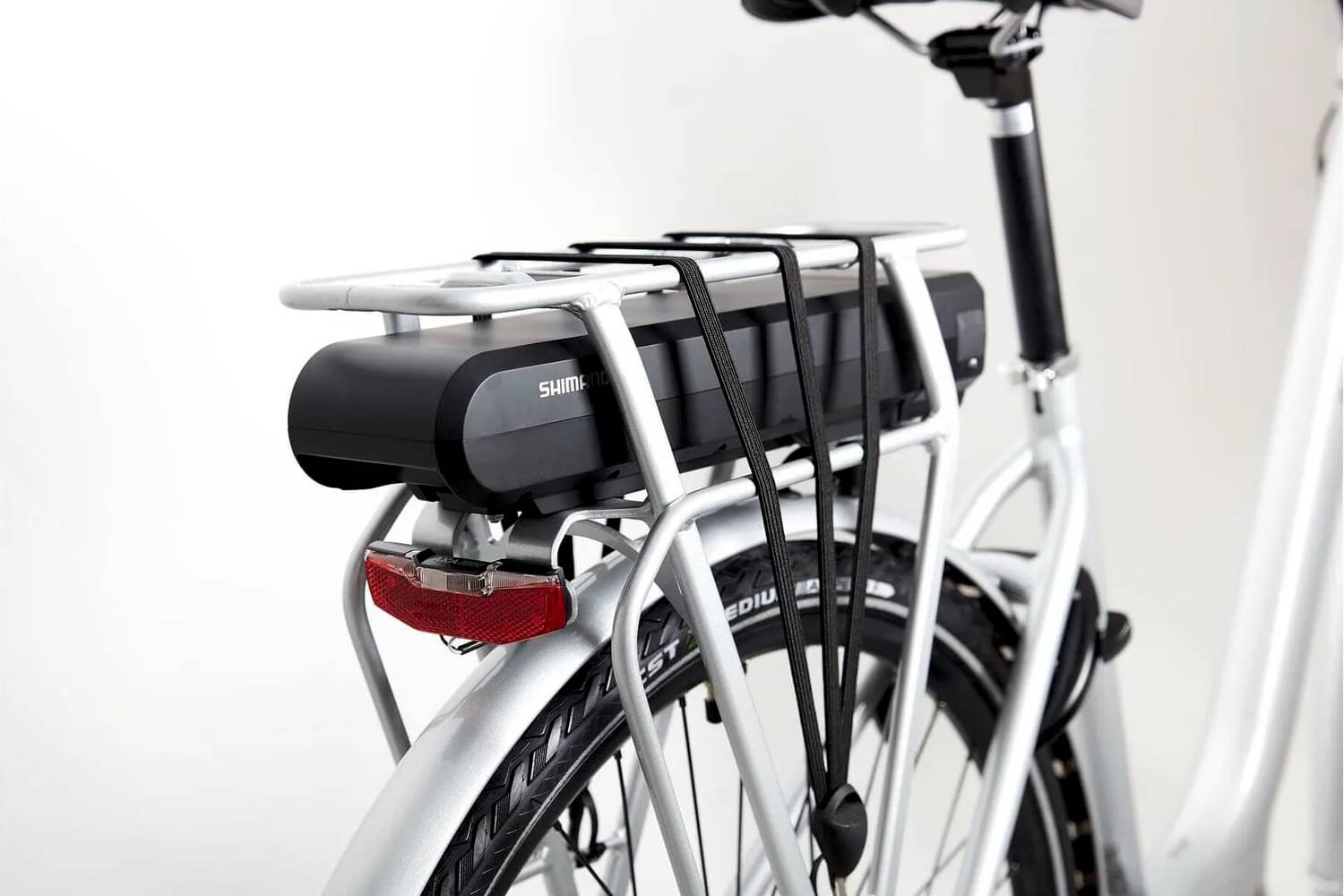

Shimano BT-E6000 418wh
Charger
Shimano STEPS 2AH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | XL | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.568 mm | 1.618 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Stack | 620 mm | 643 mm | 647 mm |
| Reach | 395 mm | 410 mm | 400 mm |
| Top Tube Length | 585 mm | 592 mm | 600 mm |
| Seat Tube Angle | 73 ° | 72 ° | 73 ° |
| Seat Tube Length | 460 mm | 540 mm | 500 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 180 mm | 180 mm |
| Wheelbase | 1119 mm | 1132 mm | 1123 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
