Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tourney -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
Hi-Ten Chromoly / Mudguard Eyelets 1-1/8 inch
Drivetrain

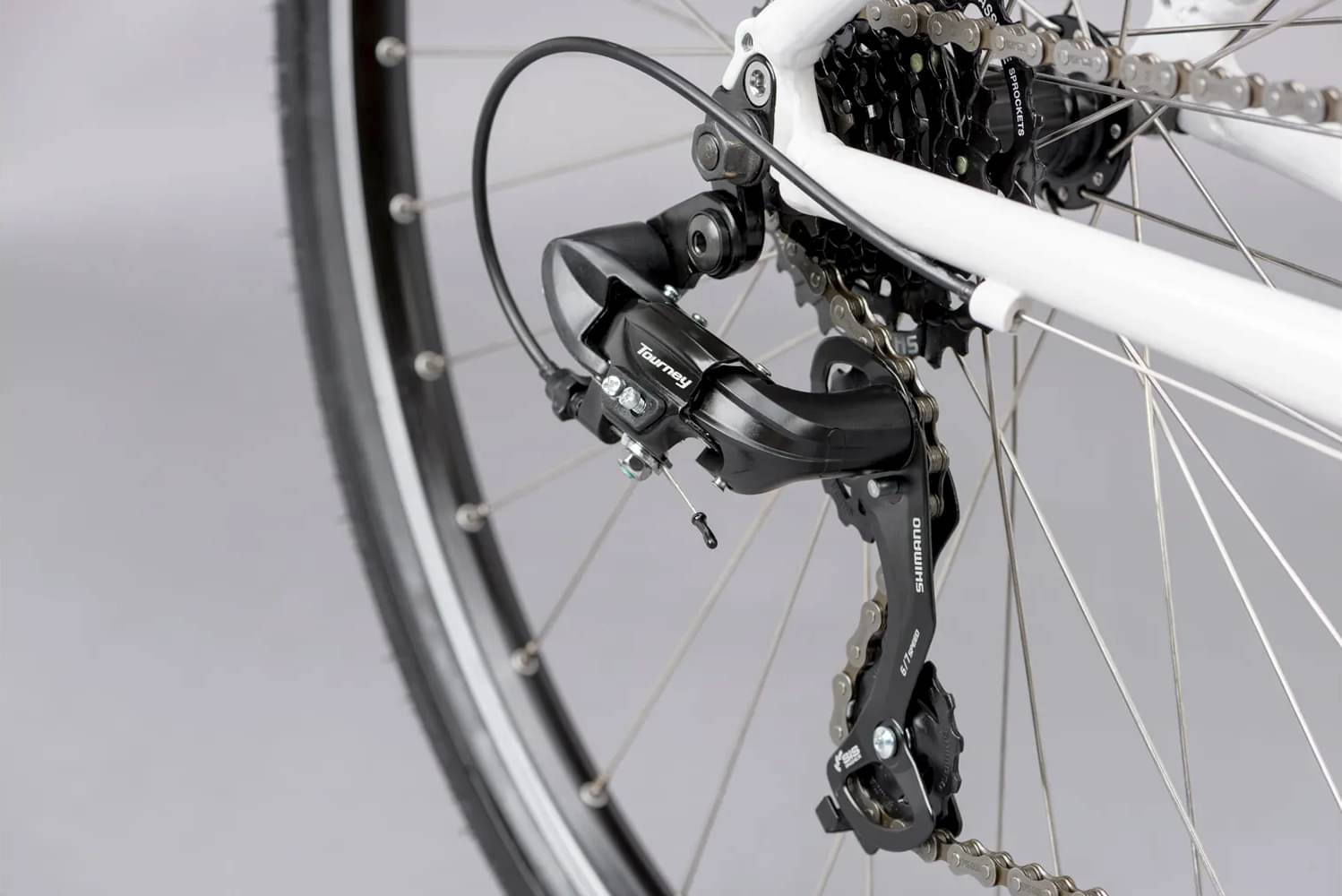

Rear Derailleur
Shimano Tourney RD-TY300

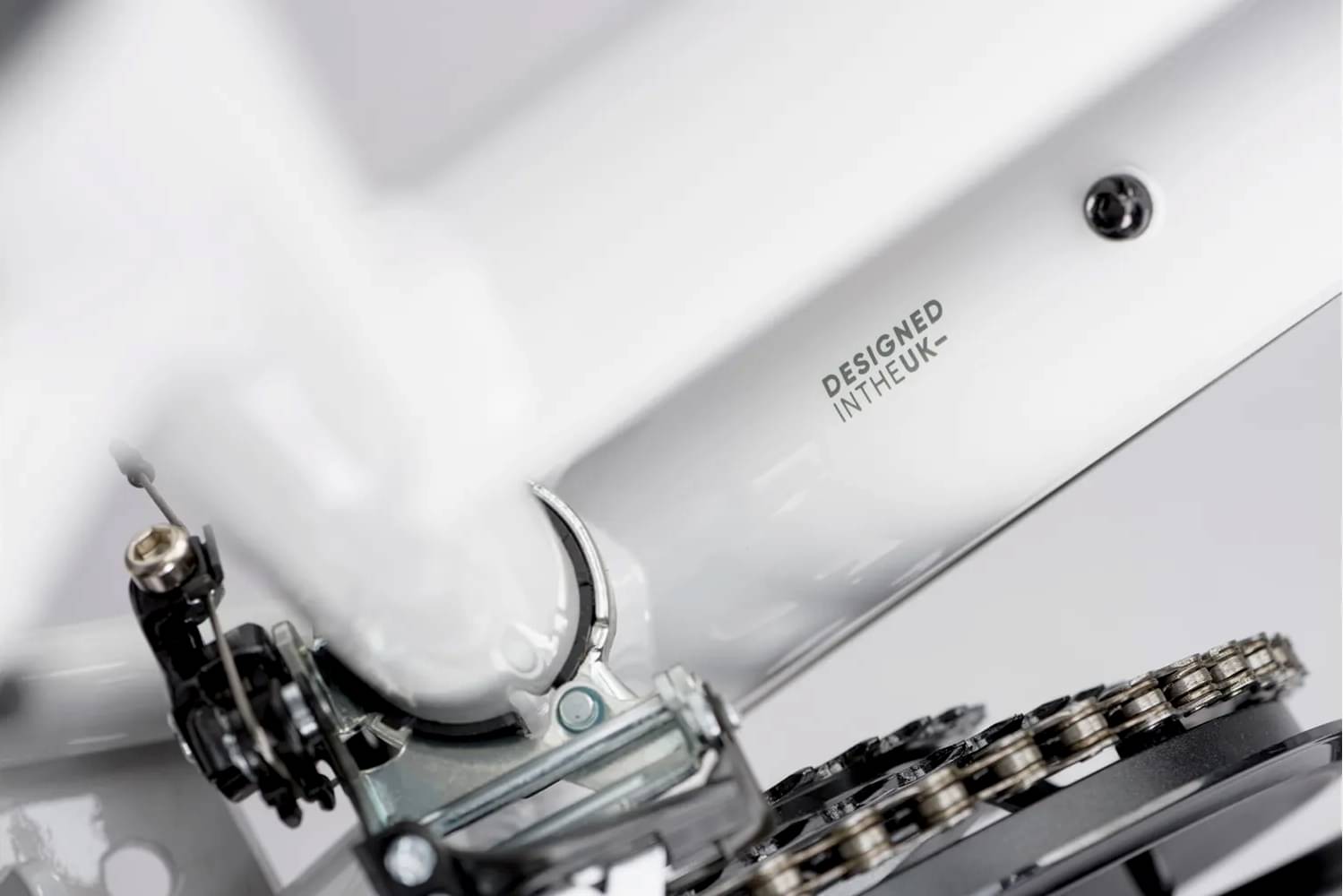

Front Derailleur
Shimano Tourney FD-TY510-TS3

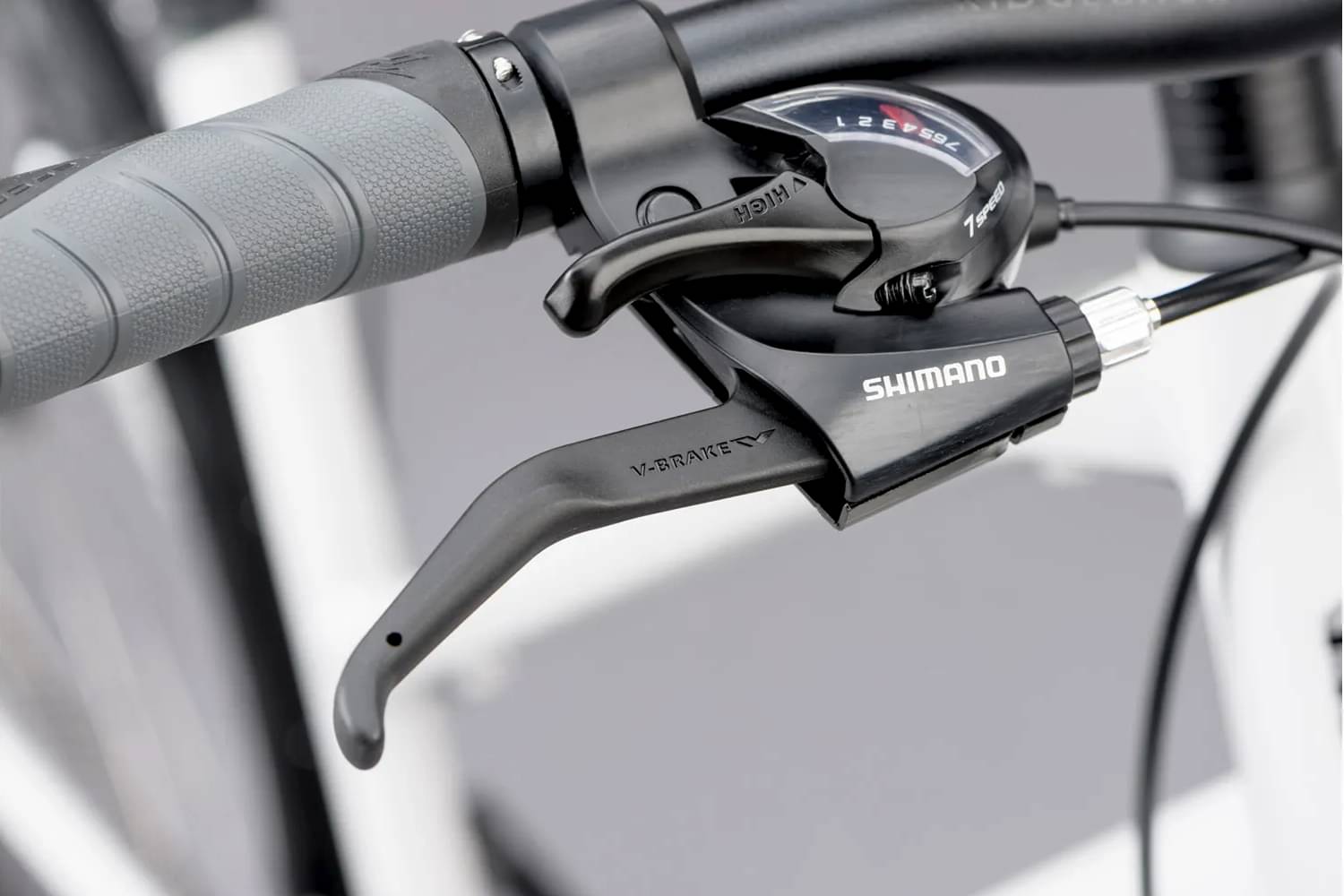

Shift Levers
Shimano ST-EF41 EZ-Fire 3 x 7 Speed
Cassette
Shimano CS-HG200-7 12-32T
Bottom Bracket
Shimano BB-UN100 BSA 68/122.5mm
Chain
KMC Z7
Pedals
Resin Metro
Wheels
Front Hub
KT A16F/AY1R / front / rear
Rear Hub
KT A16F/AY1R / front / rear
Spokes
Steel 14 g
Tires
Vee Tire Zilent 700 x 42c
Brakes
Brakes

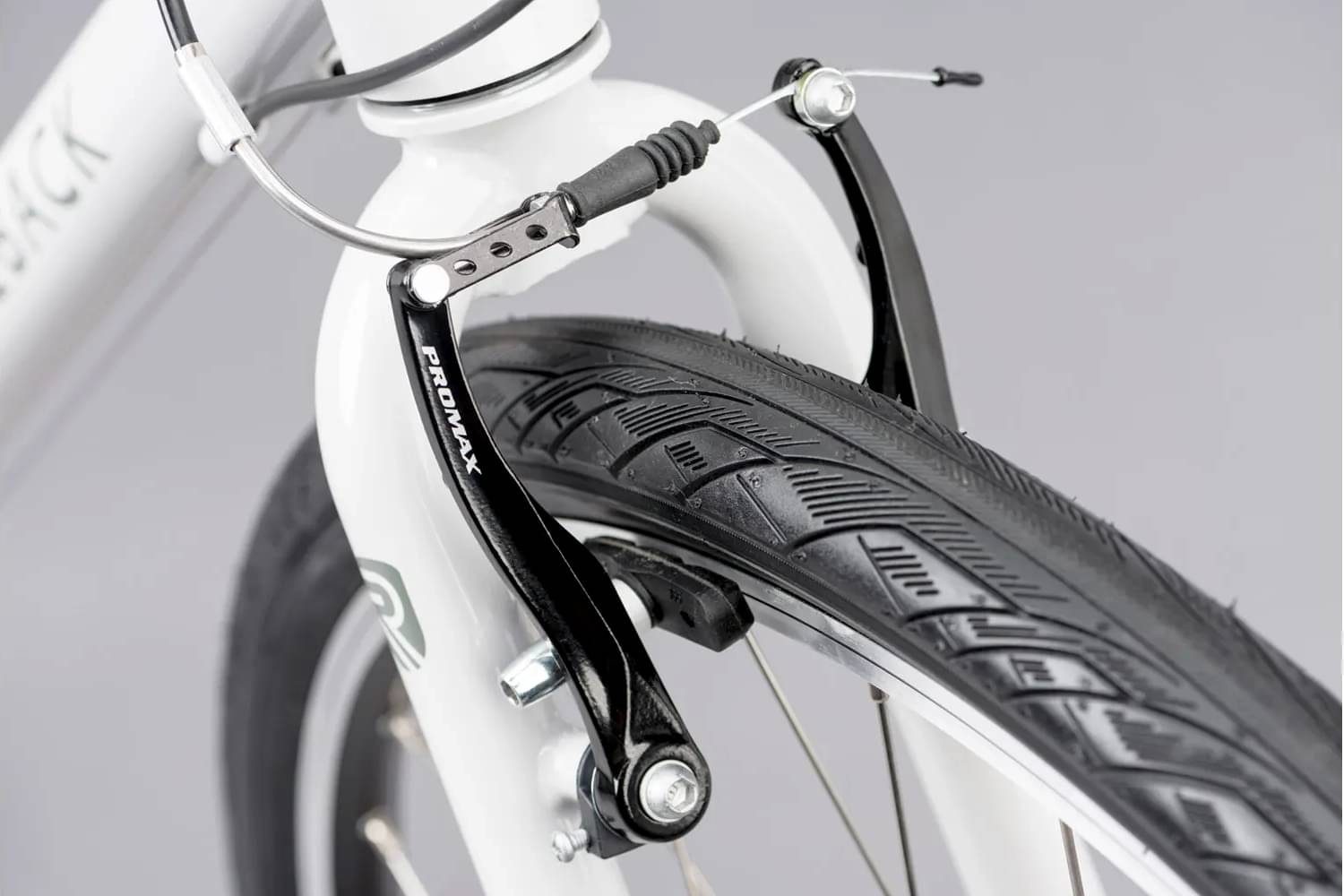

Promax TX-117 V-Brake
Brake Levers
Shimano ST-EF41 EZ-Fire 3 x 7 Speed
Cockpit
Stem
Ridgeback 70mm +7deg
Headset
Hi-Ten Chromoly / Mudguard Eyelets 1-1/8 inch
Seat
Saddle
Ridgeback Custom
Seatpost
Alloy 27.2 x 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.592 mm | 1.584 mm | 1.592 mm | 1.6 mm |
| Front Center | 623 mm | 628 mm | 644 mm | 661 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 75 mm | 66 mm | 67 mm | 67 mm |
| Stack | 597 mm | 610 mm | 629 mm | 648 mm |
| Reach | 375 mm | 385 mm | 395 mm | 405 mm |
| Top Tube Length | 557 mm | 572 mm | 587 mm | 603 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 383 mm | 433 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 170 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1068 mm | 1073 mm | 1089 mm | 1106 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 772 mm | 801 mm | 831 mm | 864 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
