Ridley Blast – Shimano CUES 1x9sp 2024

2024 Mountain
Estimate price | 974$
Open compare Use advisor

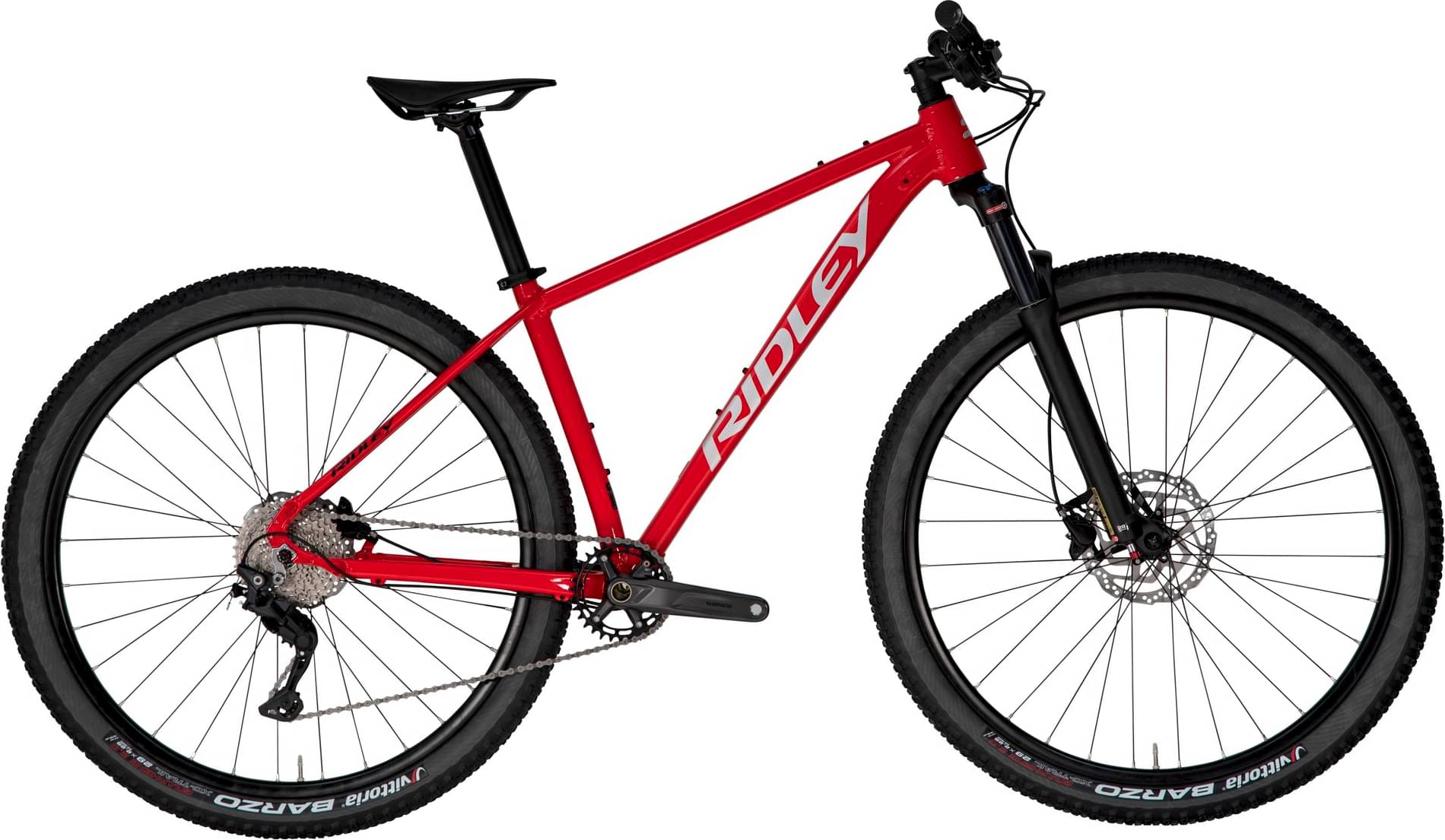

Ridley Blast Shimano Cues 1x9sp 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Travel Front 100mm
  • Fork Suntour X1
  • Groupset CUES
  • Suspension Hardtail
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 171cm

  • MD

    168cm - 180cm

  • LG

    178cm - 189cm

  • XL

    186cm - 199cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Blast29 7E8

Suspension Fork

Suntour X1 // 29" // 100mm // Crown Lock // QR

Drivetrain

Rear Derailleur

Shimano CUES 1x9sp

Front Derailleur

Shimano CUES 1x9sp

Shift Levers

Shimano CUES 1x9sp

Cassette

Shimano CUES 9sp // 11-46T

Crank

Shimano Cues 6000 1x9sp // 170mm // 32T

Pedals

Included

Wheels

Rims

Forza XC // 29" // TA Boost

Brakes

Brakes

Front: Shimano MT-200 hydraulic disc brake, Rear: Shimano MT-200 hydraulic disc brake

Cockpit

Stem

4ZA Alloy // 70mm // 31.8 // Black

Handlebar

4ZA Alloy // 31.8 // 720mm

Seat

Saddle

Selle Italia Model X

Seatpost

4ZA Alloy // 31.6 // Zero Offset

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXL
Stack Reach Ratio
1.515 mm1.41 mm1.36 mm1.358 mm
Bottom Bracket Height
311 mm311 mm311 mm311 mm
Front Center
676 mm705 mm737 mm753 mm
Rake
52 mm52 mm52 mm52 mm
Trail
92 mm92 mm92 mm92 mm
Stack
609 mm609 mm623 mm637 mm
Reach
402 mm432 mm458 mm469 mm
Top Tube Length
570 mm600 mm630 mm645 mm
Seat Tube Angle
74.6 °74.6 °74.6 °74.6 °
Seat Tube Length
380 mm430 mm475 mm520 mm
Head Tube Angle
68.5 °68.5 °68.5 °68.5 °
Head Tube Length
100 mm100 mm115 mm130 mm
Chainstay Length
435 mm435 mm435 mm435 mm
Wheelbase
1103 mm1133 mm1165 mm1181 mm
Bottom Bracket Drop
63 mm63 mm63 mm63 mm
Wheels29"29"29"29"
Rider Min Height158 cm168 cm178 cm186 cm
Rider Max Height171 cm180 cm189 cm199 cm
