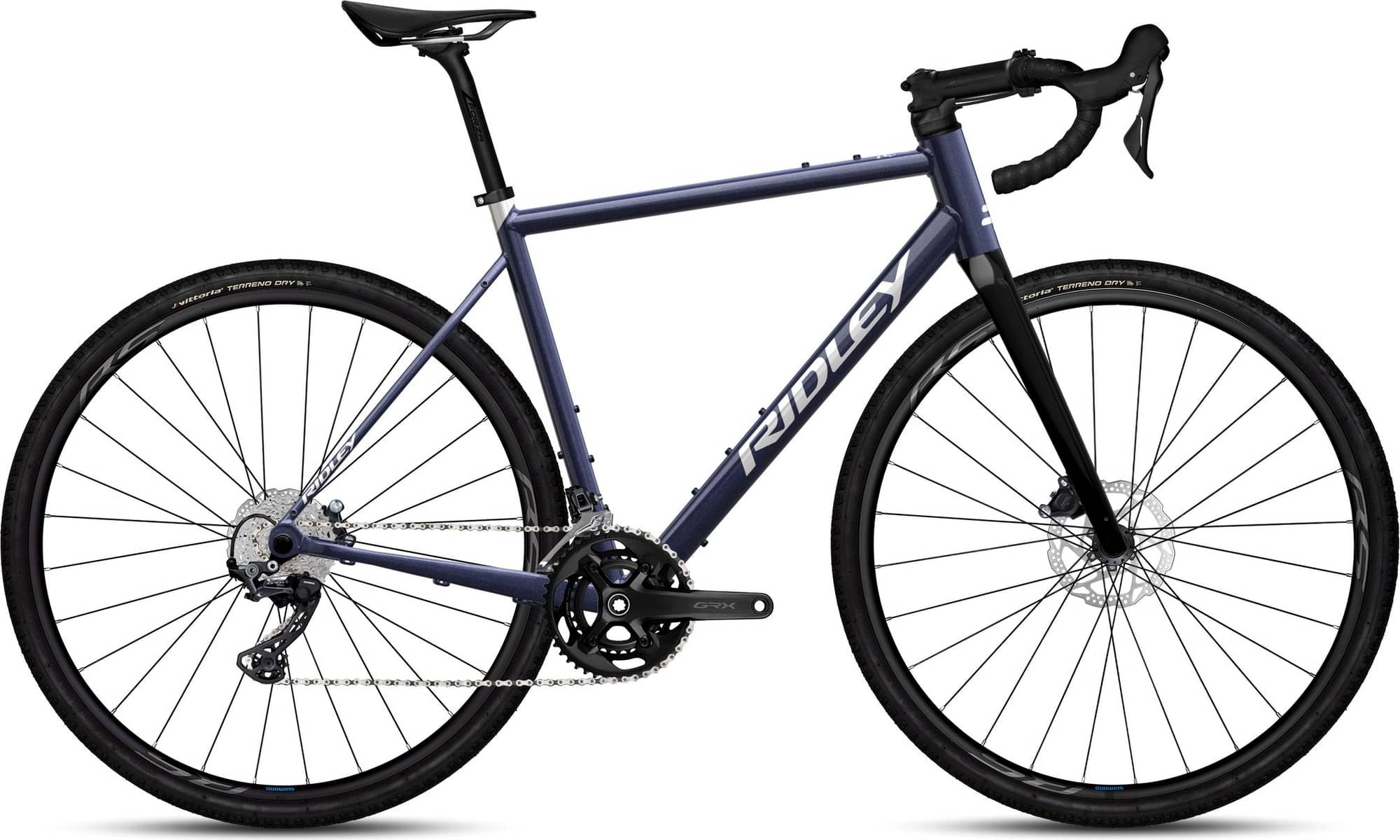

Ridley Grifn A Gravel – Shimano GRX600 2x12sp 2024
2024 Road
Estimate price |
2,675$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 600 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Grifn A, Multiple mounting points, fender mounts, internal dynamo routing, UDH, 12x142TA
Suspension Fork
4ZA Allroad 7E7/Black Glossy
Drivetrain
Rear Derailleur
Shimano GRX600 2x12sp
Front Derailleur
Shimano GRX600 2x12sp
Shift Levers
Shimano GRX600 2x12sp
Cassette
Shimano 105 // 12s // 11-36
Crank
172,5 // 46-30
Pedals
Not included **
Wheels
Rims
Shimano RS171 DB // Shimano 11s // Clincher
Brakes
Brakes
Flat Mount
Cockpit
Stem
Forza Stratos // 100 mm // Black Glossy
Handlebar
4ZA Stratos Gravel 420/480
Seat
Saddle
Selle Italia Model X // Black
Seatpost
Forza Stratos // 15mm Offset // 350mm // 27,2mm // Black Glossy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.398 mm | 1.433 mm | 1.464 mm | 1.485 mm | 1.502 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 276 mm | 276 mm | 278 mm | 278 mm |
| Front Center | 574 mm | 585 mm | 596 mm | 612 mm | 633 mm | 647 mm |
| Rake | 47 mm | 46 mm | 47 mm | 47 mm | 48 mm | 48 mm |
| Trail | 67 mm | 68 mm | 64 mm | 64 mm | 63 mm | 63 mm |
| Stack | 515 mm | 530 mm | 553 mm | 577 mm | 603 mm | 622 mm |
| Reach | 372 mm | 379 mm | 386 mm | 394 mm | 406 mm | 414 mm |
| Top Tube Length | 515 mm | 525 mm | 545 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 505 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 105 mm | 130 mm | 155 mm | 182 mm | 205 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 982 mm | 993 mm | 1005 mm | 1021 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 73 mm | 73 mm | 71 mm | 71 mm |
| Standover Height | 760 mm | 775 mm | 800 mm | 824 mm | 852 mm | 871 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
