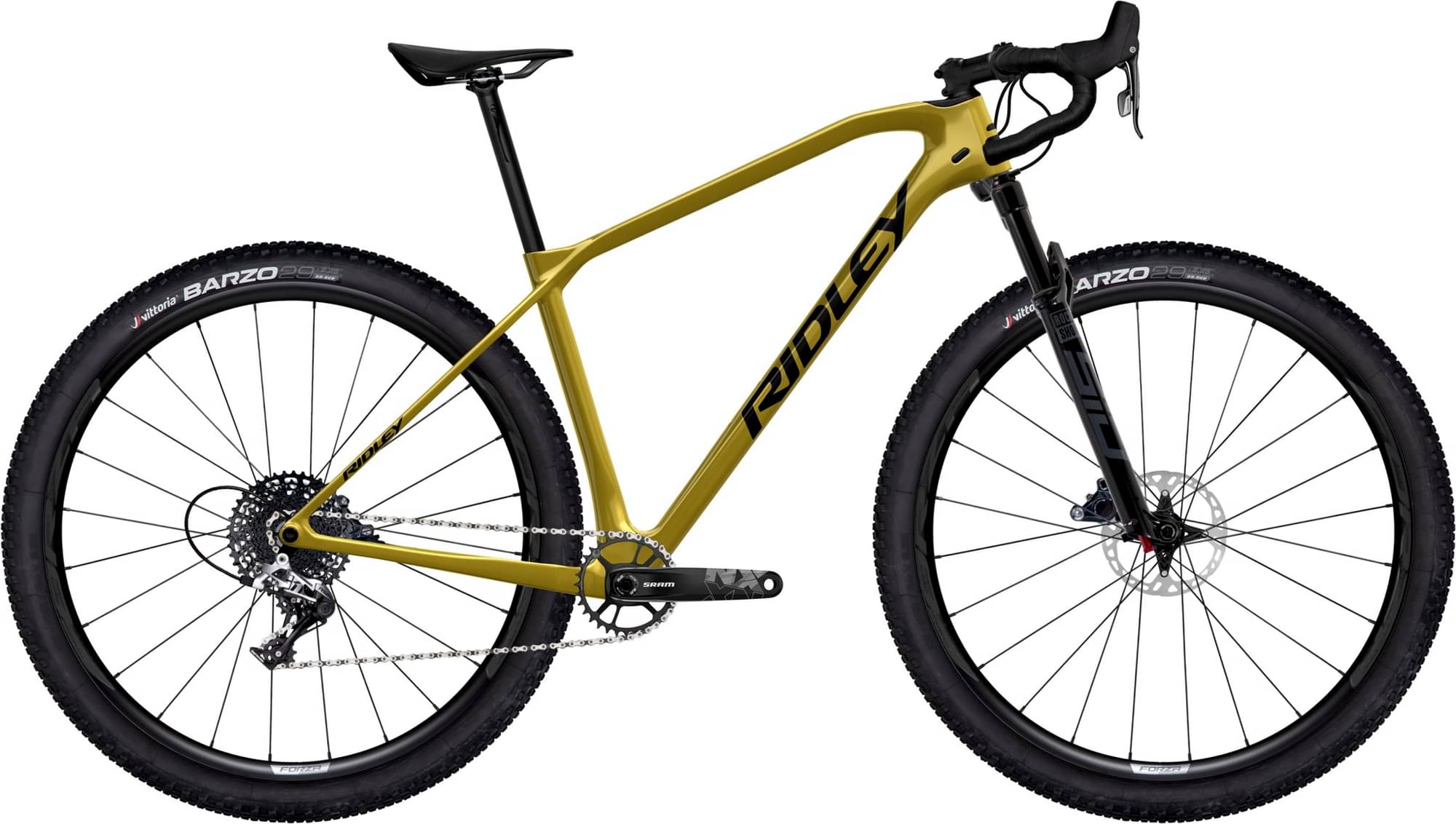

Ridley Ignite GTX – Sram Apex 1×11 with suspension fork 2024
2024 Mountain
Estimate price |
3,489$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset SX Eagle, Apex -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ignite GTX, BB92, flatmount, TA 12x148
Suspension Fork
Rockshox Judy Silver TK R 29er 100mm TA15/110 // Matte Black
Drivetrain
Rear Derailleur
SRAM Apex 1x11 with suspension fork
Front Derailleur
SRAM Apex 1x11 with suspension fork
Shift Levers
SRAM Apex 1x11 with suspension fork
Cassette
SRAM PG-1130 // 11s // 11-42
Crank
SRAM SX Eagle 175mm // 32T
Bottom Bracket
Ridley
Pedals
Not included **
Wheels
Rims
Front: Forza XCD-SL, 29er // TA 15x110mm // Clincher-TLR // 23mm Internal Width, Rear: Forza XCD SL // TA12-148 // 23c internal width //Easy Tubeless Ready
Brakes
Brakes
Flat Mount
Cockpit
Stem
Forza Stratos // 70 mm // Black Glossy
Handlebar
Ritchey Venture Max II // 440 mm
Seat
Saddle
Selle Italia Model X // Black
Seatpost
4ZA Cirrus // 27.2 // 400mm // Zero offset // Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.469 mm | 1.416 mm | 1.396 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 656 mm | 676 mm | 702 mm | 728 mm |
| Rake | 50 mm | 50 mm | 51 mm | 50 mm |
| Trail | 83 mm | 83 mm | 82 mm | 83 mm |
| Stack | 609 mm | 614 mm | 623 mm | 642 mm |
| Reach | 400 mm | 418 mm | 440 mm | 460 mm |
| Top Tube Length | 580 mm | 600 mm | 625 mm | 650 |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 435 mm | 485 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1080 mm | 1100 mm | 1126 mm | 1152 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
