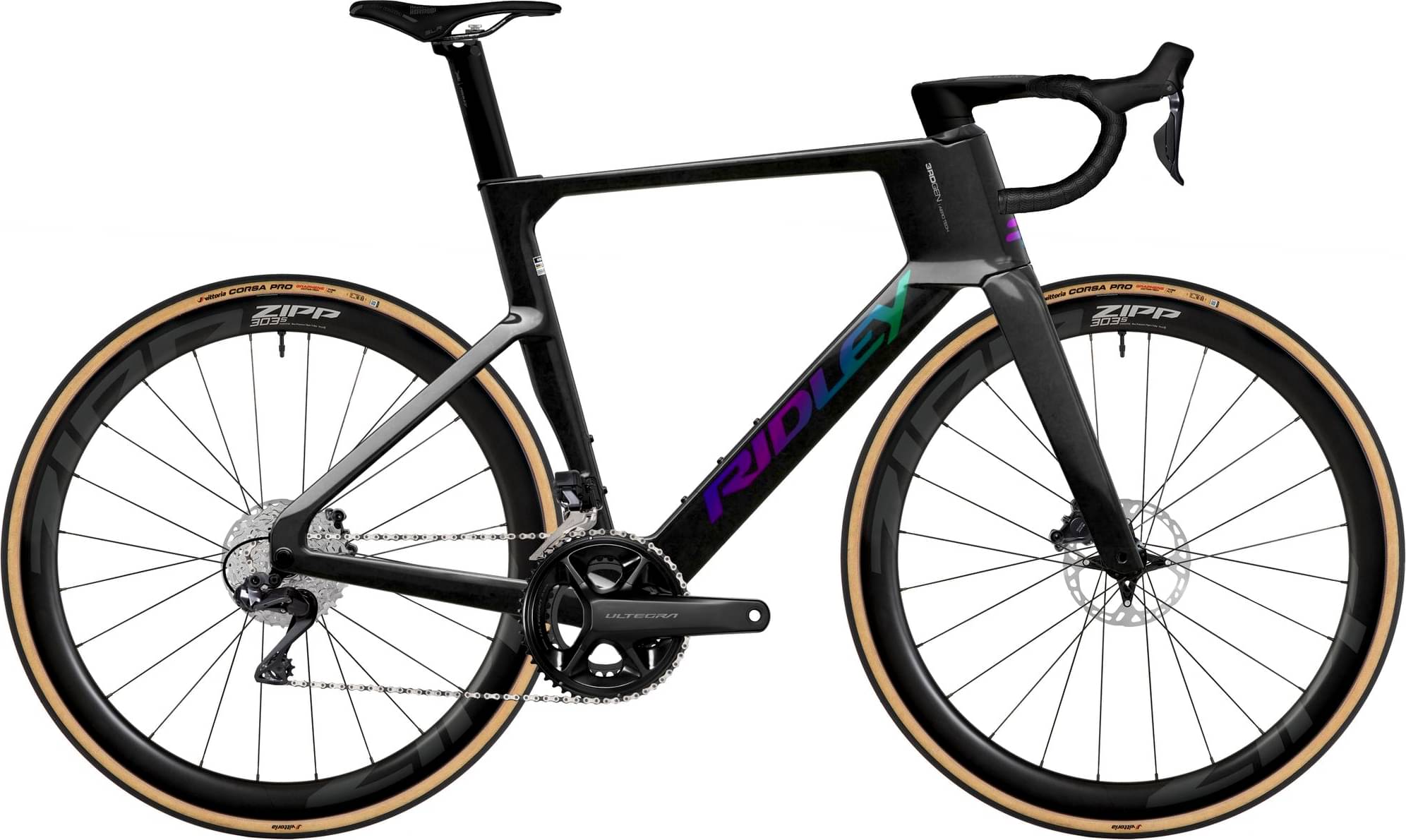

Ridley Noah 3.0 – Shimano Ultegra DI2 2x12sp 2025
2025 Road
Estimate price |
7,561$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Noah 7E8
Suspension Fork
Noah 7E8 45mm/NH302As
Drivetrain
Rear Derailleur
Shimano Ultegra DI2 2x12sp
Front Derailleur
Shimano Ultegra DI2 2x12sp
Shift Levers
Shimano Ultegra DI2 2x12sp
Cassette
Shimano Ultegra // 11-30
Crank
Shimano Ultegra // 12s // 172,5 // 52-36
Bottom Bracket
Ridley
Pedals
Not included **
Wheels
Rims
Front: DT Swiss ARC1600 55mm TA12/100, Rear: DT Swiss ARC1600 55mm TA12/142 SHI
Brakes
Brakes
Flat Mount
Cockpit
Handlebar
Forza Cirrus Pro Integrated // 110mm - 400mm (cc shifters) - 420mm (cc drops) // Stealth Black
Seat
Saddle
Selle Italia SLR Boost // Manganese Rails // Black
Seatpost
Aero Seatpost - AER10 - 350mm/Black Matt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.357 mm | 1.362 mm | 1.383 mm | 1.414 mm |
| Bottom Bracket Height | 264 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 599 mm | 600 mm | 611 mm | 626 mm |
| Rake | 50 mm | 45 mm | 45 mm | 45 mm |
| Trail | 57 mm | 56 mm | 53 mm | 53 mm |
| Stack | 532 mm | 549 mm | 570 mm | 594 mm |
| Reach | 392 mm | 403 mm | 412 mm | 420 mm |
| Top Tube Length | 525 mm | 545 mm | 565 mm | 585 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 485 mm | 510 mm | 540 mm | 560 mm |
| Head Tube Angle | 72 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 130 mm | 145 mm | 165 mm | 190 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 995 mm | 997 mm | 1008 mm | 1023 mm |
| Bottom Bracket Drop | 72 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
