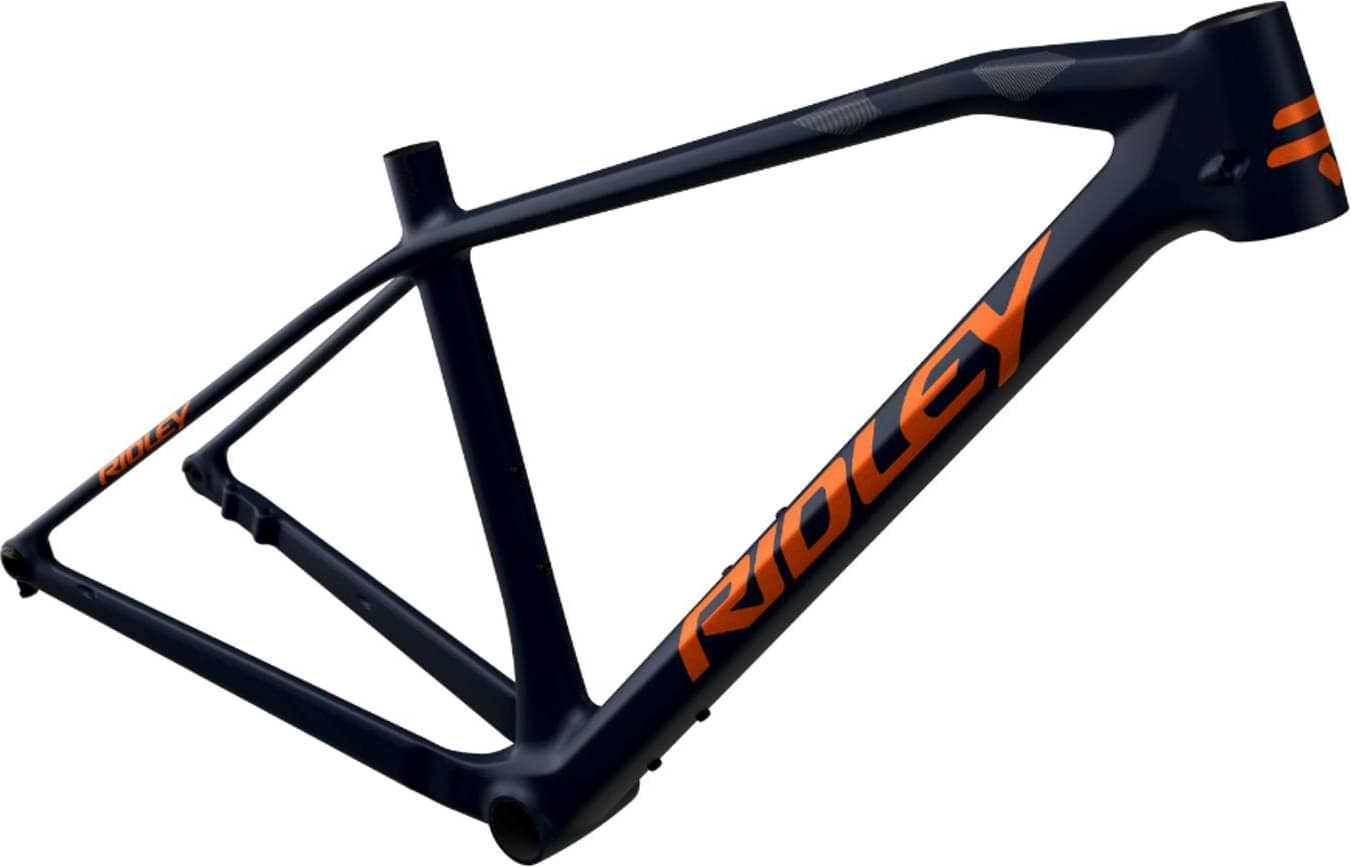

Ridley Probe RS – Frameset 2023
2023 Mountain
Estimate price |
3,440$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Probe RS, Elite Made in Europe series, UDH, Boost 12x148
Drivetrain
Rear Derailleur
Frameset
Front Derailleur
Frameset
Shift Levers
Frameset
Brakes
Brakes
Flat Mount
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.496 mm | 1.409 mm | 1.363 mm | 1.321 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 667 mm | 718 mm | 722 mm | 753 mm |
| Rake | 42 mm | 67 mm | 42 mm | 43 mm |
| Trail | 102 mm | 76 mm | 102 mm | 101 mm |
| Stack | 606 mm | 606 mm | 620 mm | 634 mm |
| Reach | 405 mm | 430 mm | 455 mm | 480 mm |
| Top Tube Length | 578 mm | 604 mm | 633 mm | 662 mm |
| Seat Tube Angle | 74 ° | 75 ° | 76 ° | 77 ° |
| Seat Tube Length | 400 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1089 mm | 1141 mm | 1145 mm | 1176 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
