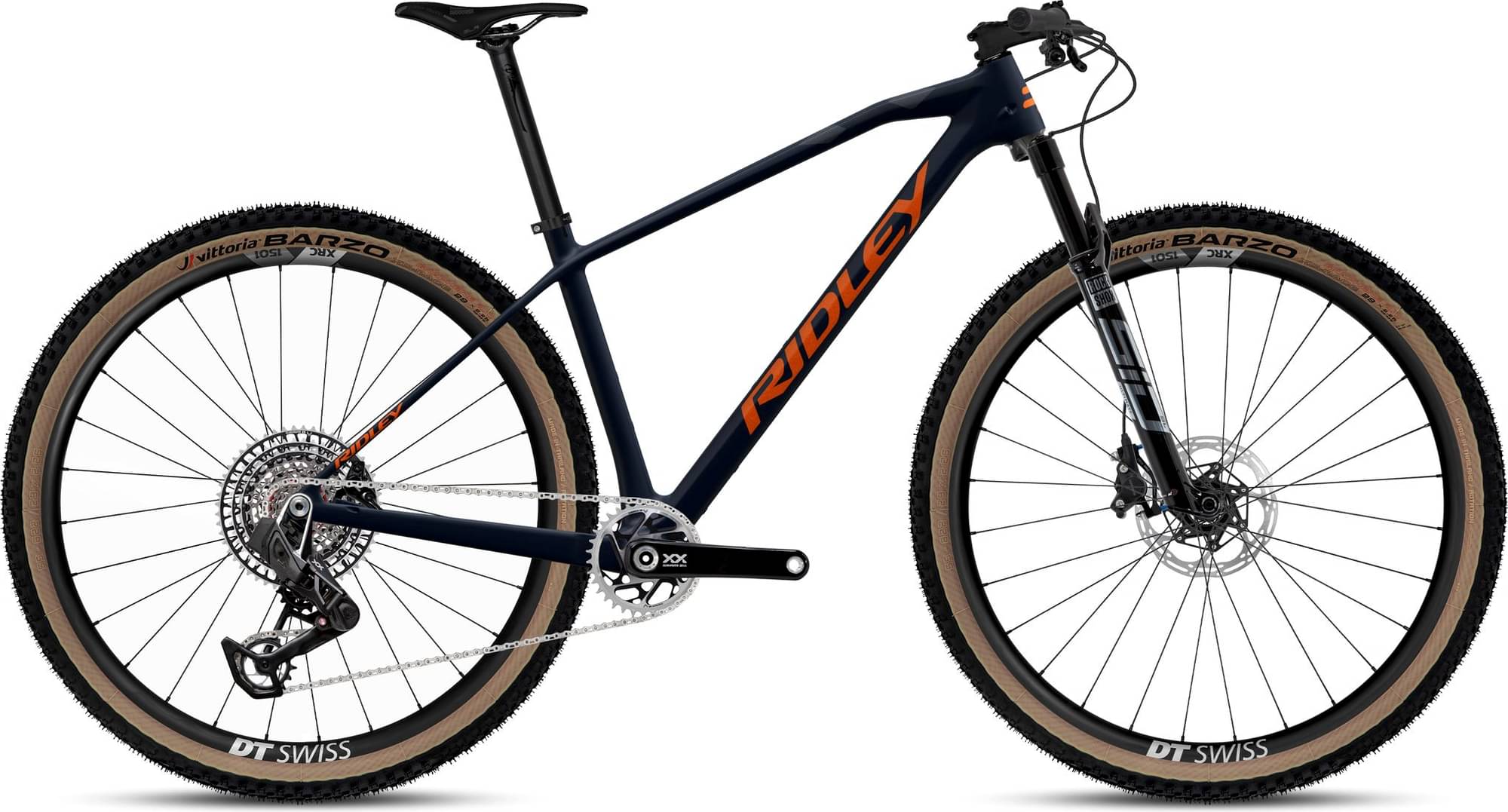

Ridley Probe RS – Sram T-XX SL 2023
2023 Mountain
Estimate price |
11,468$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset XX, XX SL Eagle Transmission -
Suspension Hardtail -
Brakes SRAM Level Ultimate Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Probe RS, Elite Made in Europe series, UDH, Boost 12x148
Suspension Fork
RockShox SID SL Ultimate Charger // 100mm
Drivetrain
Rear Derailleur
SRAM T-XX SL
Front Derailleur
SRAM T-XX SL
Shift Levers
SRAM T-XX SL
Cassette
SRAM Transmission XX // 10-52T
Crank
SRAM Transmission XX SL Eagle 175mm 34T
Bottom Bracket
Ridley
Pedals
Not included **
Wheels
Rims
Front: DT Swiss XRC1501 Spline, 29er // TA 15x110mm // Clincher-Tubeless ready // 30mm Internal Width, Rear: DT Swiss HXC1501, 30mm inner width hookless, 240 internals
Brakes
Brakes
Front: SRAM Level Ultimate Carbon DB, Rear: SRAM Level Ultimate Carbon DB // Flat mount
Cockpit
Stem
Race Face Turbine-R // 70mm
Handlebar
Race Face Next Carbon // 760mm
Seat
Saddle
Selle Italia SLR Boost // Manganese Rails // Black
Seatpost
4ZA Cirrus // 31.6 // 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.496 mm | 1.409 mm | 1.363 mm | 1.321 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 667 mm | 718 mm | 722 mm | 753 mm |
| Rake | 42 mm | 67 mm | 42 mm | 43 mm |
| Trail | 102 mm | 76 mm | 102 mm | 101 mm |
| Stack | 606 mm | 606 mm | 620 mm | 634 mm |
| Reach | 405 mm | 430 mm | 455 mm | 480 mm |
| Top Tube Length | 578 mm | 604 mm | 633 mm | 662 mm |
| Seat Tube Angle | 74 ° | 75 ° | 76 ° | 77 ° |
| Seat Tube Length | 400 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1089 mm | 1141 mm | 1145 mm | 1176 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
