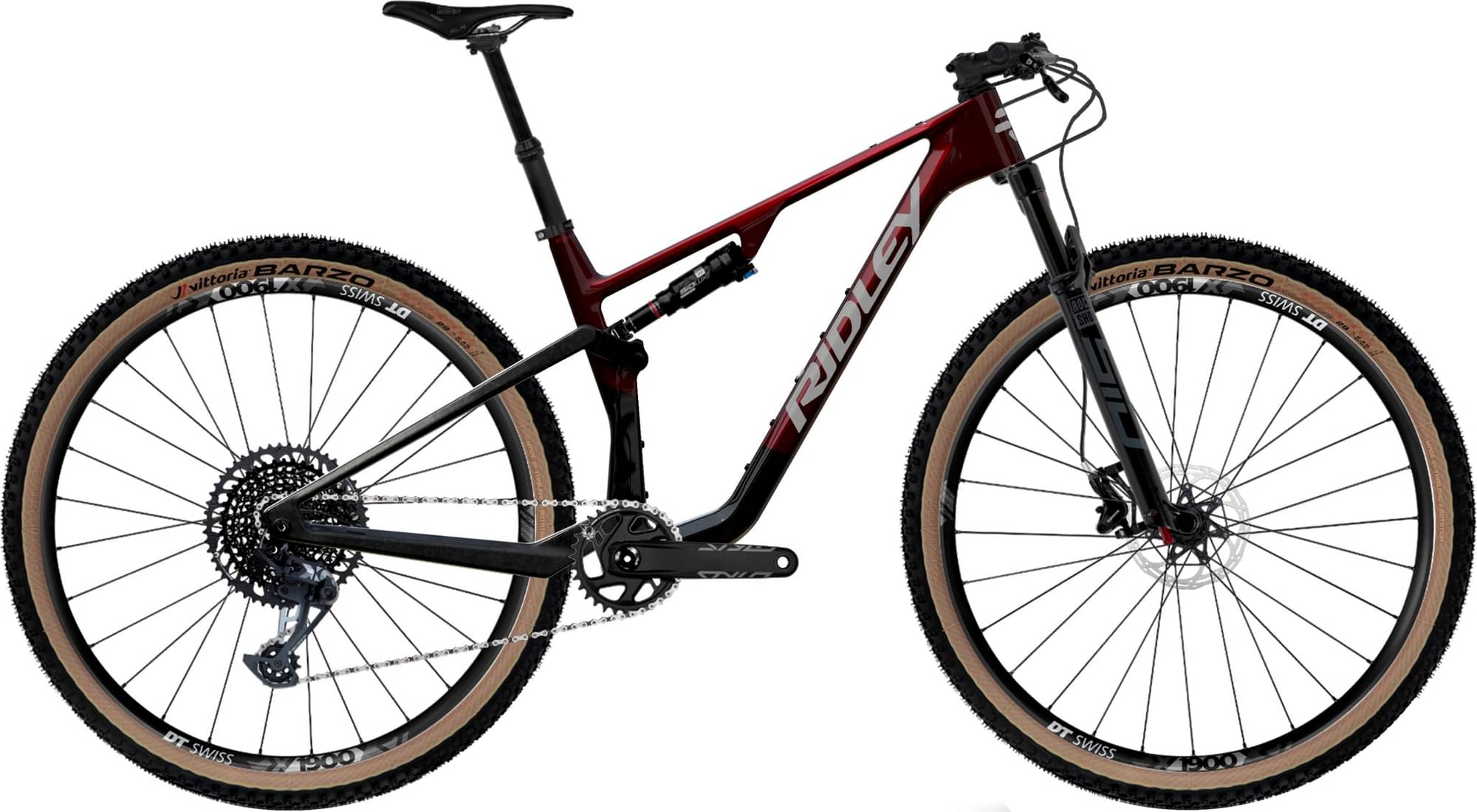

Ridley Raft Trail – Sram X01 mix 1x12sp 2025
2025 Mountain
Estimate price |
6,048$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork RockShox SID Select
-
Groupset X01, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Level TL Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAFT Full Suspension 7E8
Suspension Fork
RockShox SID Select Charger // RL 29er 120mm TA15/110
Rear Shock
RockShox DeLuxe Select+ // 190x45 // 2 Position Manual adjustment
Drivetrain
Rear Derailleur
SRAM X01 mix 1x12sp
Front Derailleur
SRAM X01 mix 1x12sp
Shift Levers
SRAM X01 mix 1x12sp
Cassette
SRAM XG-1275 Eagle // 10-52T // 12s
Crank
SRAM Stylo 7K Eagle 175mm // 32T
Bottom Bracket
Ridley
Pedals
Not included **
Wheels
Rims
Front: 4ZA Levanto XC DB F 28HL -3BF Boost- NO STI, Rear: 4ZA Levanto XC DB R 28HL -3BF Boost XD- NO STI
Brakes
Brakes
Front: SRAM Level TL DB, Rear: SRAM Level TL DB // Flat Mount
Cockpit
Stem
Race Face Aeffect R // 50 mm // 35mm clamping area
Handlebar
Race Face Aeffect R // 10mm Rise // 760mm
Seat
Saddle
Selle Italia Model Y // Black
Seatpost
Ridley Dropper post // 31.6mm // 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.378 mm | 1.325 mm | 1.335 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 701 mm | 728 mm | 757 mm | 780 mm |
| Rake | 44 mm | 44 mm | 47 mm | 44 mm |
| Trail | 114 mm | 114 mm | 111 mm | 114 mm |
| Stack | 596 mm | 601 mm | 608 mm | 633 mm |
| Reach | 411 mm | 436 mm | 459 mm | 474 mm |
| Top Tube Length | 566 mm | 597 mm | 623 mm | 643 mm |
| Seat Tube Angle | 75.3 ° | 75.1 ° | 75.1 ° | 75.1 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.6 ° | 66.6 ° | 66.6 ° | 66.6 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1133 mm | 1160 mm | 1189 mm | 1212 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
