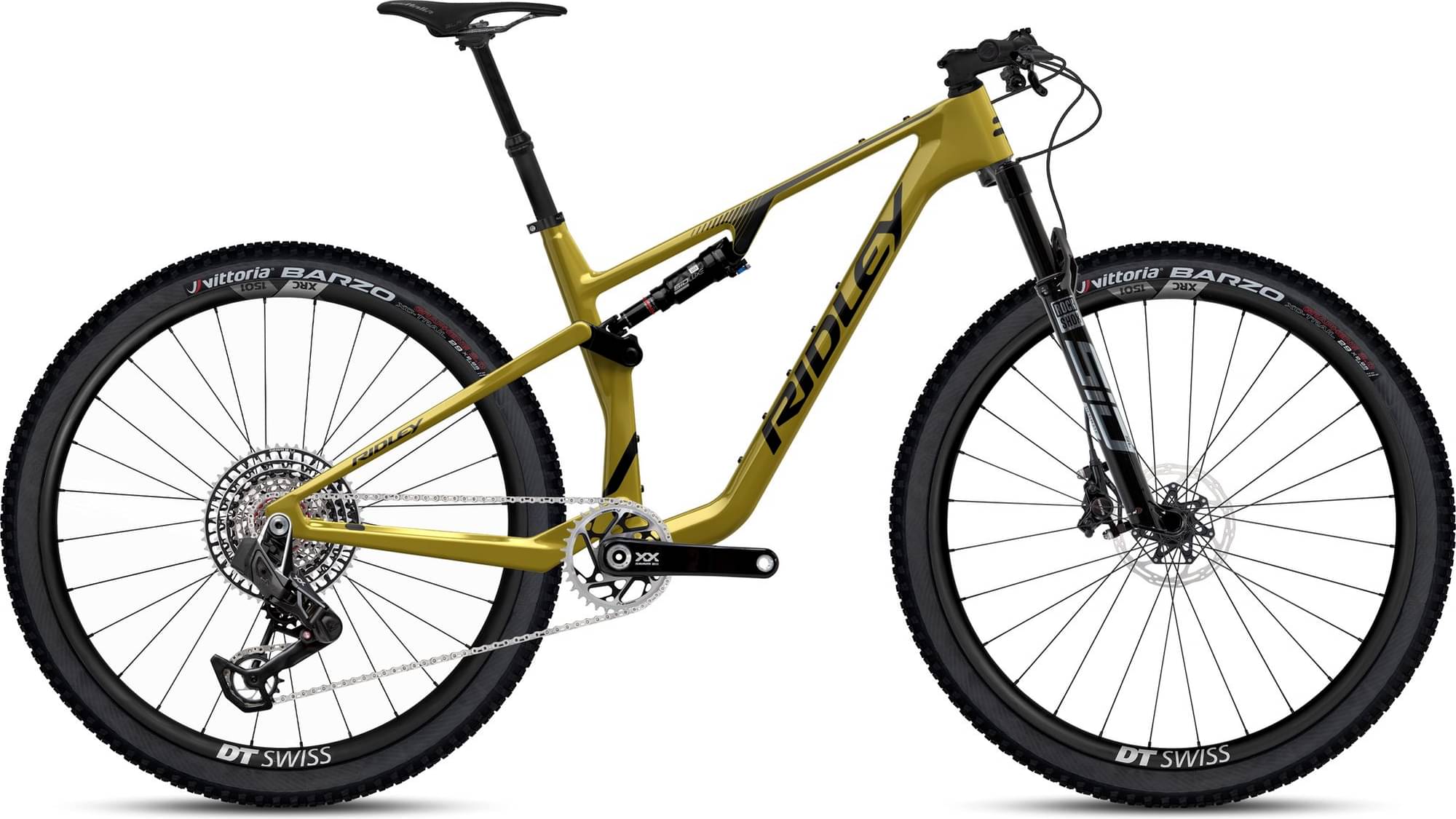

Ridley Raft XC – Sram TXX SL 1x12sp 2023
2023 Mountain
Estimate price |
11,468$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset XX SL Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAFT, Elite Series, 100
Suspension Fork
RockShox SID SL Ultimate Charger // 100mm
Rear Shock
RS SIDLuxe Ult RO 190X40 DB1 AWT 430 SS A1
Drivetrain
Rear Derailleur
SRAM TXX SL 1x12sp
Front Derailleur
SRAM TXX SL 1x12sp
Shift Levers
SRAM TXX SL 1x12sp
Cassette
SRAM Transmission XX // 10-52T
Crank
SRAM Transmission XX SL Eagle 175mm 34T
Pedals
Not included **
Wheels
Rims
Front: DT Swiss XRC1501 Spline, 29er // TA 15x110mm // Clincher-Tubeless ready // 30mm Internal Width, Rear: DT SWISS XRC1501 Spline Black 29" TA12/148 XD
Brakes
Brakes
Front: SRAM Level Ultimate Carbon DB, Rear: SRAM Level Ultimate Carbon DB // Flat mount
Cockpit
Stem
Race Face Turbine-R // 70mm
Handlebar
Race Face Next Carbon // 760mm
Seat
Saddle
Selle Italia SLR Boost Superflow 3D // Carbon Rails // Black
Seatpost
Ridley Dropper post // 31.6mm // 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.332 mm | 1.296 mm | 1.293 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 694 mm | 722 mm | 750 mm | 773 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 589 mm | 594 mm | 608 mm | 626 mm |
| Reach | 420 mm | 446 mm | 469 mm | 484 mm |
| Top Tube Length | 564 mm | 594 mm | 620 mm | 640 mm |
| Seat Tube Angle | 76.3 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1125 mm | 1153 mm | 1181 mm | 1204 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
