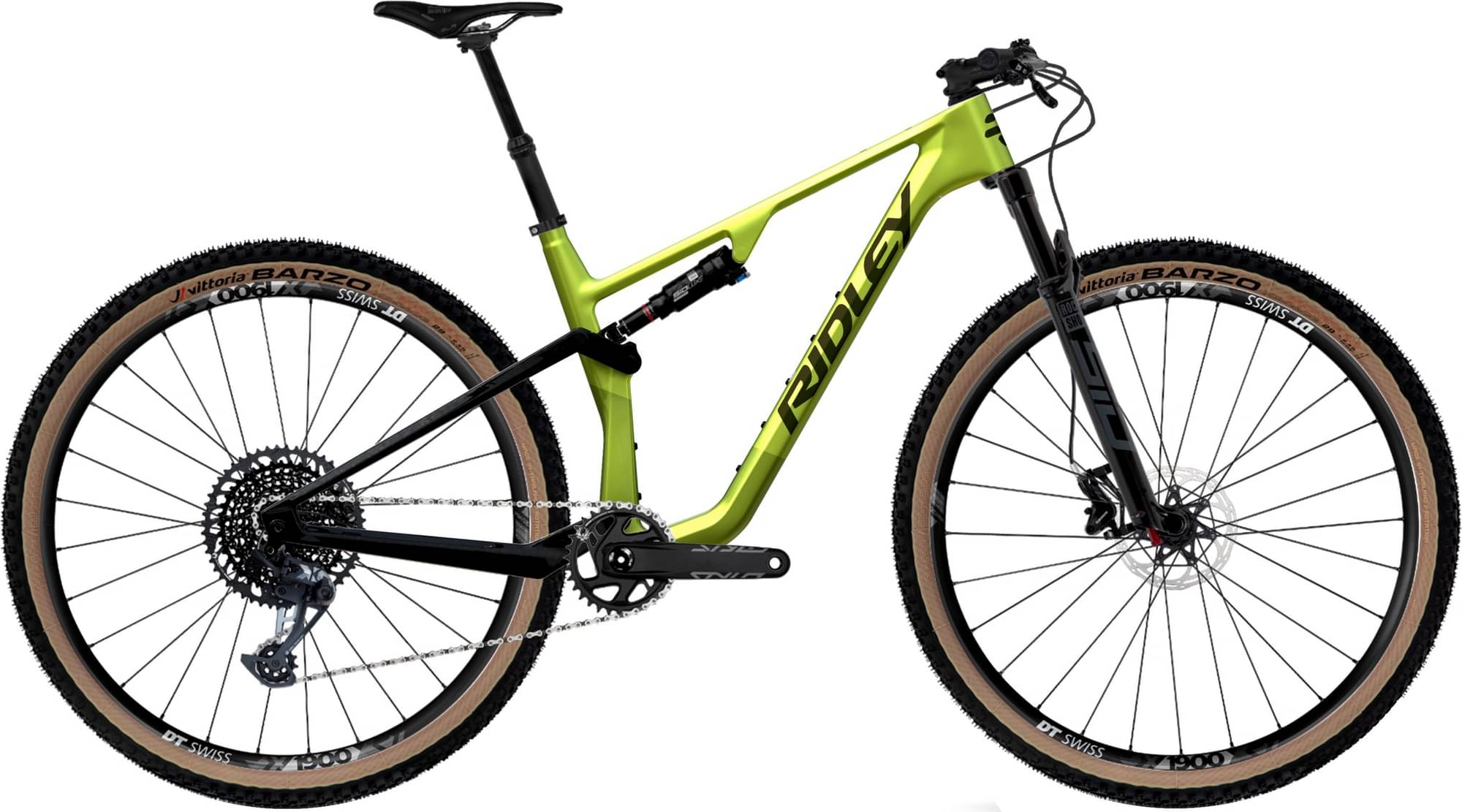

Ridley Raft XC – Sram X01 mix 1x12sp 2025
2025 Mountain
Estimate price |
6,048$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox SID
-
Groupset X01, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes SRAM Level TL Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RAFT Full Suspension 7E8
Suspension Fork
RockShox SID SL Rush // 100mm
Rear Shock
RS SIDLUXE SEL+ RO 190X40 DB1 AWT 430SS A1 CY23
Drivetrain
Rear Derailleur
SRAM X01 mix 1x12sp
Front Derailleur
SRAM X01 mix 1x12sp
Shift Levers
SRAM X01 mix 1x12sp
Cassette
SRAM XG-1275 Eagle // 10-52T // 12s
Crank
SRAM Stylo 7K Eagle 175mm // 32T
Bottom Bracket
Ridley
Pedals
Not included **
Wheels
Rims
Front: DT Swiss X1900 Spline // 29Inch // Tubeless ready, Rear: DT Swiss X1900 Spline, 29er // TA 12x148mm // Clincher-TLR // 25mm Internal Width
Brakes
Brakes
Front: SRAM Level TL DB, Rear: SRAM Level TL DB // Flat Mount
Cockpit
Stem
Forza Stratos // 70 mm // Black Glossy
Handlebar
Forza Stratos Flat Bar // 720mm // Black Glossy
Seat
Saddle
Selle Italia Model Y // Black
Seatpost
Ridley Dropper post // 31.6mm // 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.332 mm | 1.296 mm | 1.293 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 694 mm | 722 mm | 750 mm | 773 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 589 mm | 594 mm | 608 mm | 626 mm |
| Reach | 420 mm | 446 mm | 469 mm | 484 mm |
| Top Tube Length | 564 mm | 594 mm | 620 mm | 640 mm |
| Seat Tube Angle | 76.3 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1125 mm | 1153 mm | 1181 mm | 1204 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
