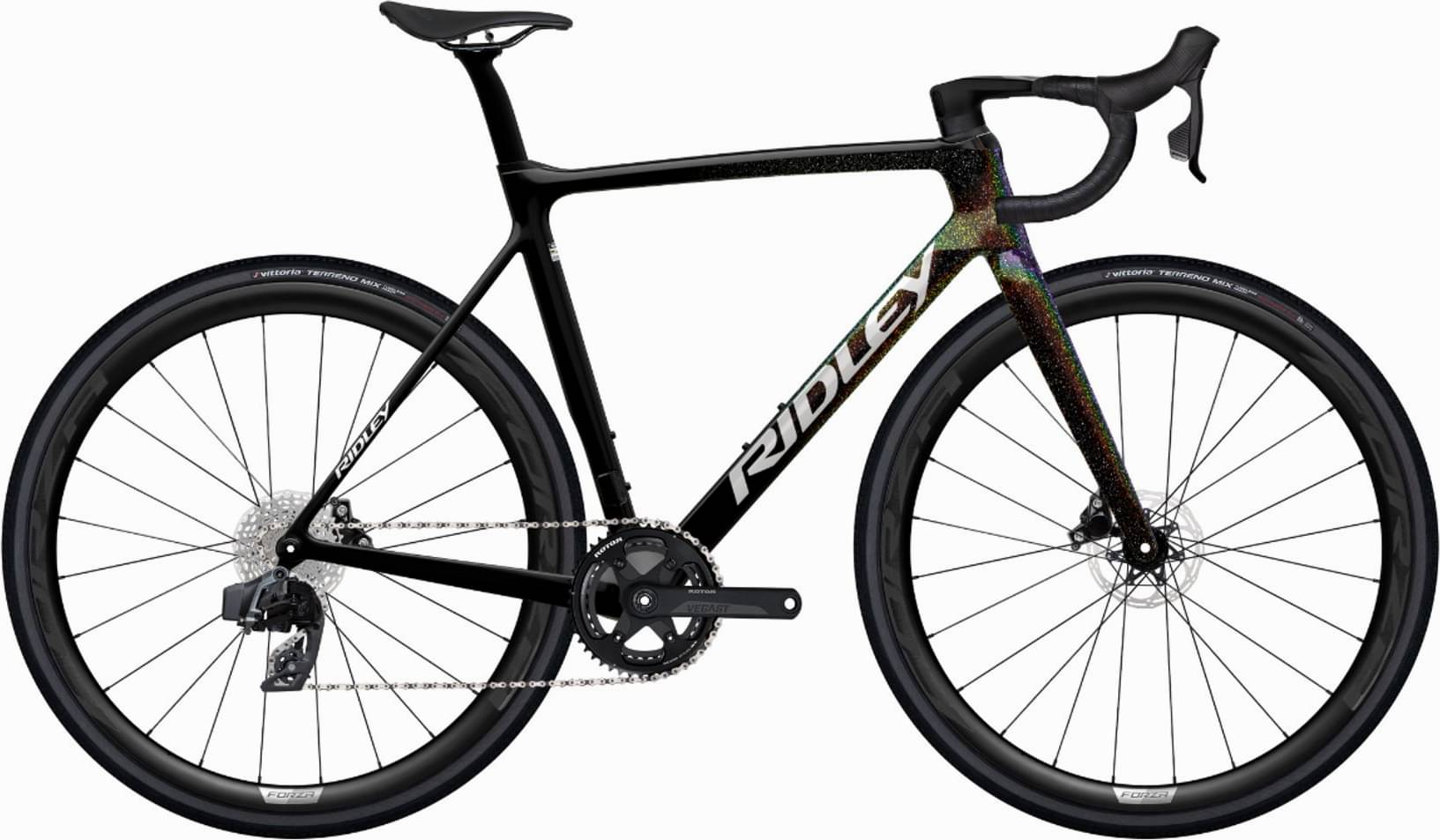

Ridley X-Night RS – Classified Rival AXS 1×12 2024
2024 Road
Estimate price |
8,142$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Rival AXS, Rotor -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Night RS 7E8
Suspension Fork
4ZA Oryx Disc D-shape 7E8/XRS01As
Drivetrain
Rear Derailleur
Classified Rival AXS 1x12
Front Derailleur
Classified Rival AXS 1x12
Shift Levers
Classified Rival AXS 1x12
Cassette
Classified // 12s // 11-34
Crank
RotoR Vegast // 172,5mm
Pedals
Not included **
Wheels
Rims
Front: 4ZA Levanto G DB F 23TL -3BF V2- NO STI, Rear: 4ZA Levanto G Classified- NO STI
Brakes
Brakes
Flat Mount
Cockpit
Handlebar
Forza Nimbus Pro Comfort // 110mm - 380mm (cc shifters) - 420mm (cc drops) // Stealth Black
Seat
Saddle
Selle Italia Model Y // Black
Seatpost
Forza Aero // 6mm Offset // 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.301 mm | 1.37 mm | 1.412 mm | 1.415 mm |
| Bottom Bracket Height | 291 mm | 284 mm | 282 mm | 280 mm |
| Front Center | 581 mm | 588 mm | 603 mm | 623 mm |
| Rake | 45 mm | 47 mm | 47 mm | 47 mm |
| Trail | 67 mm | 62 mm | 62 mm | 62 mm |
| Stack | 497 mm | 526 mm | 552 mm | 573 mm |
| Reach | 382 mm | 384 mm | 391 mm | 405 mm |
| Top Tube Length | 520 mm | 535 mm | 555 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 475 mm | 495 mm | 535 mm | 550 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 115 mm | 140 mm | 160 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1000 mm | 1006 mm | 1020 mm | 1040 mm |
| Bottom Bracket Drop | 53 mm | 60 mm | 62 mm | 64 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
