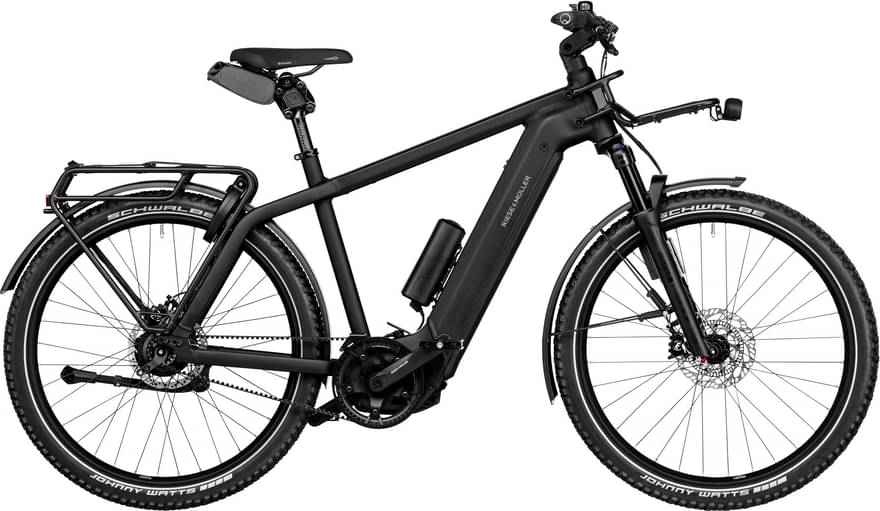

Riese & Müller Riese & Müller Charger4 vario 2024
2024 E-bike
Estimate price |
6,250$
Weight | 30.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Akku Bosch PowerTube 750 Vertical; Bosch PowerMore 250*; Akku Bosch Powertube 750 Vertical* -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour XCR32, tapered, black
Drivetrain
Shift Levers
Enviolo grip shift Twist Display Pure, continuous
Crank
FSA/Riese & Müller, 170 mm
Chain
Gates drive belt CDX
Chain Guide
Belt guard
Pedals
VP R&M Custom
Wheels
Front Hub
Novatec Disc 32H
Rear Hub
Enviolo Trekking
Rims
Mach1 650, 28"
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Tires
Schwalbe Big Ben Plus 50-622 Reflex
Brakes
Brakes
Magura MT4, disc brake
Cockpit
Stem
Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
Handlebar
Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*
Grips
Herrmans Grips Line
Headset
Acros Integration X, block lock
Seat
Saddle
Selle Royal New Lookin Male Eco; Selle Royal New Lookin Female Eco*; Selle Royal*
Seatpost
Cane Creek New Thudbuster ST Evo-2; JD-SP66, Alu, 34,9 x 400mm*
Motor & Battery
Motor
Bosch Performance Line CX (smart system)
Battery
Akku Bosch PowerTube 750 Vertical; Bosch PowerMore 250*; Akku Bosch Powertube 750 Vertical*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 53cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.718 mm | 1.595 mm | 1.489 mm | 1.457 mm |
| Bottom Bracket Height | 285 mm | 290 mm | 285 mm | 290 mm |
| Trail | 92 mm | 95 mm | 92 mm | 95 mm |
| Stack | 670 mm | 670 mm | 670 mm | 685 mm |
| Reach | 390 mm | 420 mm | 450 mm | 470 mm |
| Top Tube Length | 590 mm | 620 mm | 650 | 670 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 150 mm | 150 mm | 165 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1155 mm | 1185 mm | 1215 mm | 1240 mm |
| Standover Height | 835 mm | 840 mm | 840 mm | 845 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 700 | 650 | 700 |
