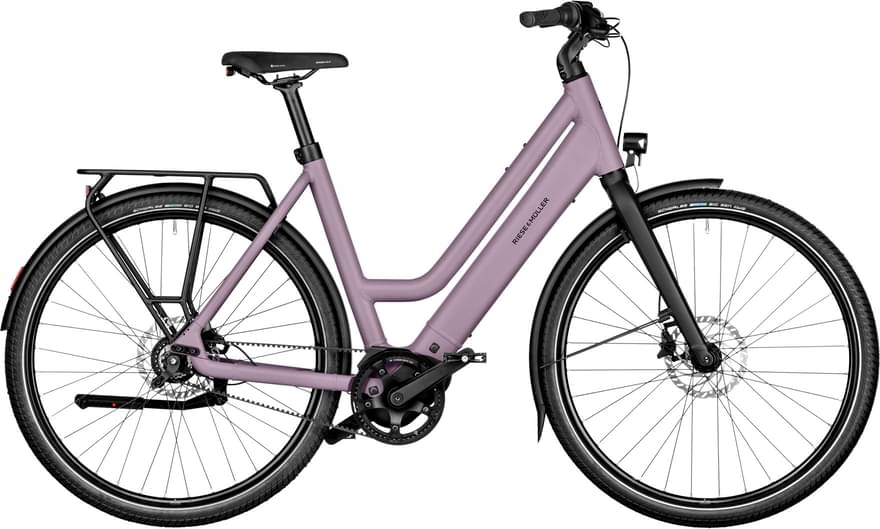

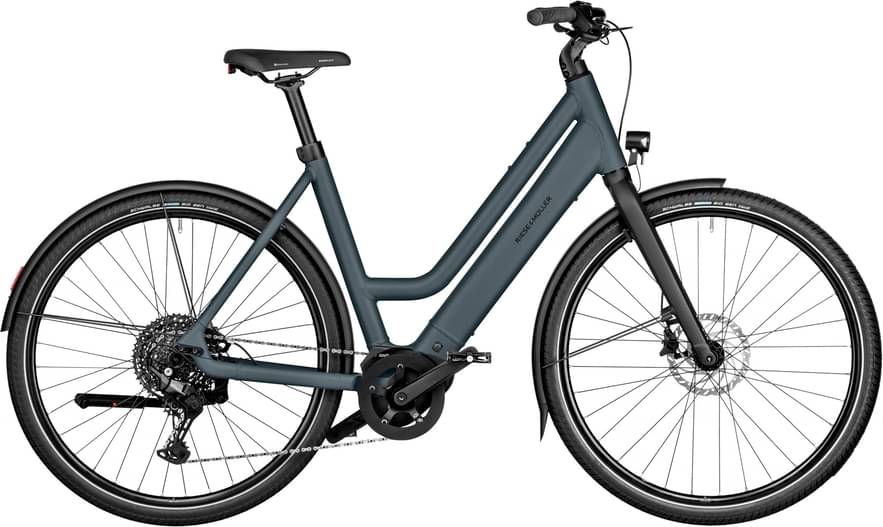

Riese & Müller Riese & Müller Culture Mixte touring 2024
2024 E-bike
Estimate price |
4,652$
Weight | 21.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NCX -
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch CompactTube CPT 400Wh; Bosch PowerMore 250* -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour NCX 28", tapered*
Drivetrain
Shift Levers
Shimano CUES SL-U6000 10-S
Cassette
Shimano CUES CS-LG400-10,11-48T
Crank
Samox, 170 mm
Chain
KMC X11 ( 125x )
Chain Guide
Chain guard
Pedals
M-Wave Steady Flat
Wheels
Front Hub
Novatec Disc 32H
Rear Hub
Shimano Deore Disc, 36H
Rims
Mach1 650, 28"
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 18x )
Tires
Schwalbe Big Ben 50-622
Brakes
Brakes
Magura MT A2, disc brake
Cockpit
Stem
JD 90mm/30° 1-1/8"
Handlebar
JD-TR25AL, 31,8mm, 35°, B=640mm
Grips
Herrmans Grips Line
Headset
Acros Integration X, block lock
Seat
Saddle
Selle Royal Essenza Moderate
Seatpost
JD-SP66, Alu, 34,9 x 400mm; JD-SP66, Alu, 34,9 x 300mm*; Satori Elegance-LT OV 34,9 x 405mm*
Motor & Battery
Motor
Bosch Performance Line SX 25km/h; Bosch Performance Line Sprint 20mph+*
Battery
Bosch CompactTube CPT 400Wh; Bosch PowerMore 250*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 56cm | 62cm |
|---|---|---|---|
| Stack Reach Ratio | 1.84 mm | 1.745 mm | 1.62 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 637 mm | 657 mm | 687 mm |
| Rake | 33 mm | 33 mm | 33 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 677 mm | 677 mm | 677 mm |
| Reach | 368 mm | 388 mm | 418 mm |
| Top Tube Length | 610 mm | 630 mm | 660 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Angle | 69.6 ° | 69.6 ° | 69.6 ° |
| Head Tube Length | 210 mm | 210 mm | 210 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1114 mm | 1134 mm | 1164 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm |
| Standover Height | 658 mm | 645 mm | 629 mm |
| Front Travel | 63 mm | 63 mm | 63 mm |
| Wheels | 700 | 700 | 700 |
