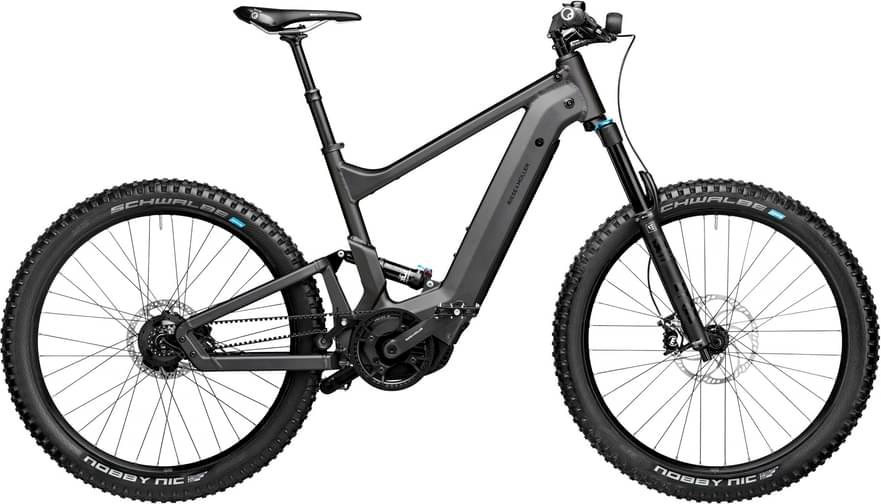

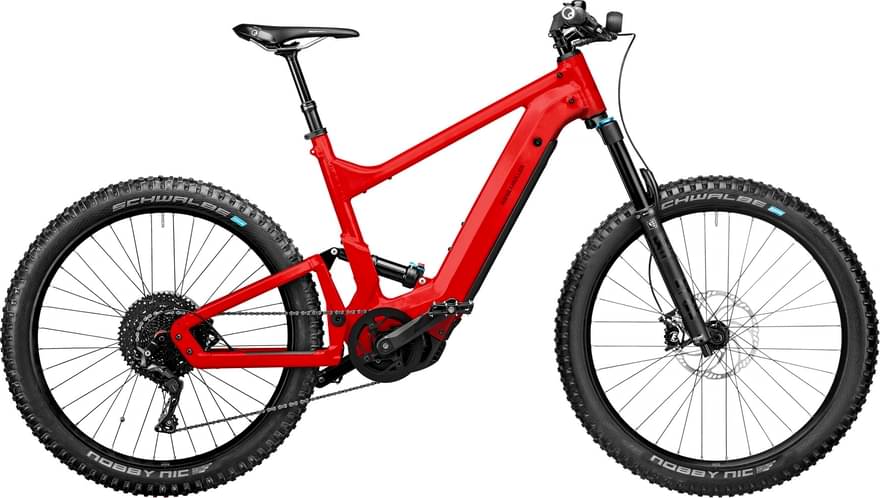

Riese & Müller Riese & Müller Delite mountain touring 2024
2024 E-bike
Estimate price |
6,869$
Weight | 29.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Performance Float 36
-
Groupset SLX -
Suspension Full -
Motor mid-drive -
Battery Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh* -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Fox Float 36 Performance, Air, 150mm, Boost
Rear Shock
Fox Float DPS Performance 210x50
Drivetrain
Shift Levers
Shimano SLX, 12-speed
Cassette
Sunrace 12-speed, 11-51
Crank
FSA/Riese & Müller, 170 mm
Chain
KMC X12 ( 125x )
Chain Guide
Kettenschutzring
Pedals
VP-531 Flat Pedal, Alu
Wheels
Front Hub
Novatec Boost, QR, 32H
Rear Hub
Novatec Boost, QR, 36H
Rims
Rodi Tryp35 Evo 27,5"
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 18x )
Tires
Schwalbe Nobby Nic Evo 65-584; Schwalbe Nobby Nic Evo 70-584
Brakes
Brakes
Magura MT4, disc brake; Magura MT5, disc brake
Cockpit
Stem
FSA Afterburner, 6°, 60mm
Handlebar
Ergotec Lowriser, 31,8 mm; FSA Afterburner, 31,8 mm*
Grips
Ergon GA20 black
Headset
Acros Integration X, block lock
Seat
Saddle
Ergon SMC10 Gel
Seatpost
Dropper Post X-Fusion Manic 100; Dropper Post X-Fusion Manic 125*
Motor & Battery
Motor
Performance Line CX (Gen4)
Battery
Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 56cm |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.506 mm | 1.429 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm |
| Front Center | 721 mm | 751 mm | 721 mm |
| Rake | 51 mm | 51 mm | mm |
| Trail | 103 mm | 103 mm | 103 mm |
| Stack | 640 mm | 640 mm | 650 |
| Reach | 395 mm | 425 mm | 455 mm |
| Top Tube Length | 590 mm | 620 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 140 mm | 140 mm | mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1225 mm | 1255 mm | 1225 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Standover Height | 845 mm | 835 mm | 840 mm |
| Front Travel | 150 mm | 150 mm | 150 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" |
