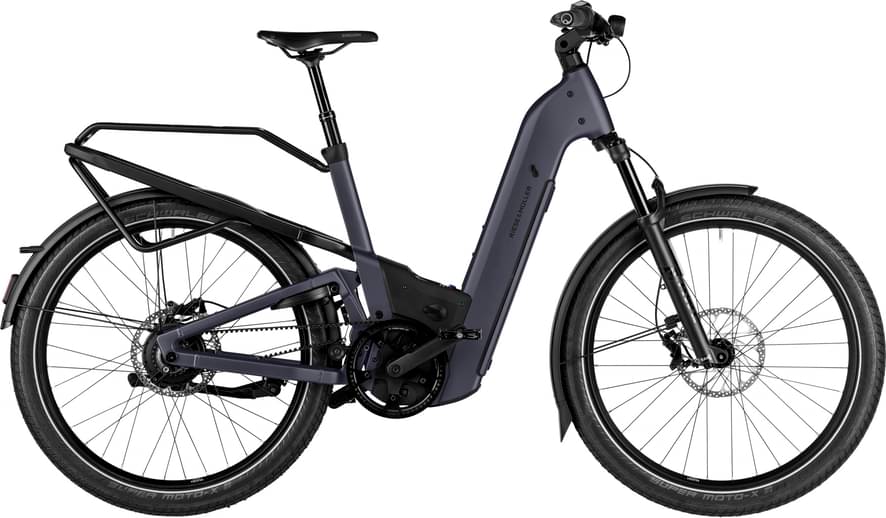

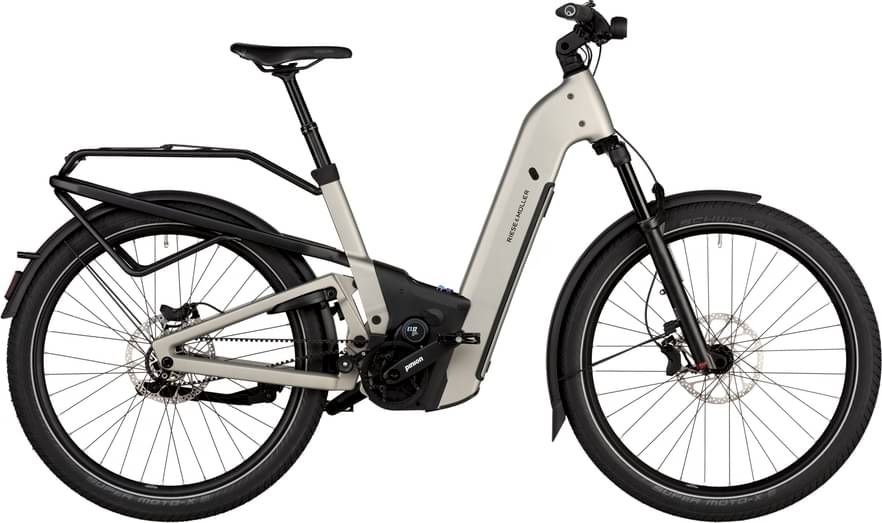

Riese & Müller Riese & Müller Homage5 GT touring 2024
2024 Urban
Estimate price |
8,375$
Weight | 36 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox AWL
-
Groupset CUES -
Suspension Full -
Battery Akku Bosch PowerTube 800 horizontal; Bosch PowerMore 250* -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Federgabel Fox AWL 34, Air, 120mm
Rear Shock
Fox Float Rhythm SV 165x45
Drivetrain
Shift Levers
Shimano CUES SL-U8000 11-S
Cassette
Shimano CUES CS-LG400-11,11-50T
Crank
Samox, 165 mm
Chain Guide
Chain guard
Pedals
VP R&M Custom; VP-538*
Wheels
Front Hub
Novatec Boost, QR, 32H
Rear Hub
Novatec Boost, QR, 36H
Rims
Rodi Tryp35 Evo 27,5"
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 18x )
Tires
Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Johnny Watts 365 60-584*
Brakes
Brakes
Tektro TRP HD-EU835 disc brake; Magura MT C ABS*
Cockpit
Stem
Satori R&M Custom, cable integration, adjustable angle, Alu
Handlebar
Satori R&M Custom, 25,4mm, Alu; Satori R&M Custom Komfort, 25,4 mm, Alu*
Grips
Ergon ergonomic
Seat
Saddle
Ergon SF10 Gel; Selle Royal New Lookin Male Eco*
Seatpost
Dropper Post X-Fusion Manic 100; Dropper Post X-Fusion Manic 125*
Motor & Battery
Battery
Akku Bosch PowerTube 800 horizontal; Bosch PowerMore 250*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 56cm |
|---|---|---|---|
| Stack Reach Ratio | 1.638 mm | 1.534 mm | 1.448 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm |
| Trail | 103 mm | 103 mm | 103 mm |
| Stack | 655 mm | 675 mm | 695 mm |
| Reach | 400 mm | 440 mm | 480 mm |
| Top Tube Length | 575 mm | 621 mm | 666 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 153 mm | 174 mm | 196 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1205 mm | 1255 mm | 1305 mm |
| Front Travel | 120 mm | 120 mm | 120 mm |
| Rear Travel | 110 mm | 110 mm | 110 mm |
| Wheels | 650 | 650 | 650 |
