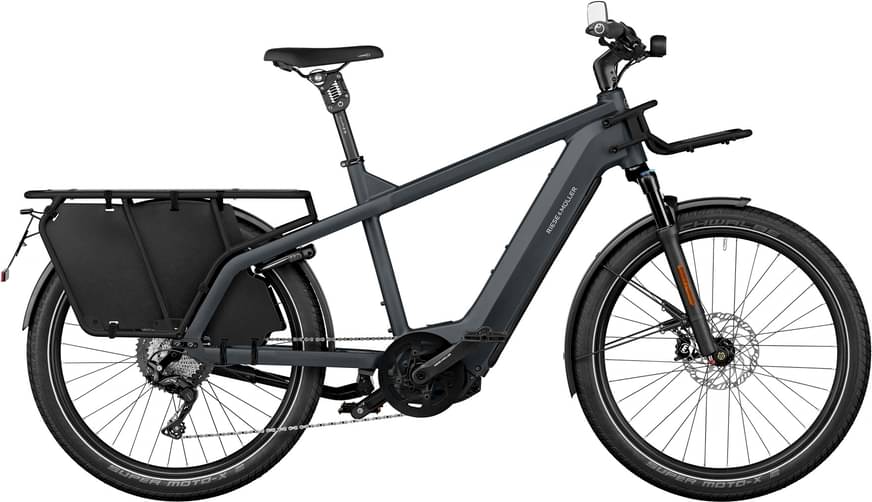

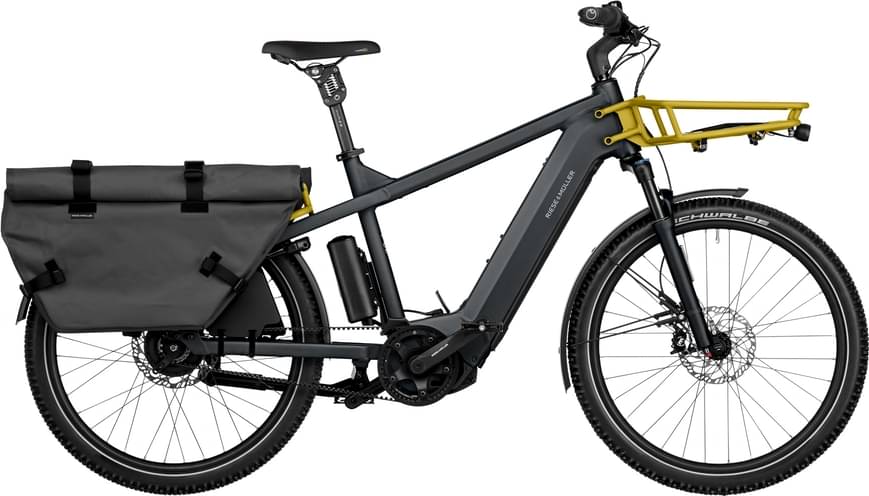

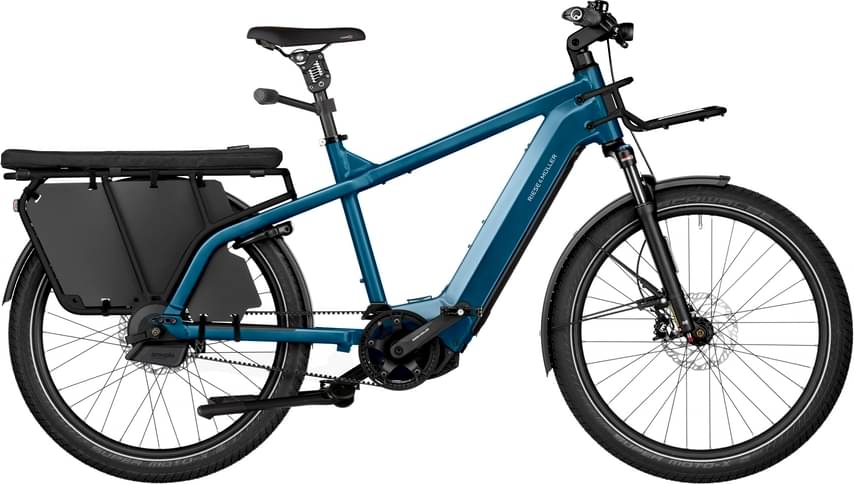

Riese & Müller Riese & Müller Multicharger2 GT family 2024
2024 E-bike
Estimate price |
6,048$
Weight | 30.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Akku Bosch PowerTube 625 Vertical -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour XCR32 27,5", Air, tapered, black
Drivetrain
Shift Levers
Shimano Deore, 11-speed
Cassette
Shimano XT 11-speed, 11-46
Crank
FSA/Riese & Müller, 170 mm
Chain
KMC X11 ( 139x )
Chain Guide
Chain guard
Pedals
VP R&M Custom
Wheels
Front Hub
Novatec Disc 32H
Rear Hub
Novatec Boost, QR, 36H
Rims
Mach1 Trucky30 26" CNC
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 18x )
Tires
Schwalbe Super Moto-X 62-559 Reflex
Brakes
Brakes
Magura MT4, disc brake; Magura MT5, disc brake
Cockpit
Stem
Humpert ergotec Barracuda Evo, 90 mm, 20°
Handlebar
Humpert ergotec Ergo XXL, 31,8 mm
Grips
Ergon ergonomic; Hermans Grips ( 2x )*
Headset
Acros Integration X, block lock
Seat
Saddle
Selle Royal Essenza Moderate
Seatpost
Satori Trident
Motor & Battery
Motor
Bosch Performance Line CX (smart system)
Battery
Akku Bosch PowerTube 625 Vertical
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm |
|---|---|---|
| Stack Reach Ratio | 1.575 mm | 1.488 mm |
| Bottom Bracket Height | 290 mm | 290 mm |
| Trail | 75 mm | 75 mm |
| Stack | 630 mm | 640 mm |
| Reach | 400 mm | 430 mm |
| Top Tube Length | 595 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 70 ° |
| Head Tube Length | 165 mm | 170 mm |
| Chainstay Length | 555 mm | 555 mm |
| Wheelbase | 1220 mm | 1240 mm |
| Standover Height | 800 mm | 800 mm |
| Front Travel | 80 mm | 80 mm |
| Wheels | 26" | 26" |
