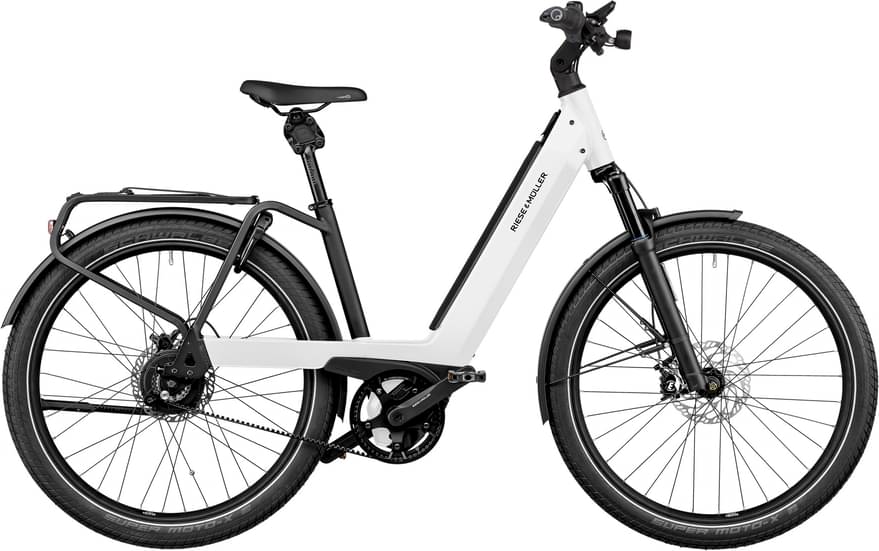

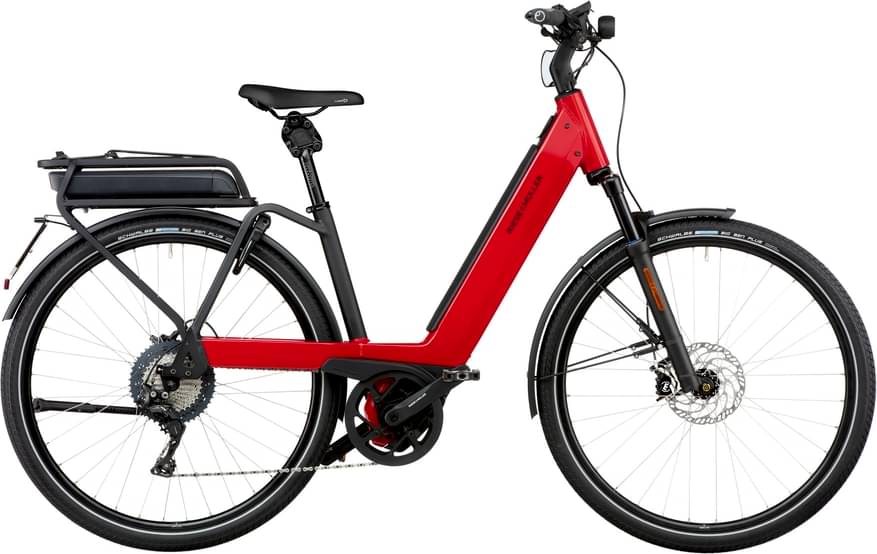

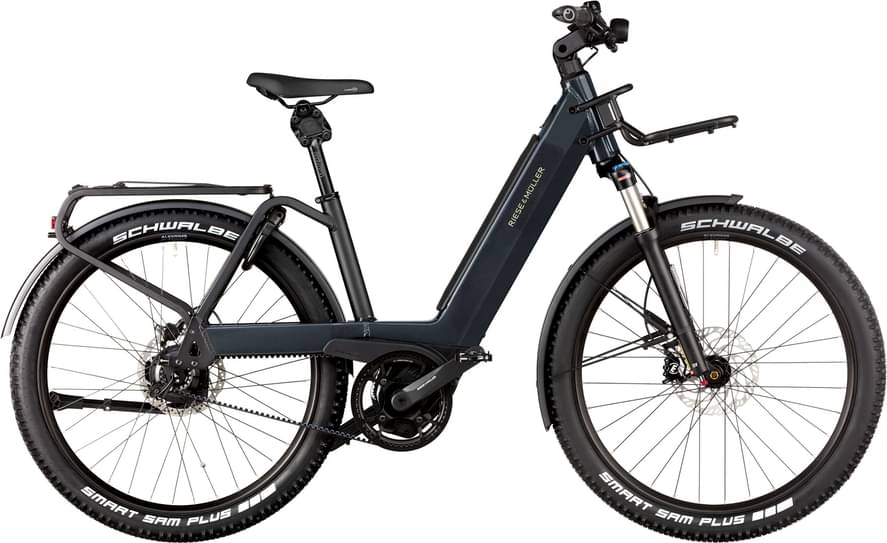

Riese & Müller Riese & Müller Nevo touring HS 2024
2024 E-bike
Estimate price |
5,160$
Weight | 28.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset SLX -
Suspension Hardtail -
Motor mid-drive -
Battery Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 625 Horizontal, 36 V, 13,4 Ah/625Wh*; Bosch PowerTube 500 Horizontal, 36 V, 13,4 Ah/500Wh* -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Mobie 34, Air, tapered, 100mm
Drivetrain
Shift Levers
Shimano SLX, 11-speed; Shimano Deore, 11-speed*
Cassette
Shimano SLX 11-speed, 11-46
Crank
FSA/Riese & Müller, 170 mm
Chain
KMC X11 ( 129x )
Chain Guide
Kettenschutzring
Pedals
VP R&M Custom
Wheels
Front Hub
Novatec Disc 32H
Rear Hub
Shimano Deore Disc, 36H
Rims
Mach1 650, 28"
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 18x )
Tires
Schwalbe Big Ben Plus 50-622 Reflex
Brakes
Brakes
Magura MT4, disc brake; Magura MT5, disc brake*
Cockpit
Stem
Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
Handlebar
Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*
Grips
Ergon ergonomic
Headset
Acros Integration X, block lock
Seat
Saddle
Selle Royal New Lookin Male Eco; Selle Royal New Lookin Female Eco*
Seatpost
Cane Creek New Thudbuster ST Evo-2
Motor & Battery
Motor
Performance Line Speed (Gen4)
Battery
Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh*; Bosch PowerTube 625 Horizontal, 36 V, 13,4 Ah/625Wh*; Bosch PowerTube 500 Horizontal, 36 V, 13,4 Ah/500Wh*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 47cm | 51cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.87 mm | 1.878 mm | 1.782 mm | 1.695 mm |
| Bottom Bracket Height | 275 mm | 285 mm | 275 mm | 285 mm |
| Trail | 87 mm | 99 mm | 96 mm | 96 mm |
| Stack | 645 mm | 695 mm | 695 mm | 695 mm |
| Reach | 345 mm | 370 mm | 390 mm | 410 mm |
| Top Tube Length | 560 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 68.5 ° | 68 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 450 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1070 mm | 1145 mm | 1155 mm | 1175 mm |
| Front Travel | 80 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 26" | 700 | 650 | 700 |
