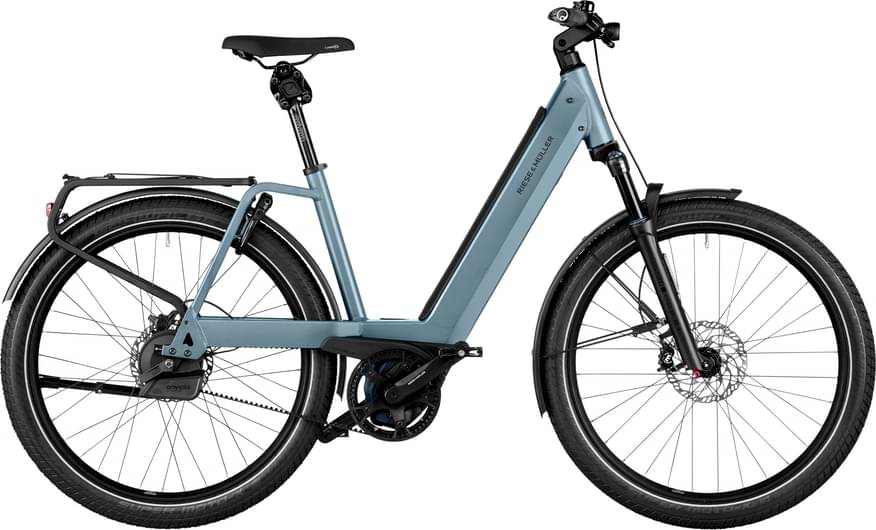

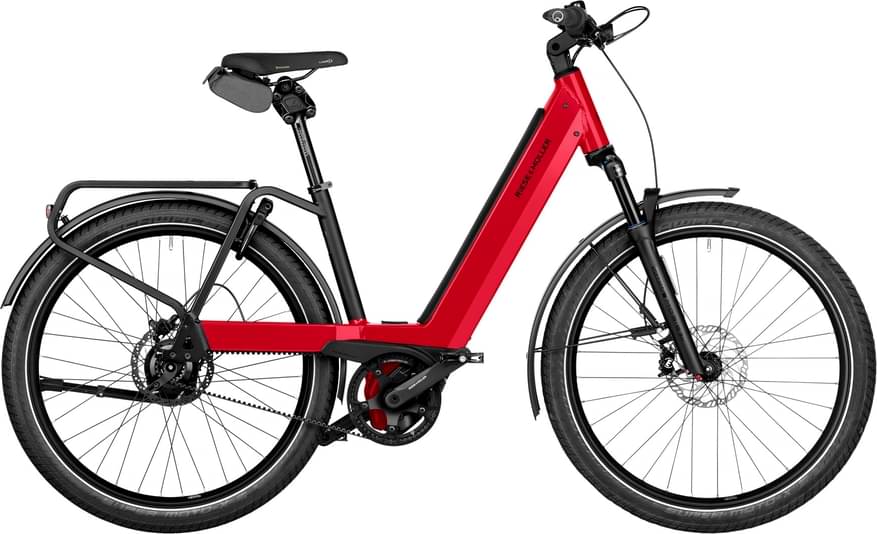

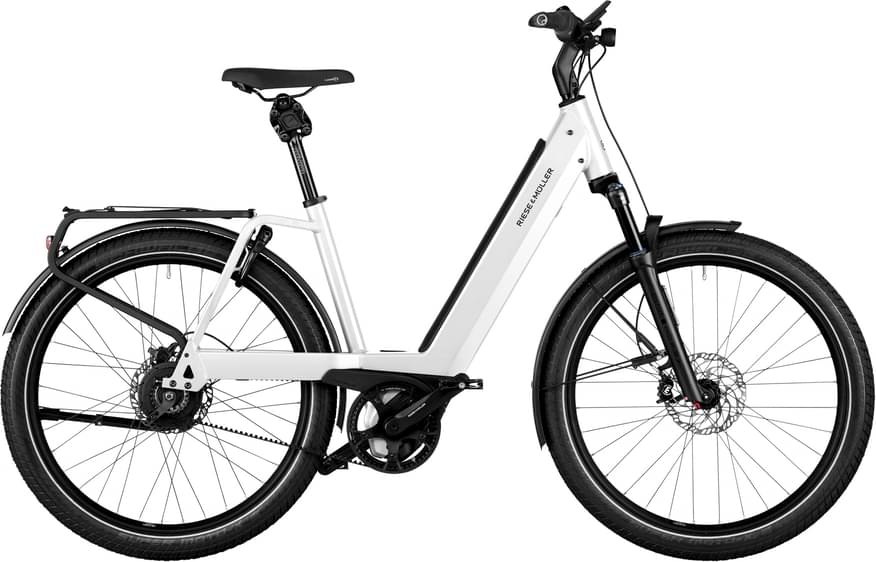

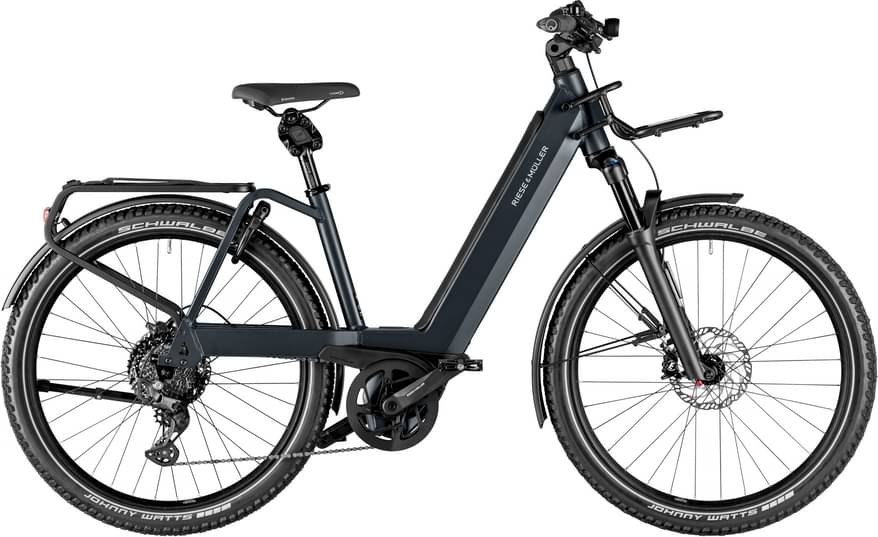

Riese & Müller Riese & Müller Nevo4 GT vario SELECT 2024
2024 E-bike
Estimate price |
6,594$
Weight | 28.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Akku Bosch PowerTube 750 Horizontal -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Mobie 34, Air, tapered, 100mm
Drivetrain
Shift Levers
Enviolo grip shift Twist Display Pure, continuous
Crank
FSA/Riese & Müller, 170 mm
Chain
Gates drive belt CDX
Chain Guide
Riemenschutzring
Pedals
VP R&M Custom
Wheels
Front Hub
Novatec Disc 32H
Rear Hub
Enviolo Trekking
Rims
Rodi Tryp35 Evo 27,5"
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Tires
Schwalbe Super Moto-X 62-584 Reflex
Brakes
Brakes
Magura MT4, disc brake; Magura MT5, disc brake
Cockpit
Stem
Satori R&M Custom, cable integration, adjustable angle, Alu
Handlebar
Satori R&M Custom, 25,4mm, Alu
Grips
Ergon ergonomic
Headset
Acros Integration X, block lock
Seat
Saddle
Selle Royal New Lookin Male Eco
Seatpost
Cane Creek New Thudbuster ST Evo-2
Motor & Battery
Motor
Bosch Performance Line CX (smart system)
Battery
Akku Bosch PowerTube 750 Horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 47cm | 51cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.858 mm | 1.868 mm | 1.777 mm | 1.691 mm |
| Bottom Bracket Height | 281 mm | 288 mm | 288 mm | 288 mm |
| Trail | 132 mm | 146 mm | 142 mm | 142 mm |
| Stack | 643 mm | 693 mm | 695 mm | 695 mm |
| Reach | 346 mm | 371 mm | 391 mm | 411 mm |
| Top Tube Length | 560 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 68.5 ° | 68 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 451 mm | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1069 mm | 1143 mm | 1157 mm | 1177 mm |
| Front Travel | 80 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 26" | 650 | 650 | 650 |
