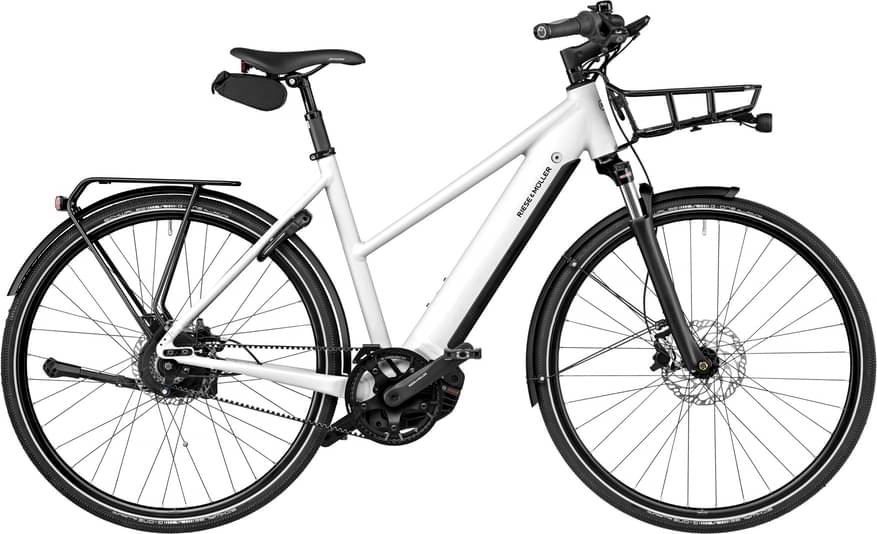

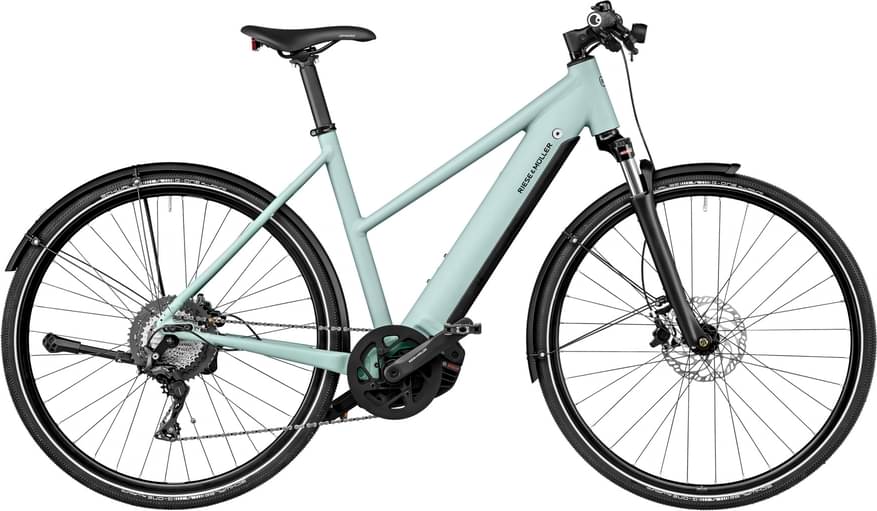

Riese & Müller Riese & Müller Roadster Mixte touring HS 2024
2024 E-bike
Estimate price |
5,187$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset XT -
Suspension Hardtail -
Motor mid-drive -
Battery Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh* -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour NCX 28", tapered
Drivetrain
Shift Levers
Shimano XT 11-S Linkglide
Cassette
Shimano CUES CS-LG700-11,11-50
Crank
FSA/Riese & Müller, 170 mm
Chain
KMC X11 ( 125x )
Chain Guide
Chain guard
Pedals
VP R&M Custom
Wheels
Front Hub
Novatec Disc 32H
Rear Hub
Novatec Boost, QR, 36H
Rims
Mach1 650, 28"
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Tires
Schwalbe G-One 40-622
Brakes
Brakes
Magura MT4, disc brake; Magura MT5, disc brake
Cockpit
Stem
Satori Stealth 6, 90 mm, +/-7°*; Satori Stealth 6, 90 mm, +/-7°
Handlebar
Satori Horizon, 31,8 mm, 9°, B=620 mm; Satori Noirette Plus, 31,8 mm, Alu*
Grips
Hermans Grips ( 2x ); Ergon ergonomic*
Headset
Acros Integration X, block lock
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
Satori Trident; Satori Elegance-LT OV 34,9 x 405mm*
Motor & Battery
Motor
Performance Line Speed (Gen4)
Battery
Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 53cm |
|---|---|---|
| Stack Reach Ratio | 1.736 mm | 1.662 mm |
| Bottom Bracket Height | 275 mm | 275 mm |
| Trail | 88 mm | 82 mm |
| Stack | 625 mm | 640 mm |
| Reach | 360 mm | 385 mm |
| Top Tube Length | 540 mm | 570 mm |
| Seat Tube Angle | 74 ° | 74 ° |
| Head Tube Angle | 69 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm |
| Chainstay Length | 470 mm | 470 mm |
| Wheelbase | 1085 mm | 1105 mm |
| Standover Height | 745 mm | 760 mm |
| Front Travel | 63 mm | 63 mm |
| Wheels | 700 | 700 |
