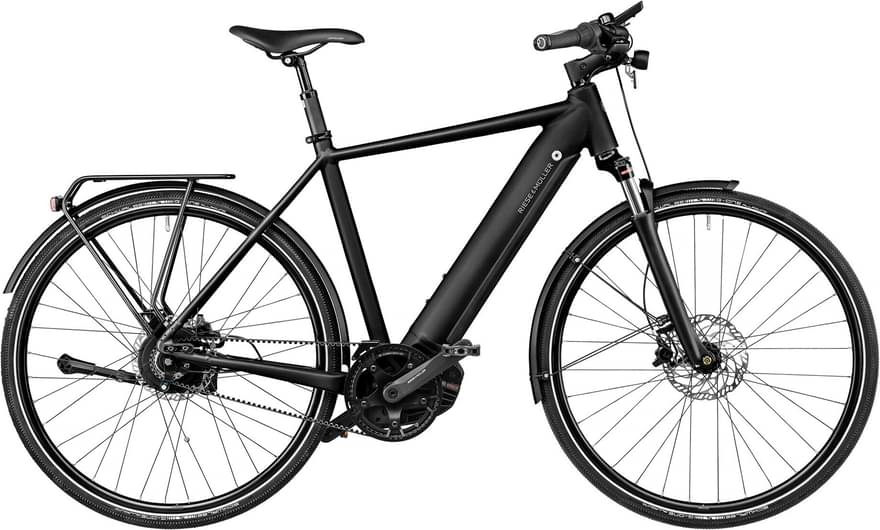

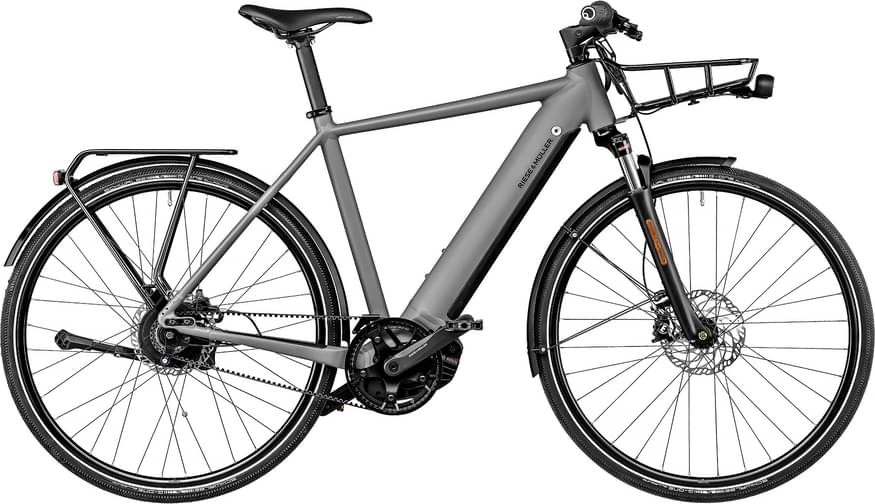

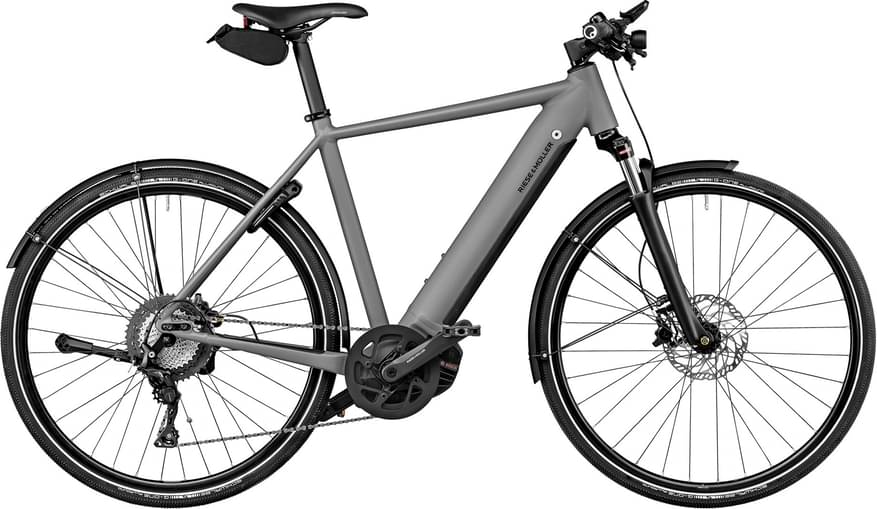

Riese & Müller Riese & Müller Roadster vario 2024
2024 E-bike
Estimate price |
4,838$
Weight | 23.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset FSA -
Suspension Hardtail -
Motor mid-drive -
Battery Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh* -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour NCX 28", tapered
Drivetrain
Shift Levers
Enviolo grip shift Twist Display Pure, continuous
Crank
FSA/Riese & Müller, 170 mm
Chain
Gates drive belt CDX
Chain Guide
Belt guard
Pedals
VP R&M Custom
Wheels
Front Hub
Novatec Disc 32H
Rear Hub
Enviolo Trekking
Rims
Mach1 650, 28"
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Tires
Schwalbe G-One 40-622
Brakes
Brakes
Magura MT4, disc brake
Cockpit
Stem
Satori Sidewinder, 90mm, 7°; Satori Sidewinder, 90mm, 7°*
Handlebar
Satori Horizon, 31,8 mm, 9°, B=620 mm; Satori Noirette Plus, 31,8 mm, Alu*
Grips
Ergotec EG Performance black; Herrmans Grips Line*
Headset
Acros Integration X, block lock
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
Satori Trident; Satori Elegance-LT OV 34,9 x 405mm*
Motor & Battery
Motor
Performance Line CX (Gen4)
Battery
Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 56cm | 61cm |
|---|---|---|---|
| Stack Reach Ratio | 1.736 mm | 1.615 mm | 1.506 mm |
| Bottom Bracket Height | 275 mm | 275 mm | 275 mm |
| Trail | 88 mm | 82 mm | 82 mm |
| Stack | 625 mm | 630 mm | 640 mm |
| Reach | 360 mm | 390 mm | 425 mm |
| Top Tube Length | 540 mm | 570 mm | 610 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 69 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1085 mm | 1100 mm | 1145 mm |
| Standover Height | 830 mm | 845 mm | 865 mm |
| Front Travel | 63 mm | 63 mm | 63 mm |
| Wheels | 700 | 700 | 700 |
