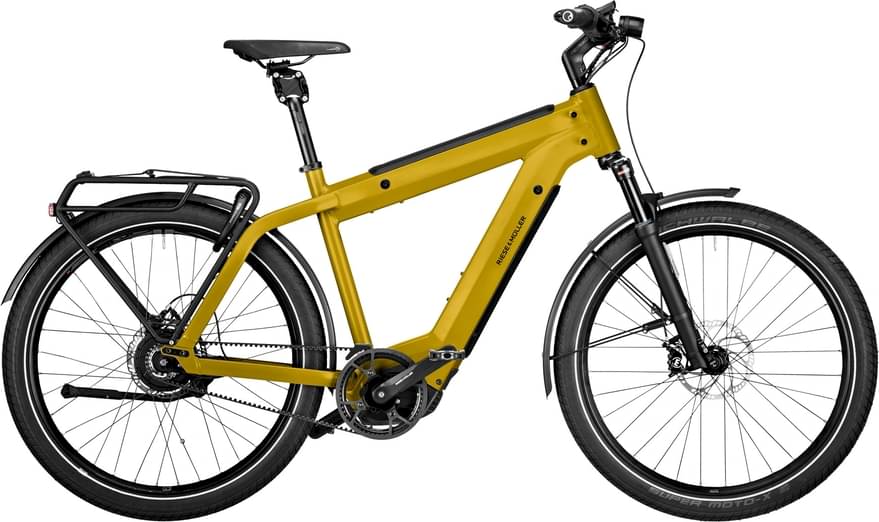

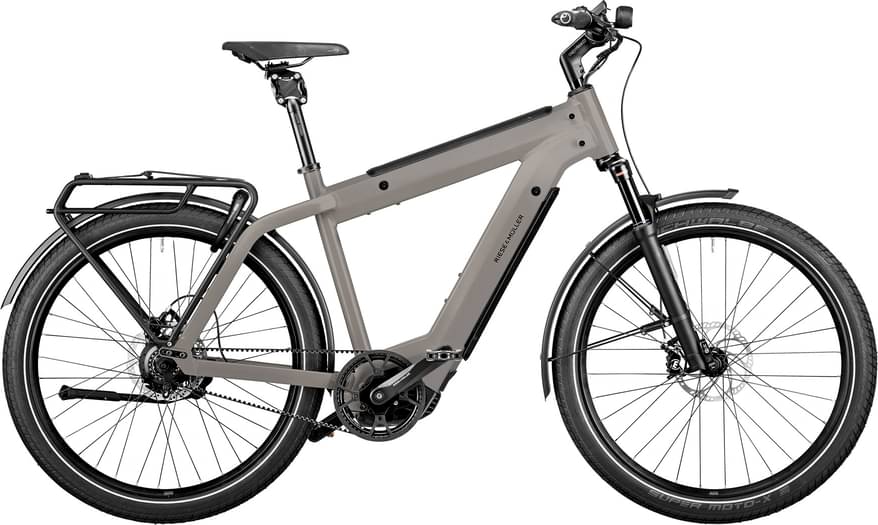

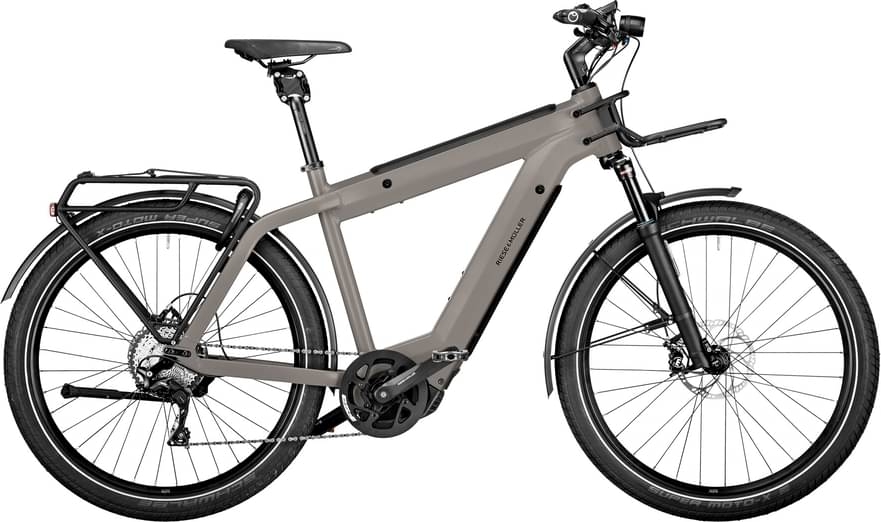

Riese & Müller Riese & Müller Supercharger GT vario HS 2024
2024 E-bike
Estimate price |
7,014$
Weight | 32.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset FSA -
Suspension Hardtail -
Motor mid-drive -
Battery Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh ( 2x )*; Bosch PowerTube 500 Vertical, 36 V, 13,4 Ah/500Wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Mobie 34, Air, tapered, 100mm
Drivetrain
Shift Levers
Enviolo grip shift Twist Display Pure, continuous
Crank
FSA/Riese & Müller, 170 mm
Chain
Gates drive belt CDX
Chain Guide
Belt guard
Pedals
VP R&M Custom
Wheels
Front Hub
Novatec Disc 32H
Rear Hub
Enviolo Heavy Duty
Rims
Rodi Tryp35 Evo 27,5"
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Tires
Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Johnny Watts 60-584*
Brakes
Brakes
Magura MT4, disc brake; Magura MT5, disc brake
Cockpit
Stem
Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
Handlebar
Humpert ergotec Ergo XXL, 31,8 mm; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*
Grips
Ergon GP3-L
Headset
Acros Integration X, block lock
Seat
Saddle
Selle Royal New Lookin Male Eco; Selle Royal New Lookin Female Eco*
Seatpost
Cane Creek New Thudbuster ST Evo-2
Motor & Battery
Motor
Performance Line Speed (Gen4)
Battery
Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh ( 2x )*; Bosch PowerTube 500 Vertical, 36 V, 13,4 Ah/500Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 53cm | 56cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.718 mm | 1.595 mm | 1.558 mm | 1.522 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 670 mm | 670 mm | 670 mm | 685 mm |
| Reach | 390 mm | 420 mm | 430 mm | 450 mm |
| Top Tube Length | 590 mm | 620 mm | 650 | 670 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 150 mm | 150 mm | 165 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1155 mm | 1185 mm | 1215 mm | 1240 mm |
| Standover Height | 840 mm | 840 mm | 845 mm | 850 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 650 | 650 | 650 | 650 |
