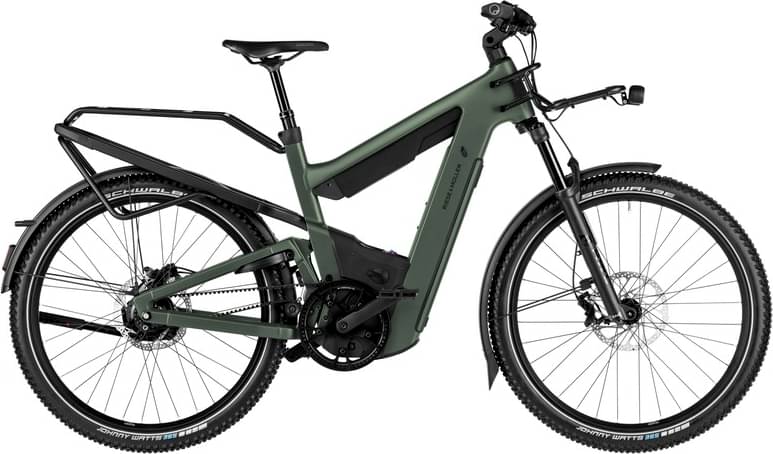

Riese & Müller Riese & Müller Superdelite5 GT vario 2024
2024 Urban
Estimate price |
9,887$
Weight | 37.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox AWL
-
Suspension Full -
Battery Akku Bosch CompactTube 400; Akku Bosch PowerTube 800 horizontal; Akku Bosch PowerTube 800 horizontal ( 2x ) -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Federgabel Fox AWL 34, Air, 120mm
Rear Shock
Fox Float Rhythm SV 165x45
Drivetrain
Shift Levers
Enviolo grip shift Twist Display Pure, continuous
Crank
Samox, 165 mm
Chain
Gates drive belt CDX
Chain Guide
Chain guard
Pedals
VP-538
Wheels
Front Hub
Novatec Boost, QR, 32H
Rear Hub
Enviolo Heavy Duty
Rims
Rodi Tryp35 Evo 27,5"
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Tires
Schwalbe Johnny Watts 365 60-584
Brakes
Brakes
Tektro TRP HD-EU835 disc brake; Magura MT C ABS*
Cockpit
Stem
Satori R&M Custom, cable integration, adjustable angle, Alu
Handlebar
Satori R&M Custom, 25,4mm, Alu
Grips
Ergon ergonomic
Seat
Saddle
Ergon SF10 Gel
Seatpost
Dropper Post X-Fusion Manic 100; Dropper Post X-Fusion Manic 125*
Motor & Battery
Battery
Akku Bosch CompactTube 400; Akku Bosch PowerTube 800 horizontal; Akku Bosch PowerTube 800 horizontal ( 2x )
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 56cm |
|---|---|---|---|
| Stack Reach Ratio | 1.638 mm | 1.534 mm | 1.448 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm |
| Trail | 103 mm | 103 mm | 103 mm |
| Stack | 655 mm | 675 mm | 695 mm |
| Reach | 400 mm | 440 mm | 480 mm |
| Top Tube Length | 575 mm | 621 mm | 666 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 153 mm | 174 mm | 196 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1205 mm | 1255 mm | 1305 mm |
| Standover Height | 840 mm | 840 mm | 831 mm |
| Front Travel | 120 mm | 120 mm | 120 mm |
| Rear Travel | 110 mm | 110 mm | 110 mm |
| Wheels | 650 | 650 | 650 |
