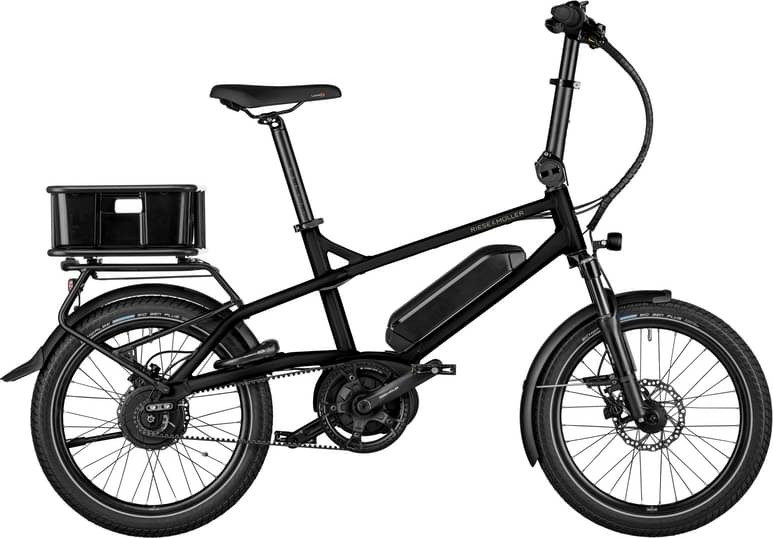

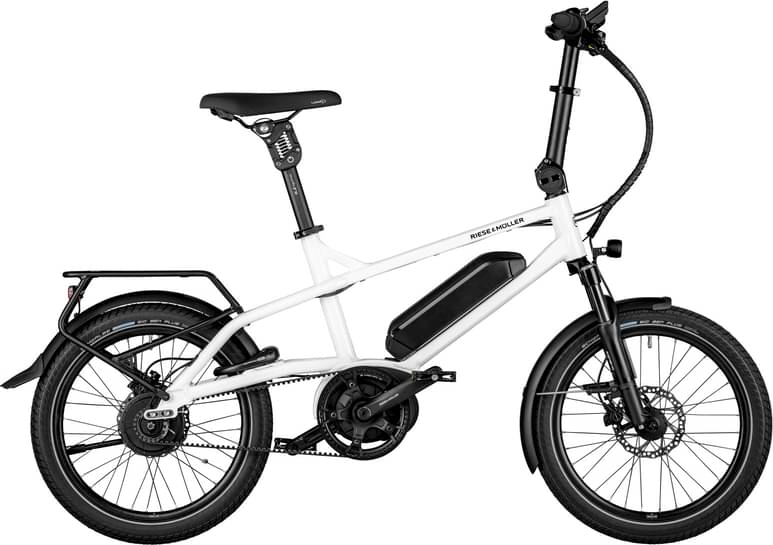

Riese & Müller Riese & Müller Tinker2 vario 2024
2024 E-bike
Estimate price |
5,408$
Weight | 24.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 70mm -
Fork Suntour MOBIE
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Battery Akku Bosch PowerPack Frame 545 -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Mobie A32, 20", 70mm
Drivetrain
Shift Levers
Enviolo grip shift Twist Display Pure, continuous
Crank
FSA CK-601 170mm schwarz
Chain
Gates drive belt CDX
Pedals
VP R&M Custom
Wheels
Front Hub
Novatec Disc 32H
Rear Hub
Enviolo Trekking
Rims
Mach1 Trucky30 20" CNC
Spokes
Sapim Leader 2,0 mm, Inox, black ( 16x ); Sapim Leader 2,0 mm, Inox, black ( 36x )
Tires
Schwalbe Big Ben Plus 55-406 Reflex
Brakes
Brakes
Tektro Auriga Comp HD-500, disc brake
Cockpit
Stem
Riese & Müller, adjustable height and angle
Handlebar
Satori Horizon, 31,8 mm, 9°, B=620 mm
Grips
Herrmans Grips Line
Headset
TH No. 9, semi-integrated
Seat
Saddle
Selle Royal Essenza Moderate
Seatpost
JD/Riese & Müller, Alu, 34,9 x 430mm; By.Schulz G.2 ST*
Motor & Battery
Motor
Bosch Performance Line (smart system)
Battery
Akku Bosch PowerPack Frame 545
