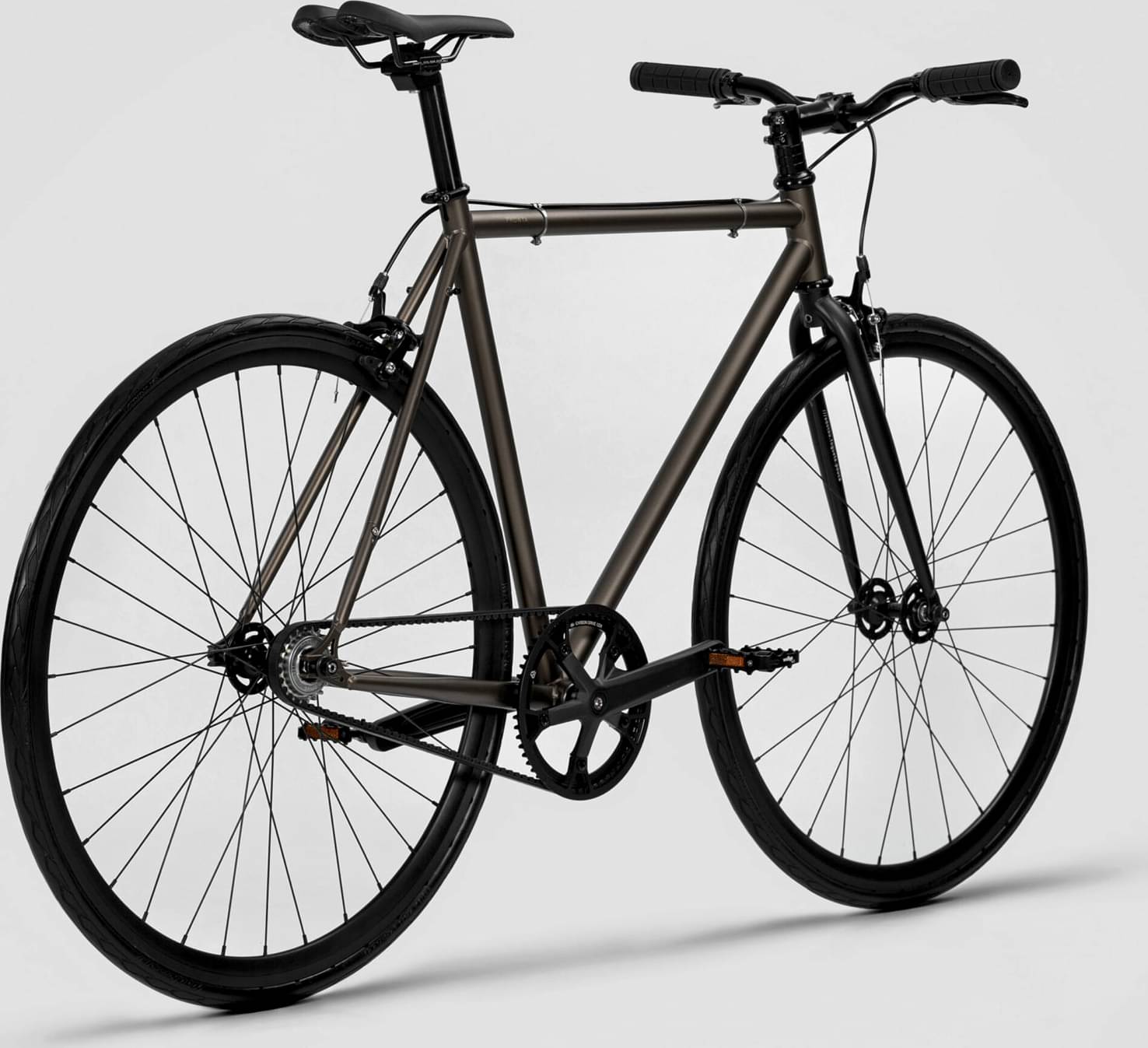

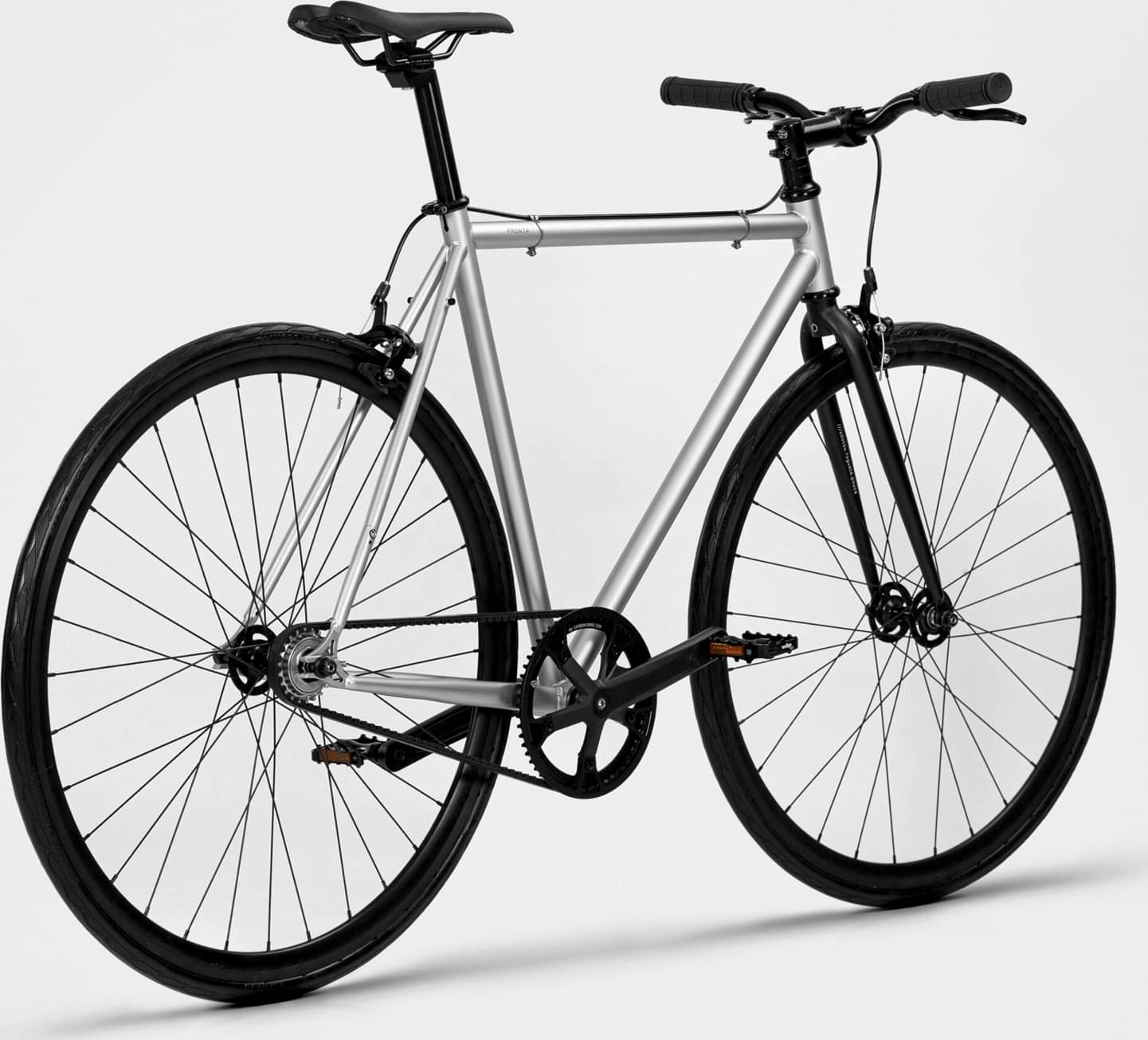

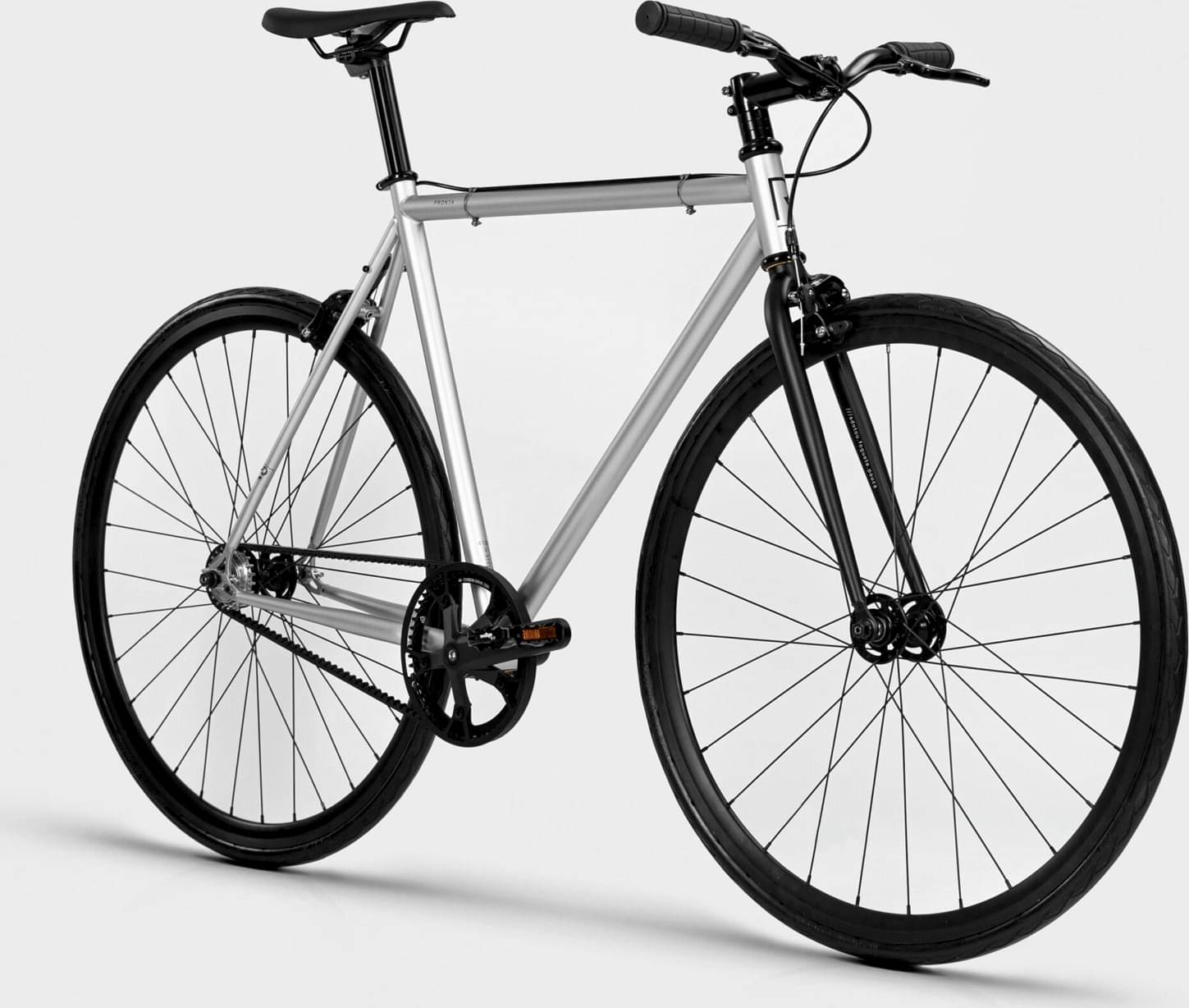

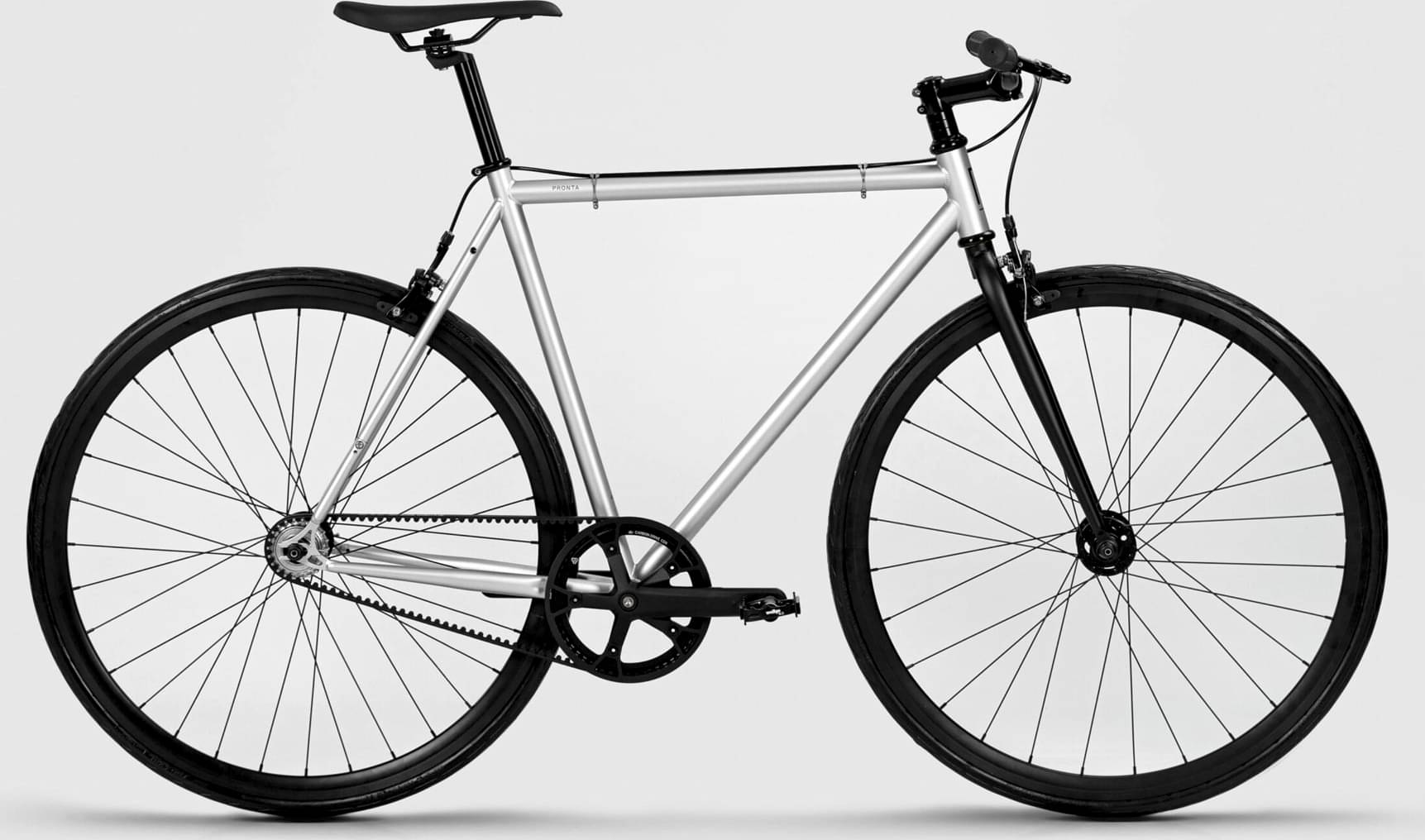

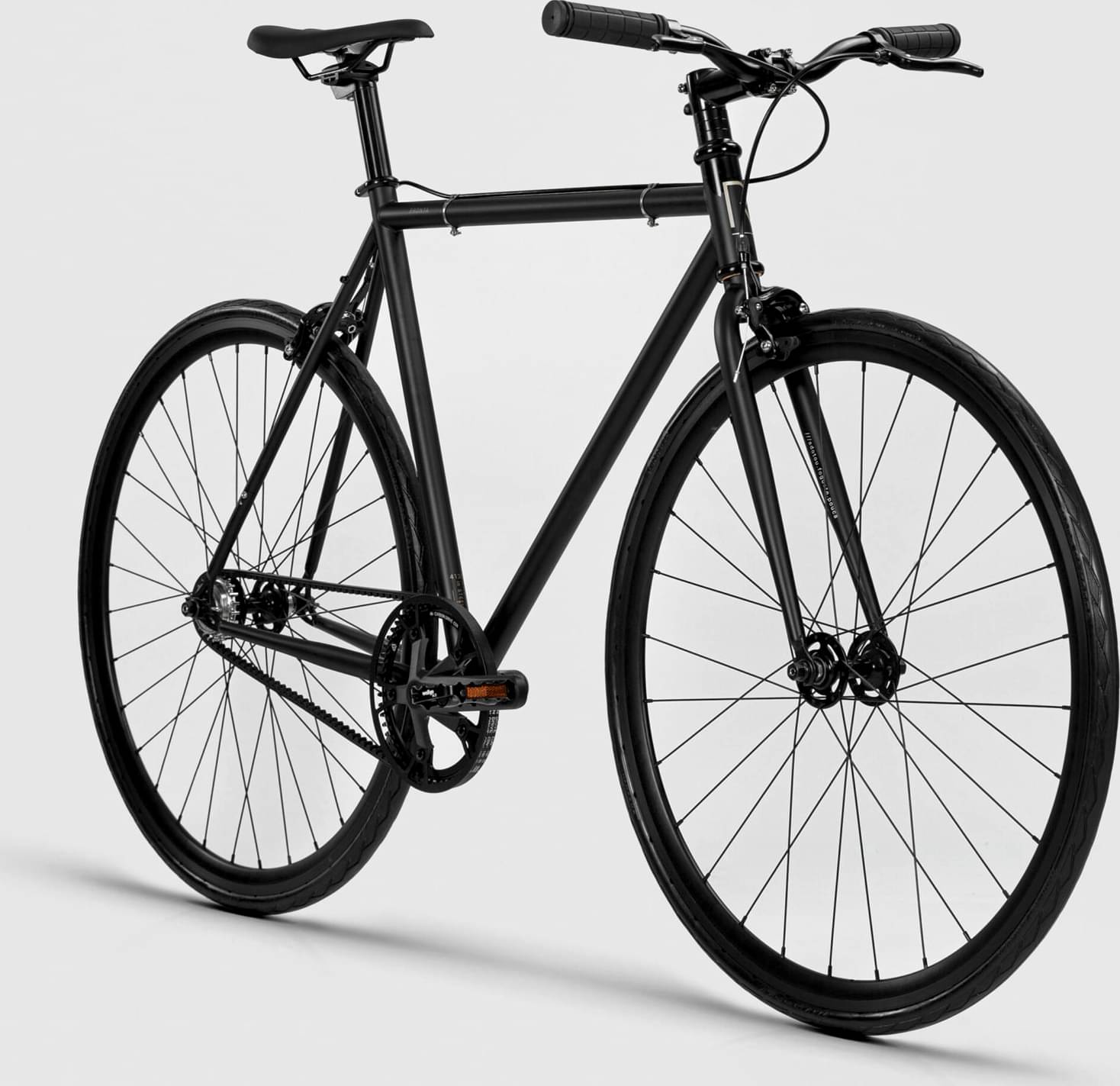

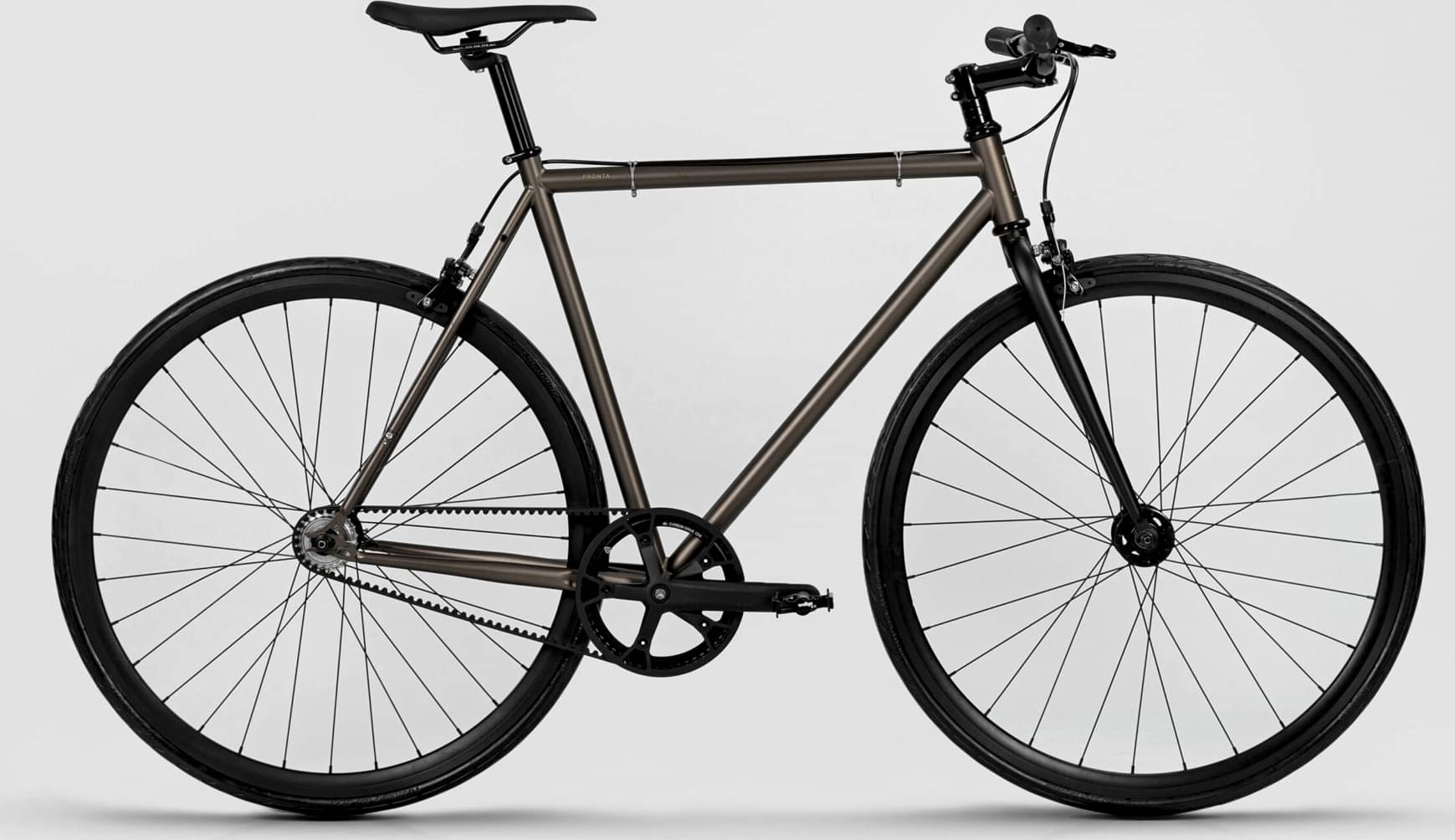

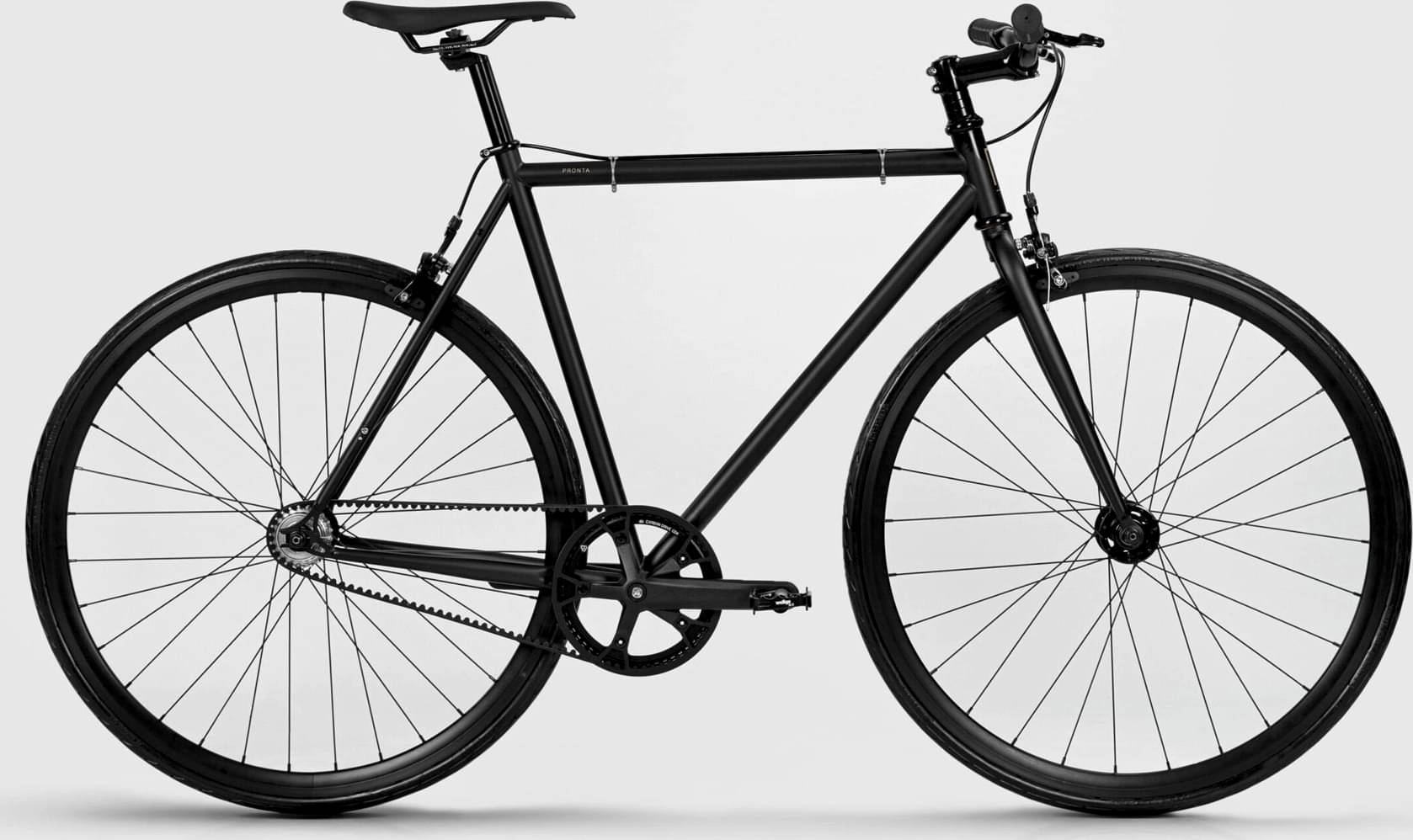

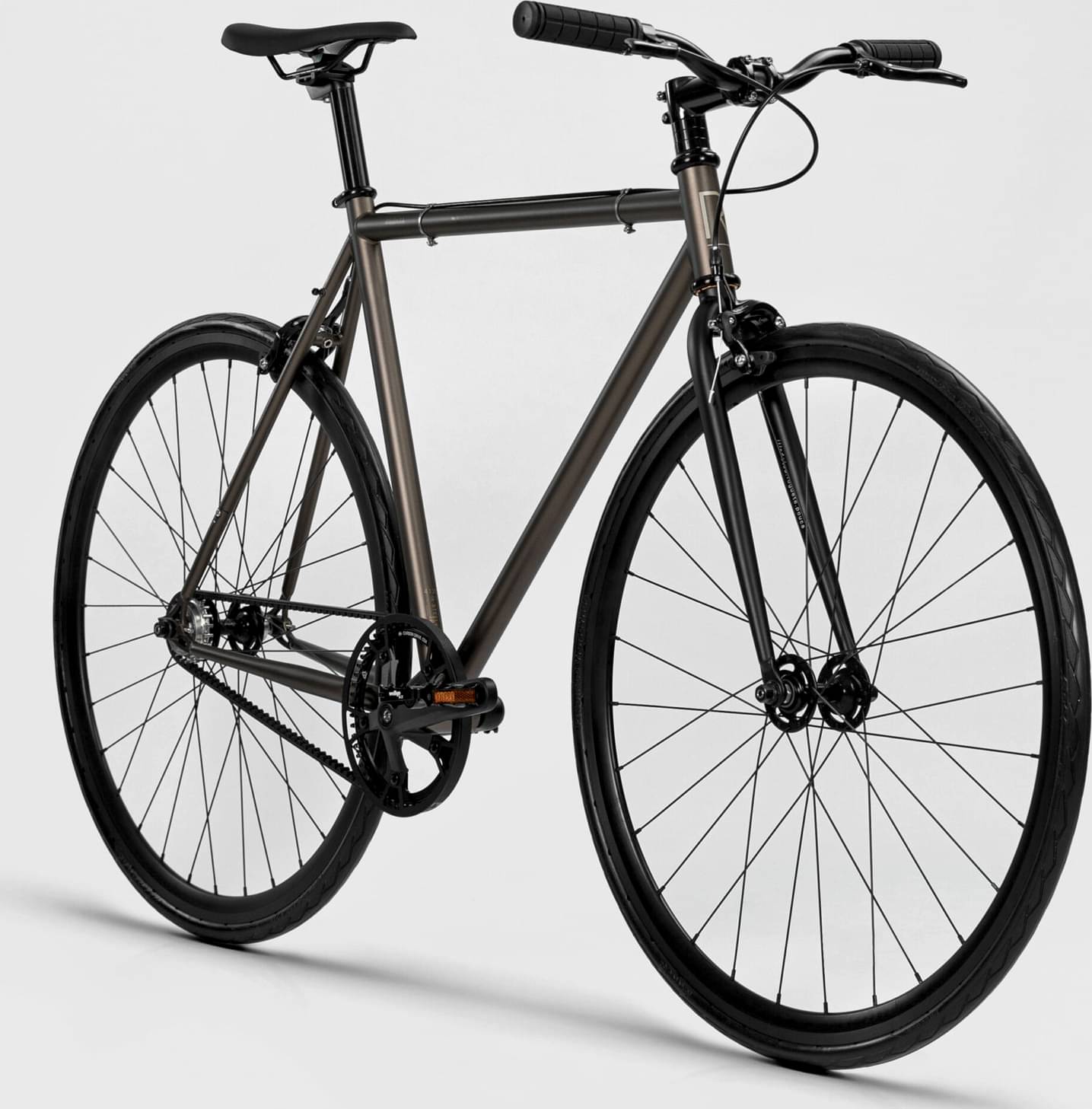

riva Pronta 2024
2024 Urban
Estimate price |
1,154$
Weight | 9.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Gates -
Drivetrain Belt Drive -
Brakes Rim
Sizing
Recommended size guide.
52cm
162cm - 171cm
55cm
169cm - 181cm
59cm
179cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CR-MO SAE 4130 frameset, with Double Butted tubes, TIG welding and integrated chain tensioners
Drivetrain
Cassette
Carbon Drive CDX Freewheel by White Industries
Crank
Gates S250
Bottom Bracket
Square Tip – Sealed Cartridge – 68mm x 103mm
Pedals
Wellgo M-21
Wheels
Rims
Riva 700C 30mm – 32/28 Holes
Tires
Tannus Midnight Airless 700x28C
Brakes
Brakes
Promax R315/ RL570
Cockpit
Stem
Riva 90mm – Height 40mm
Handlebar
Riva Riser 25.4mm – 520mm
Headset
1-1/8 Sealed Bearings
Seat
Seatpost
Riva 27.2mm x 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 55cm | 59cm |
|---|---|---|---|
| Rake | 45 mm | 45 mm | 45 mm |
| Stack | 520 mm | 550 mm | 590 mm |
| Top Tube Length | 535 mm | 550 mm | 585 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° |
| Head Tube Angle | 72 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 95 mm | 105 mm | 140 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm |
| Standover Height | 770 mm | 850 mm | 950 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 179 cm |
| Rider Max Height | 171 cm | 181 cm | 191 cm |
