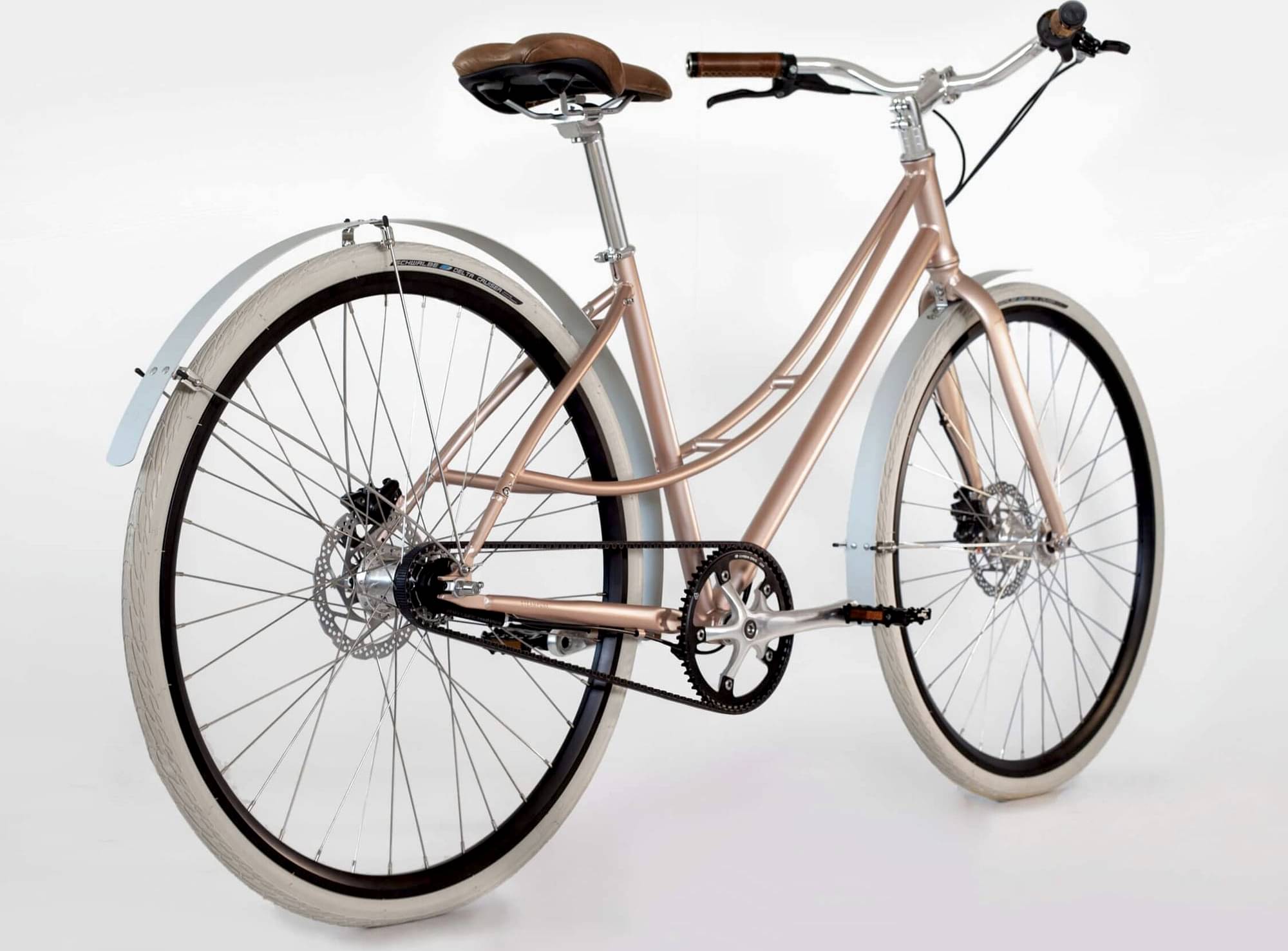

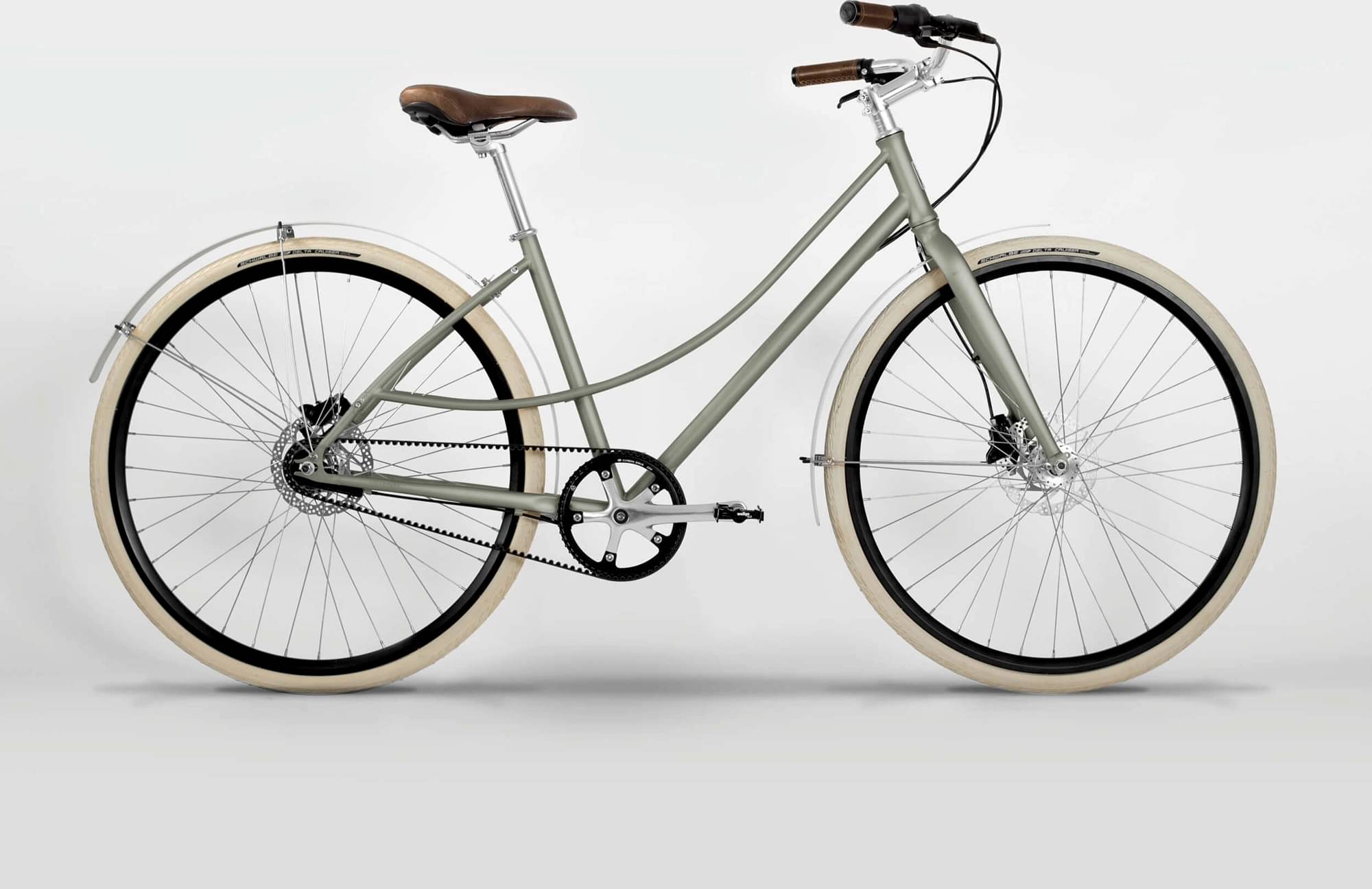

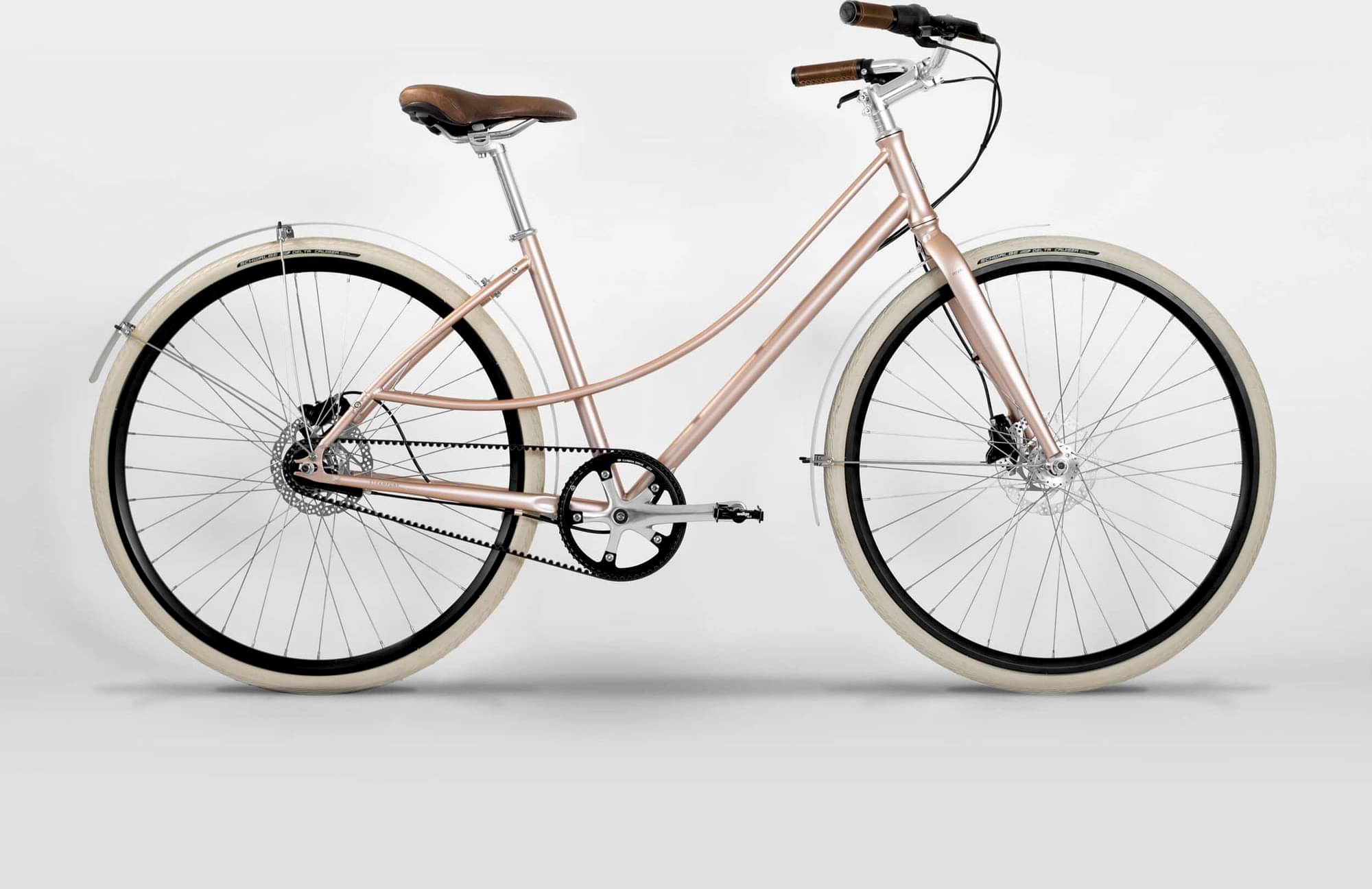

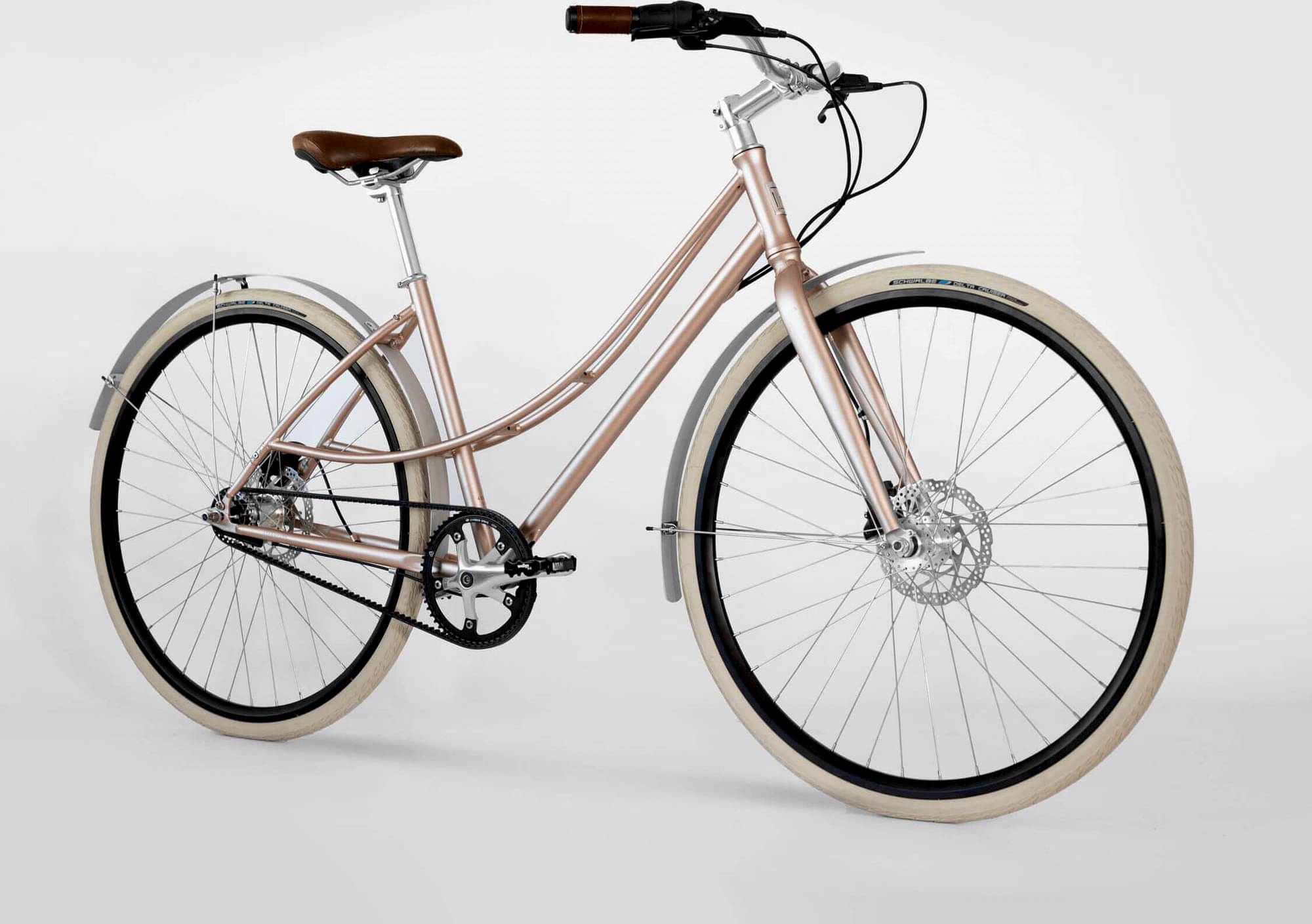

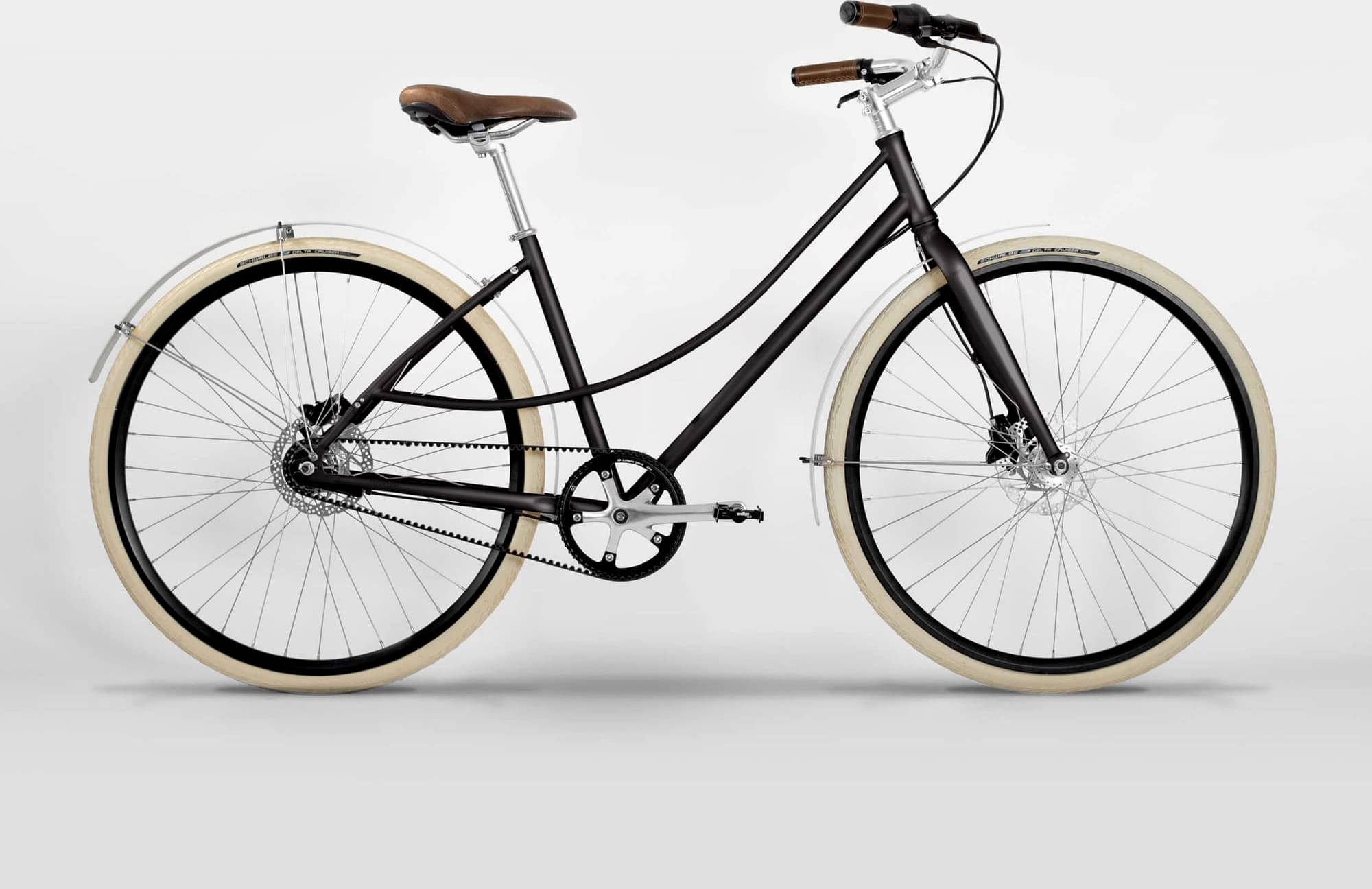

riva Steampunk CL 2024
2024 Urban
Estimate price |
1,115$
Weight | 12.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Suspension Rigid -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
174cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CR-MO SAE 4130 frameset, with Double Butted tubes, TIG welding and integrated chain tensioners
Suspension Fork
6061 aluminum with rack support and fenders
Drivetrain
Cassette
Gates CDX Stainless Steel 24T
Crank
Aluminum 6061
Pedals
Wellgo M-21
Wheels
Tires
Schwalbe Delta Cruiser 700x35C
Brakes
Brakes
Shimano M315 – 160mm Discs – Forged Aluminum Calipers – Non-Corrosive Mineral Oil
Cockpit
Stem
Riva 90mm – Height 40mm
Handlebar
Riva Riser 25.4mm – 520mm
Headset
1-1/8 Sealed Bearings
Seat
Seatpost
Riva 27.2mm x 300mm
Fit data
Geometry
