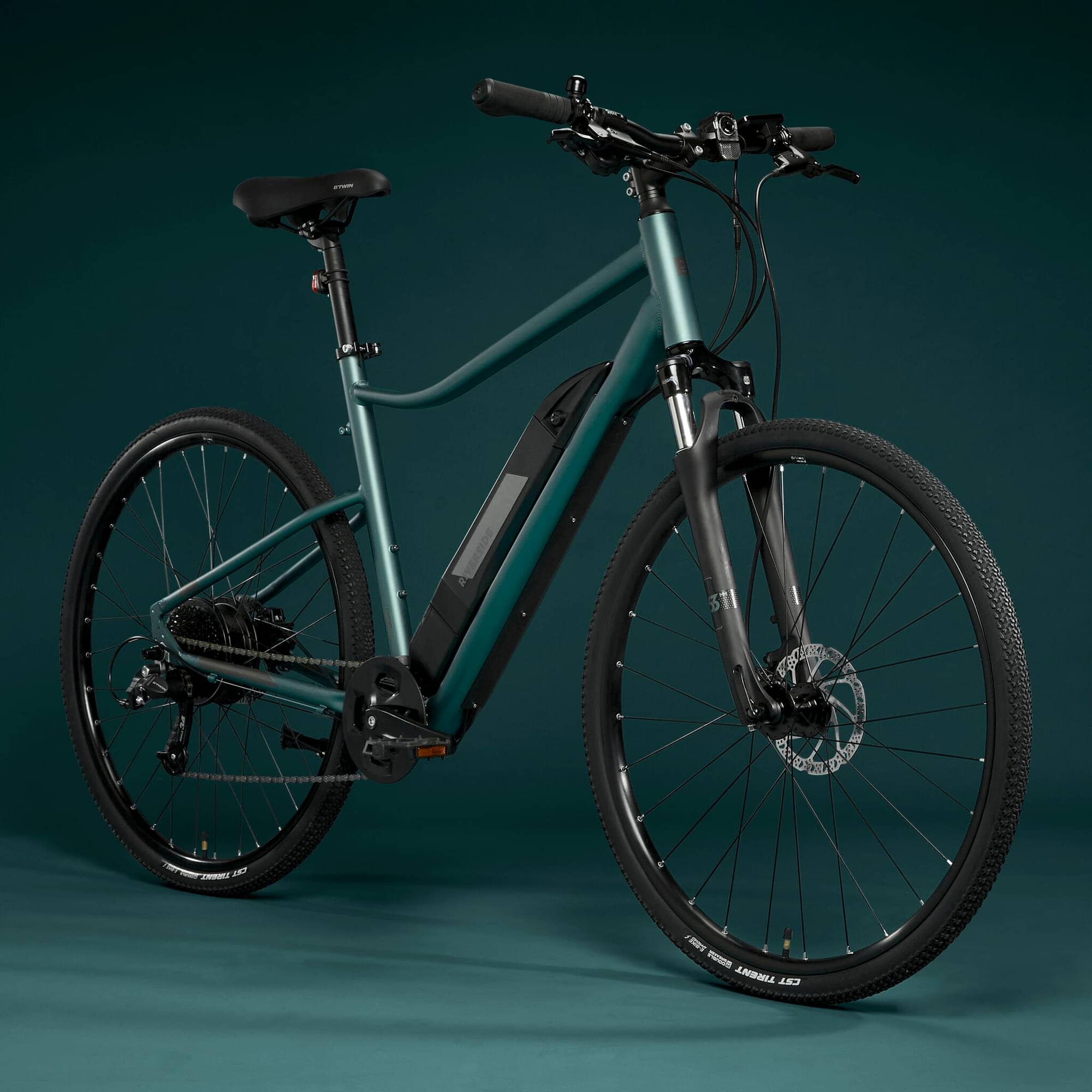

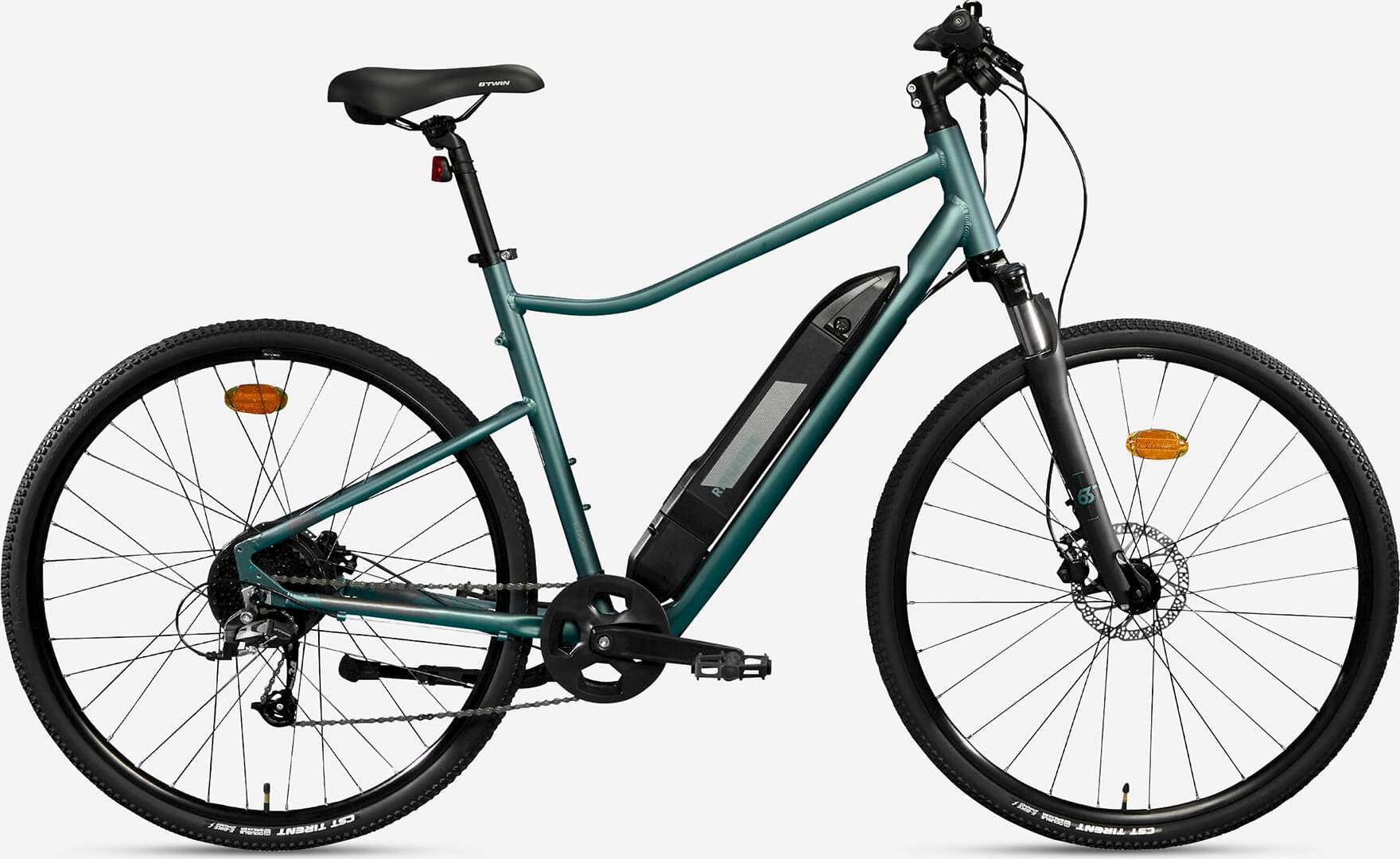

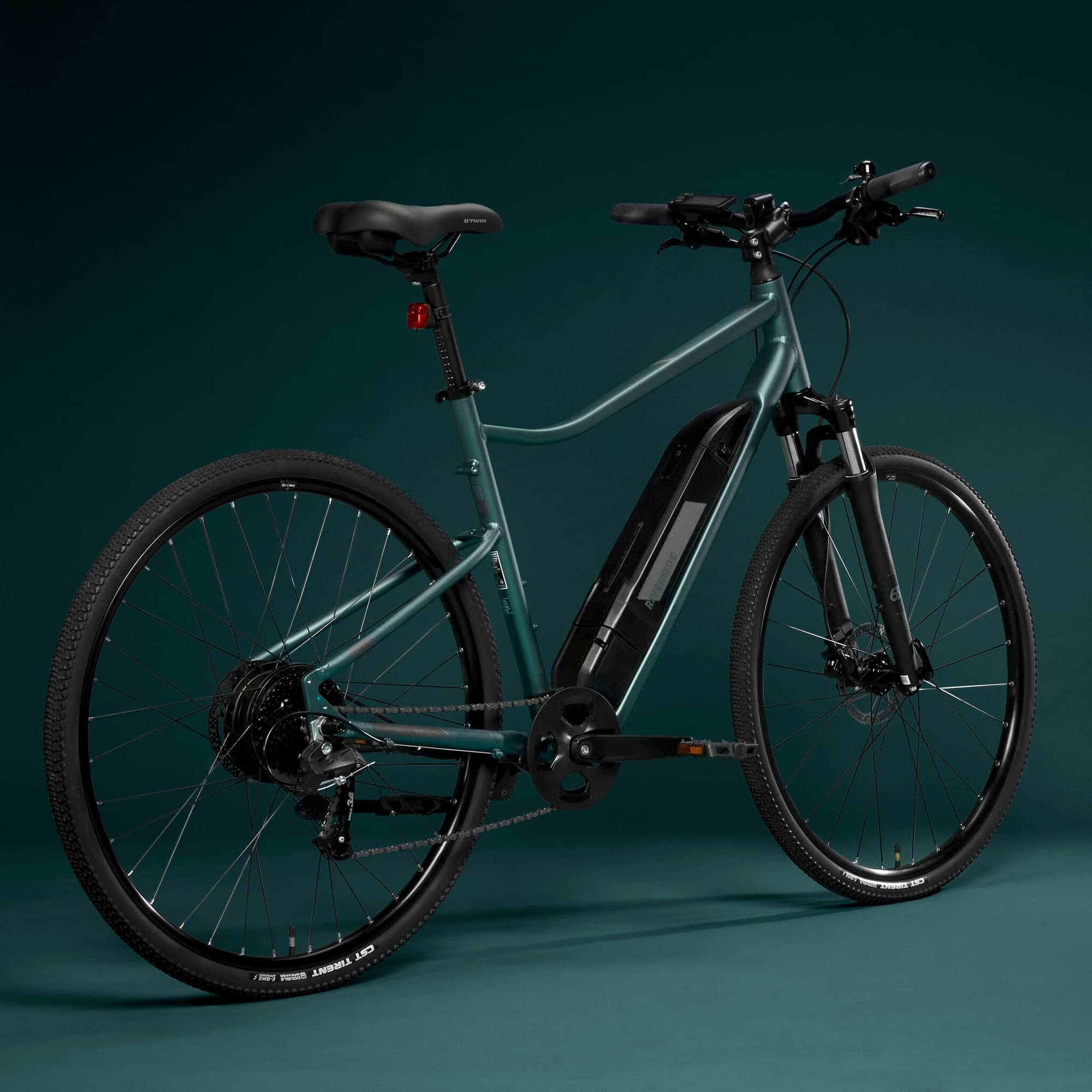

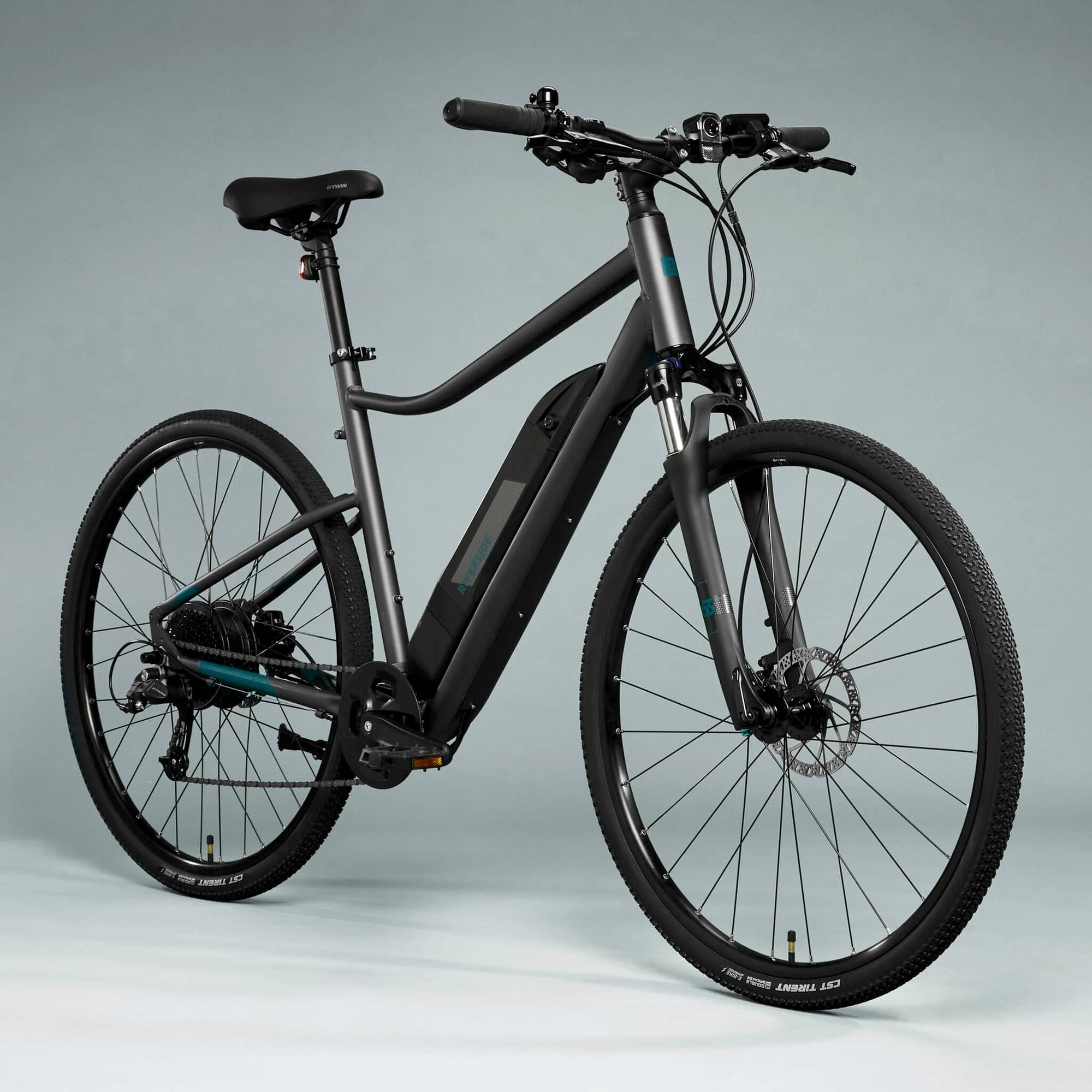

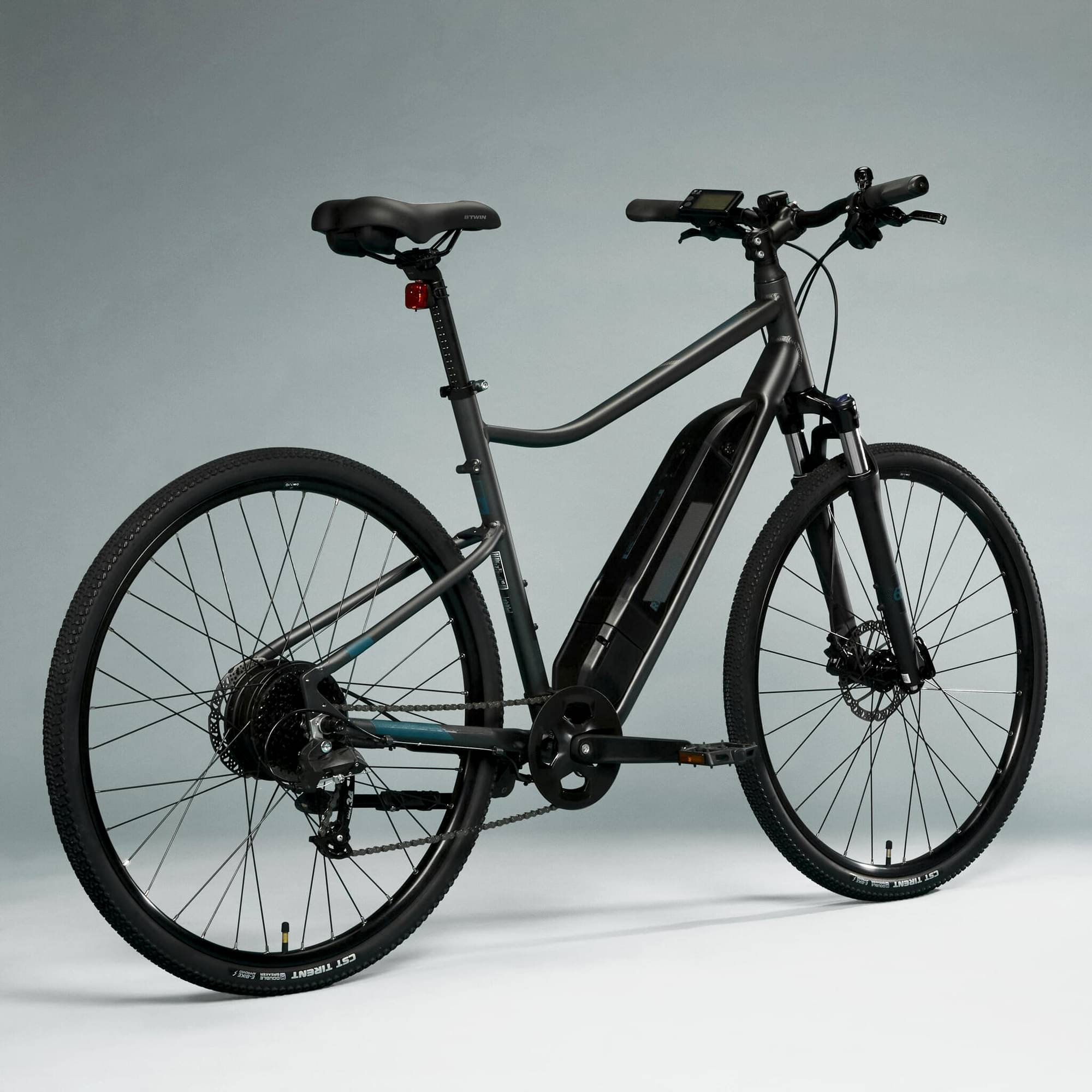

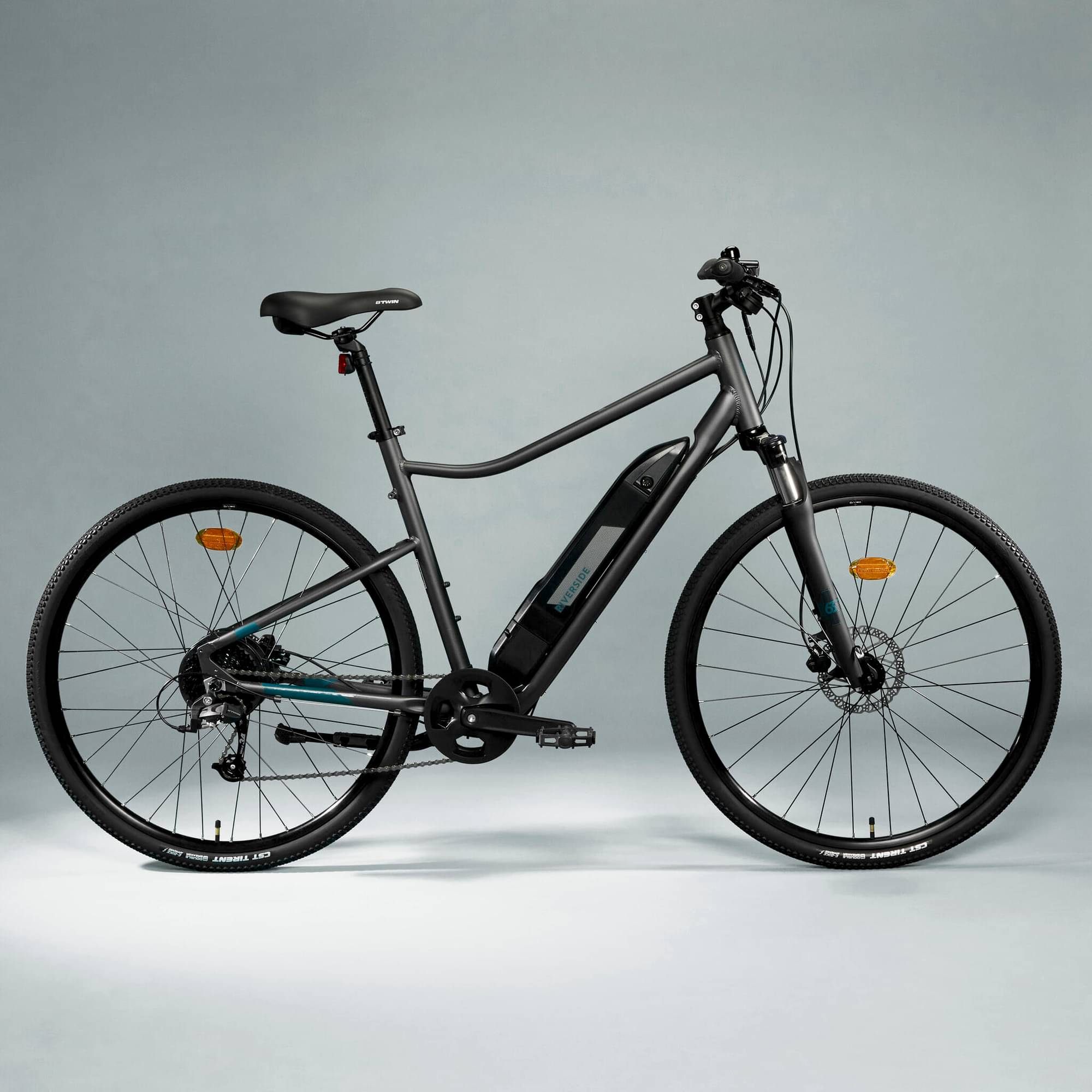

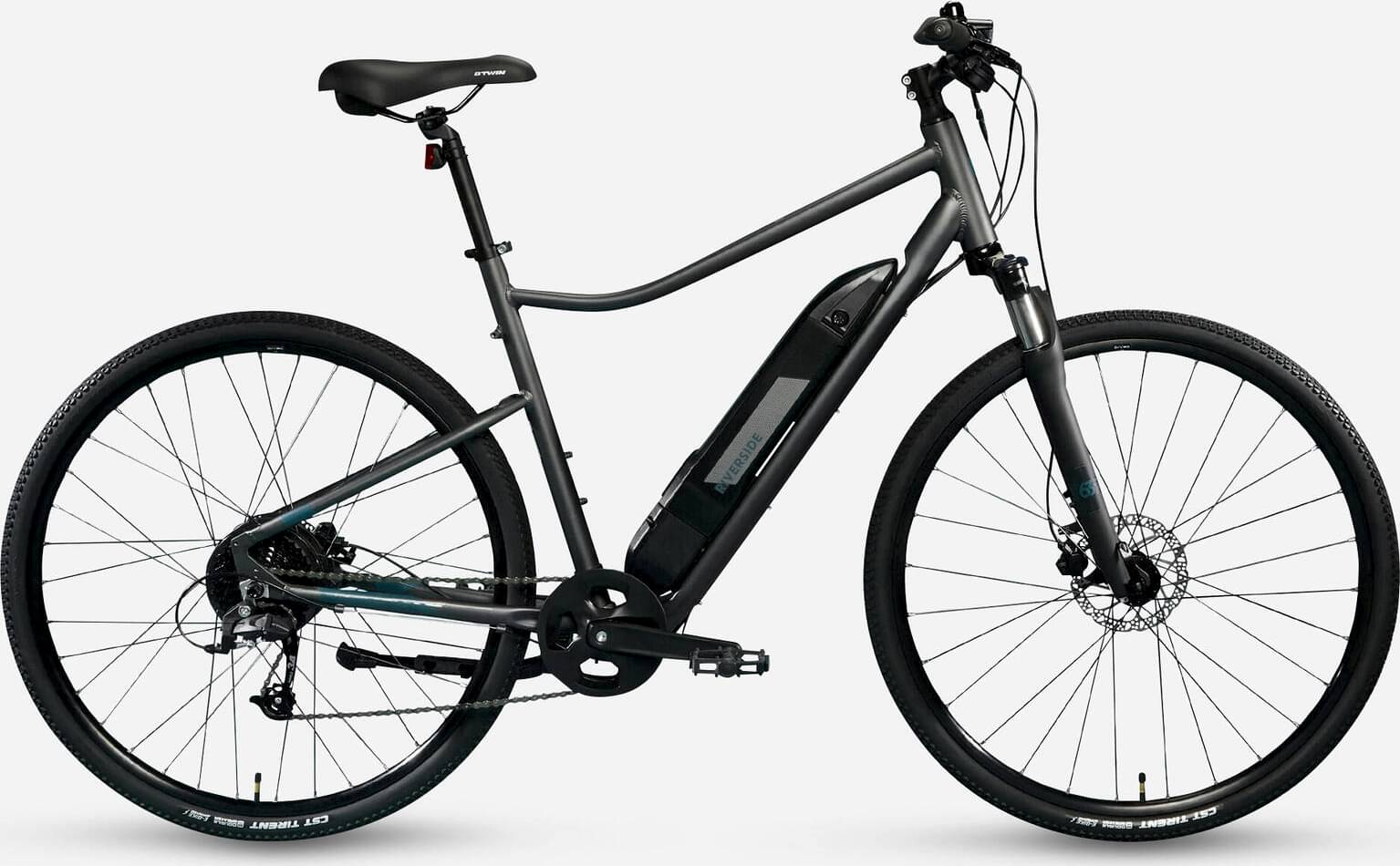

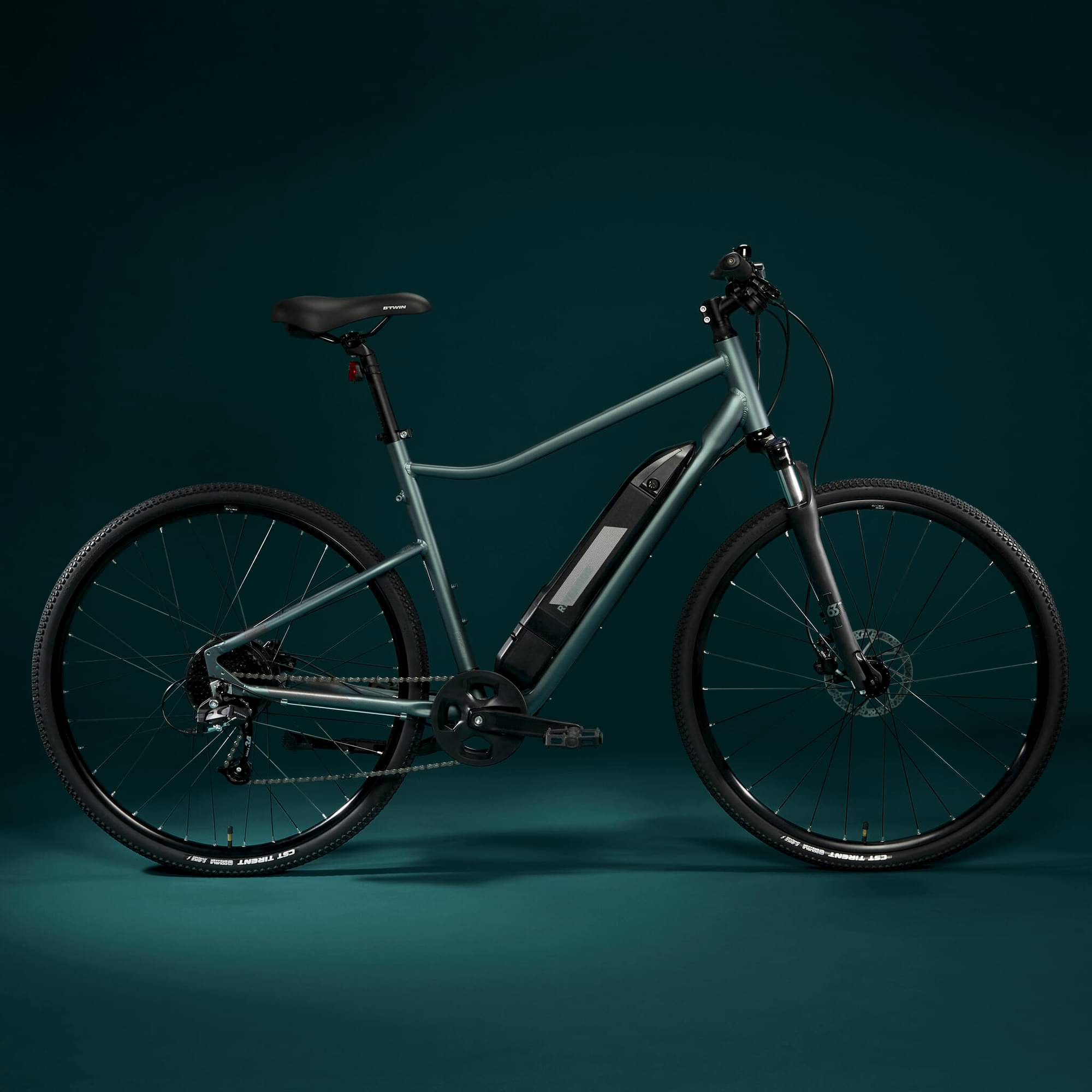

RIVERSIDE Electric Hybrid Bike 500 E 2023
2023 E-bike
Estimate price |
1,760$
Weight | 21.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset microSHIFT -
Suspension Hardtail -
Motor 42Nm hub-drive -
Battery Lithium-ion 36V 11.6 Ah (418 WH) battery with locking system that prevents any vibrations to the battery as you ride. Supplied with two lock keys. Weight: 2.82 kg. We recommend recharging the battery after each use. -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork

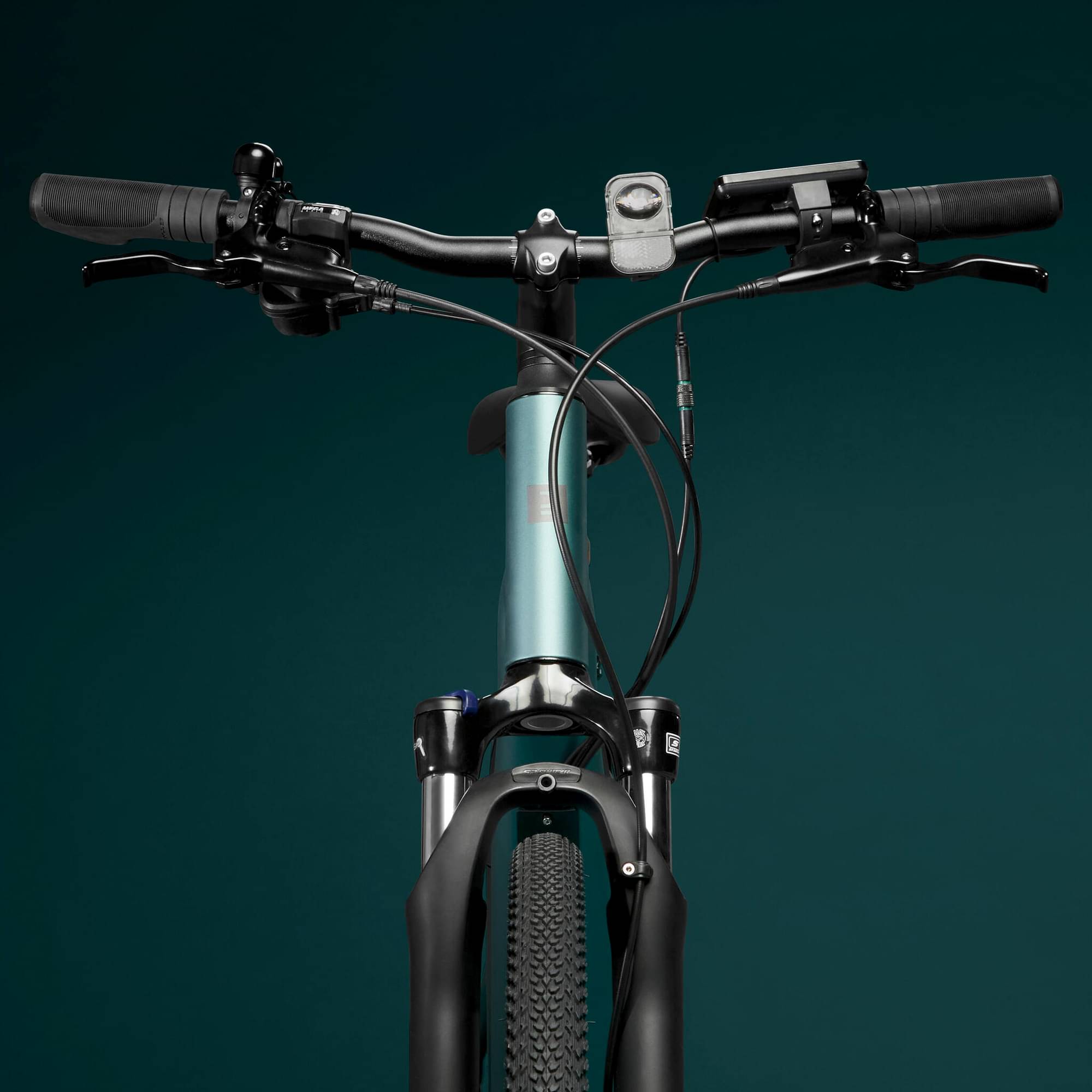

Our designers added the Suntour NCX SF17 lockable and adjustable spring suspension fork. 1?" aluminium pivot. Magnesium blade. 63 mm of travel.

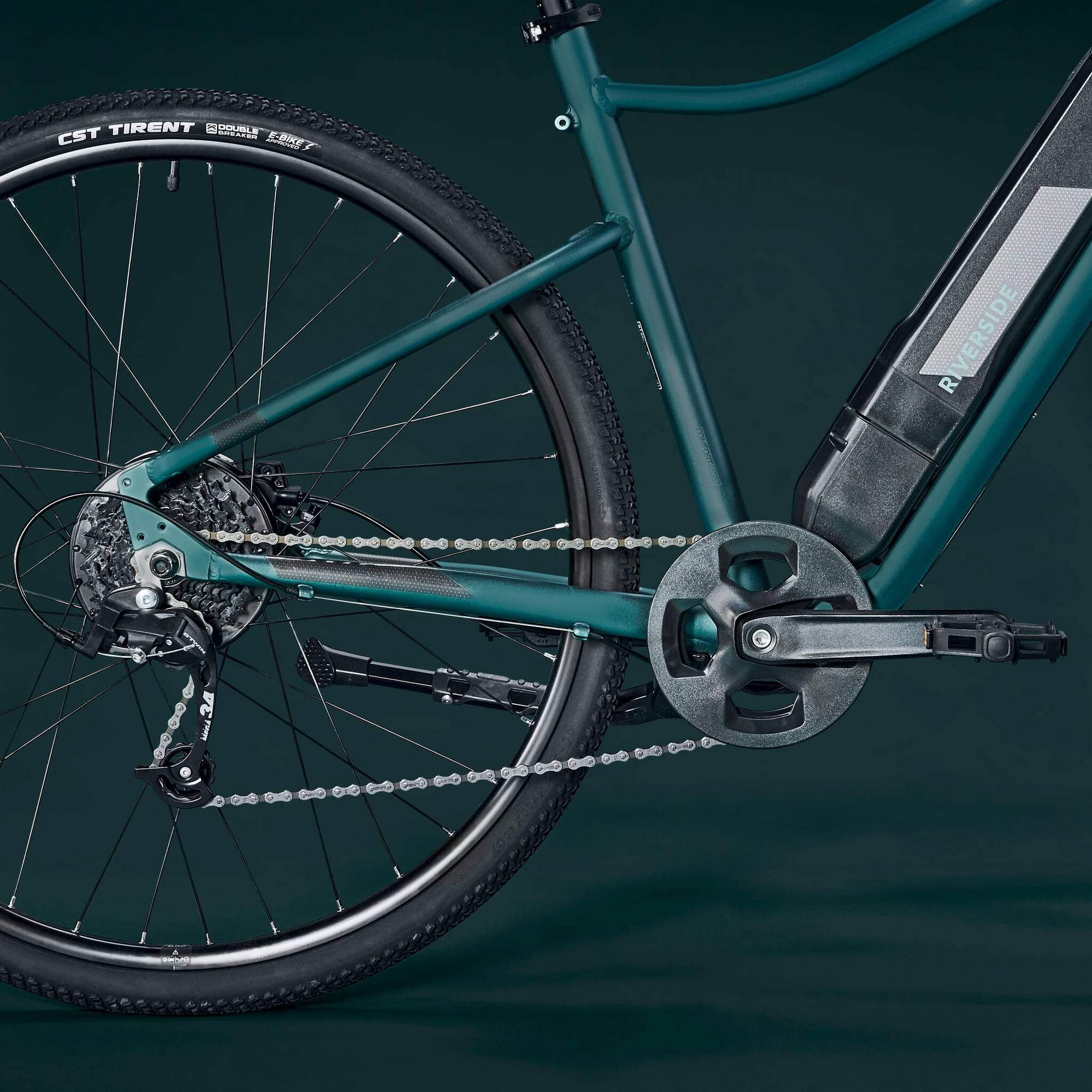

Drivetrain
Rear Derailleur

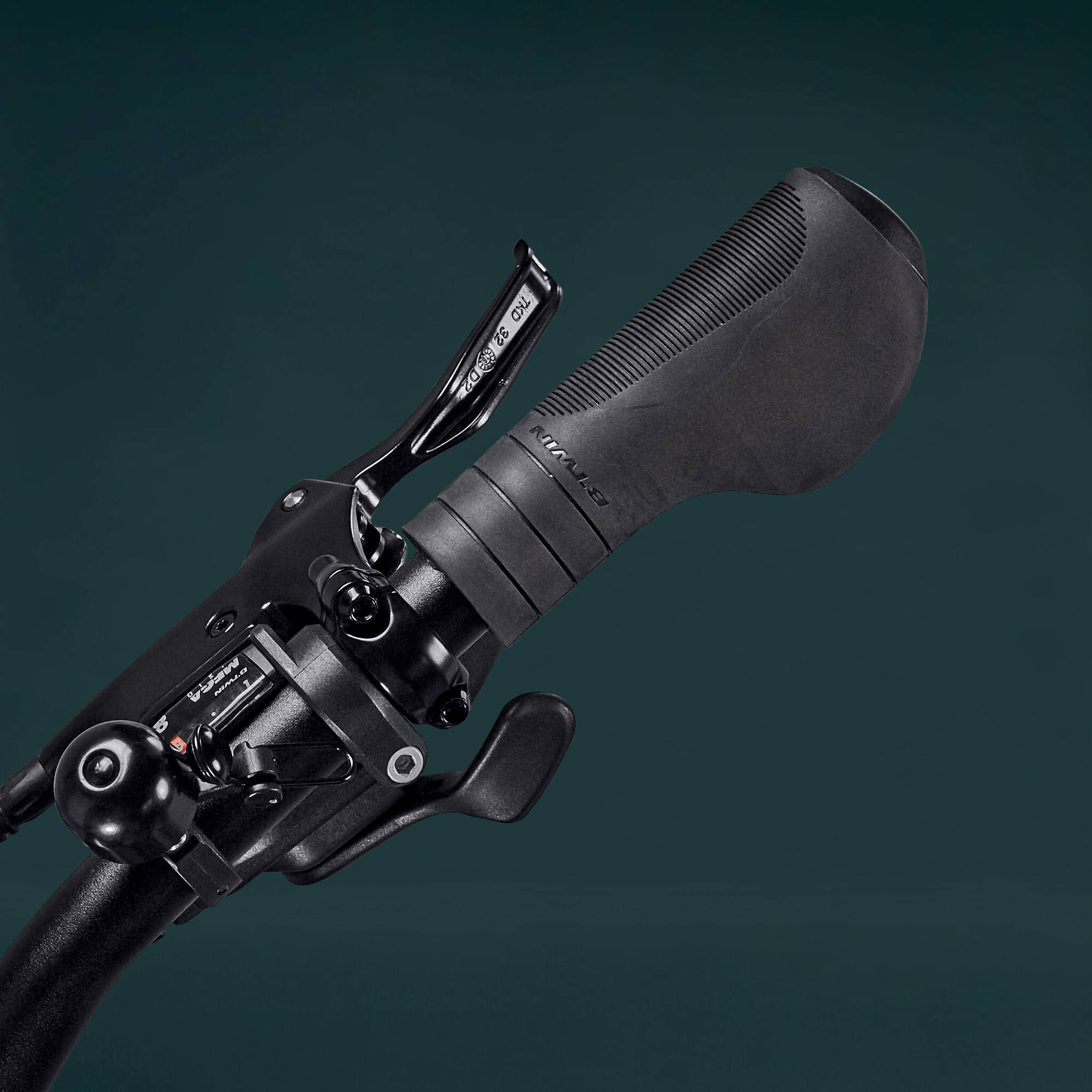

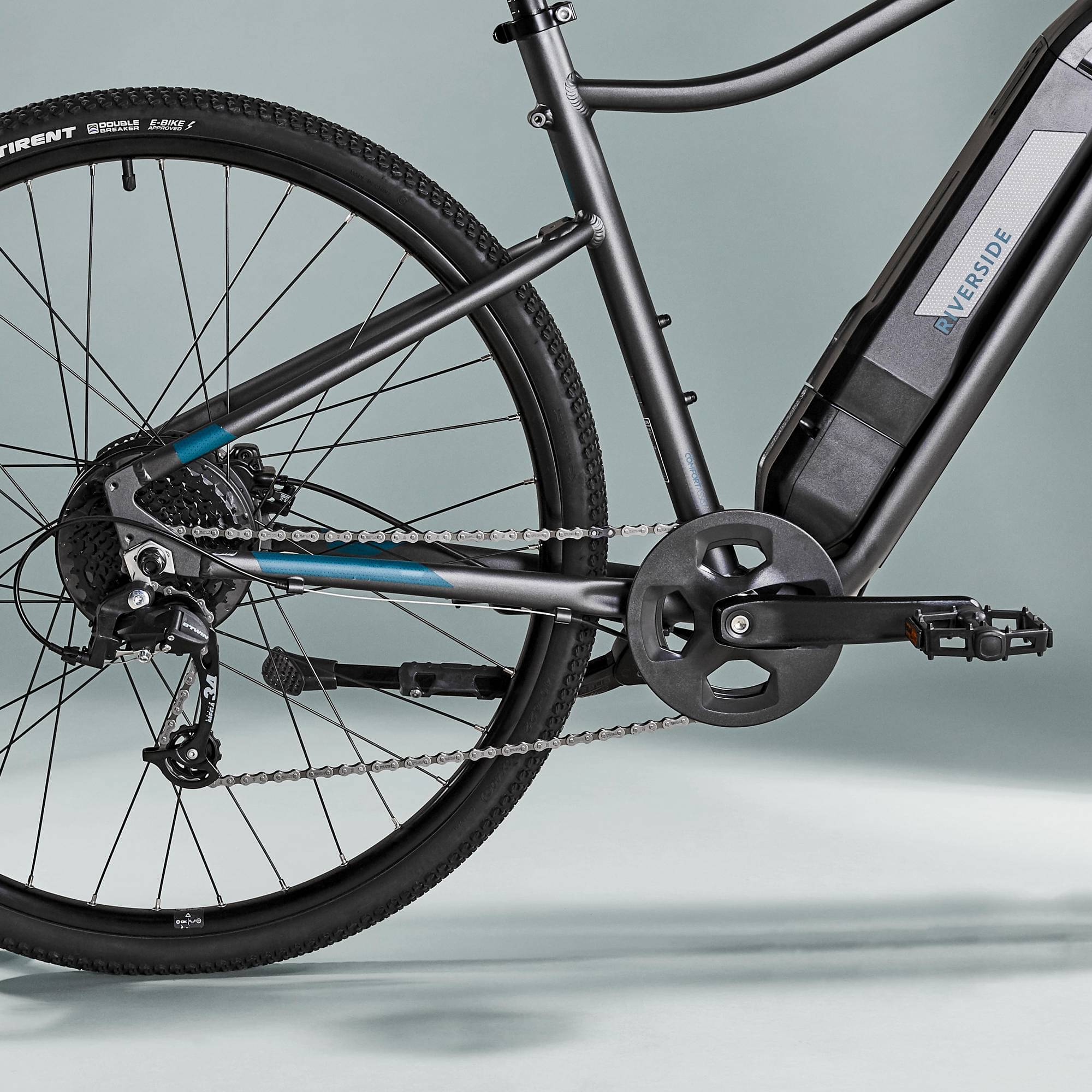

Quickly and easily change between the 8 speeds using the shifter on the handlebars. In detail: - 8-speed Microshift H081 cassette - Single chainwheel: 36 teeth - Cogs: 11/ 34 - KMC Z51 chain with quick-release - Rear derailleur: B'Twin RD M25 - B'Twin SL759 shifter. - Anti-derailment ring
Crank
The Riverside 500 electric bike is supplied with versatile plastic single-piece pedals with a wide pedalling surface to keep the foot on the pedal. 170mm-long aluminium cranks. 36-teeth aluminium chainring. Plastic chainguard.
Wheels
Tires

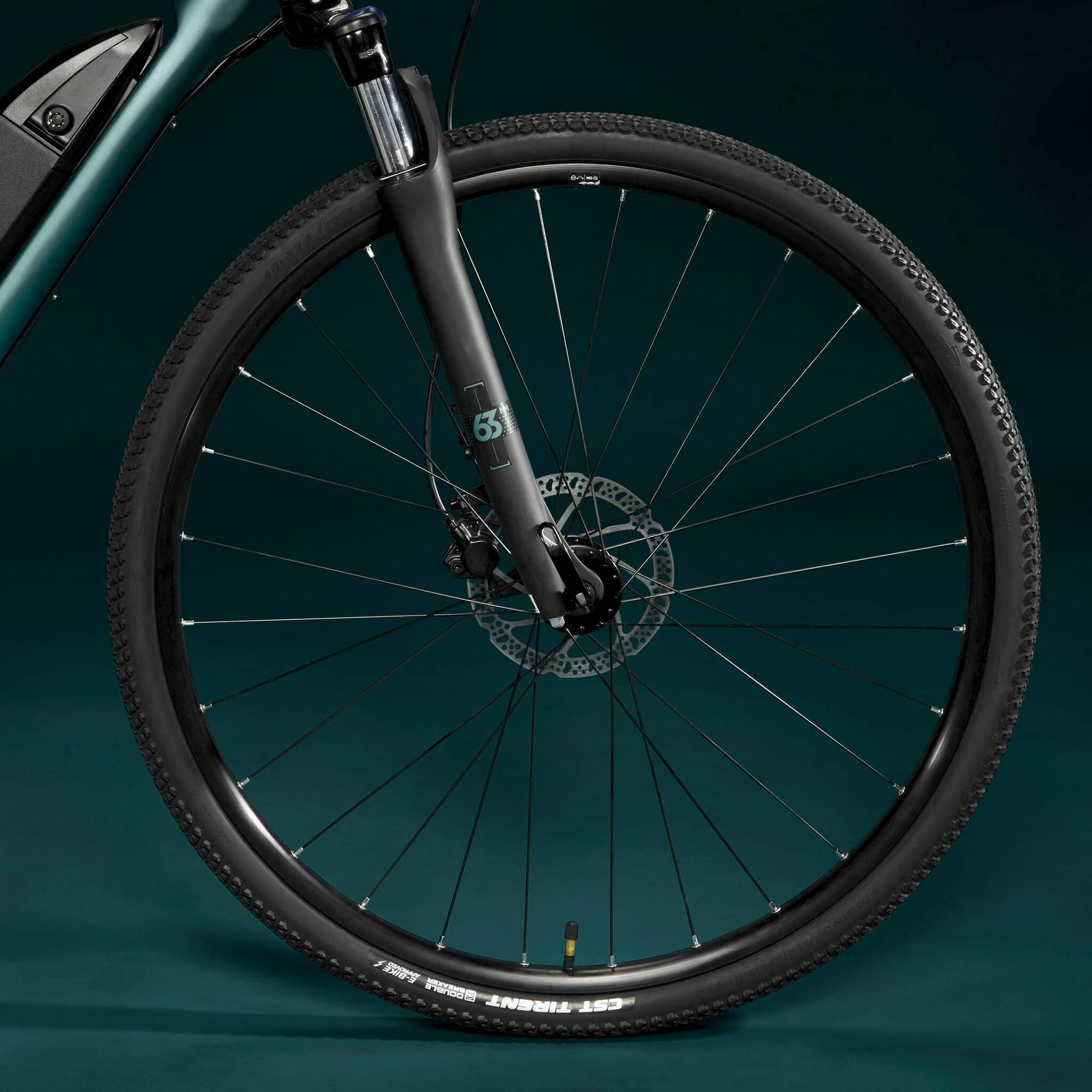

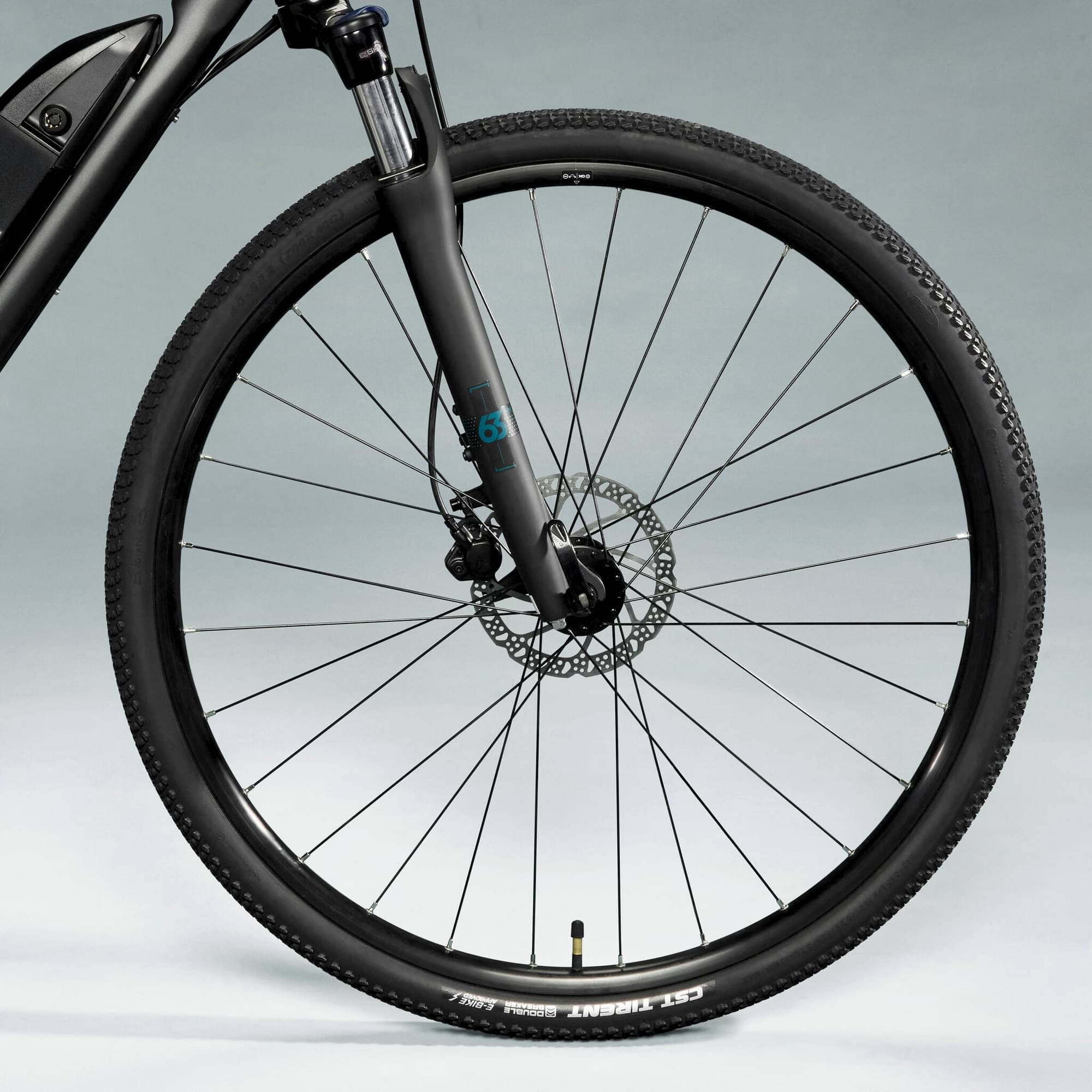

Comfortable, versatile, reinforced CST Tirent tyres so you can go anywhere. Bead-to-bead puncture protection. The recommended pressure is between 4 and 5 bars (details on tyre sidewall). Dimensions: 700 x 40 (40-622).
Brakes
Brakes

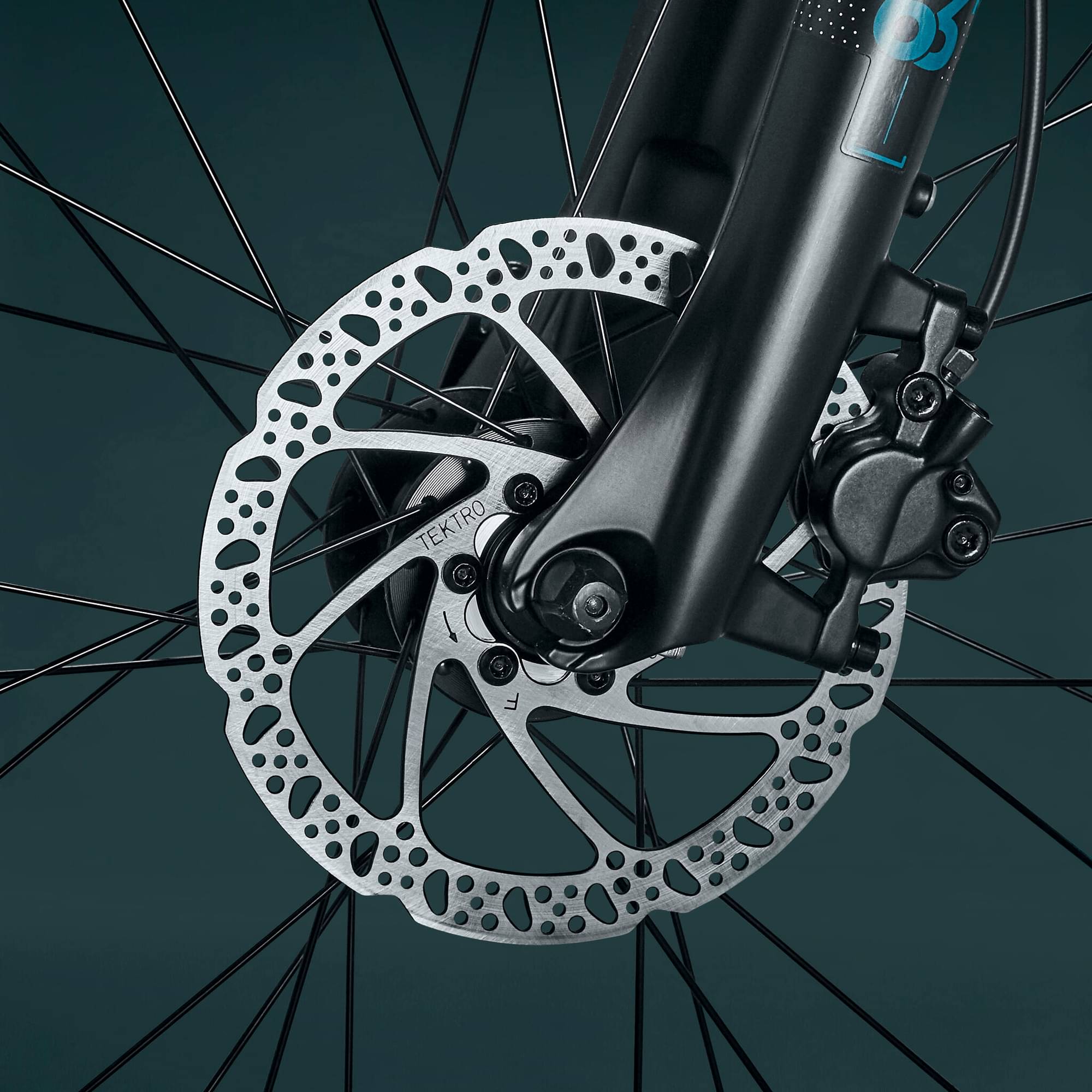

Cycle safely on any terrain (dry/wet) thanks to the Tektro TKD 160 mm hydraulic disc brakes at the front and rear. Hydraulic brakes provide more precise braking as well as greater comfort using the brake levers. Aluminium brake levers.
Motor & Battery
Motor
Brushless 250-watt motor in the rear wheel hub. 42Nm torque.
Battery

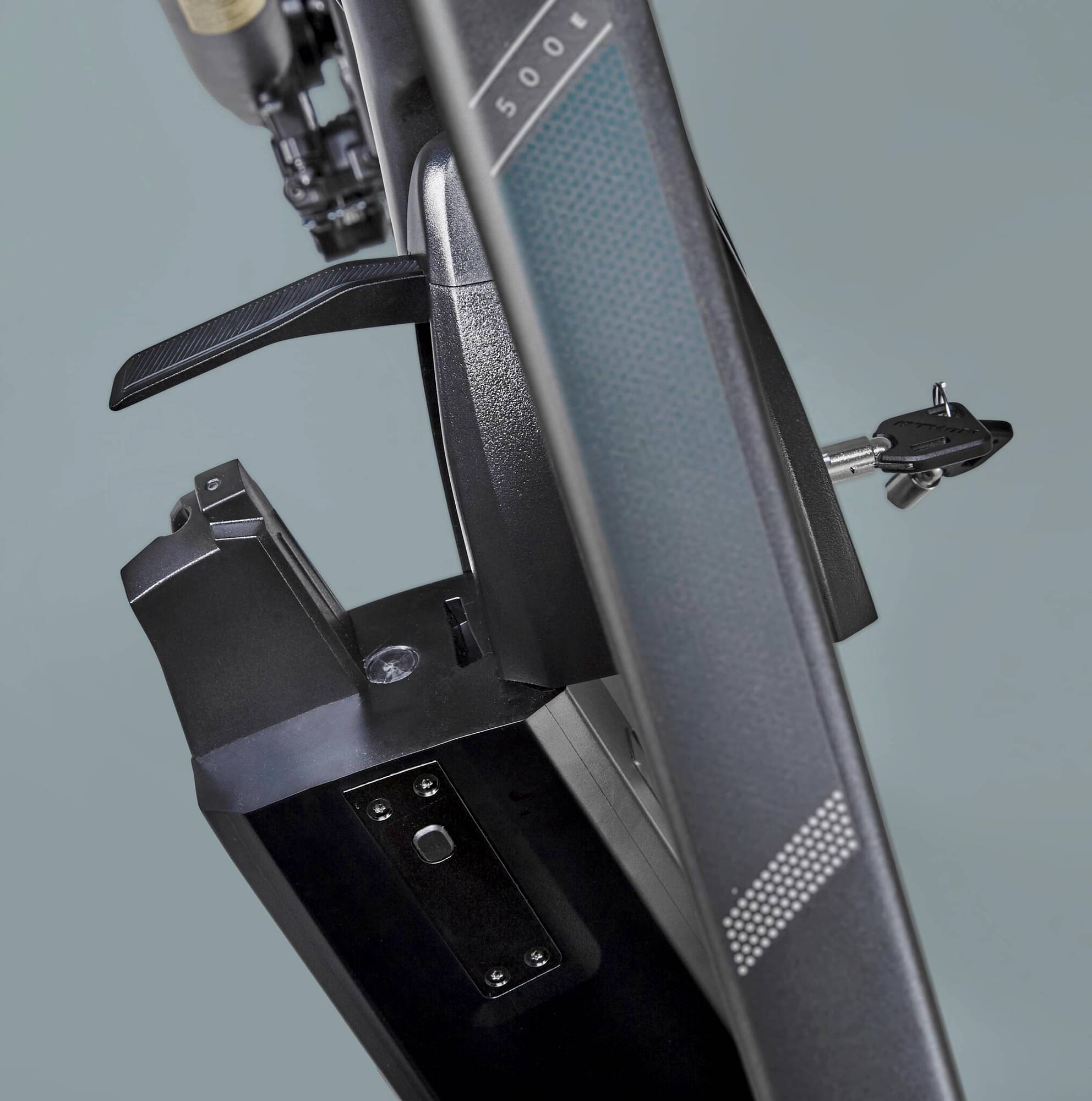

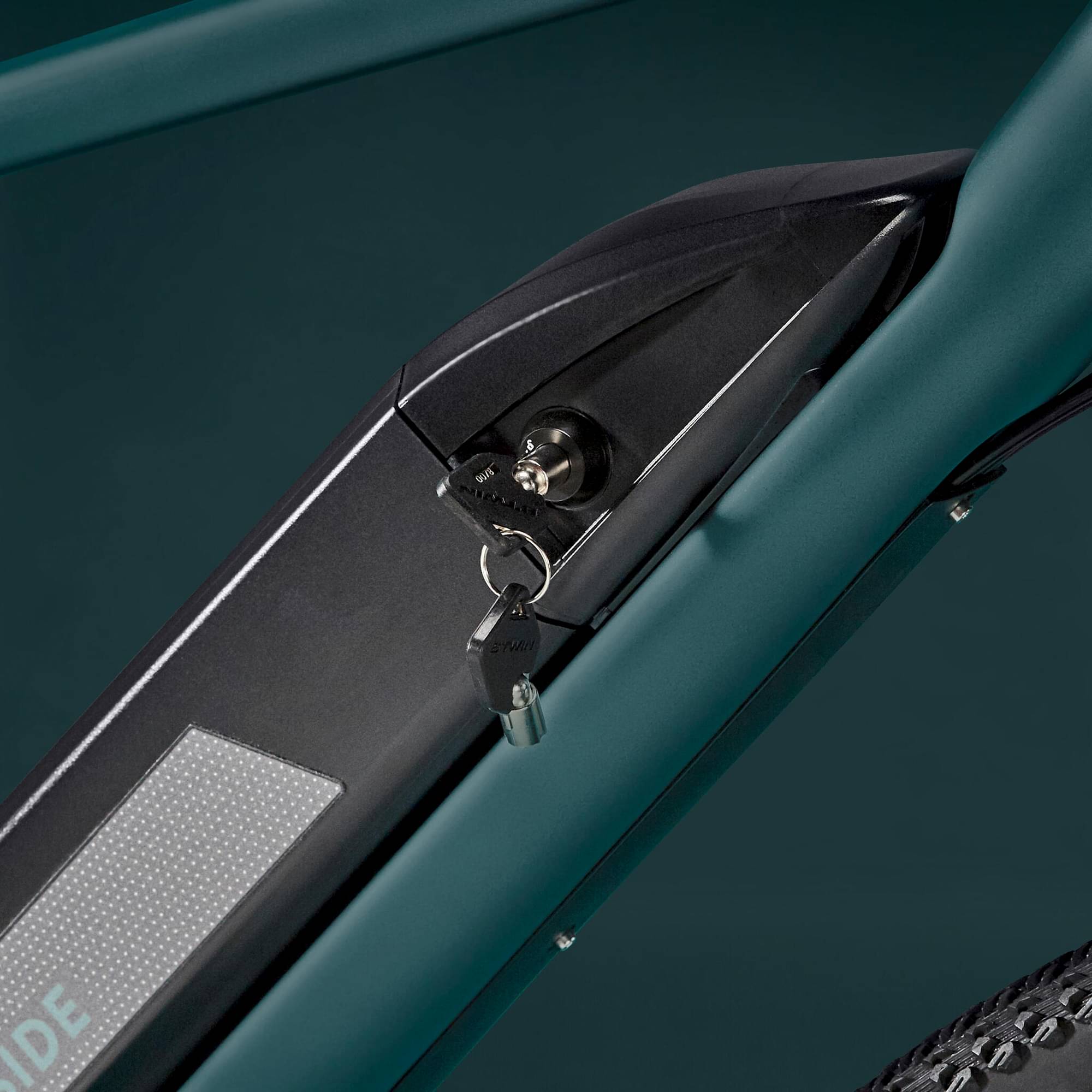

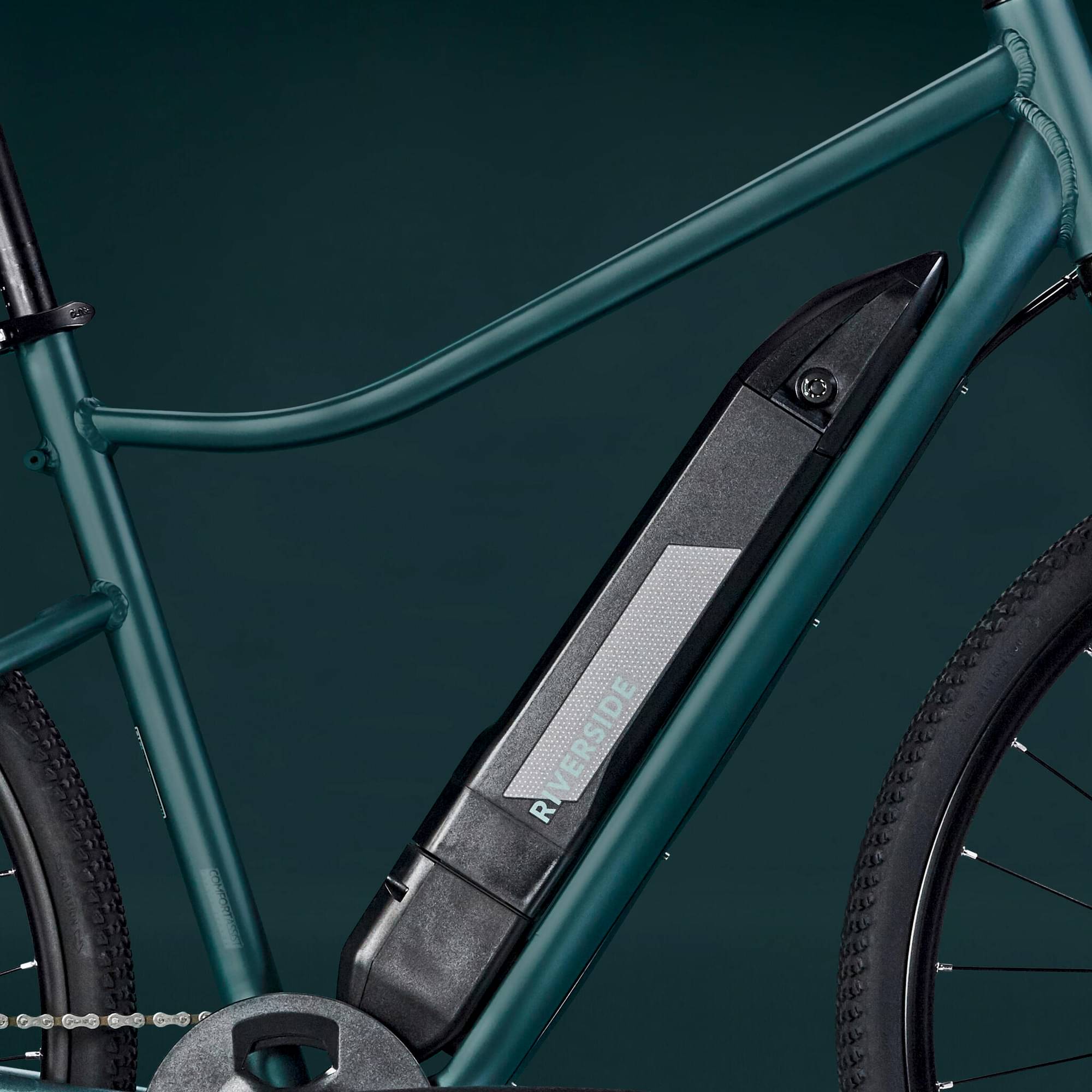

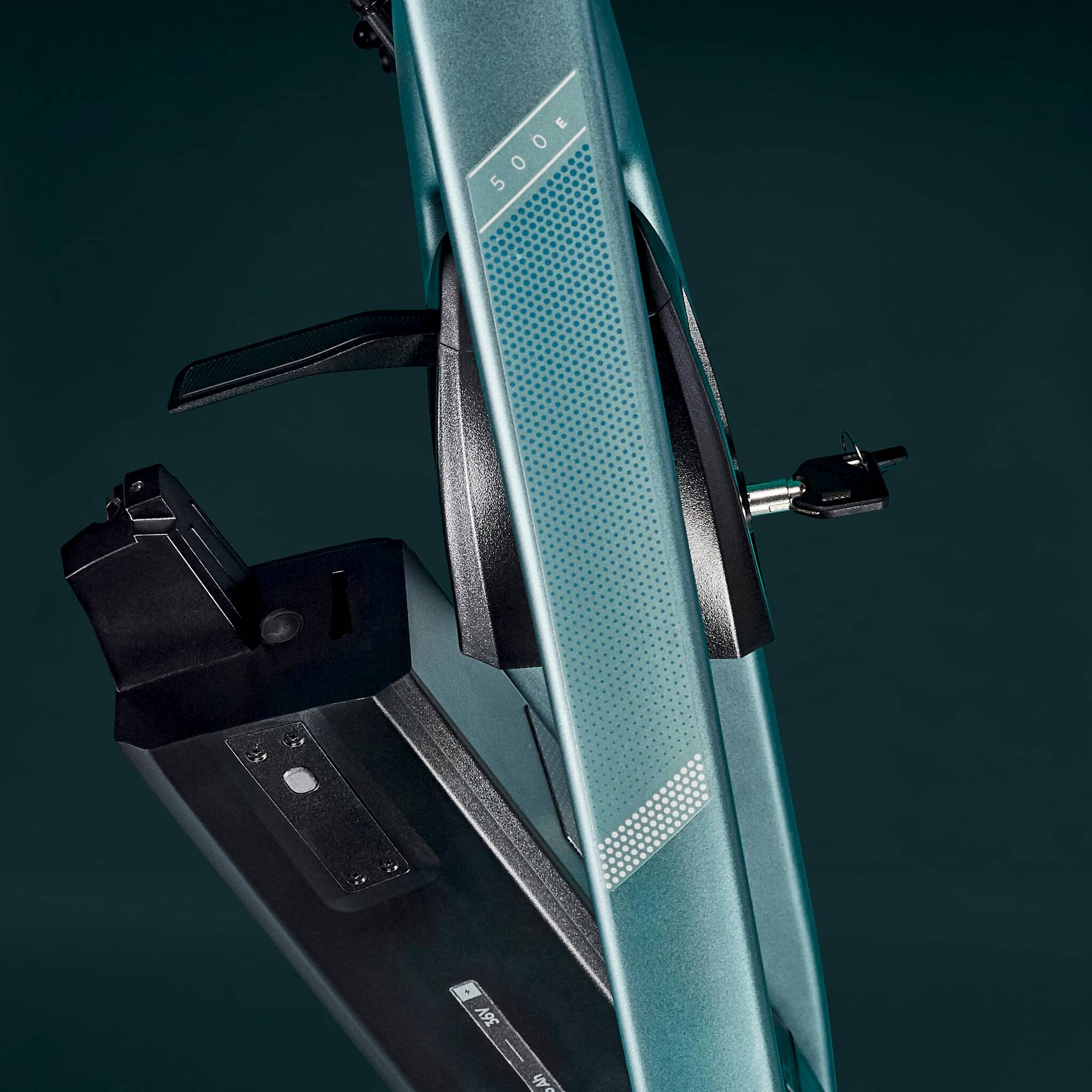

Lithium-ion 36V 11.6 Ah (418 WH) battery with locking system that prevents any vibrations to the battery as you ride. Supplied with two lock keys. Weight: 2.82 kg. We recommend recharging the battery after each use.
Fit data

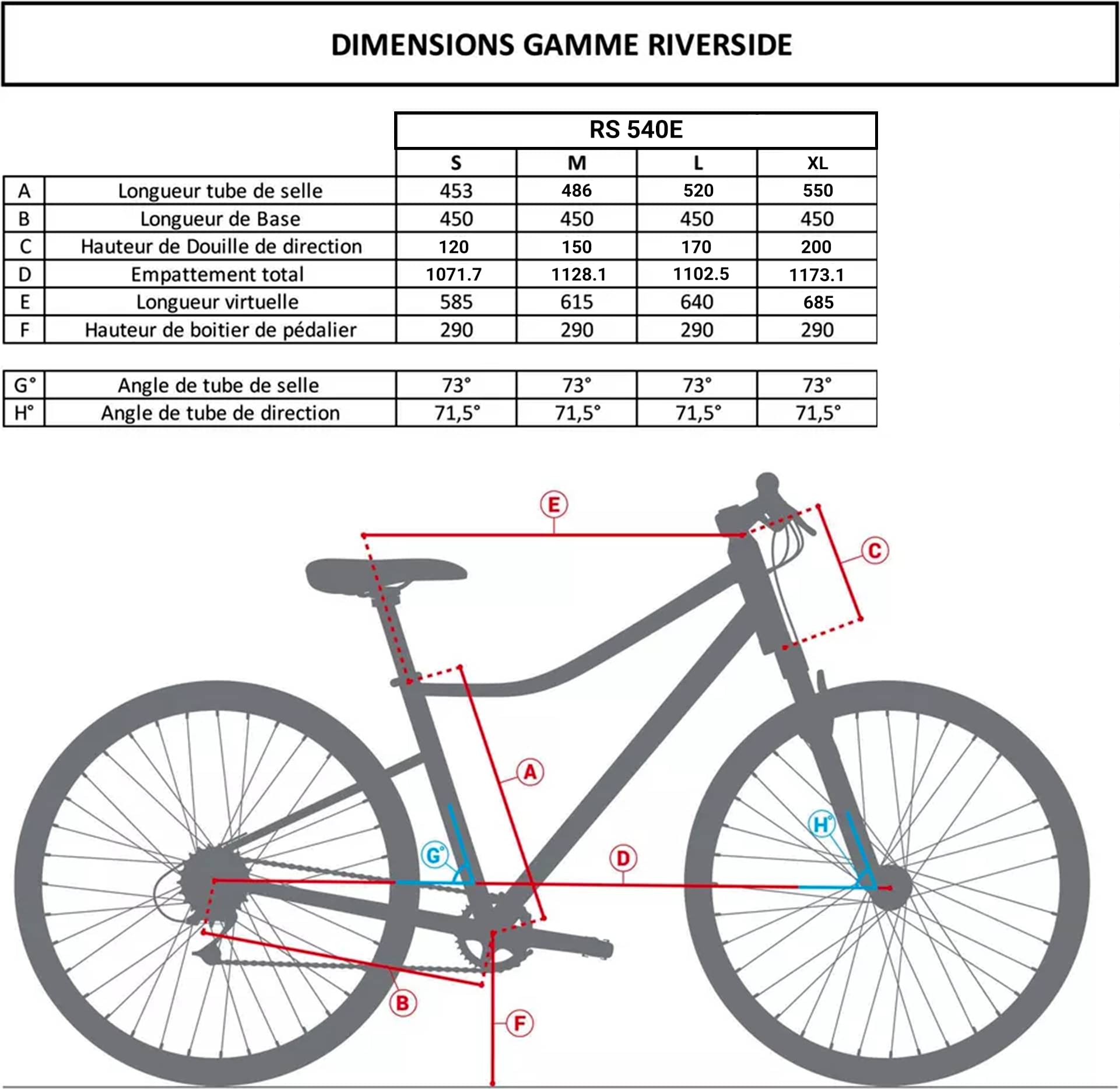

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
