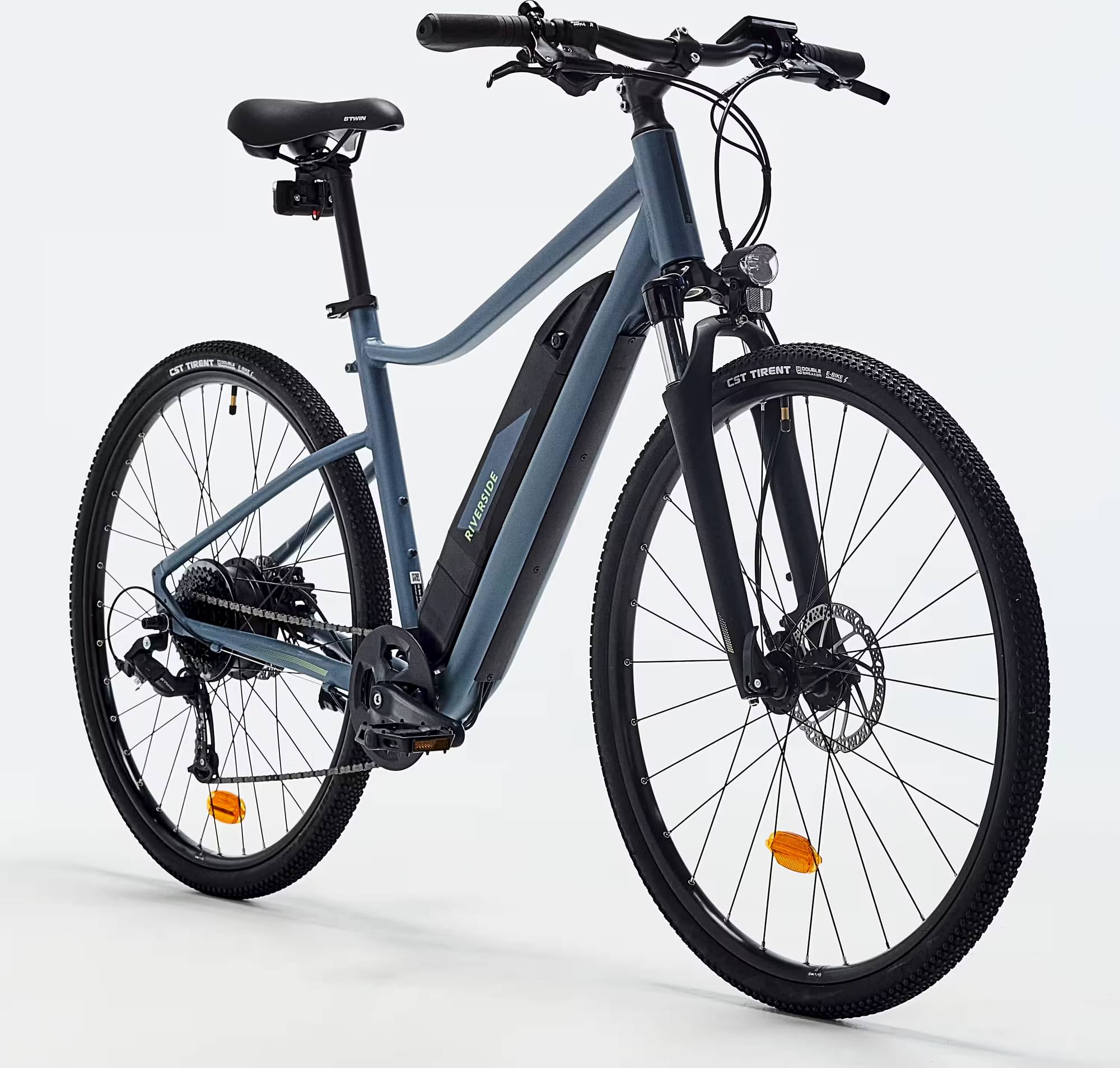

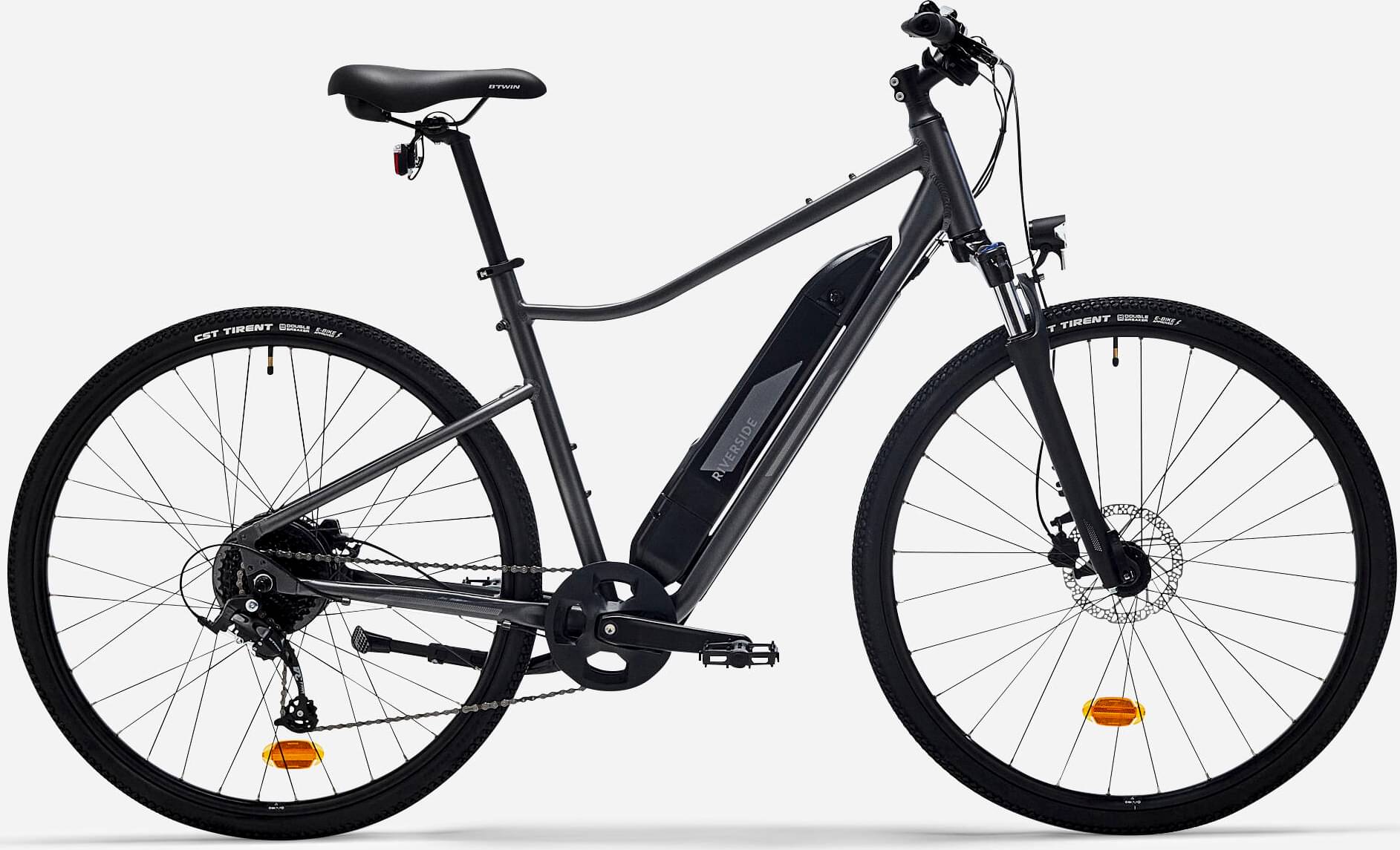

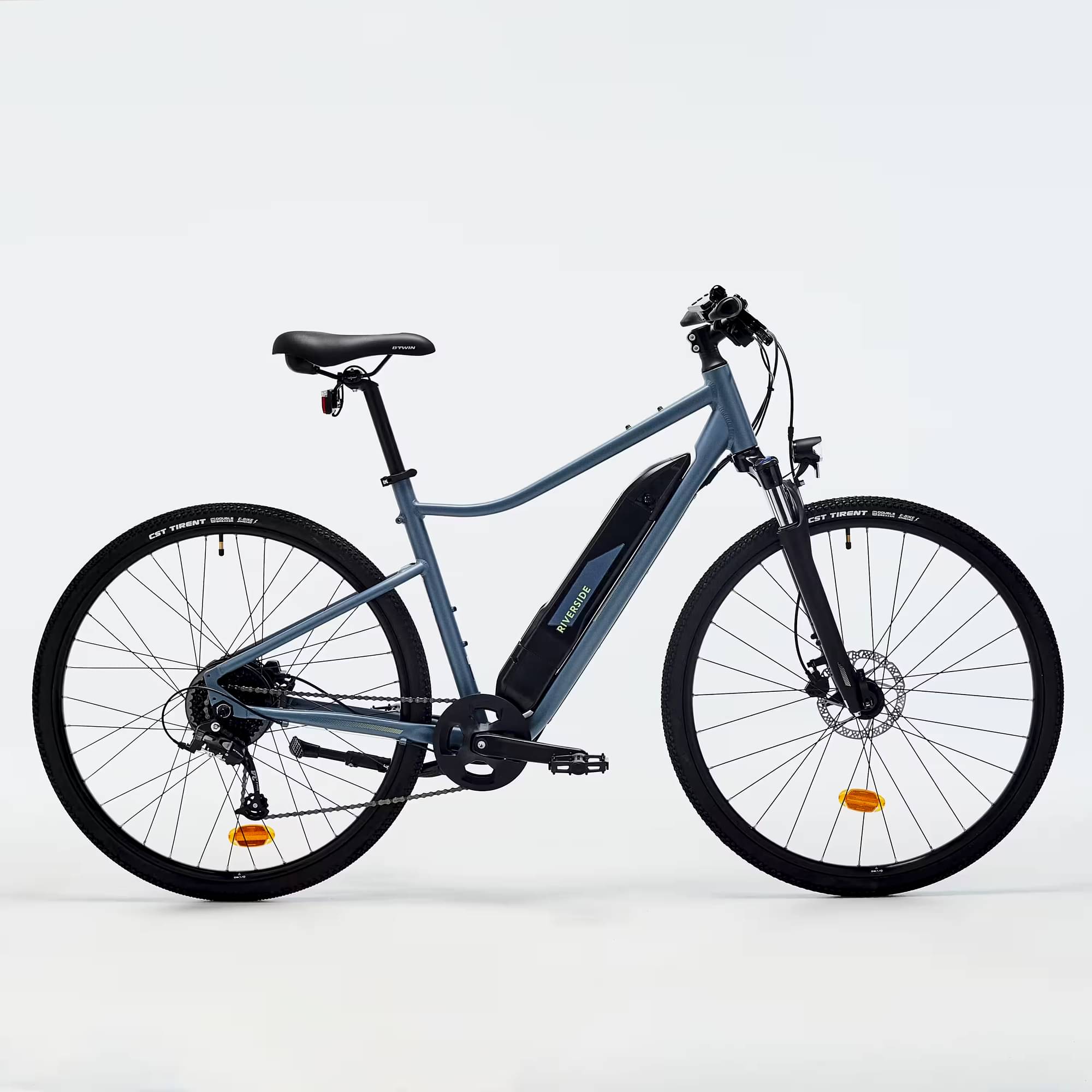

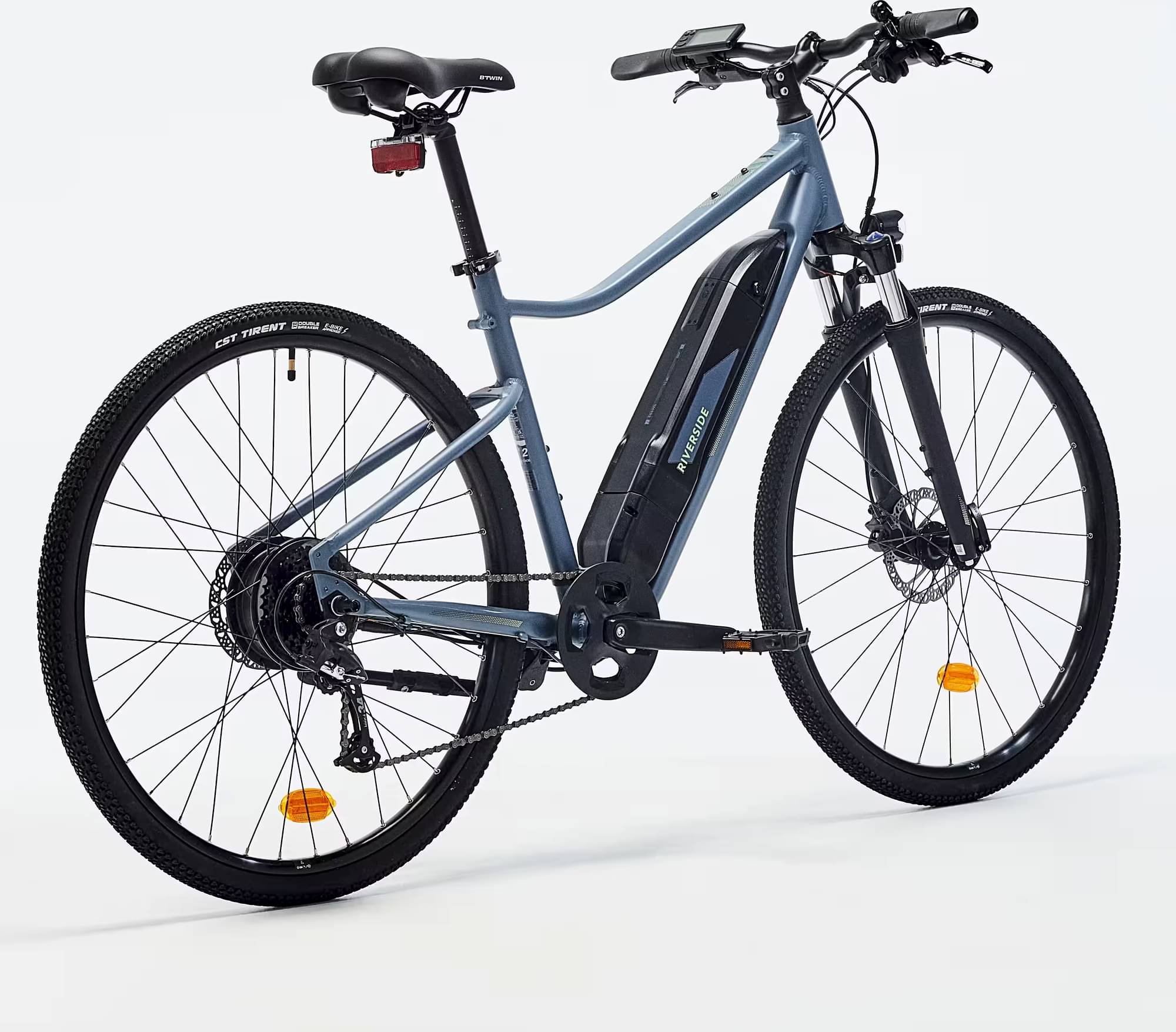

RIVERSIDE High Frame Electric Hybrid Bike 520 E 2024
2024 E-bike
Estimate price |
1,895$
Weight | 22 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Suspension Rigid -
Motor 250W 42Nm hub-drive -
Battery Batteries with 36 V 15 Ah (500 Wh) LG or Samsung lithium-ion cells and a locking system that prevents any vibrations to the battery as you ride. Supplied with two lock keys. Weight: 3.15 kg.2-year warranty, or 500 charging cycles to 100% Option to recharge on your bike or separately We recommend recharging the battery after each use. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

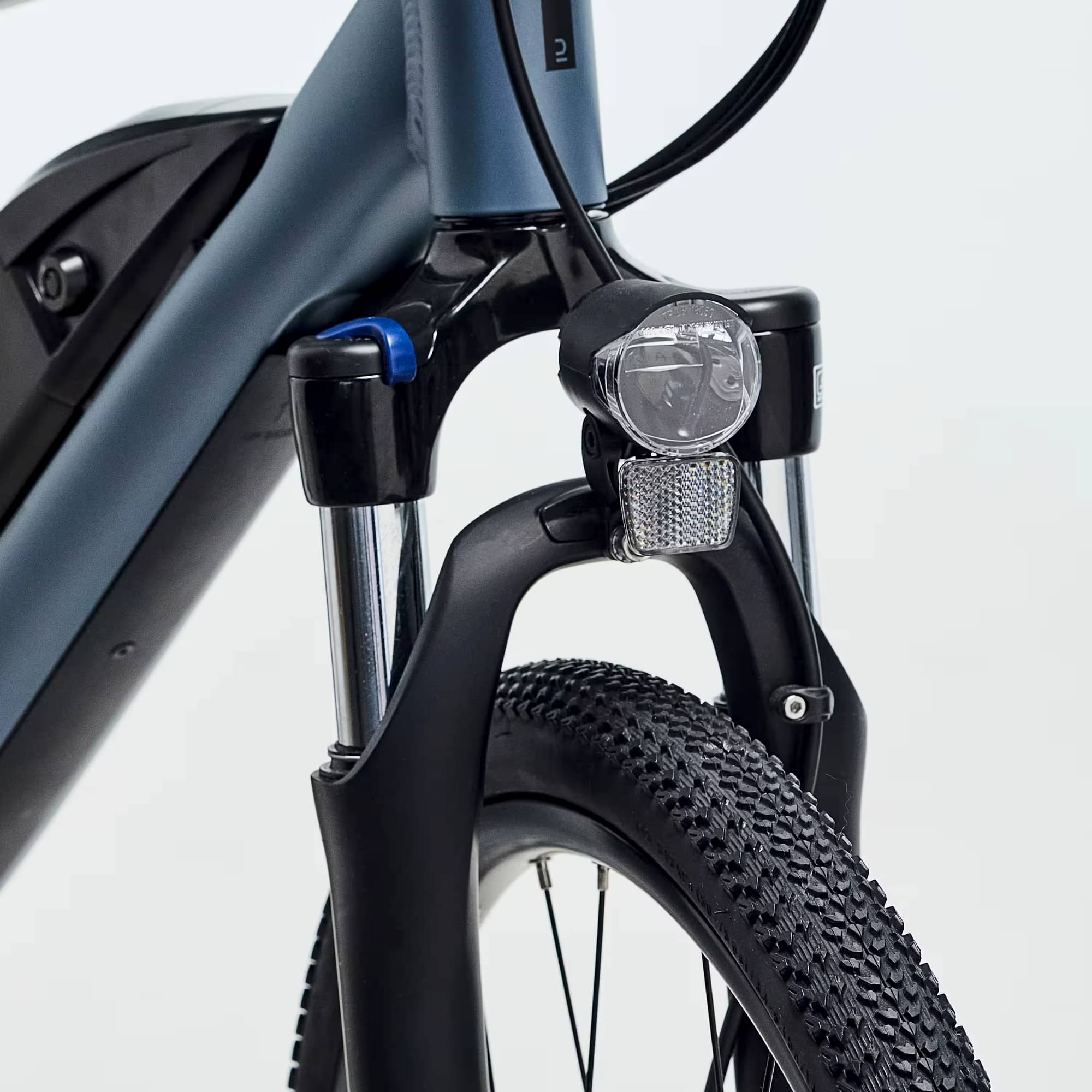

Suspension Fork
suspended fork
Drivetrain
Crank

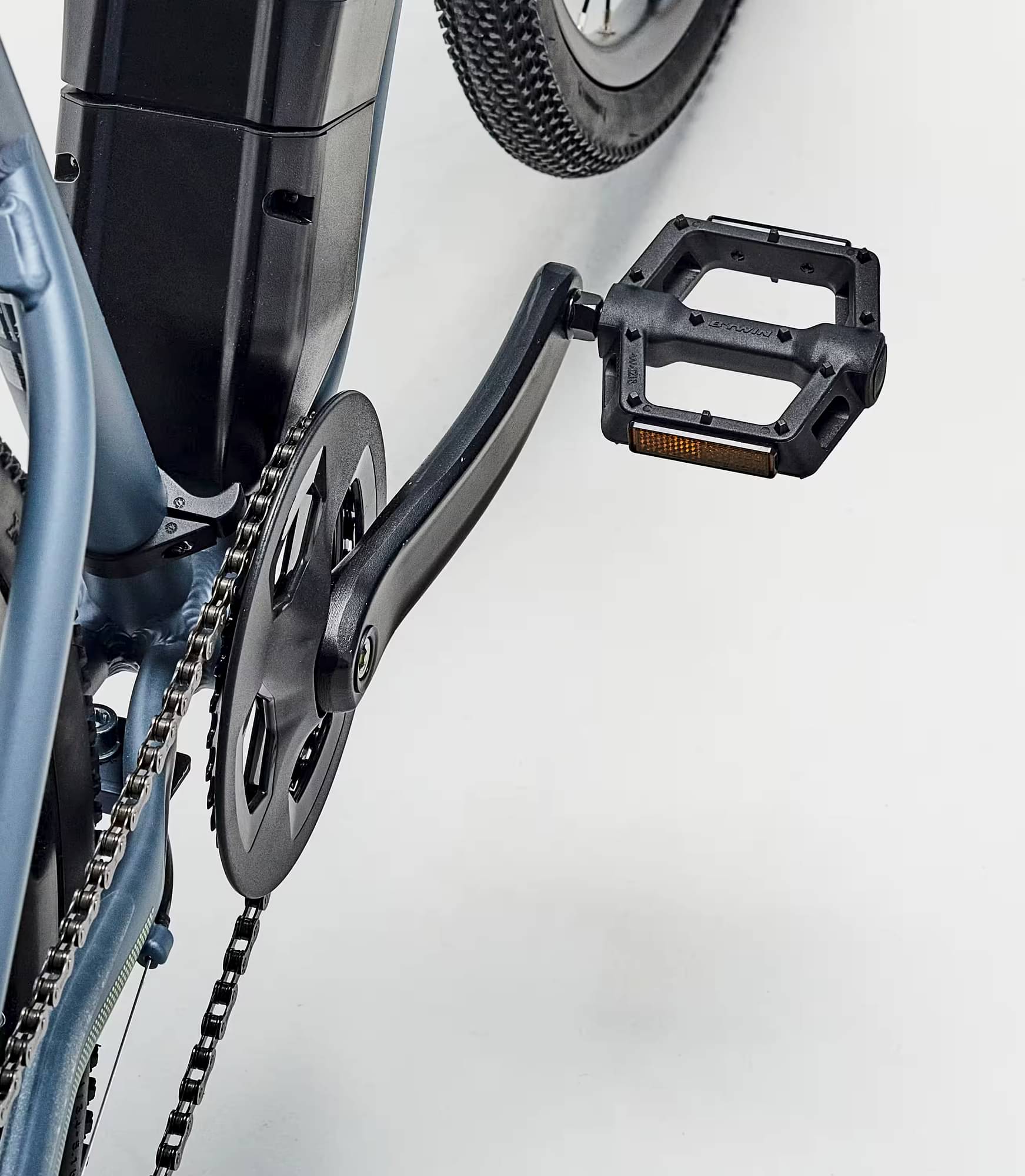

The Riverside 520 electric is supplied with versatile single-piece plastic pedals with a wide pedalling surface to help keep the foot on the pedal. 170mm-long aluminium cranks.36-teeth aluminium chainring. Plastic bottom bracket chainguard.
Chain Guide
partial chain guard
Wheels
Rims
aluminium
Tires

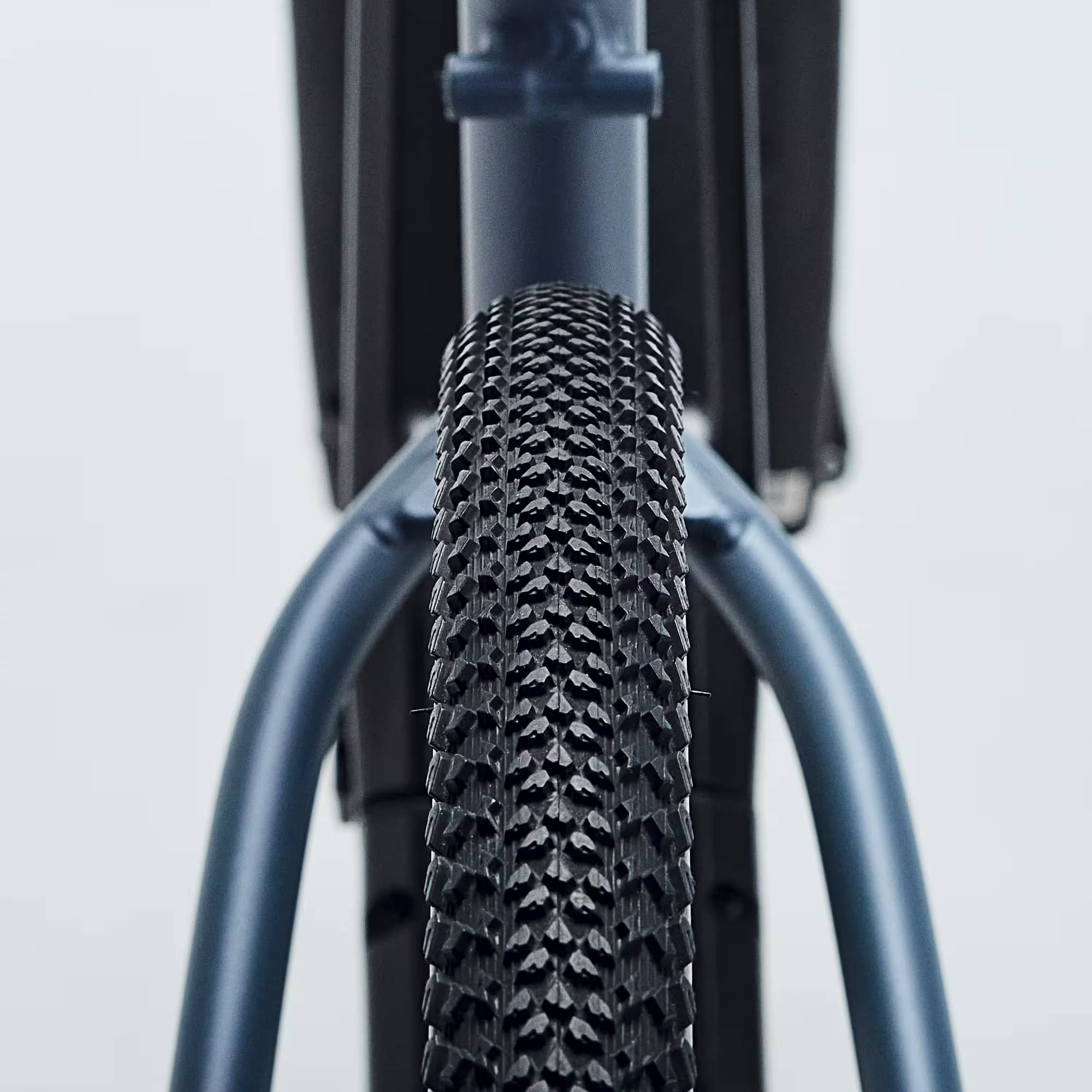

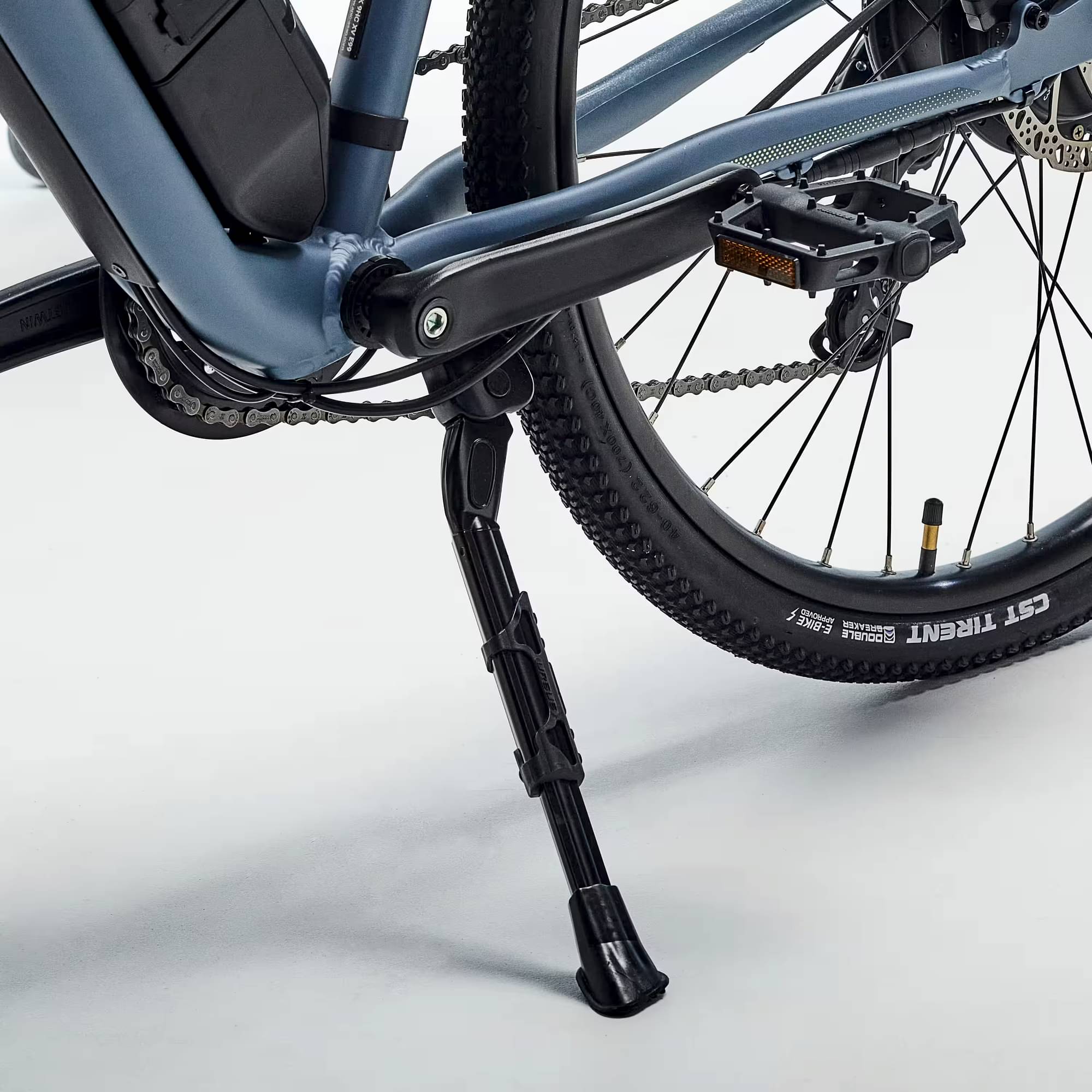

Comfortable, versatile, reinforced tyres from the brand CST Tirent so you can go anywhere. Puncture protection. The recommended pressure is between 4 and 5 bars (details on tyre sidewall). Dimensions: 700 x 40 (40-622).
Brakes
Brakes

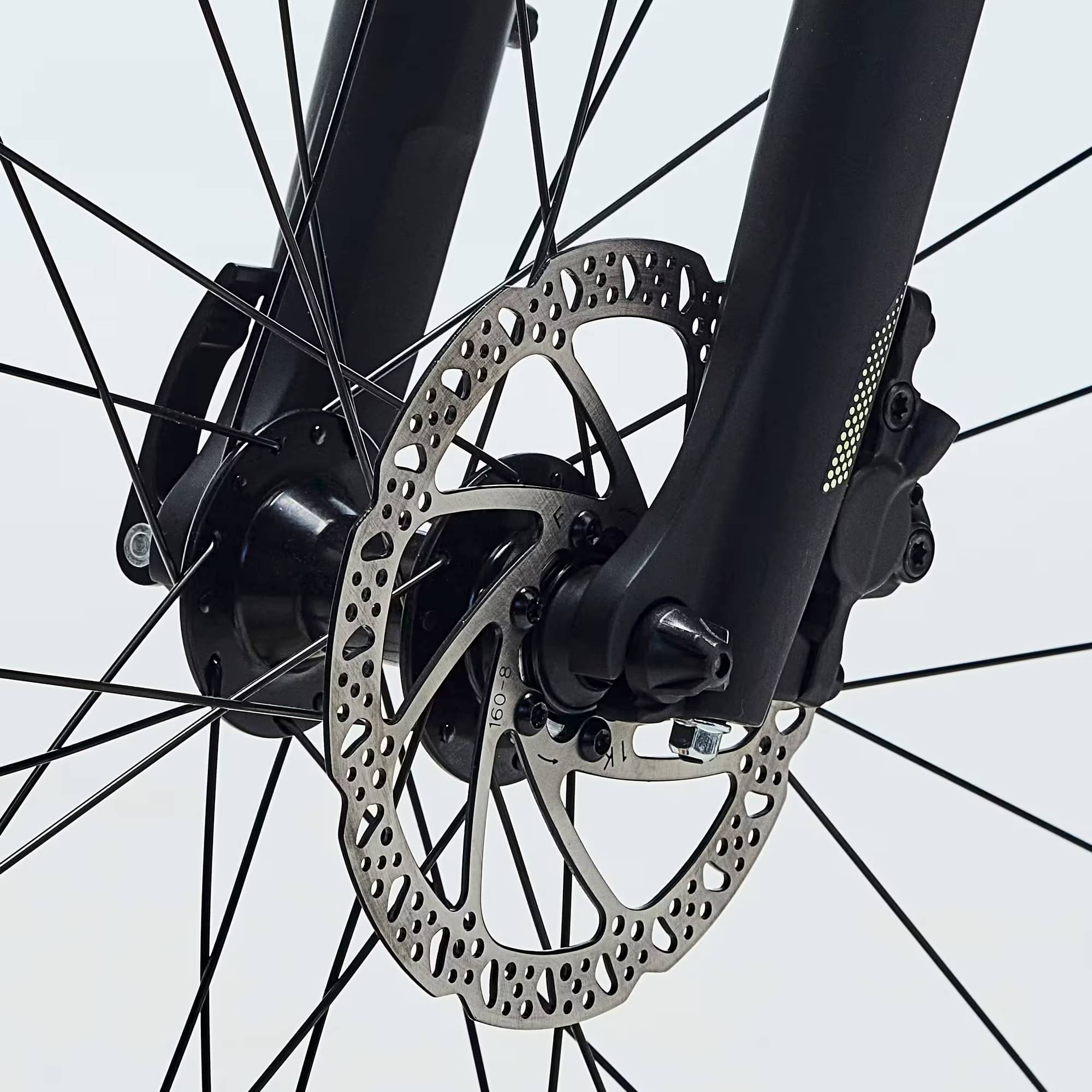

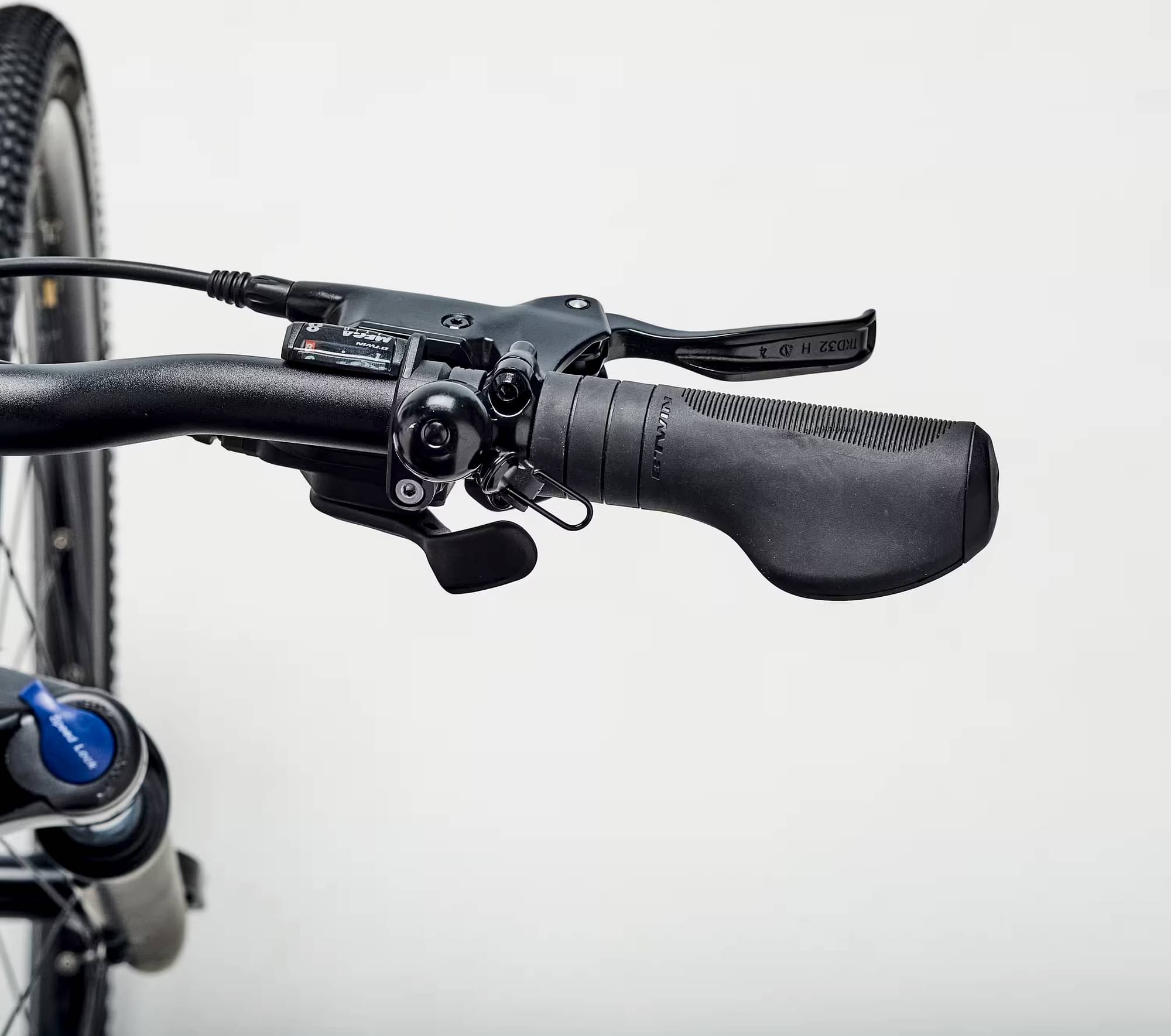

hydraulic disc brakes
Seat
Saddle

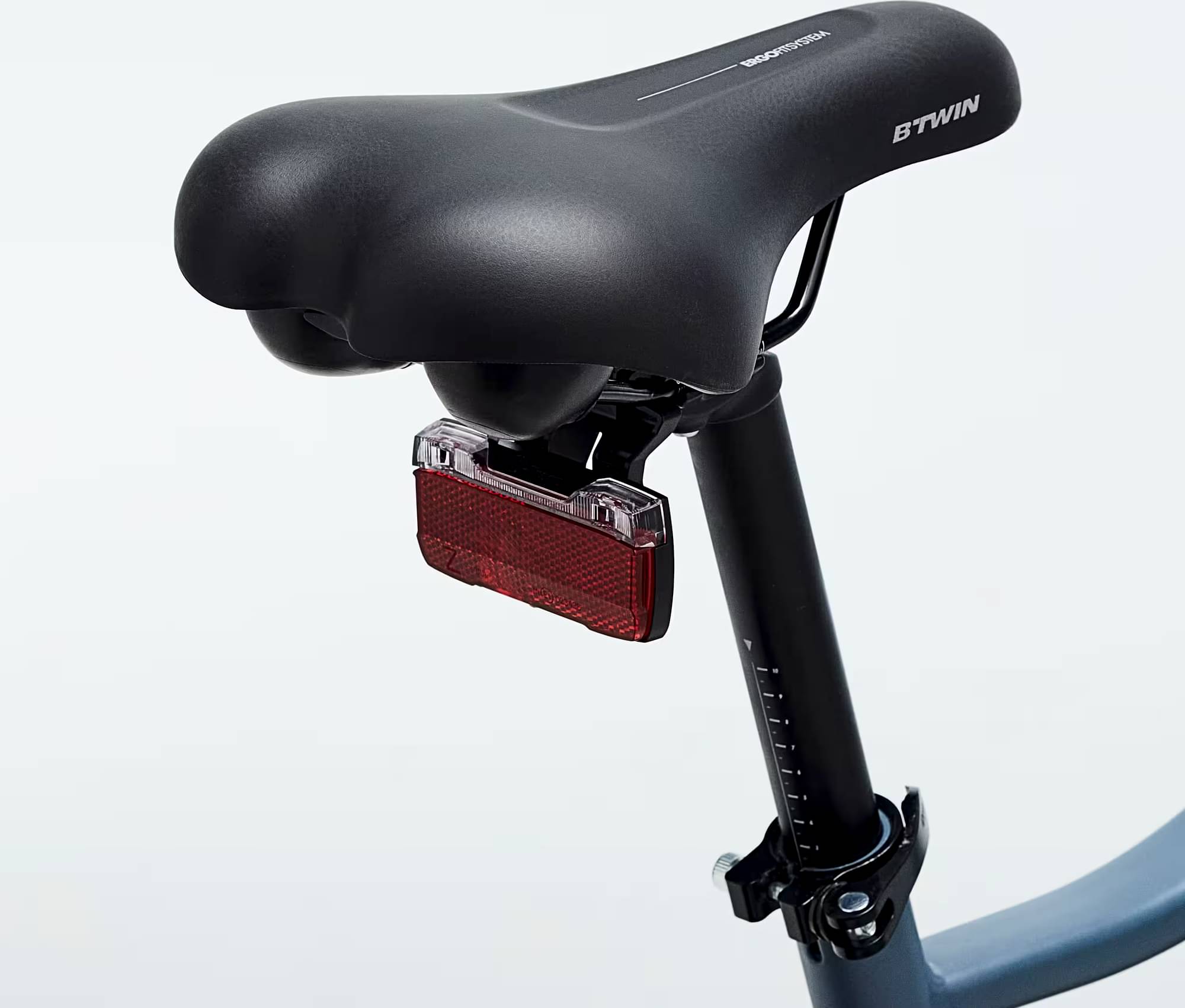

Because it's important that your seat position is adapted to your riding style, our teams developed the exclusive B'Twin Ergofit Trekking 500 saddle. Aluminium seat post with graduated markings for easier adjustment. Collar dimensions = 35 mm. Seat post diameter = 28.6 mm. Tool-free saddle height adjustment (quick-release).
Motor & Battery
Motor

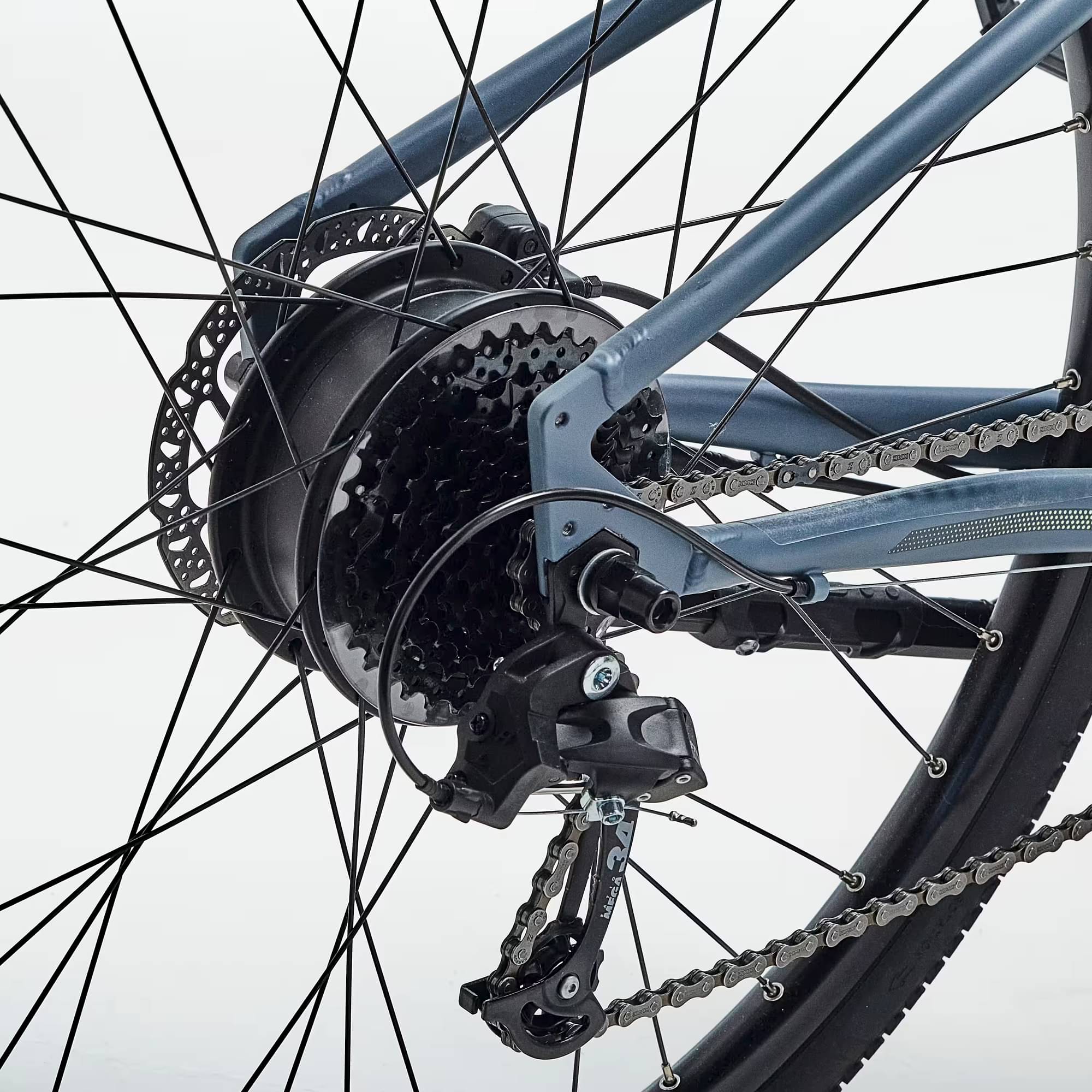

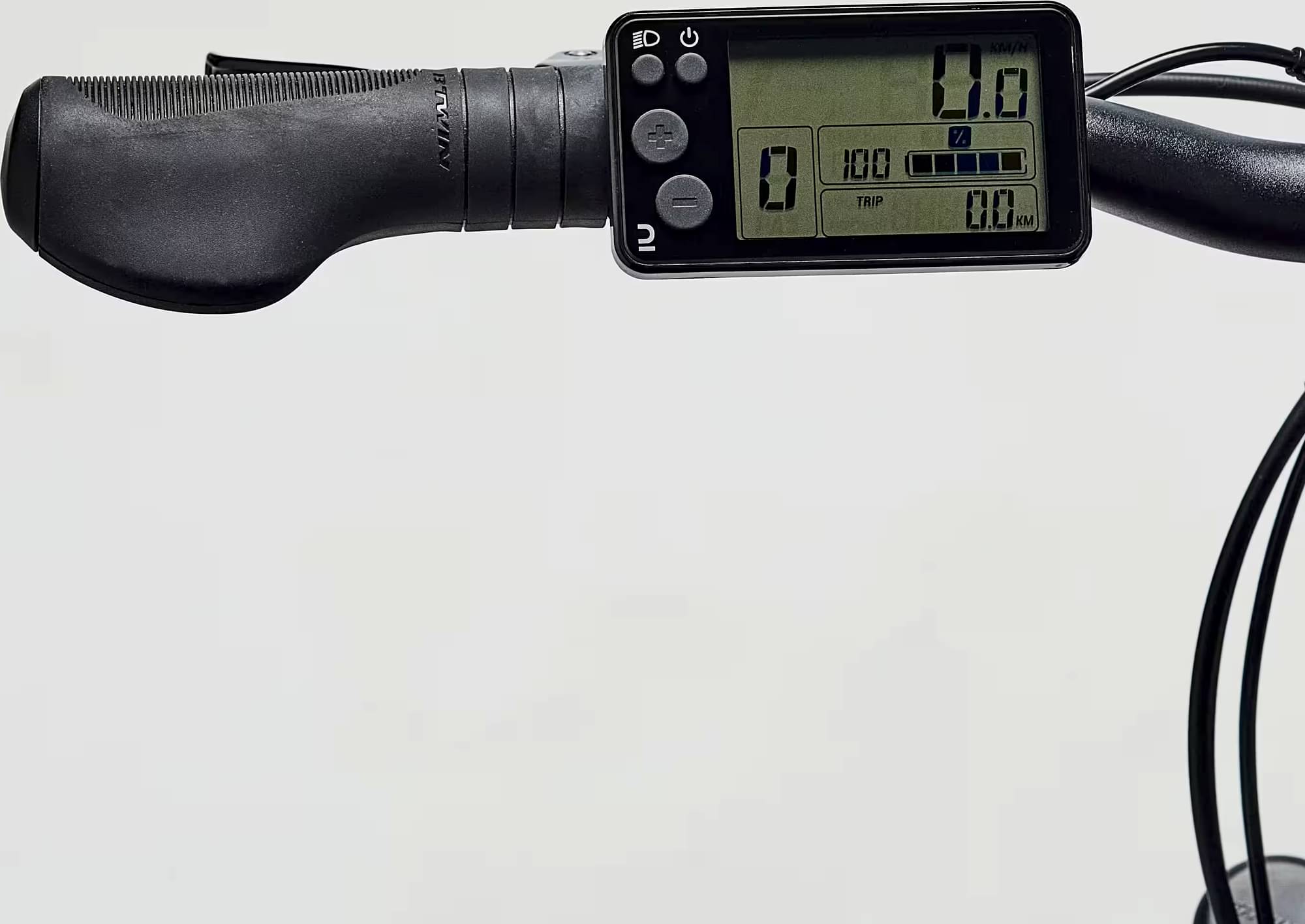

The 36-volt brushless rear wheel motor has 250 Watts of power for a maximum torque of 42 Nm. For example: In mode 1, the motor increases your power by +90%, so if you pedal 100 W, the motor adds 90 W. In mode 2, the motor increases your power by +150%, so if you pedal 100 W, the motor adds 150 W. In mode 3, the motor increases your power by +220%, so if you pedal 100 W, the motor adds 220 W.
Battery

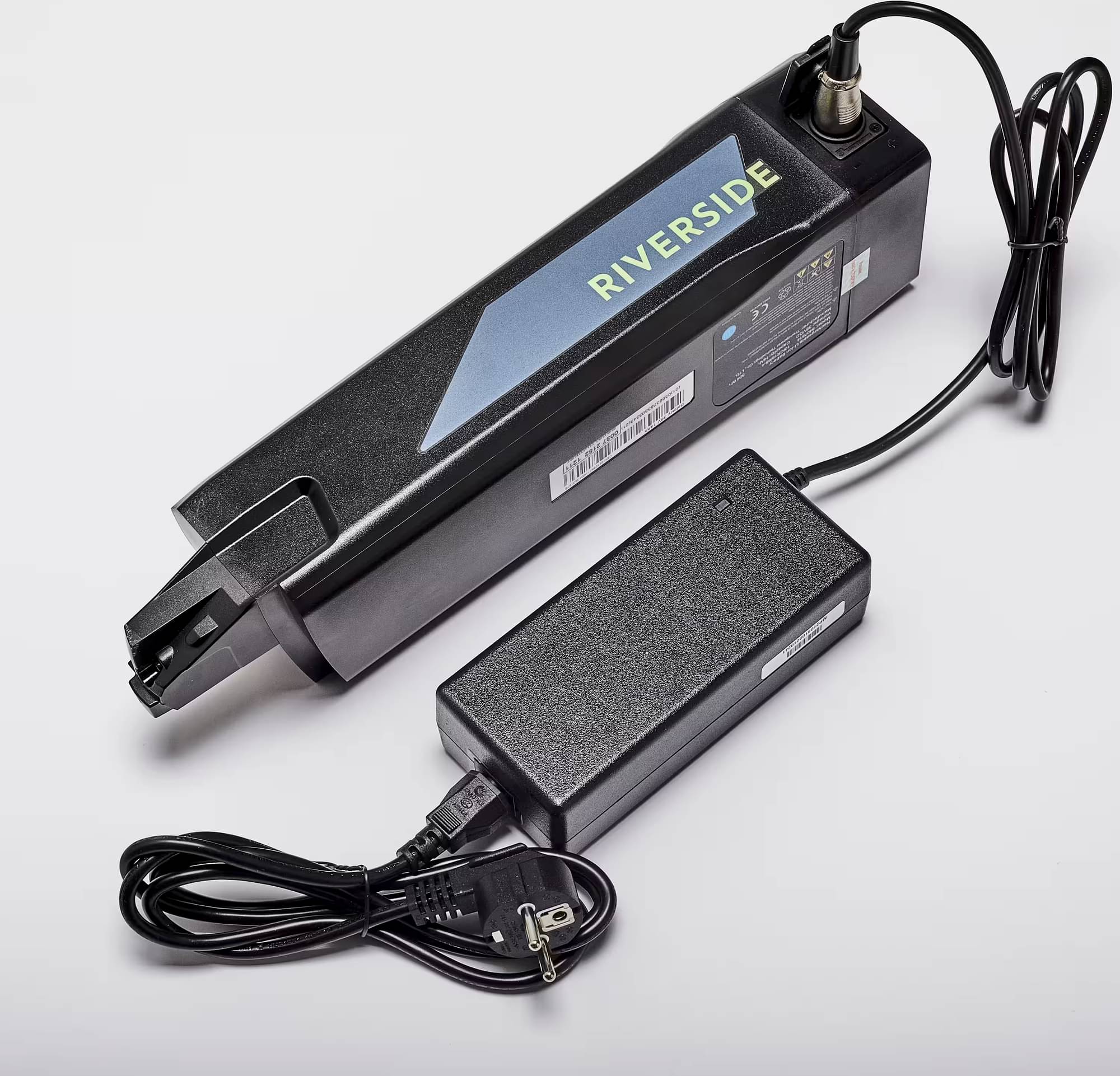

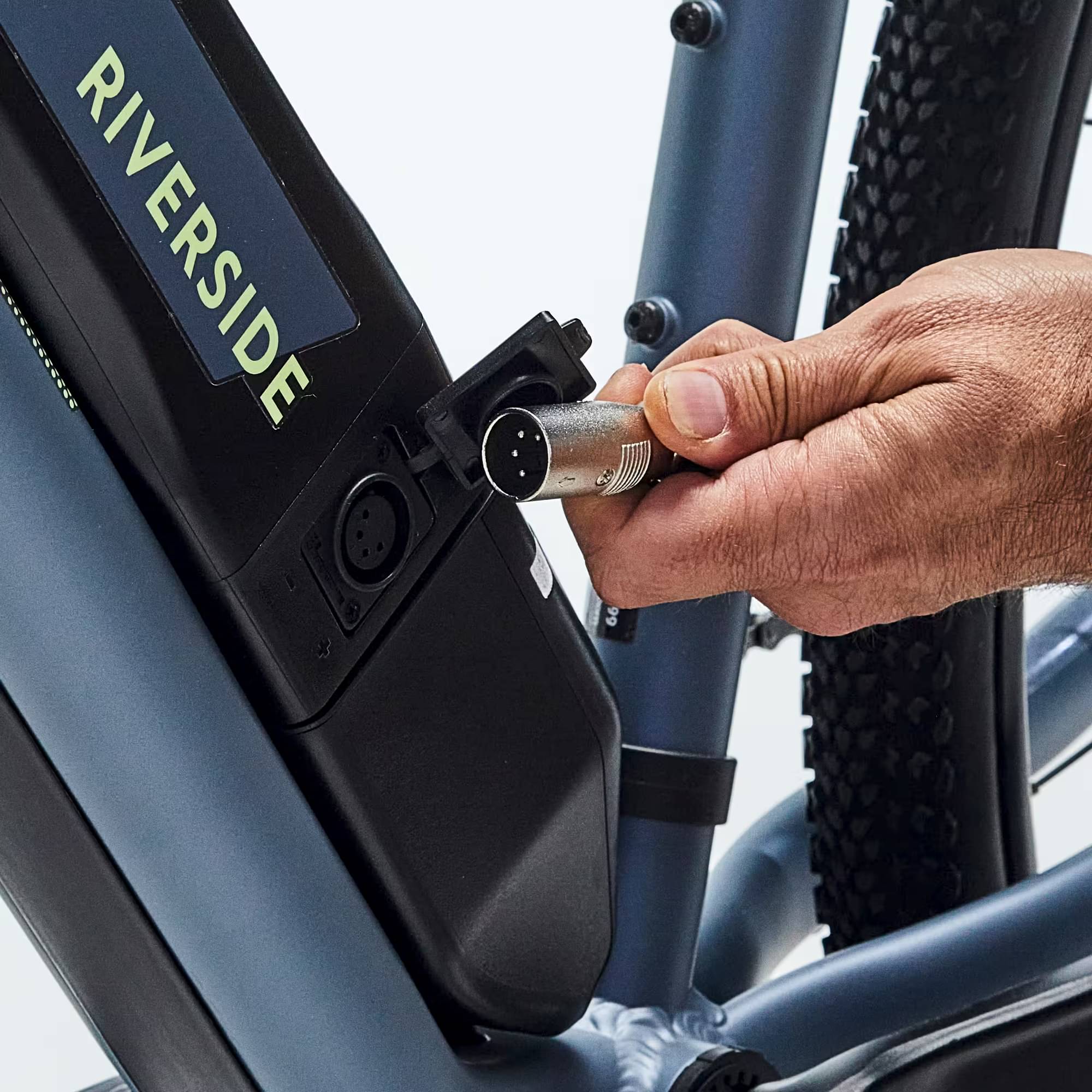

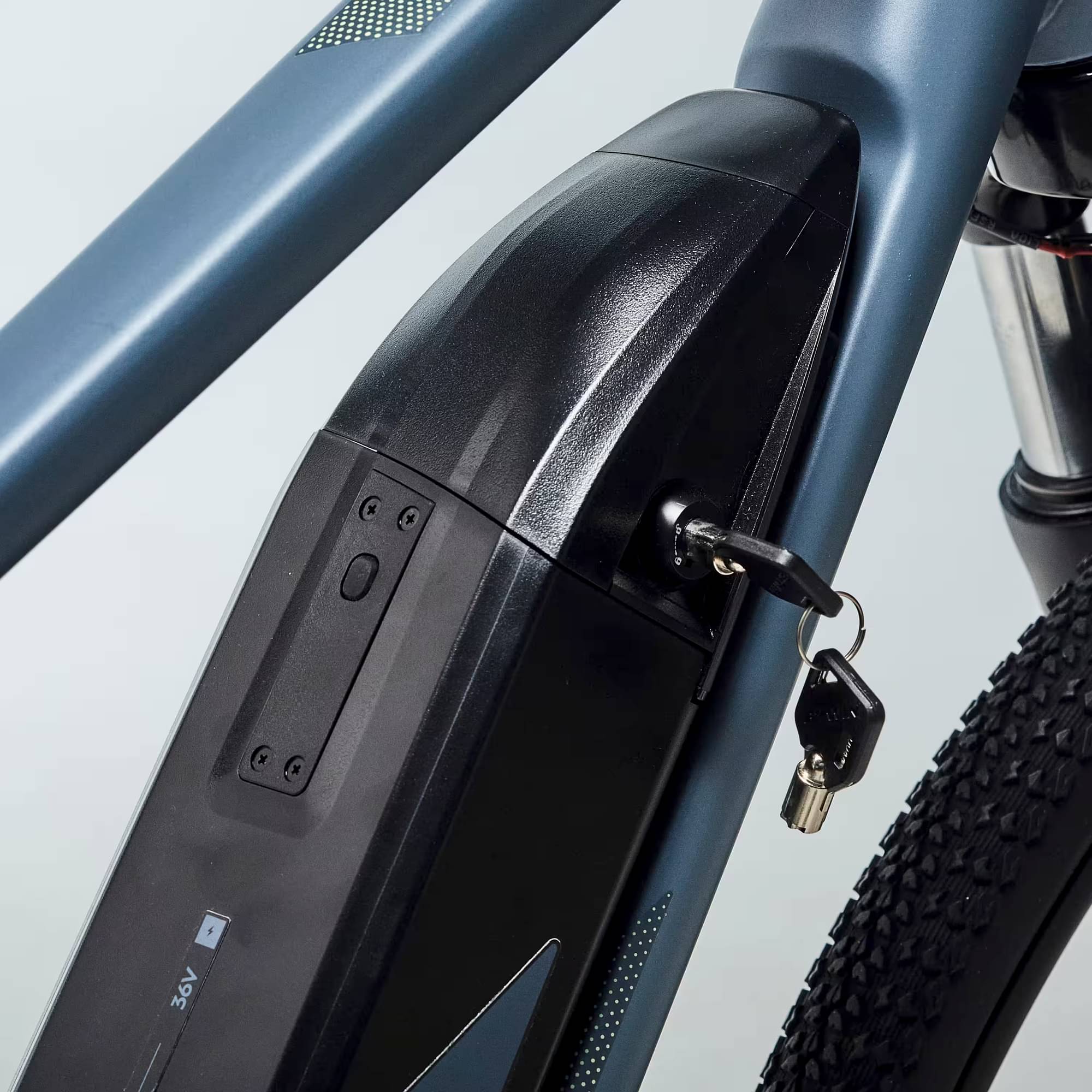

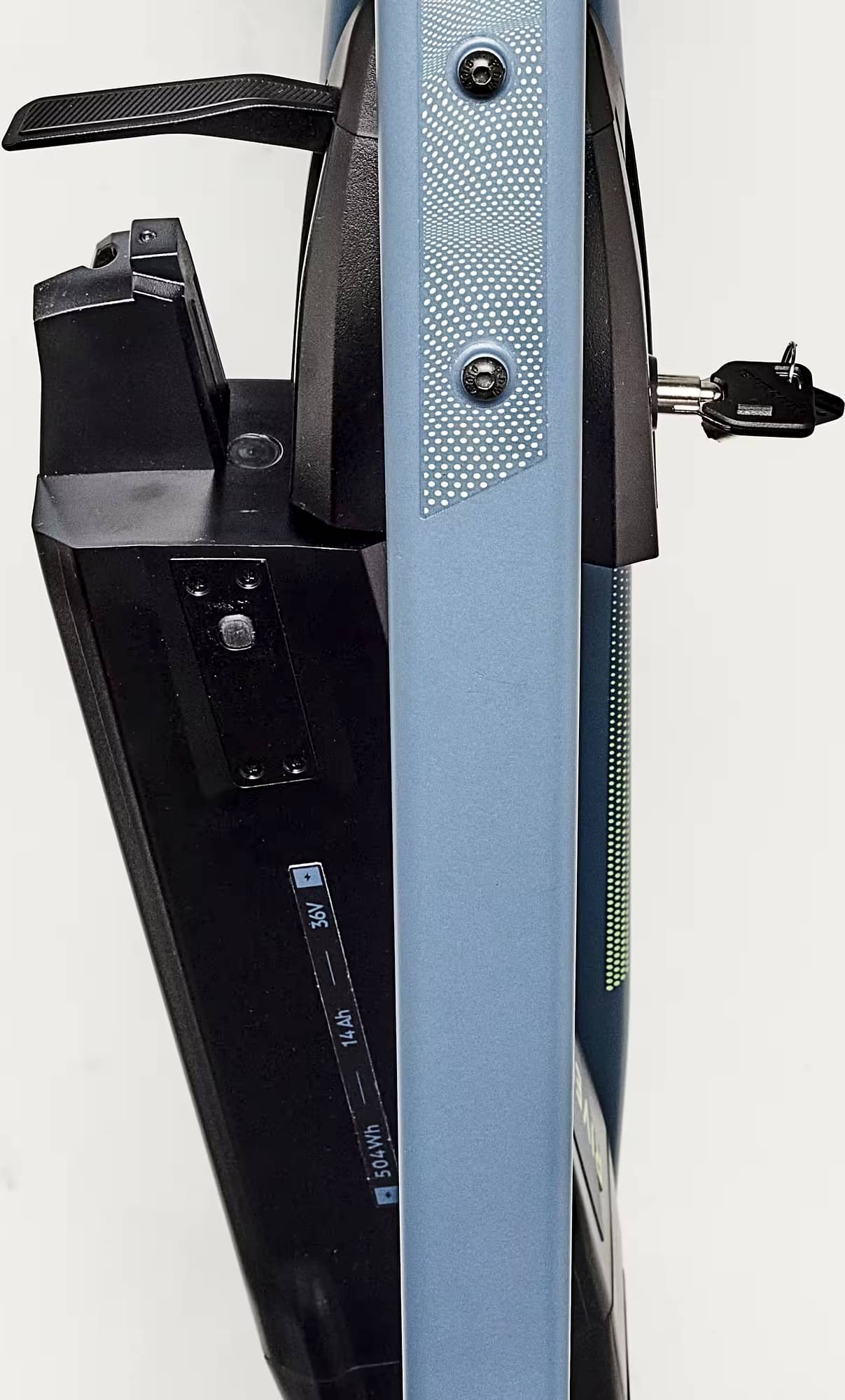

Batteries with 36 V 15 Ah (500 Wh) LG or Samsung lithium-ion cells and a locking system that prevents any vibrations to the battery as you ride. Supplied with two lock keys. Weight: 3.15 kg.2-year warranty, or 500 charging cycles to 100% Option to recharge on your bike or separately We recommend recharging the battery after each use.
Charger
cable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
