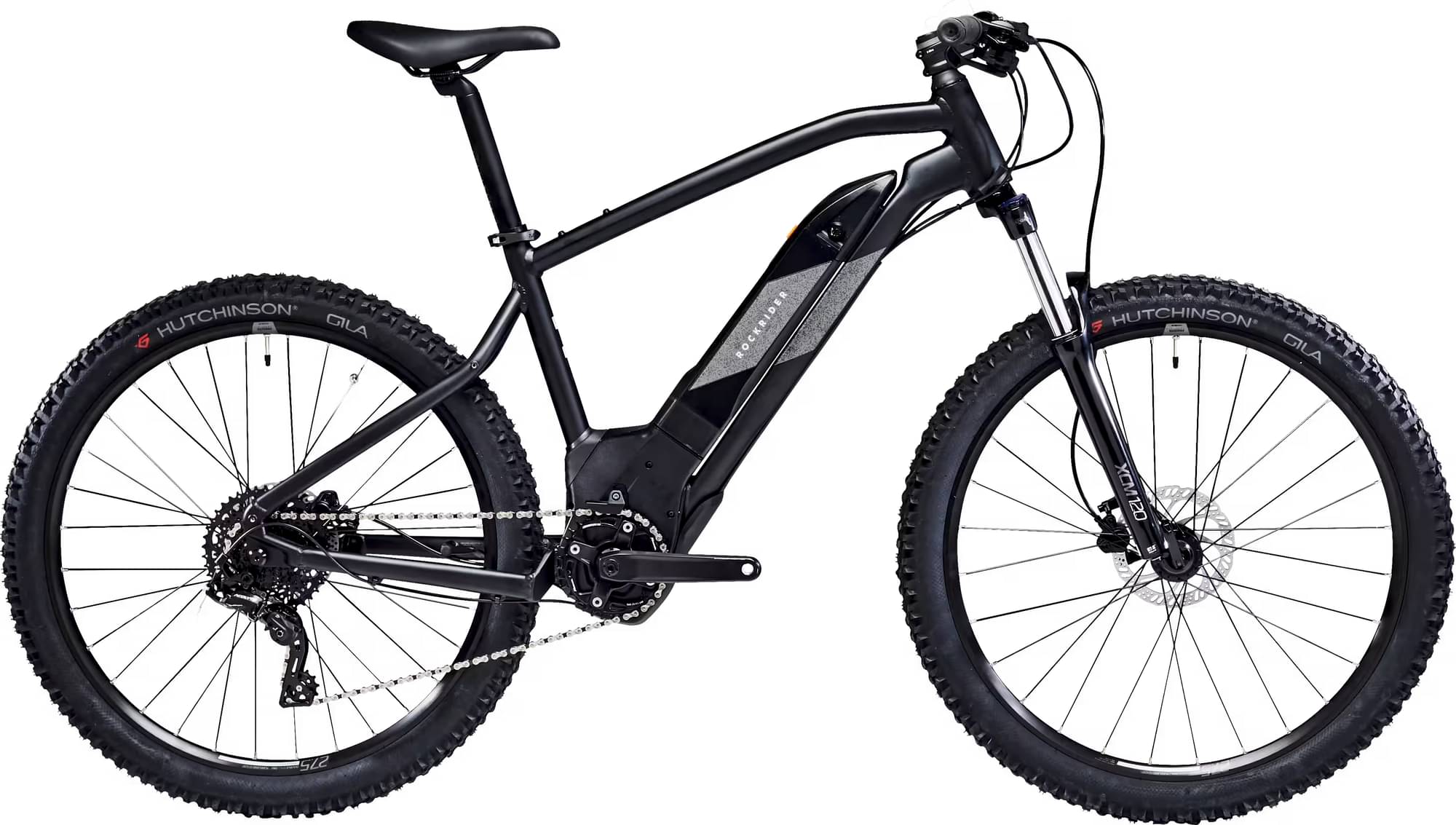

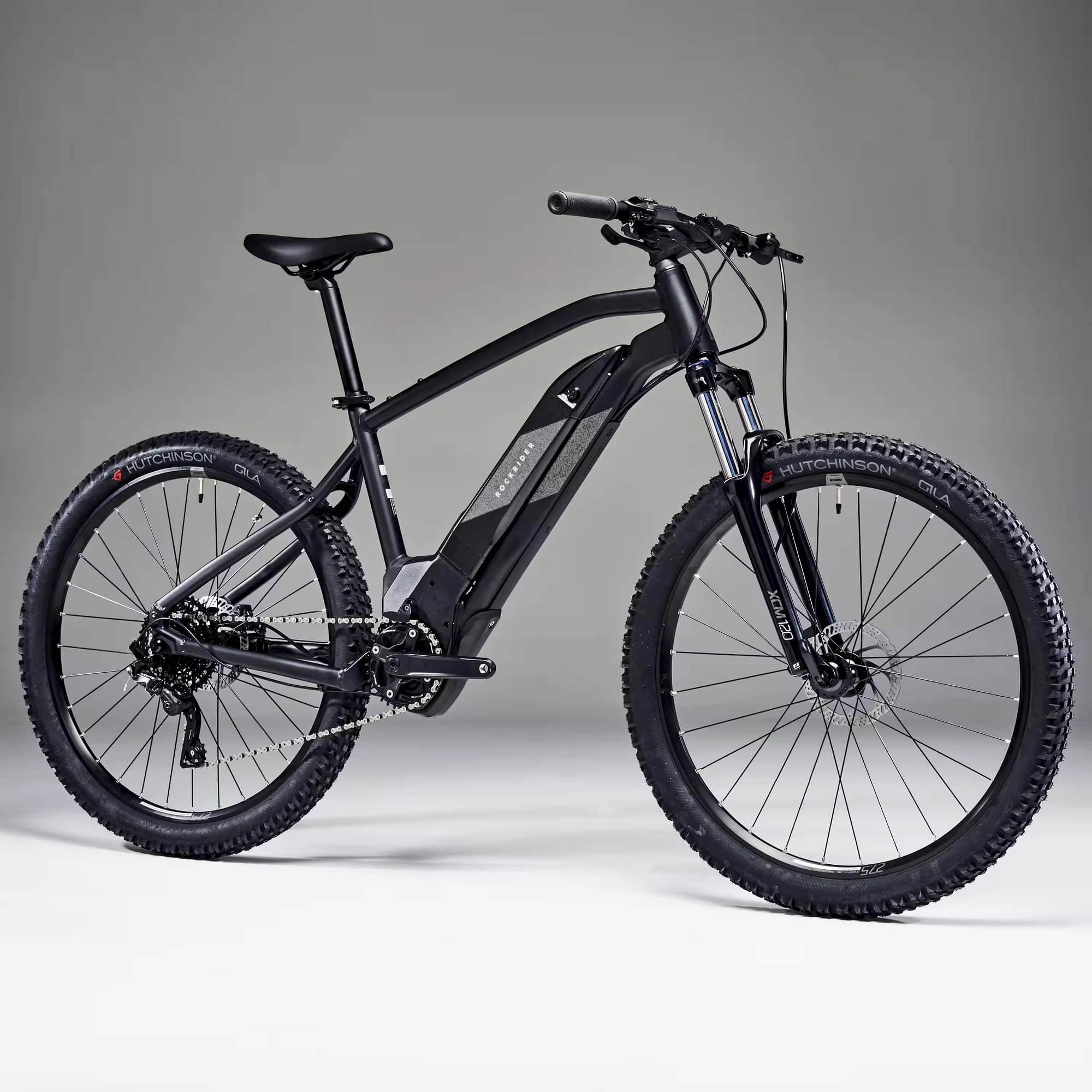

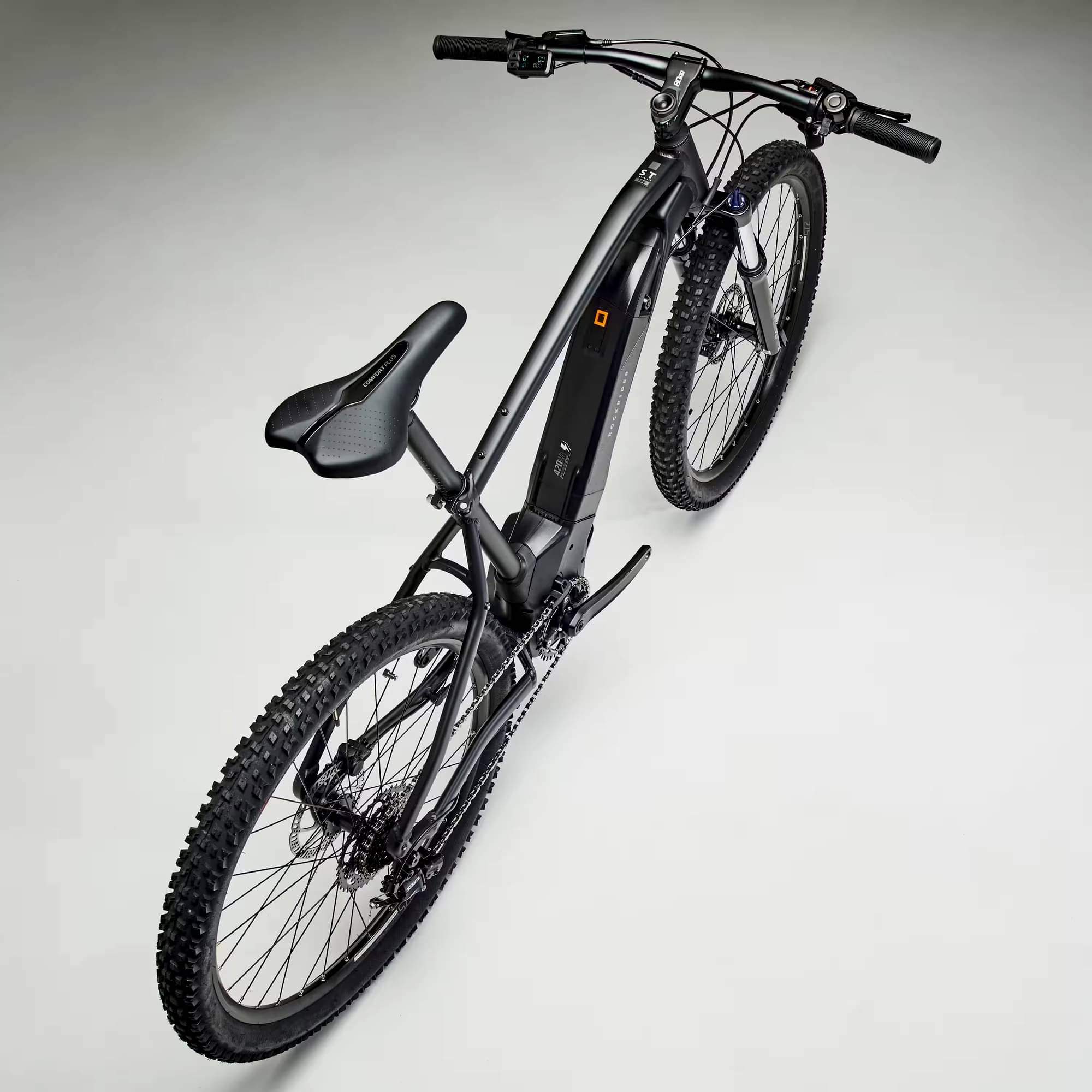

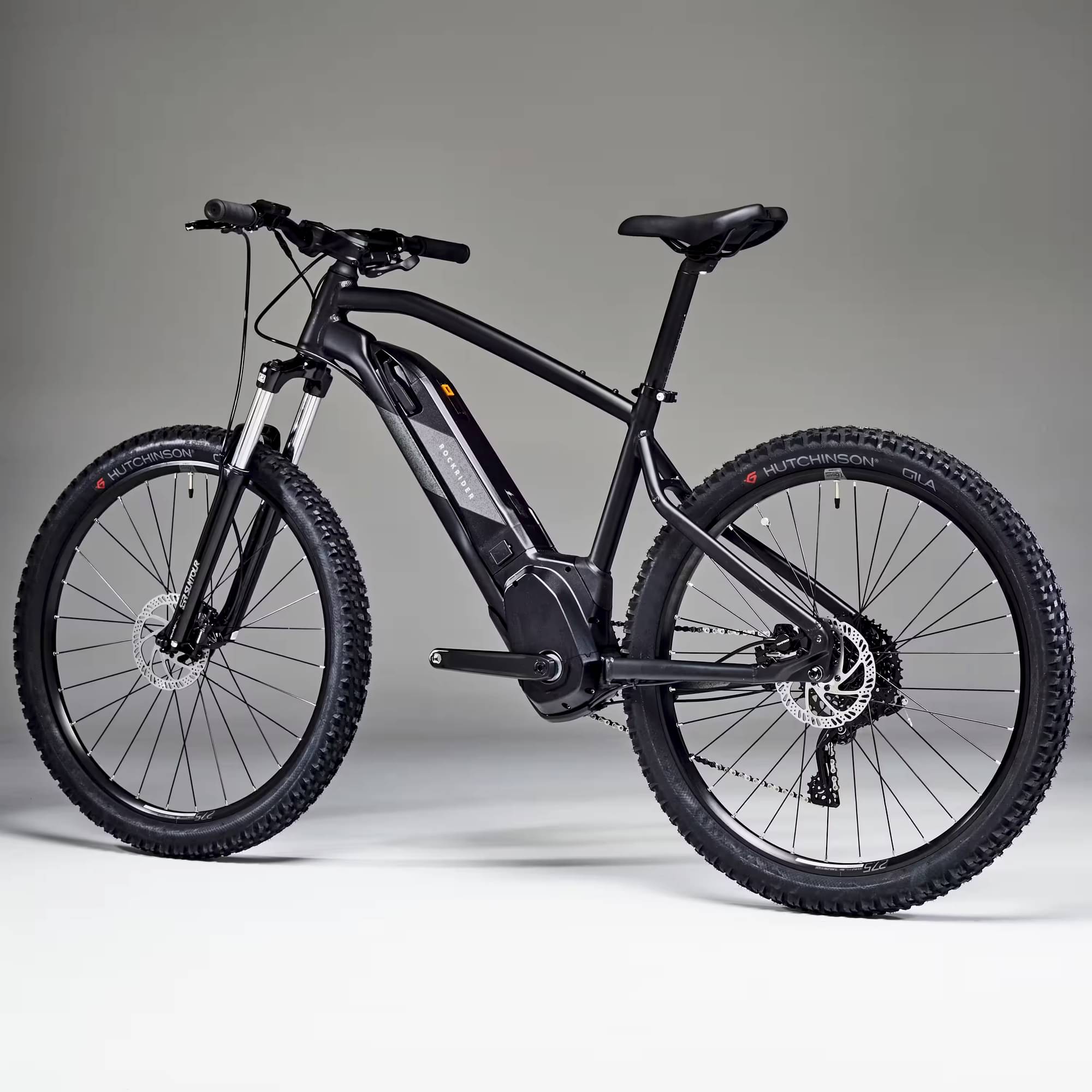

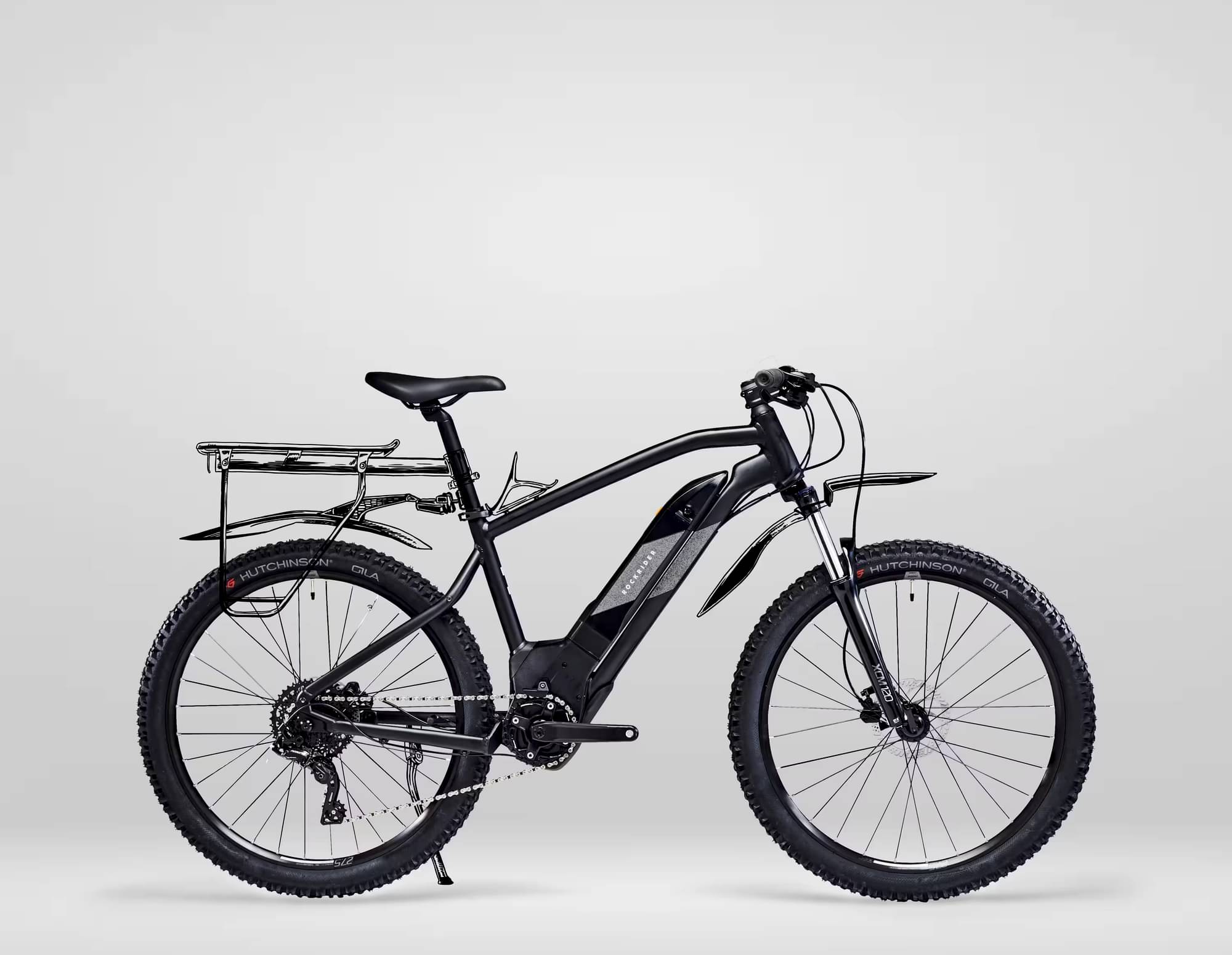

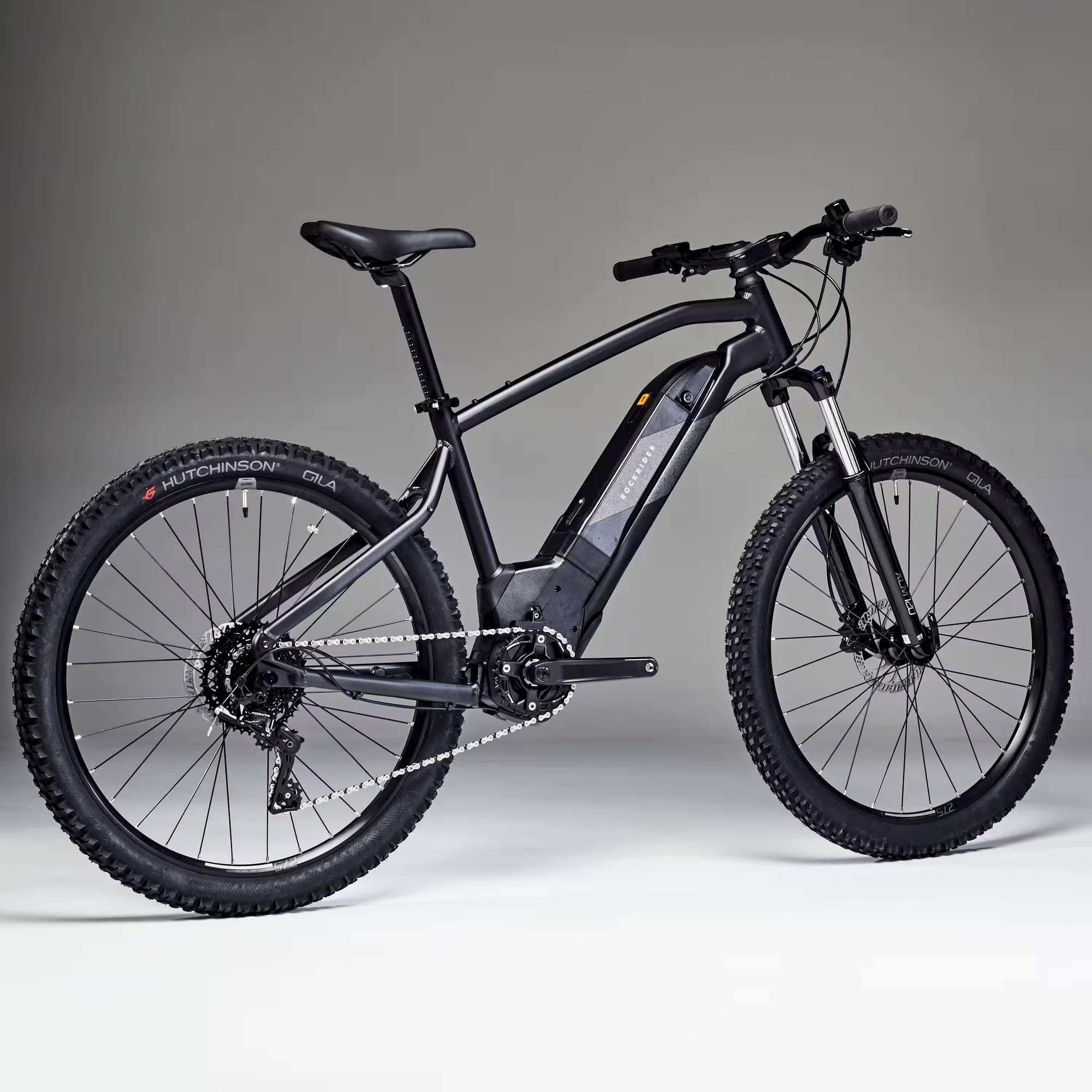

ROCKRIDER 27.5″ Hardtail Electric Mountain Bike E-ST 500 2024
2024 E-bike
Estimate price |
1,895$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset microSHIFT Acolyte -
Suspension Hardtail -
Motor Brose 50Nm mid-drive -
Battery Samsung SDI or LG Capacity: 420 Wh Our battery supplier is part of the "Responsible Minerals Initiative" -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

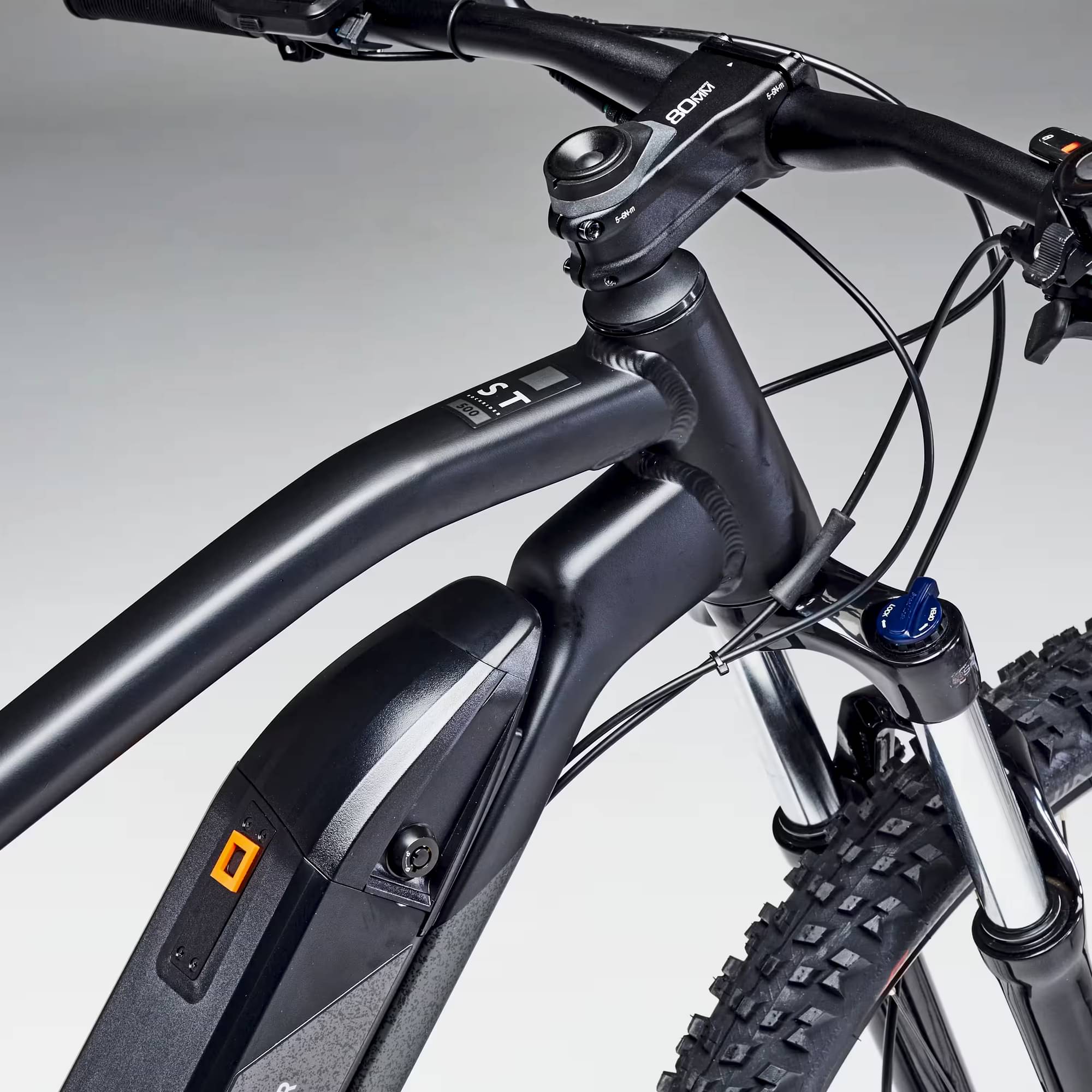

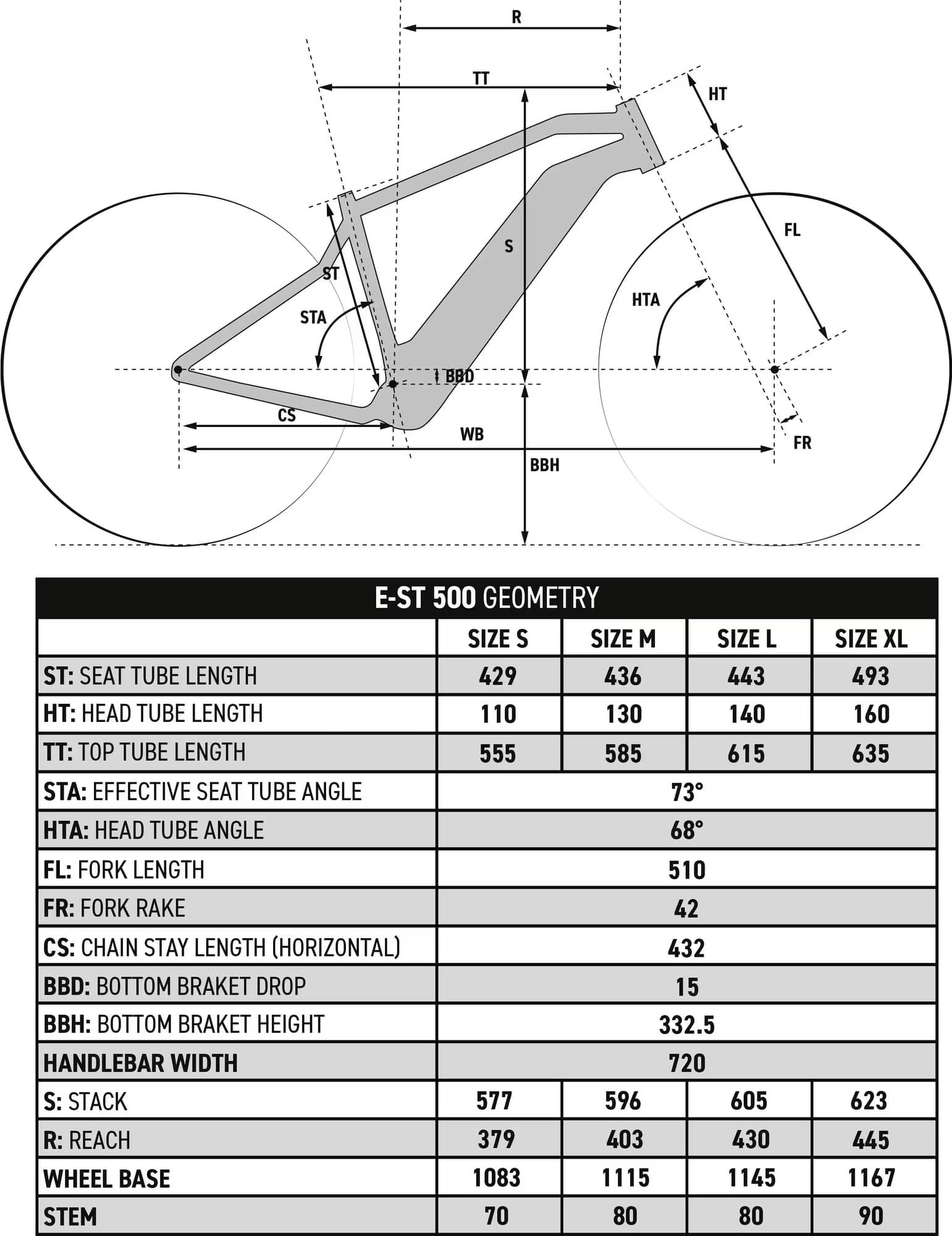

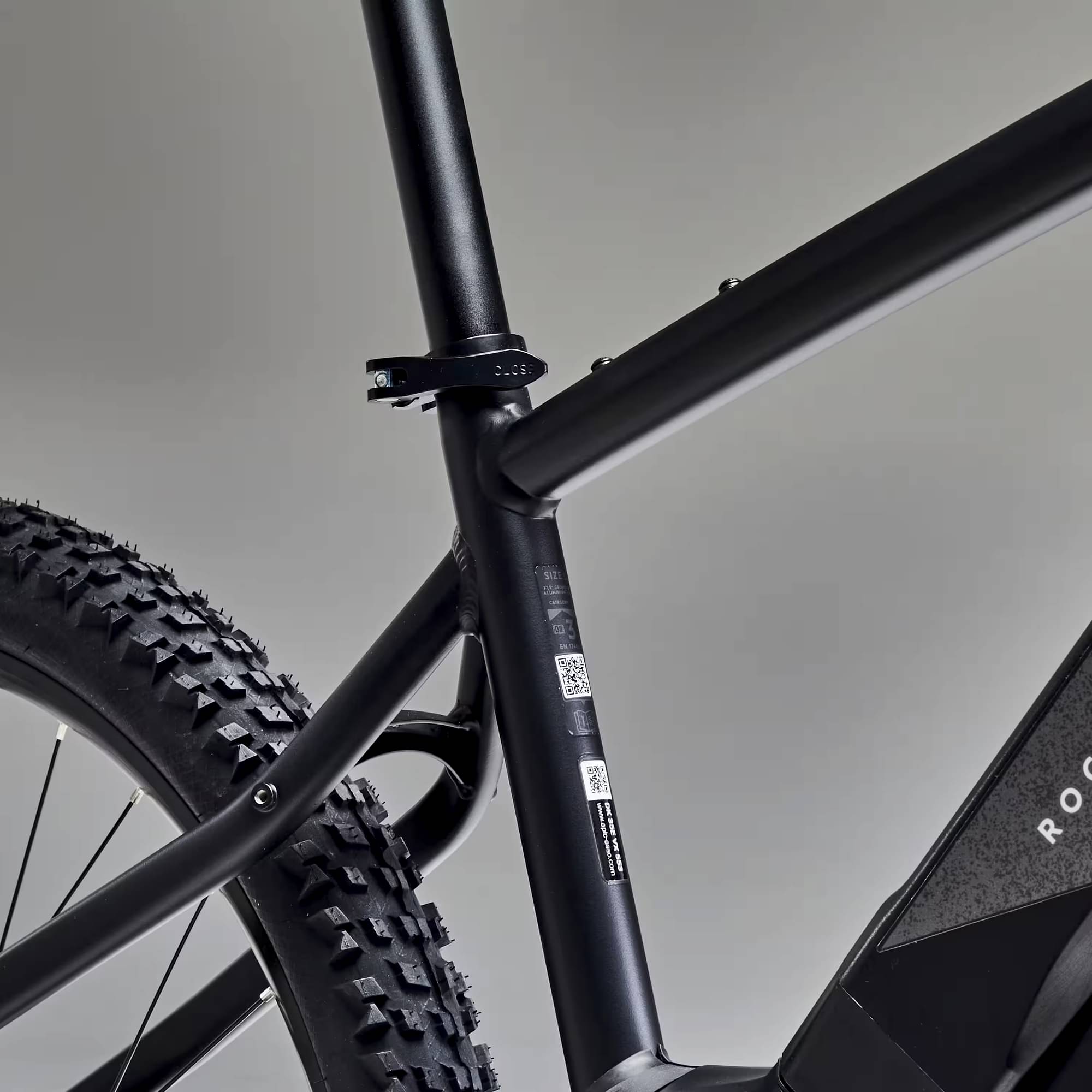

Rockrider comfort geometry frame in 6061 aluminium with hydroformed tubes 12x148 mm Boost Seat tube diameter: 31.6 mm Tapered head tube 1 bottle cage mounting point
Suspension Fork

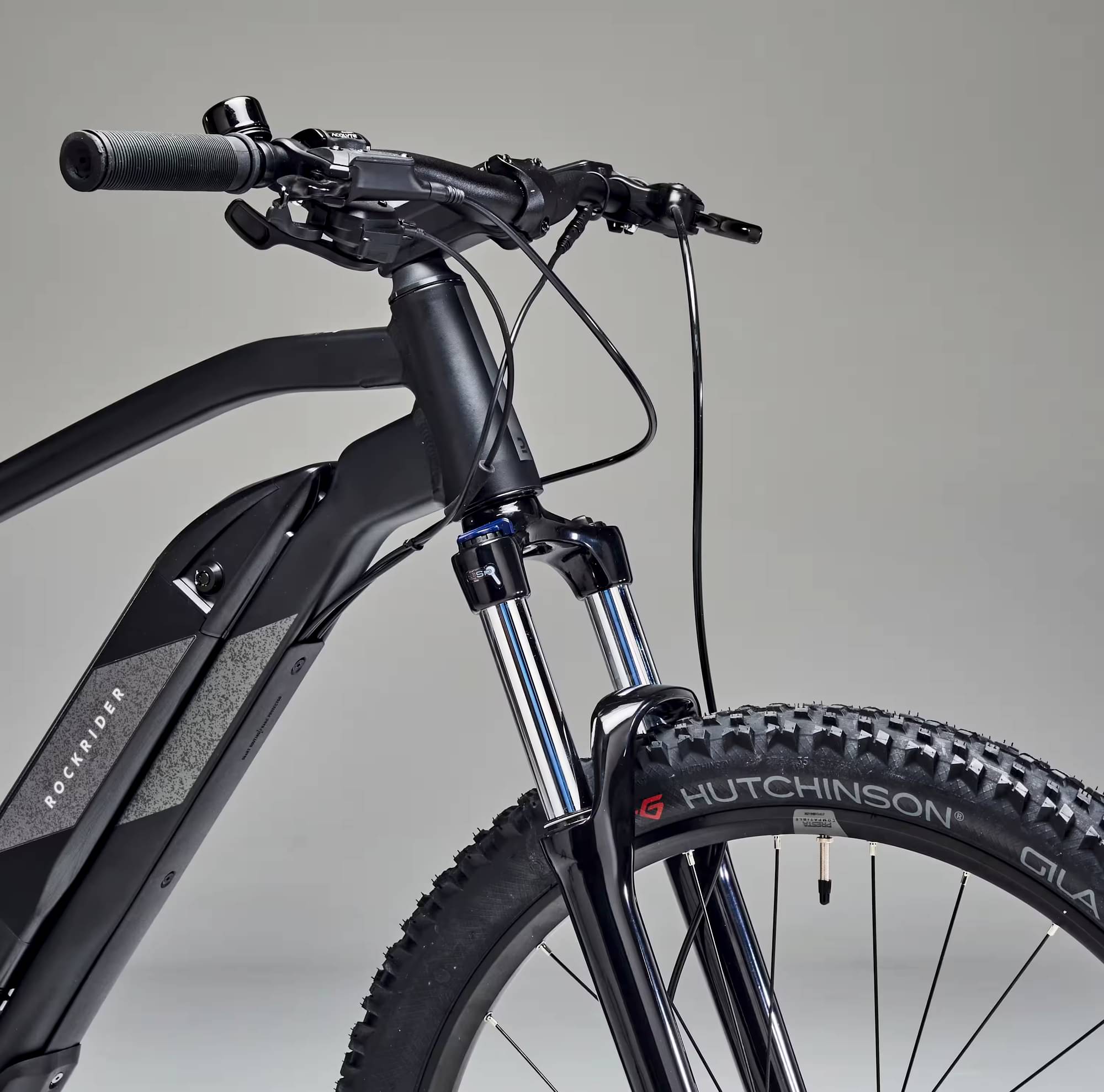

Suntour XCM fork Travel: 120 mm Dampers: 30 mm Axle: QR Format: 9 x 100 mm
Drivetrain
Rear Derailleur

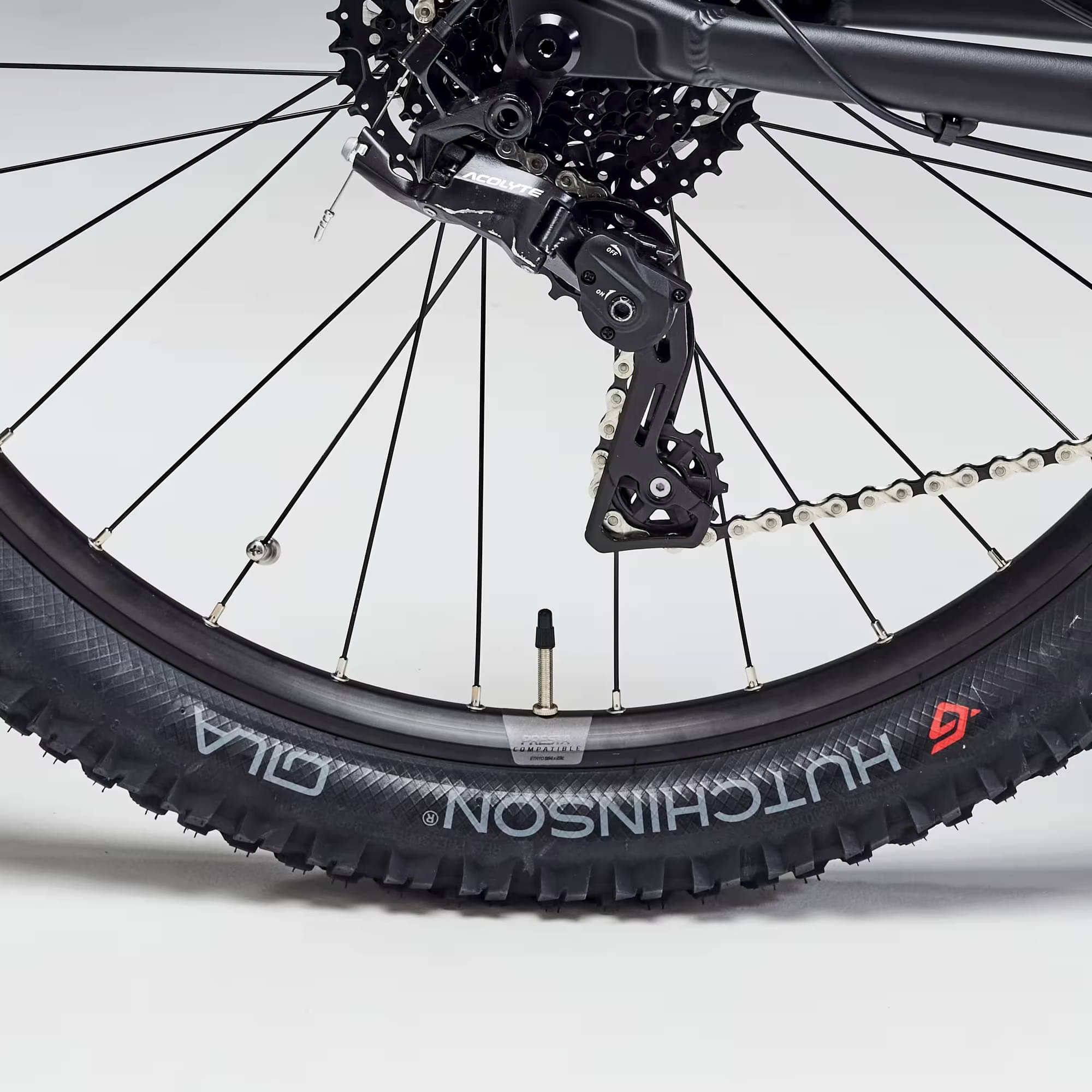

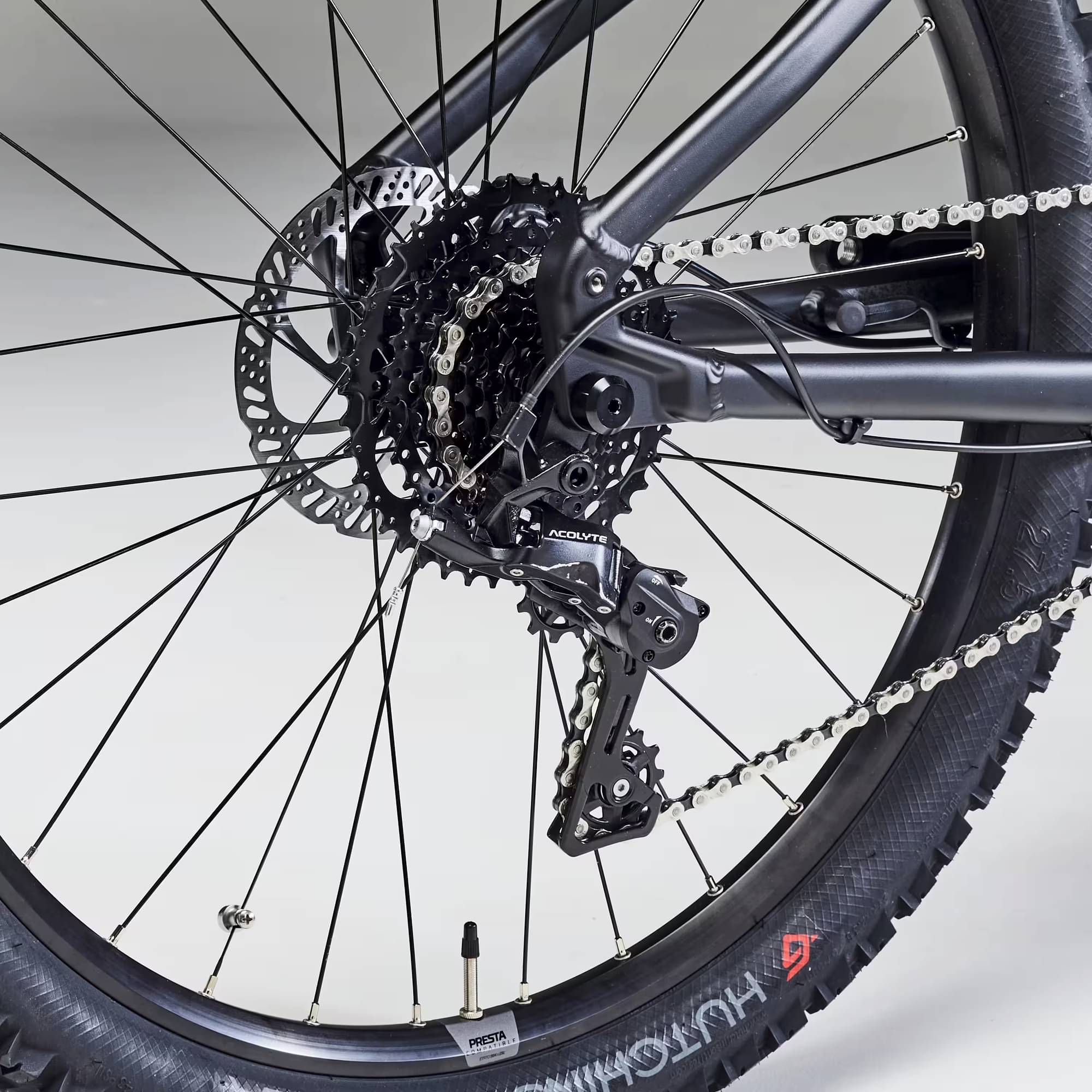

34T 3D ChainFlow chainring with chain guide Microshift Acolyte 8-speed rear derailleur, medium cage Crank: 175 mm Microshift Acolyte right shifter Microshift 8-sprocket 12-42 T cassette KMC E8S special electric chain
Pedals
Rockrider 520 Grip resin flat pedals
Wheels
Rims
Rockrider Tubeless Ready (needs tubeless tyres, special Presta valves and tyre sealant) 27.5", compatible with wide tyres: up to 2.5" 23 mm (width between hooks) 32 spokes 6-bolt disc Freehub: HG
Tires
Hutchinson Gila 27.5" x 2.35" or Hutchinson Kraken 27.5" x 2.3" or Michelin Force XC 27.5" x 2.25" depending on availability
Brakes
Brakes
hydraulic disc brakes
Seat
Seatpost
telescopic seatpost not compatible
Motor & Battery
Motor
Brose C Aluminium motor Mid-drive position 50 Nm torque Torque sensor Max assistance: 280 % The electrical assistance cuts out over 25 km/h in accordance with European regulations
Battery
Samsung SDI or LG Capacity: 420 Wh Our battery supplier is part of the "Responsible Minerals Initiative"
Charger
