ROCKRIDER 29″ 500 Wh Electric Touring Mountain Bike E-EXPL 520 S 2024

2024 E-bike
Estimate price | 3,792$
Weight | 24.2 kg
E-bike
Open compare Use advisor
  • Rockrider 29″ 500 Wh Electric Touring Mountain Bike E-EXPL 520 S 2024 - rockrider-29-500-wh-electric-touring-mountain-bike-e-expl-520-s-2024.jpeg
  • Rockrider 29″ 500 Wh Electric Touring Mountain Bike E-EXPL 520 S 2024 - rockrider-29-500-wh-electric-touring-mountain-bike-e-expl-520-s-2024-1.jpeg
  • Rockrider 29″ 500 Wh Electric Touring Mountain Bike E-EXPL 520 S 2024 - rockrider-29-500-wh-electric-touring-mountain-bike-e-expl-520-s-2024-2.jpeg
  • Rockrider 29″ 500 Wh Electric Touring Mountain Bike E-EXPL 520 S 2024 - rockrider-29-500-wh-electric-touring-mountain-bike-e-expl-520-s-2024-3.jpeg
  • Rockrider 29″ 500 Wh Electric Touring Mountain Bike E-EXPL 520 S 2024 - rockrider-29-500-wh-electric-touring-mountain-bike-e-expl-520-s-2024-4.jpeg
  • Rockrider 29″ 500 Wh Electric Touring Mountain Bike E-EXPL 520 S 2024 - rockrider-29-500-wh-electric-touring-mountain-bike-e-expl-520-s-2024-5.jpeg
  • Rockrider 29″ 500 Wh Electric Touring Mountain Bike E-EXPL 520 S 2024 - rockrider-29-500-wh-electric-touring-mountain-bike-e-expl-520-s-2024-6.jpeg
  • Rockrider 29″ 500 Wh Electric Touring Mountain Bike E-EXPL 520 S 2024 - rockrider-29-500-wh-electric-touring-mountain-bike-e-expl-520-s-2024-7.jpeg
  • Rockrider 29″ 500 Wh Electric Touring Mountain Bike E-EXPL 520 S 2024 - rockrider-29-500-wh-electric-touring-mountain-bike-e-expl-520-s-2024-8.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Suspension Rigid
  • Motor Brose 460W 70Nm mid-drive
  • Battery Battery fully integrated into the frame with side outlet for easy gripping. Capacity: 500 Wh With their smart management (BMS), Decathlon lithium-ion batteries have a long life (over 500 full charging cycles). Compatible with a 360 Wh battery extension, sold separately (up to 50 additional km, at a low gradient)
  • Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

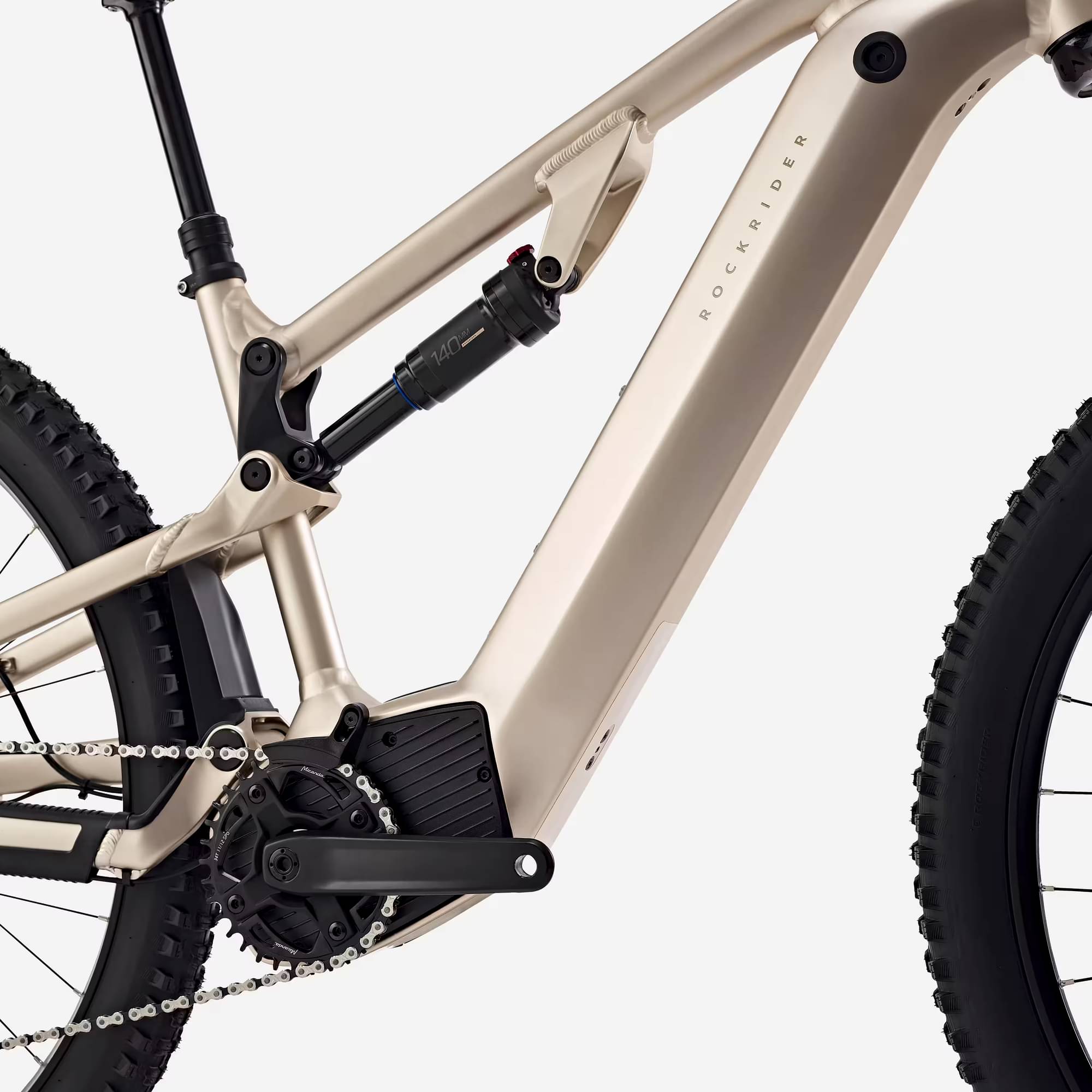

6061 aluminium suspended frame Single pivot with tie rod Max rear travel 140 mm Fully built-in battery, removes from the side Conical steering socket 31.6 mm diameter seat tube Mount for 1 bottle cage

Suspension Fork

140 mm

Drivetrain

Pedals

Rockrider Flat Evo Resin

Wheels

Rims

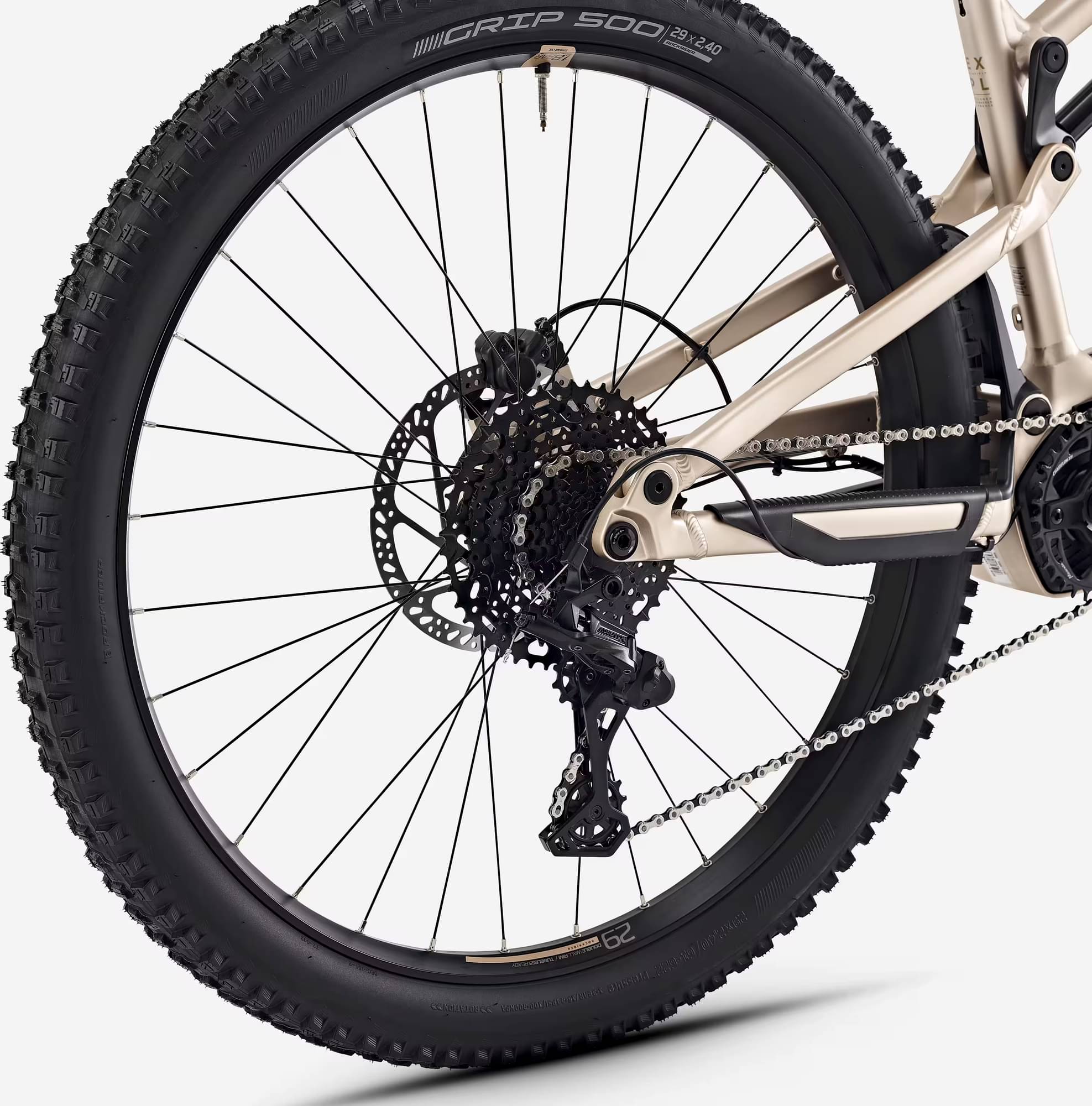

Rockrider 29” 30c wheels 29" size compatible with fat tyres: up to 2.6" Internal width between hooks: 30 mm 32 spokes Format: Boost Discs: 6 holes Freewheel hub: HG Sealed bearings Tubeless Ready, with a sealed rim strip (requires TUBELESS tyres, Presta valves, and tyre sealant)

Tires

Rockrider Grip 500 29" x 2.4" Tubeless ready Bead: soft Carcass: 60 TPI 1 ply Sidewalls: Skinwall with puncture-resistant side strip Tread: Dual lug

Brakes

Brakes

hydraulic disc brakes

Seat

Seatpost

telescopic seatpost compatible

Motor & Battery

Motor

BROSE DRIVE T Aluminium motor Mid-drive position 70 Nm torque Torque sensor Max assistance: 320 % Max power: 460 W In accordance with EU regulations, the electrical assistance cuts out above 25 km/h

Battery

Battery fully integrated into the frame with side outlet for easy gripping. Capacity: 500 Wh With their smart management (BMS), Decathlon lithium-ion batteries have a long life (over 500 full charging cycles). Compatible with a 360 Wh battery extension, sold separately (up to 50 additional km, at a low gradient)

Charger

sector
