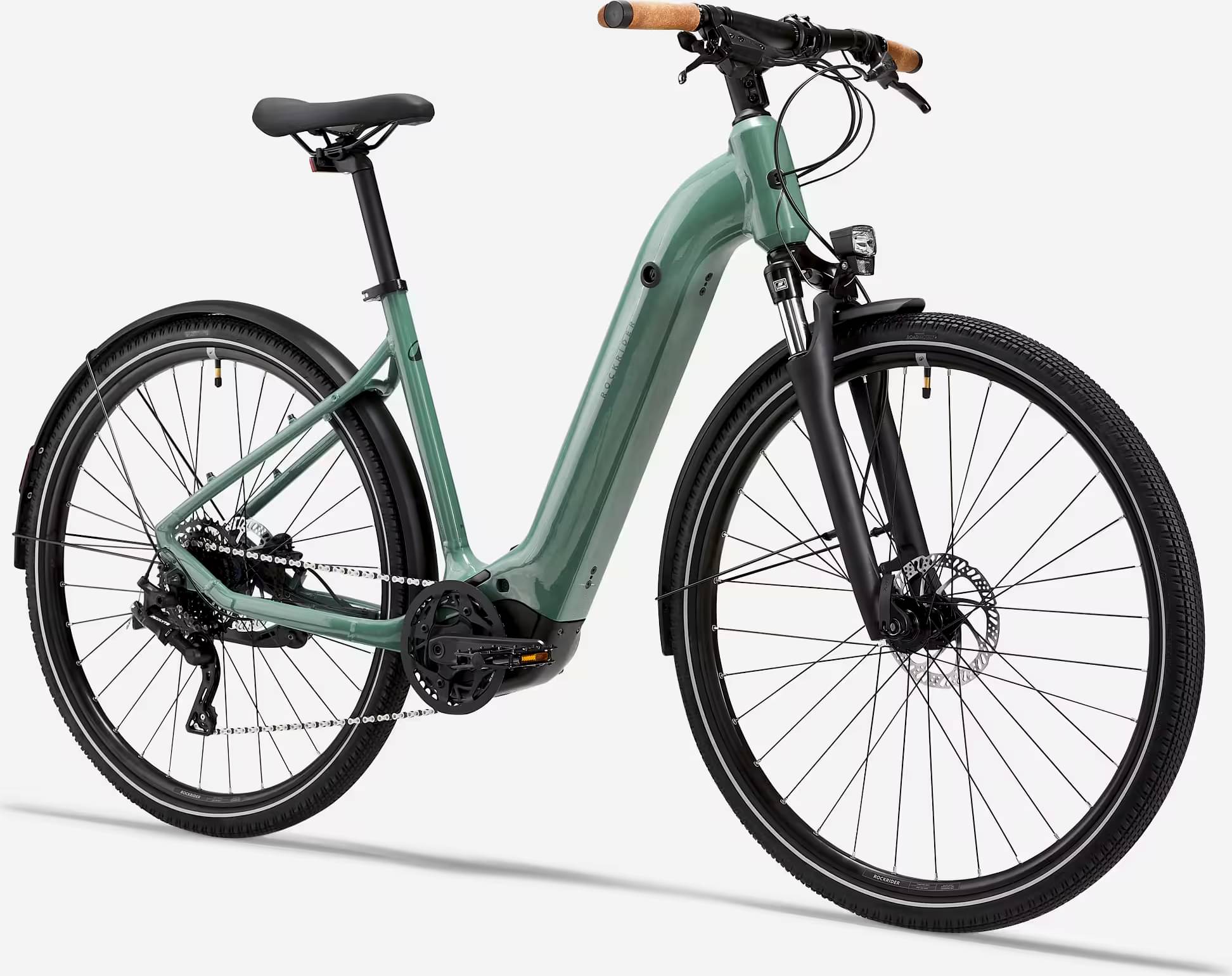

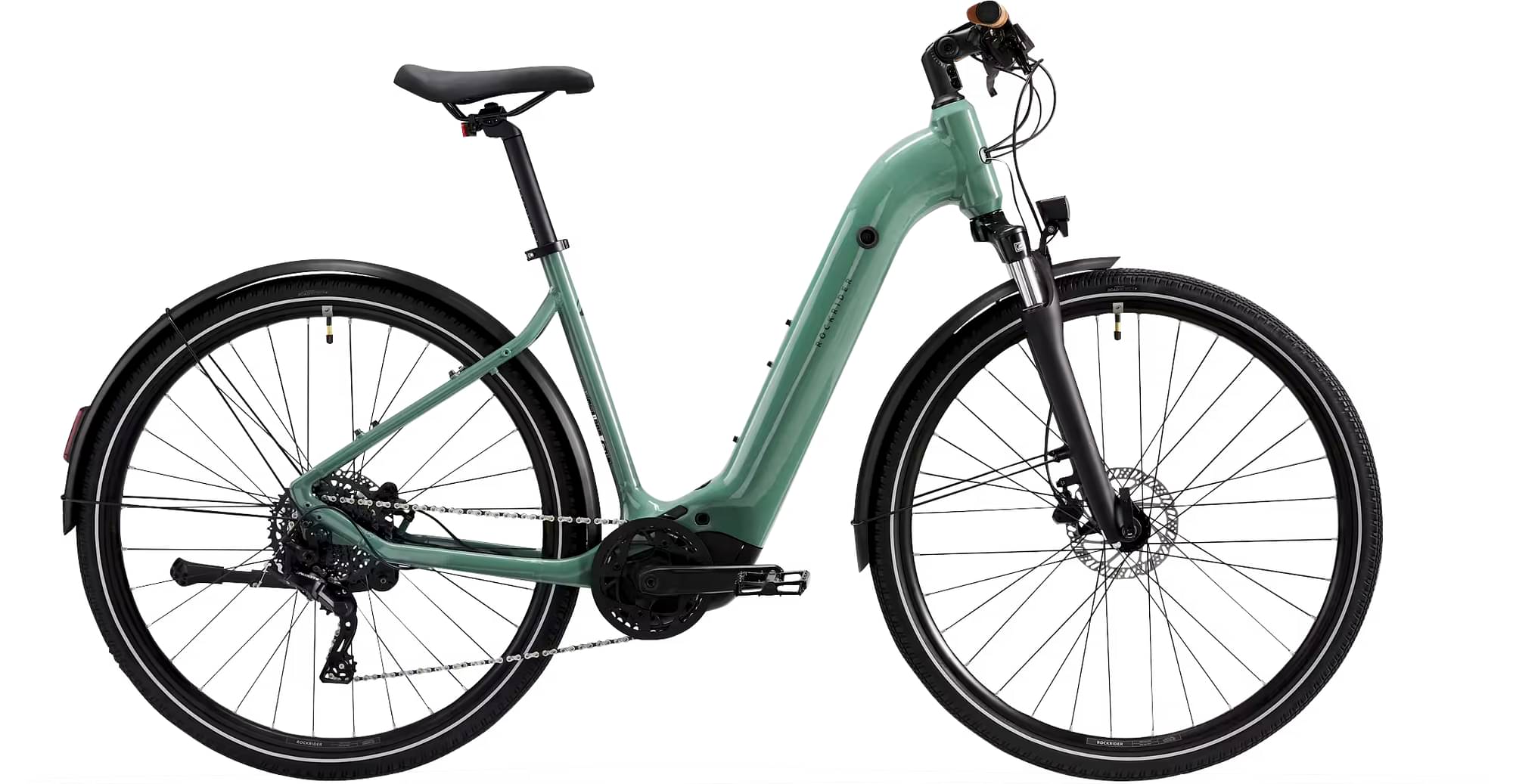

ROCKRIDER Electric hybrid bike with central motor and low frame, E-ACTV 500 green 2024
2024 E-bike
Estimate price |
2,677$
Weight | 24.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset microSHIFT Acolyte -
Suspension Rigid -
Motor hub-drive -
Battery 500 to 599 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
suspended fork
Drivetrain
Shift Levers
We've chosen to use the Acolyte derailleur because of its durability. 8 gears: reducing the drivetrain to just 8 gears means bigger – and therefore sturdier – cogs. "Single click" switch: avoids gear changes being too quick when the chain is subjected to stresses that could damage it. 12x42 cassette: we've opted for a cassette with 12 teeth, rather than 11, on the smallest cog. This makes the cassette last longer.
Crank
single chainring
Wheels
Rims
aluminium
Tires
ROCKRIDER PROTECT+ all-terrain tyres offering excellent puncture protection (maximum level of 5/5). Dimensions: 700x47 mm (ETRTO 47-622) Puncture protection level: 5/5 Type of protection: 3 mm high-density rubber + polyamide band dual protection Reflective strips: yes Carcass: 60 TPI Weight: 1010 g Tubeless compatible: No
Brakes
Brakes
hydraulic disc brakes
Seat
Saddle
Rockrider Trekking long ride saddle. We conducted morphological studies aiming to understand where the pressure points are on different body types. We designed the size of the saddle and selected the foam so as to better distribute these pressure points. The saddle was then tested in real use and updated based on feedback from our testers.
Motor & Battery
Motor
middle position
Battery
500 to 599 Wh
Charger
cable, sector
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
