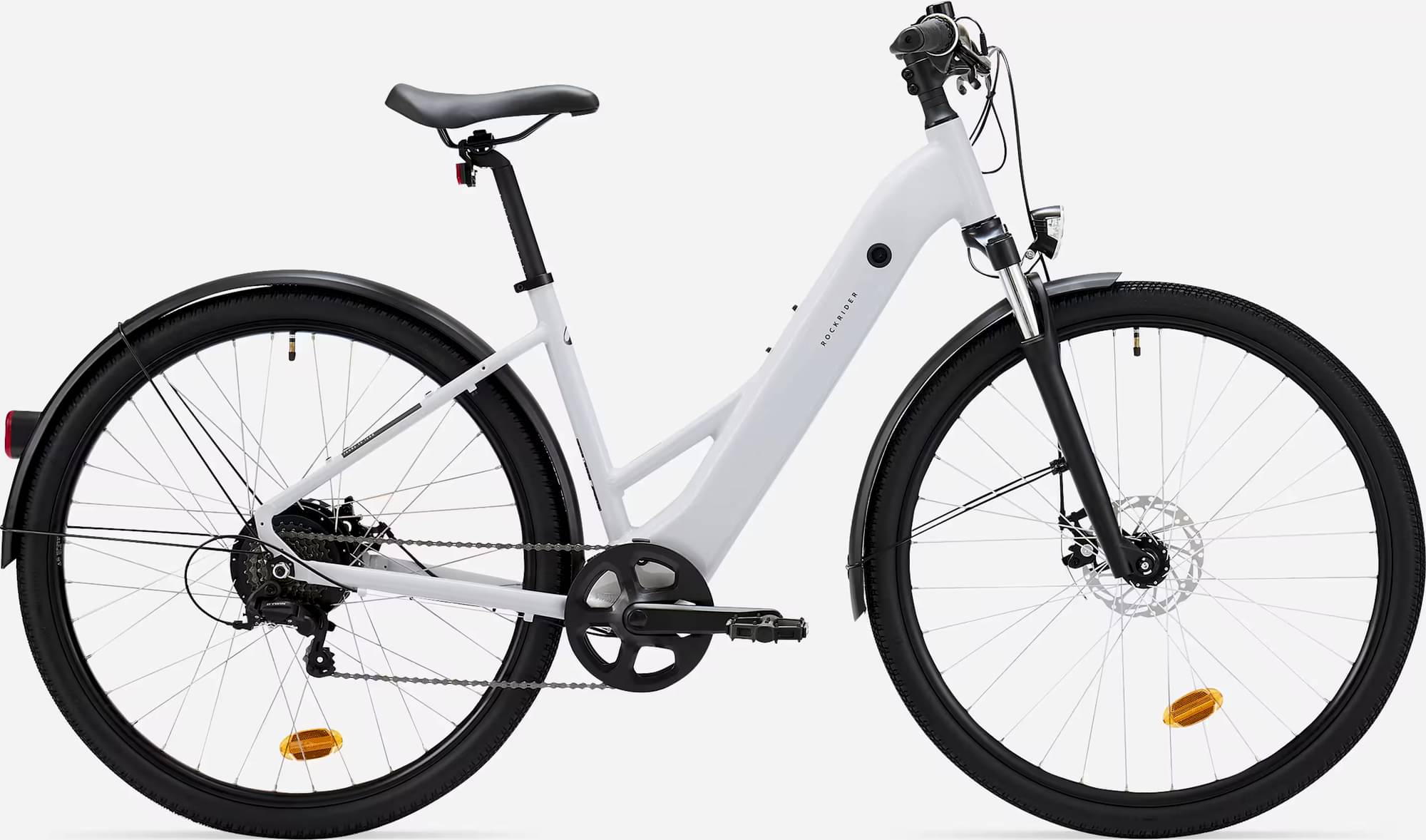

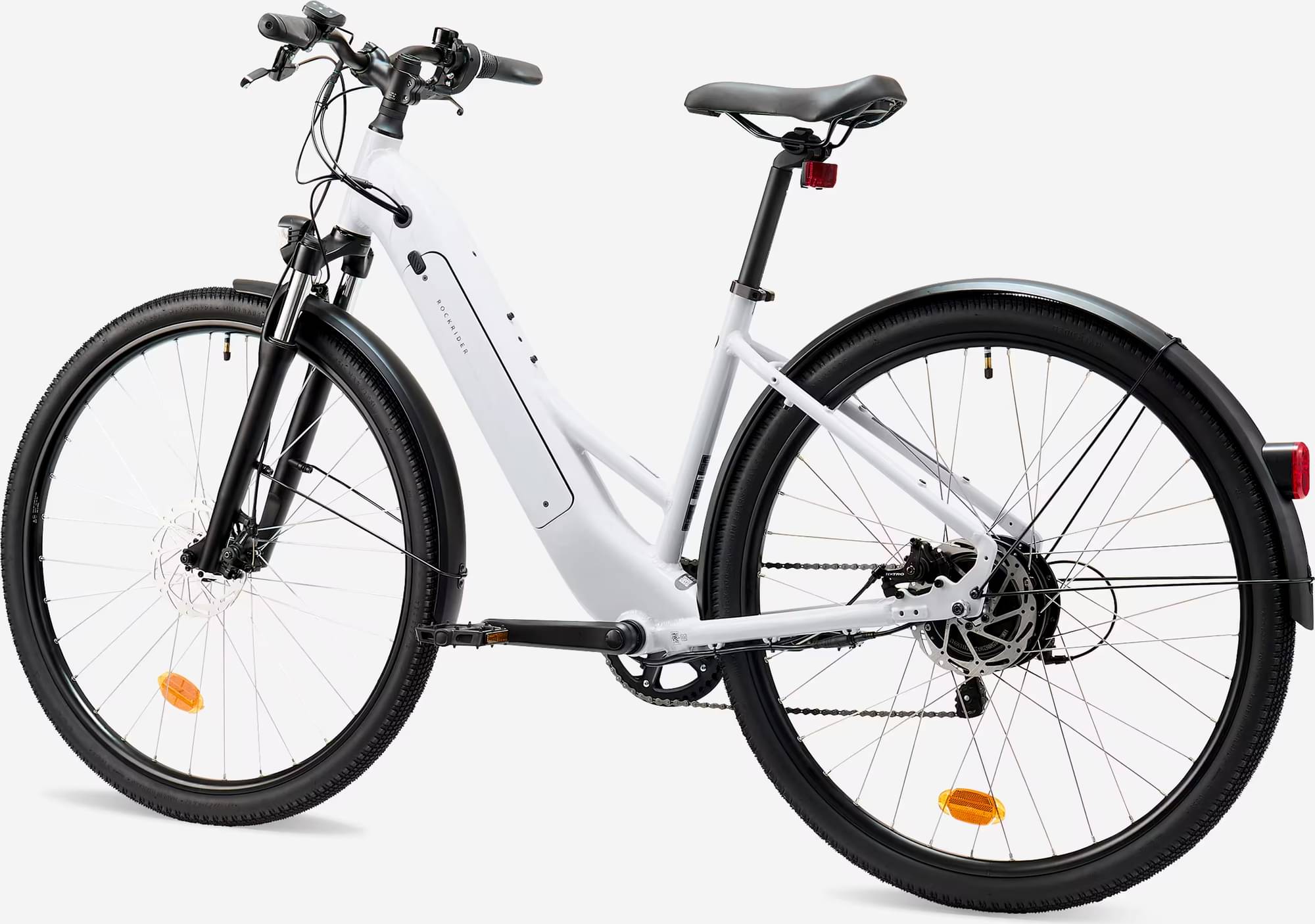

ROCKRIDER Low Frame Electric Hybrid Bike, E-ACTV 100 2024
2024 E-bike
Estimate price |
1,354$
Weight | 22.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Suspension Hardtail -
Motor hub-drive -
Battery 300 to 399 Wh -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

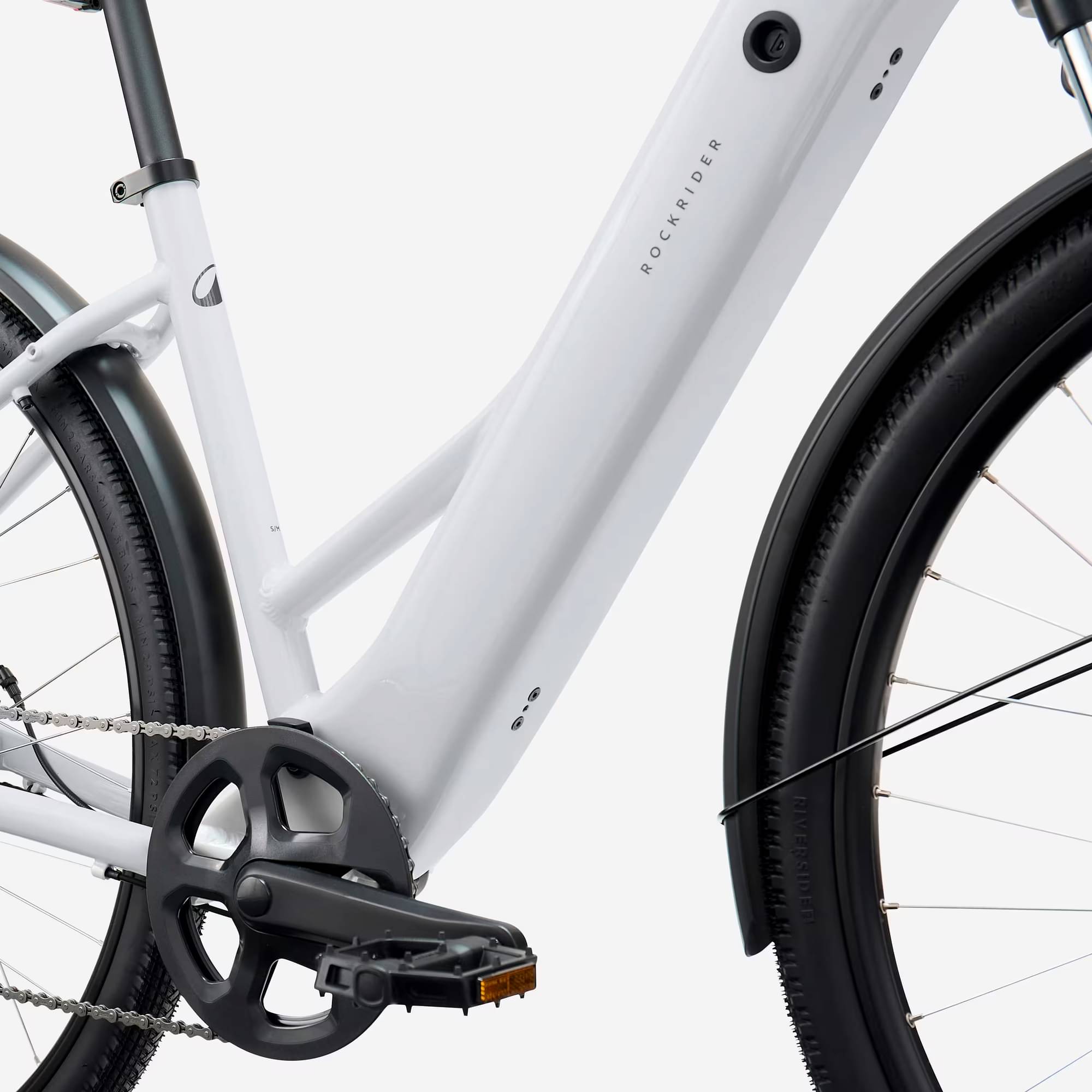

Aluminium frame. Hydroformed diagonal tube. Maximum tyre size compatible with the mudguard: 700x47mm.
Suspension Fork
Rockrider Trekking suspension fork. - Spring: coil - Steerer tube: 1?" aluminium - 60 mm travel
Drivetrain
Crank
single chainring
Pedals
We've chosen to use wide platform pedals to keep you more comfortable and give you a feeling of stability. Resin pedals.
Wheels
Rims
aluminium
Tires
Rockrider Trekking all-terrain tyres offering excellent puncture protection (maximum level of 4.5/5). Dimensions: 700x47 mm (ETRTO 47-622) Puncture protection level: 4.5/5 Type of protection: Double protection polyamide Carcass: 60 TPI Tubeless compatible: No Recommended pressure: about 3 bar.
Brakes
Brakes
mechanical disc brakes
Cockpit
Handlebar

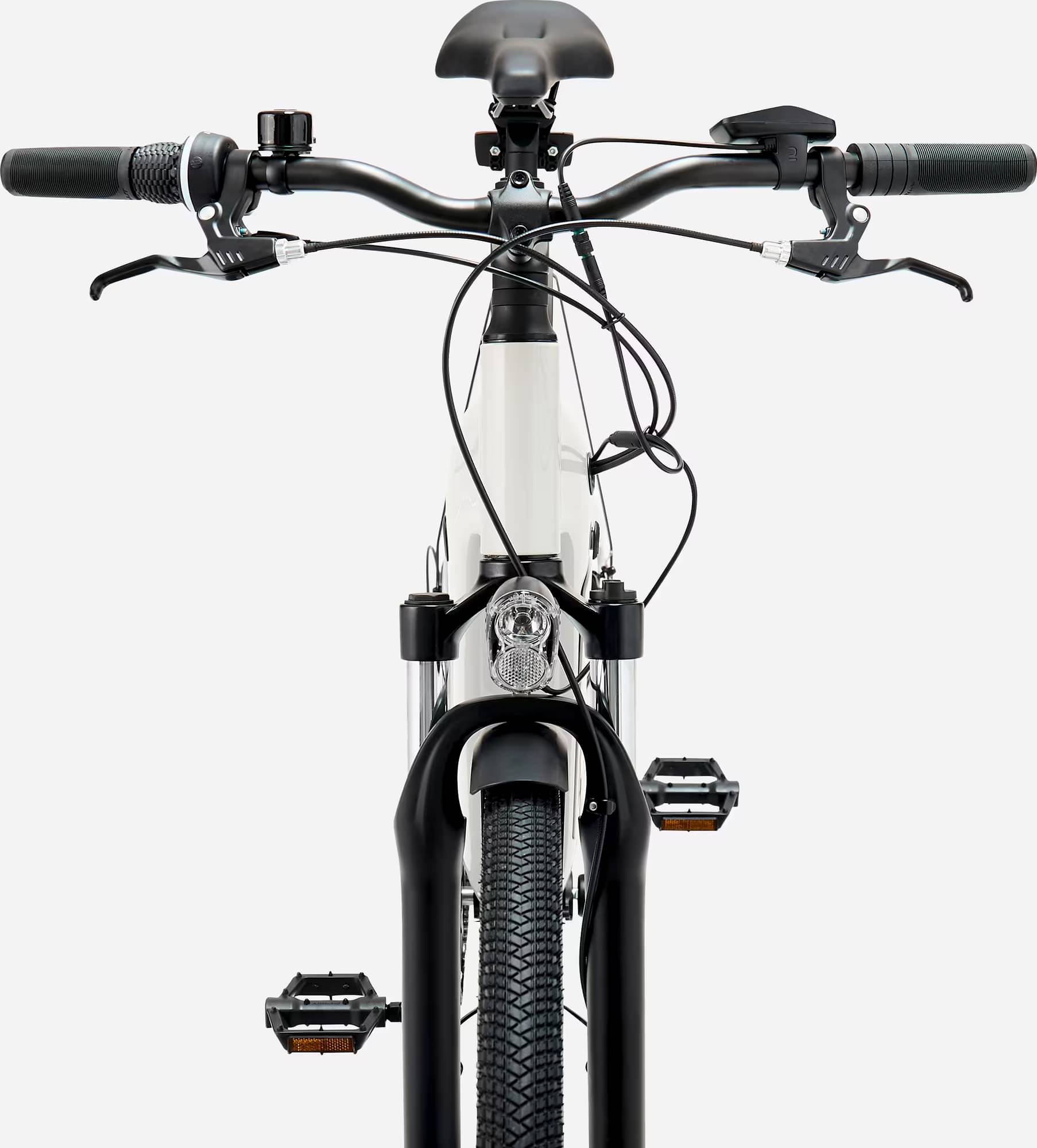

Handlebar: - Width: 640 mm - Diameter at centre: 25.4 mm - Material: steel Stem: - Length size S/M: 60 mm Size L, XL: 75 mm Diameter: 25.4 mm - Material: aluminium Headset: 1?". BTWIN city 500 ergonomic grips.
Seat
Saddle
Rockrider Trekking saddle. The saddle height can be adjusted using an Allen key to reduce the risk of theft. A quick-release clamp can be installed. Ask your sales assistant.
Motor & Battery
Motor

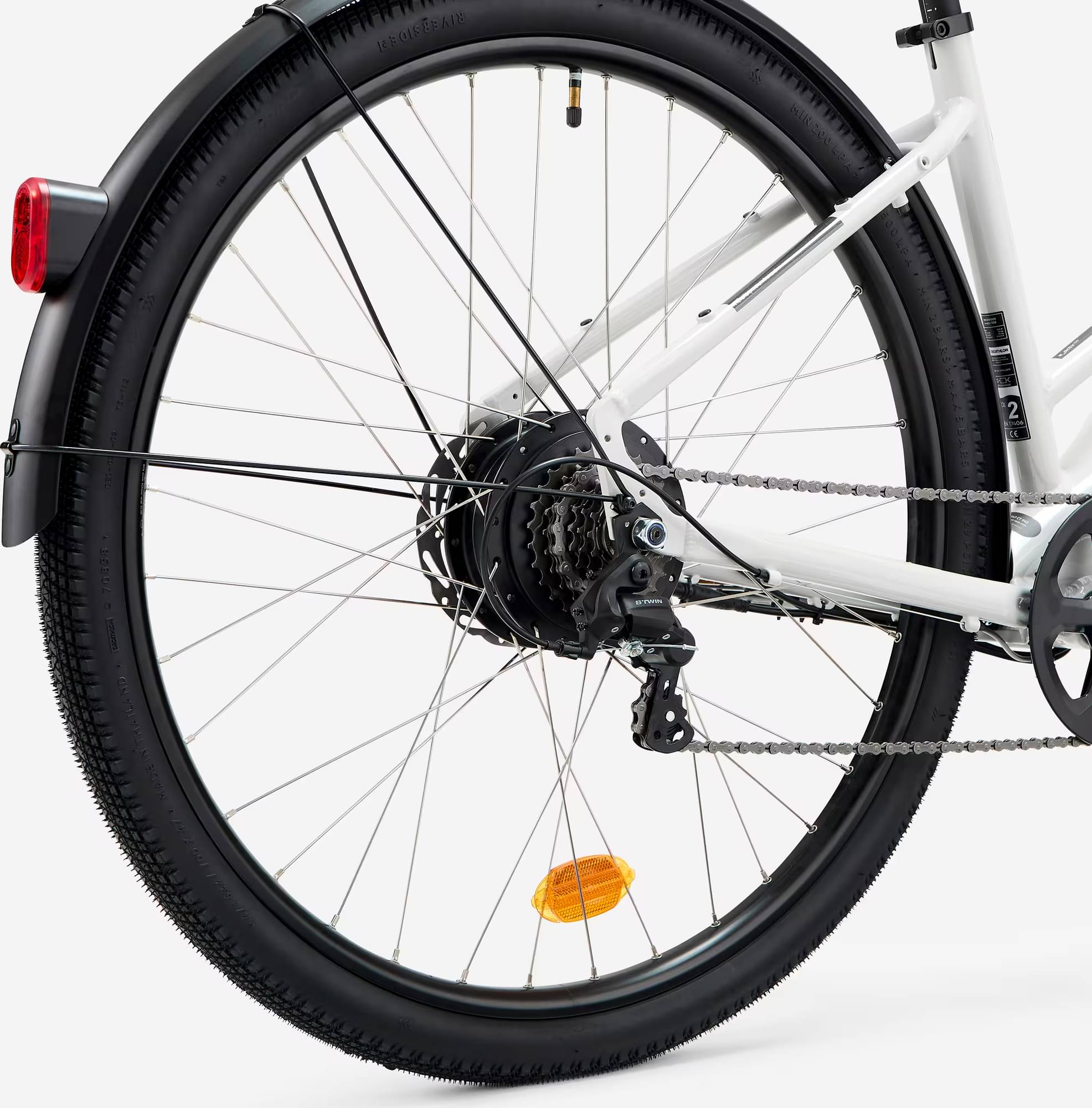

wheel motor (hub), rear position
Battery
300 to 399 Wh
Remote

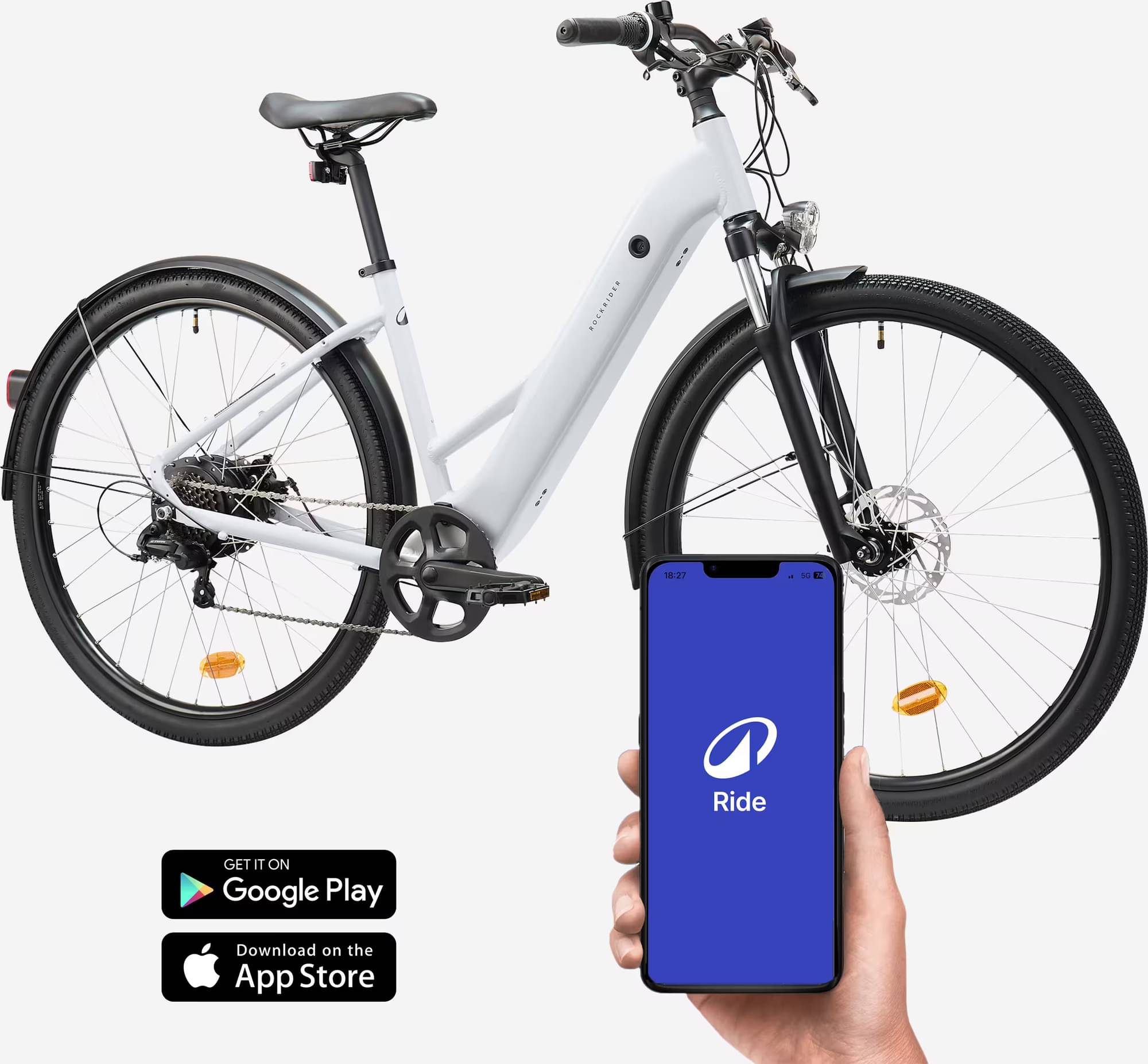

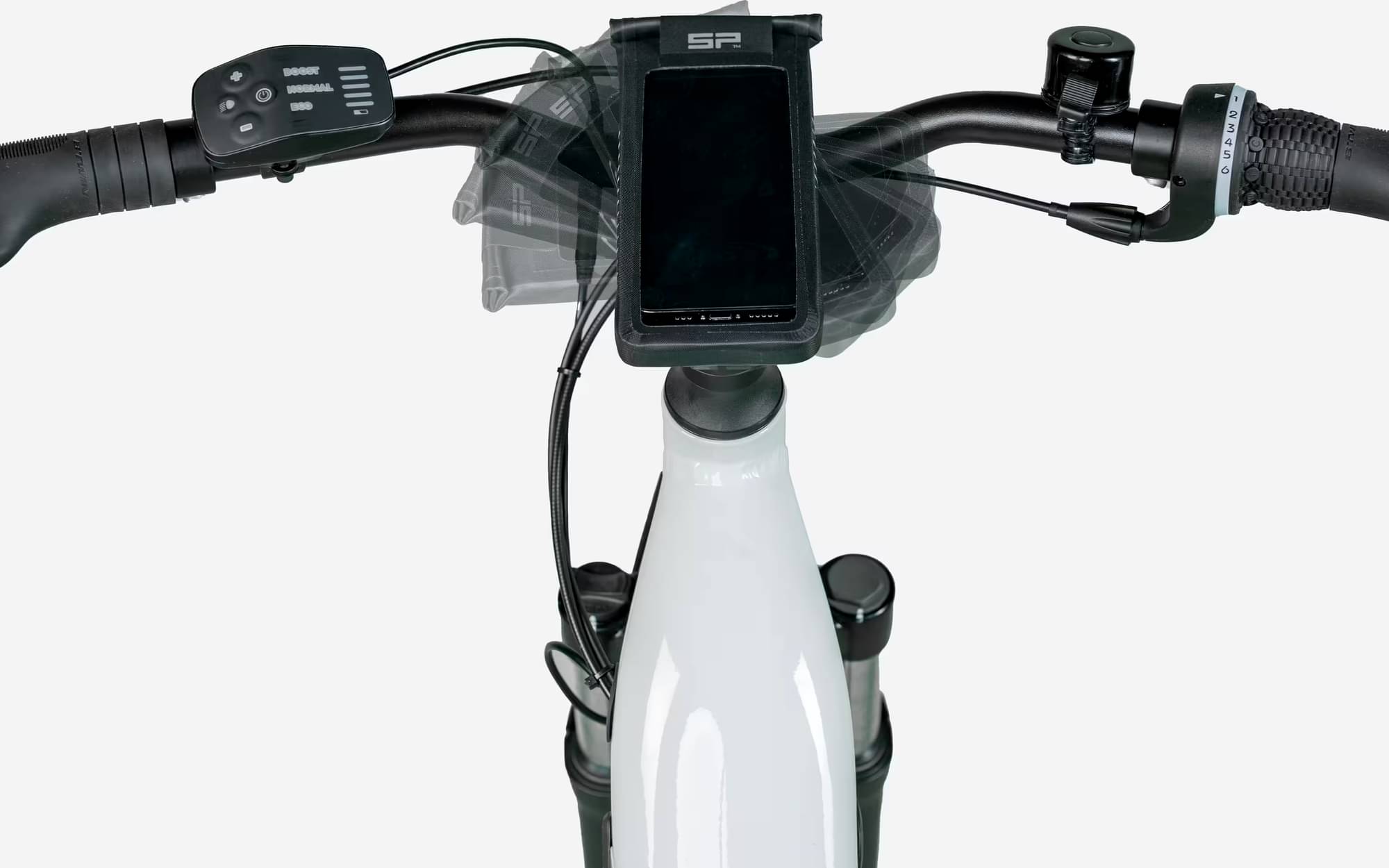

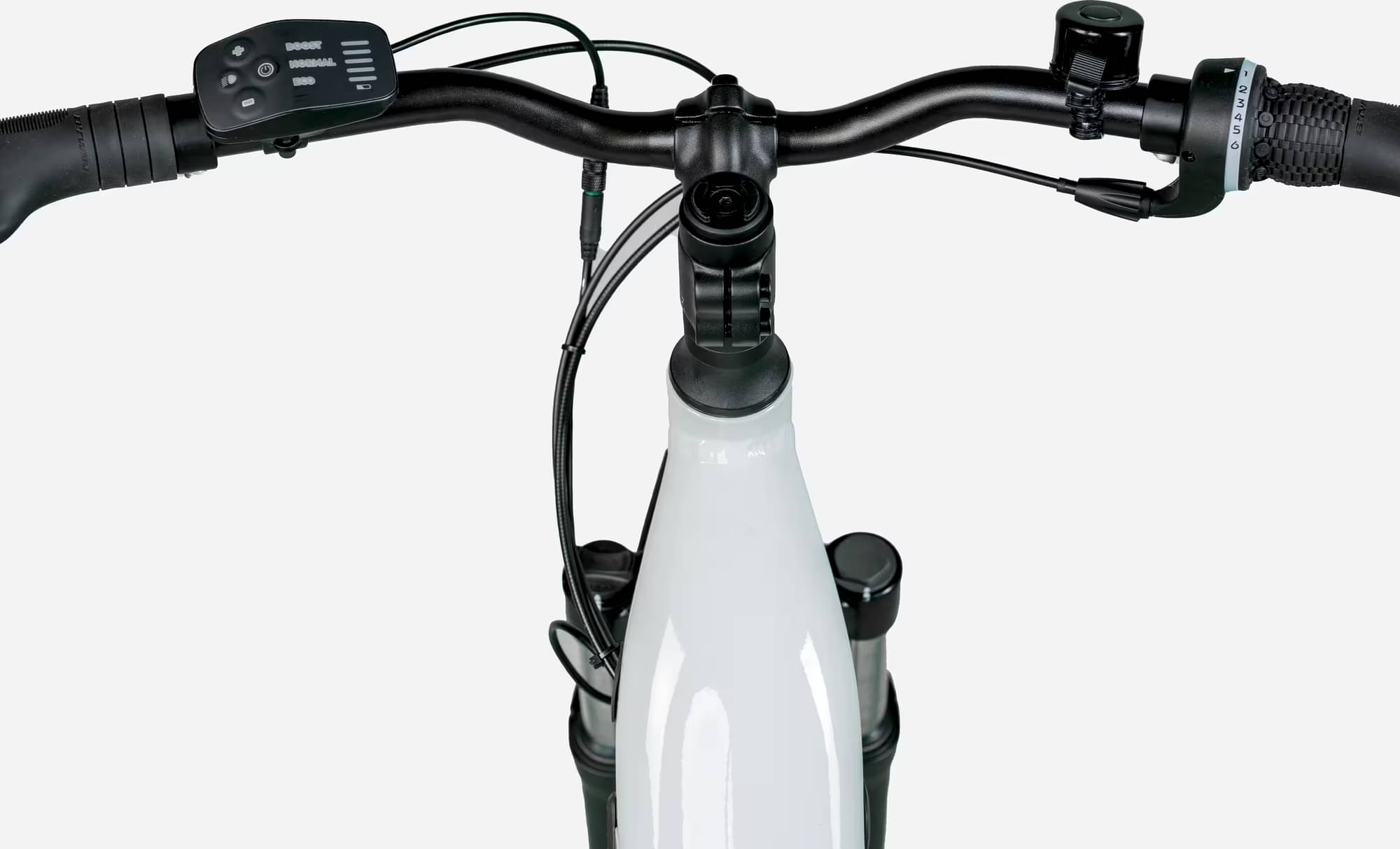

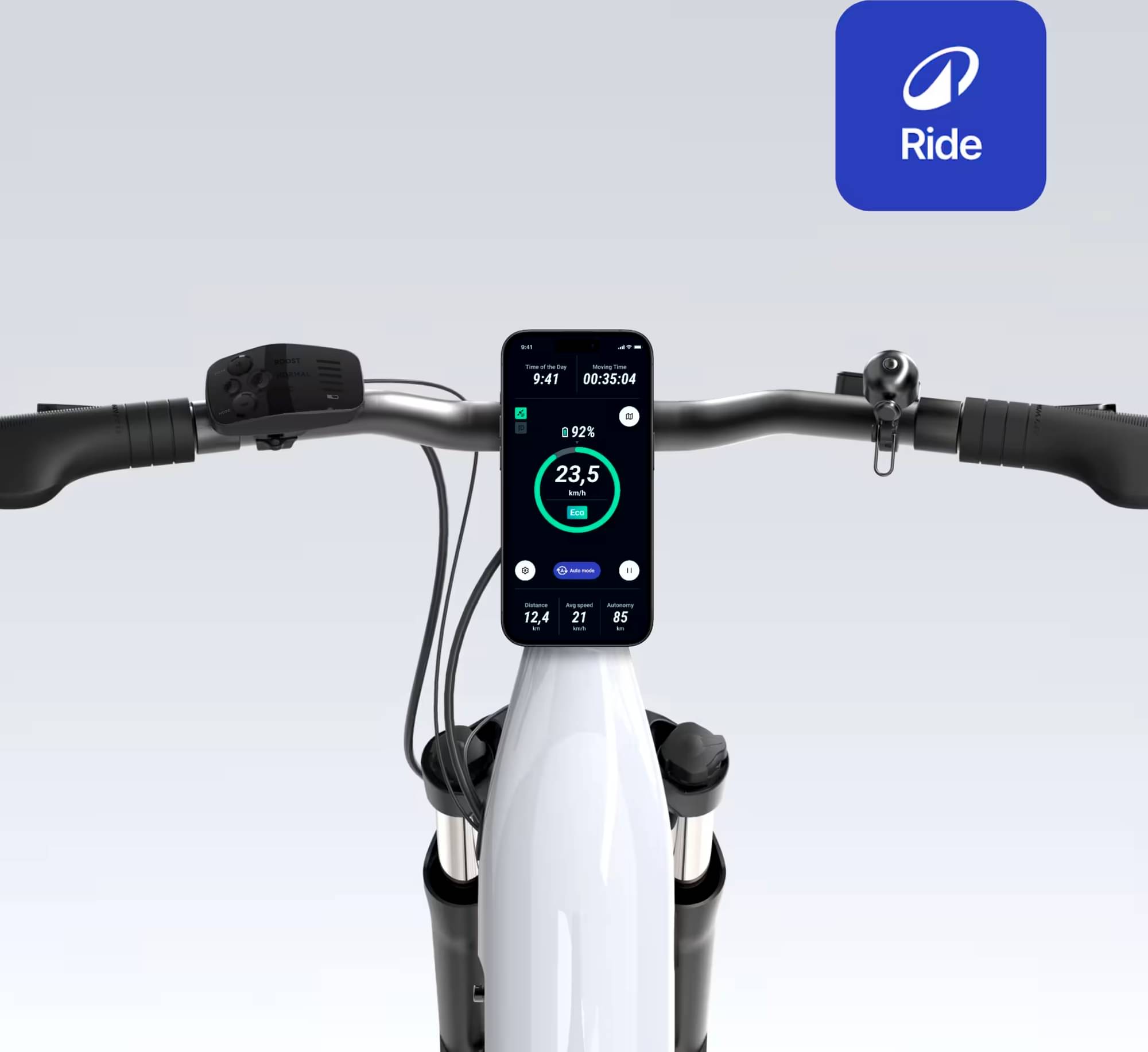

LED control screen on the handlebars, next to the left grip. Information available: - Current assistance mode - Remaining battery level - Light status (on/off) Functions: - Turn the bike on/off - Select assistance mode - Turn the lights on/off Connect your bike to your phone to access speed, distance, and GPS route information.
Charger
cable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | XL |
|---|---|---|
| Wheels | 700 | 700 |
