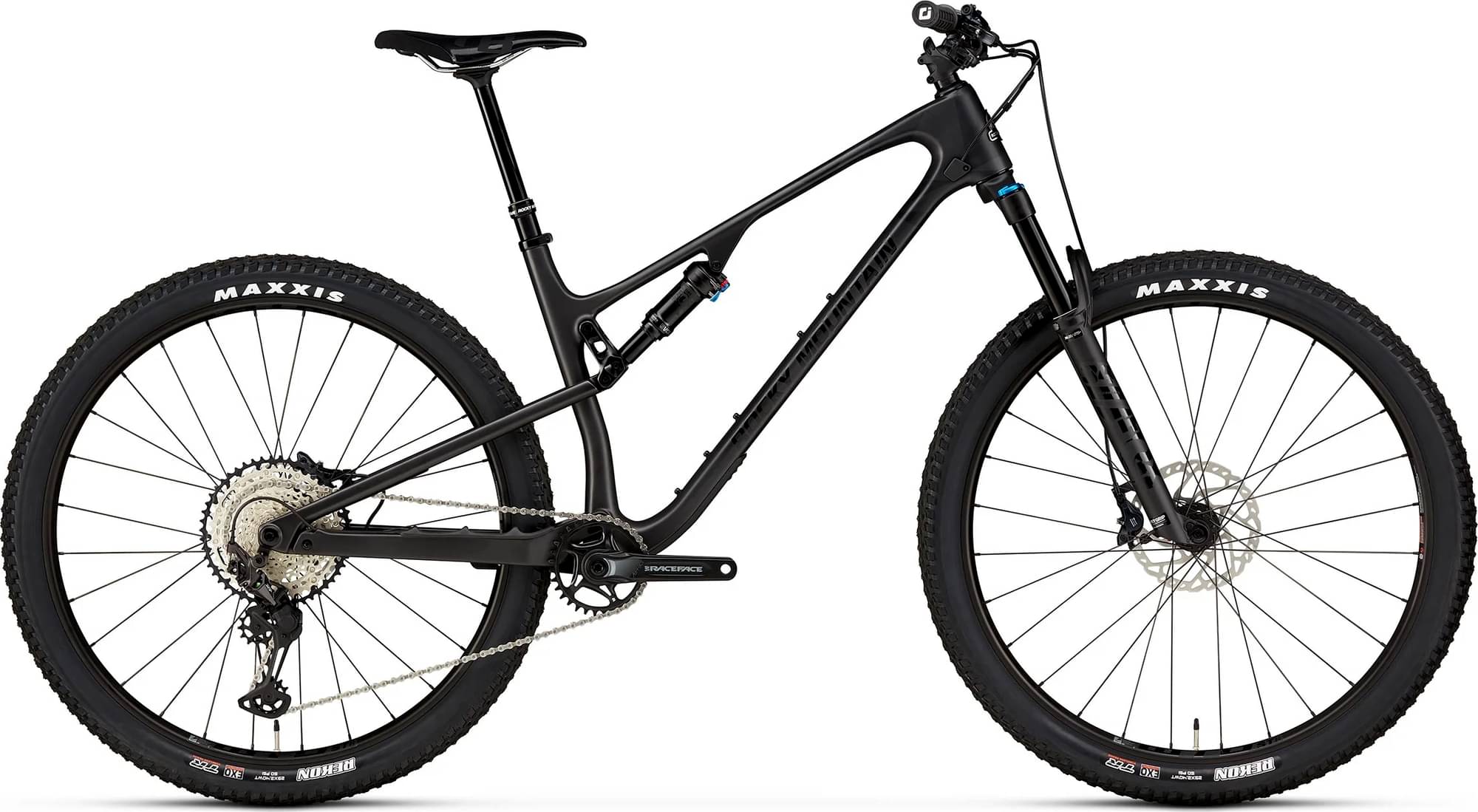

Rocky Mountain Element Carbon 50 2024
2024 Mountain
Estimate price |
6,282$
Weight | 12.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Brakes Shimano SLX Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry + Suspension Rate | 120mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Suspension Fork
Fox 34 Float Performance 29 | XS = 120mm | SM - XL = 130mm | GRIP Damper | 44mm Offset
Rear Shock
Fox Float DPS Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ
Drivetrain
Rear Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano SLX 10-51T
Crank
Race Face Aeffect Cinch | 32T | 24mm Spindle | XS - SM = 165mm | MD - XL = 170mm
Bottom Bracket
Shimano SM-BBMT500
Chain
Shimano M7100
Wheels
Front Hub
Rocky Mountain SL Sealed Boost 15mm
Rear Hub
DT Swiss 370 Boost 148mm | 18T Star-Ratchet
Rims
WTB ST Light i27 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl
Spokes
DT Swiss Competition 2.0/1.8/2.0
Tires
F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready //
Brakes
Brakes
Shimano SLX 2 Piston | Metal Pads
Cockpit
Stem
Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50mm
Handlebar
Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
ODI Elite Pro Lock On
Headset
FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Seat
Saddle
WTB Silverado Race 142
Seatpost
Rocky Mountain Toonie Drop Alloy 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
