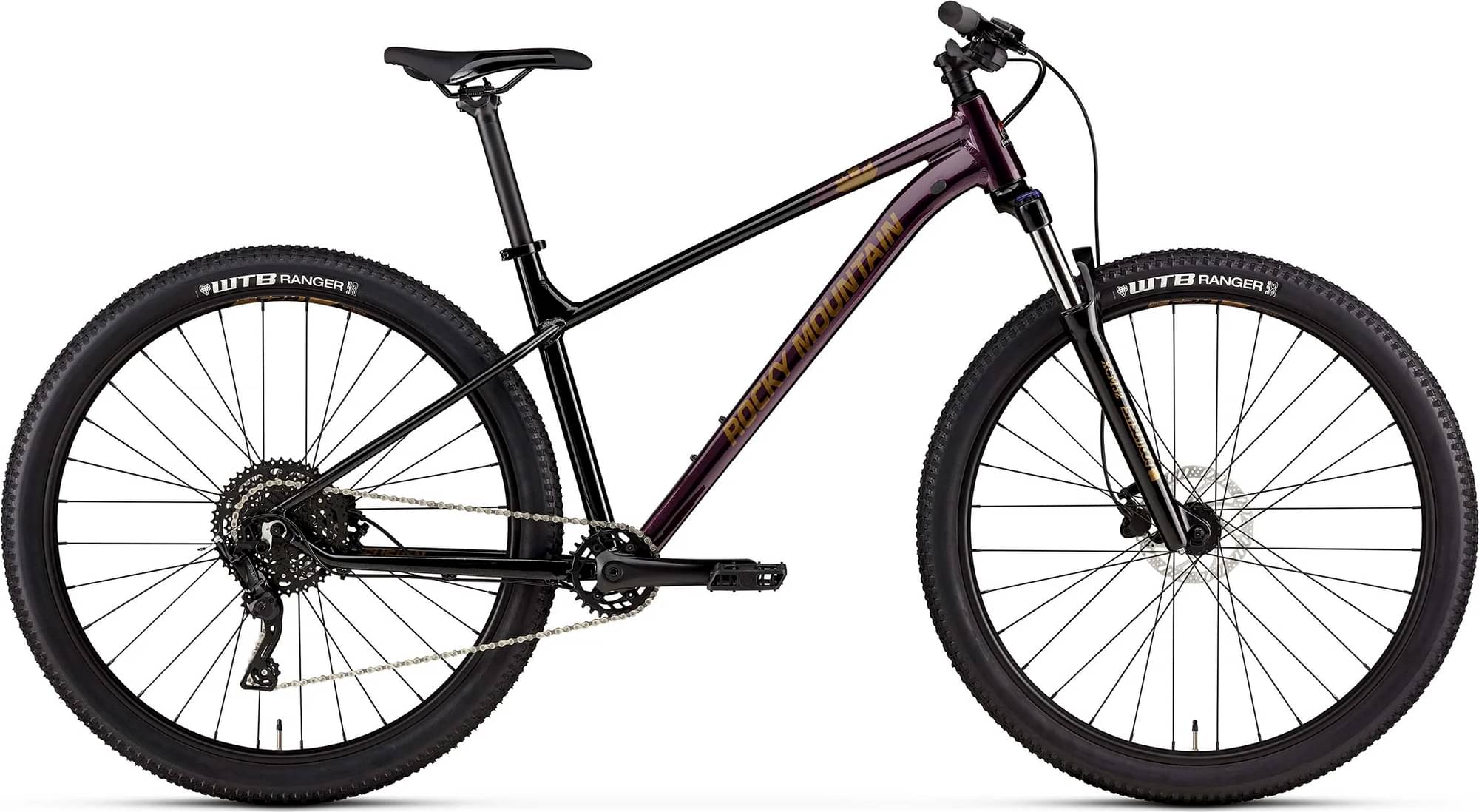

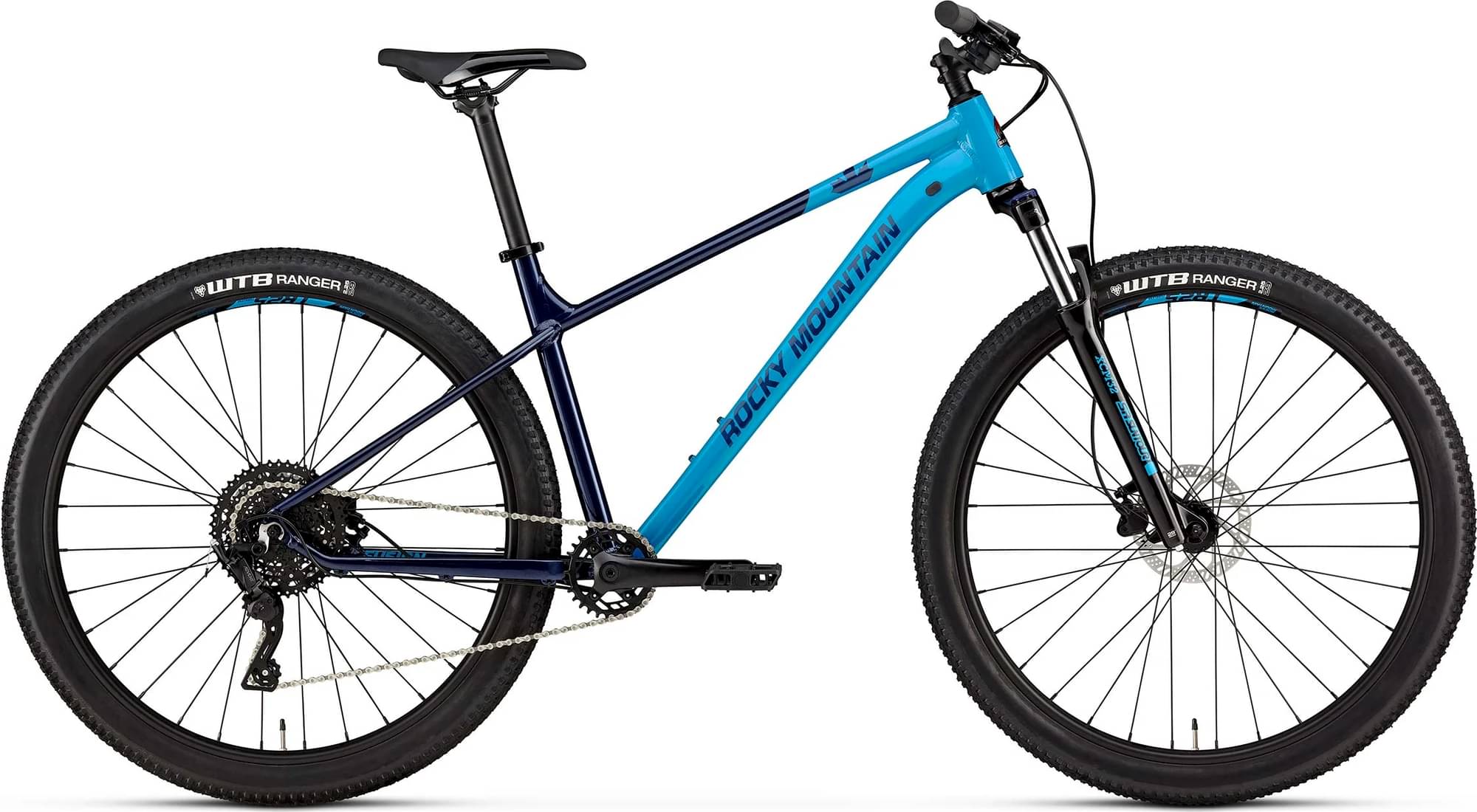

Rocky Mountain Fusion 10 Microshift 2024
2024 Mountain
Estimate price |
909$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset microSHIFT Advent -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Alloy | Threaded BB | Zero Stack Tapered Headtube
Suspension Fork
Suntour XCM32 DS 100mm | Offset 44mm
Drivetrain
Rear Derailleur
MicroShift Advent With Clutch
Shift Levers
MicroShift Xpress Plus 9spd
Cassette
MicroShift CS-H093 11-46T
Crank
Rocky Mountain Microdrive 3PC | 30T | 104mm Asymmetrical BCD | Crank Length: XS-SM-MD = 170-mm | LG - XL = 175mm
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC X9
Wheels
Front Hub
Shimano QC300
Rear Hub
Shimano QC300
Rims
Rocky Mountain TR25 | 32H |
Spokes
2.0 Stainless
Tires
Maxxis Rekon 2.4 | Maxxis Rekon 2.4 |
Brakes
Brakes
Tektro HD-M280 | Shimano Pad Compatible
Cockpit
Stem
Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm
Handlebar
Rocky Mountain XC | 740mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Ergo
Headset
Rocky Mountain | Loose Ball Bearings | 1-1/8" Reducer Crown Race
Seat
Saddle
Rocky Mountain 148 Steel
Seatpost
Rocky Mountain 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.395 mm | 1.329 mm | 1.278 mm | 1.232 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 715 mm | 741 mm | 770 mm | 799 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 593 mm | 598 mm | 607 mm | 616 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 589 mm | 616 mm | 643 mm | 671 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 445 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1153 mm | 1180 mm | 1209 mm | 1238 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 763 mm | 776 mm | 786 mm | 801 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
