Rocky Mountain Fusion Powerplay 30 2024

2024 E-bike
Estimate price | 5,700$
Weight | 22.2 kg
E-bike
Open compare Use advisor

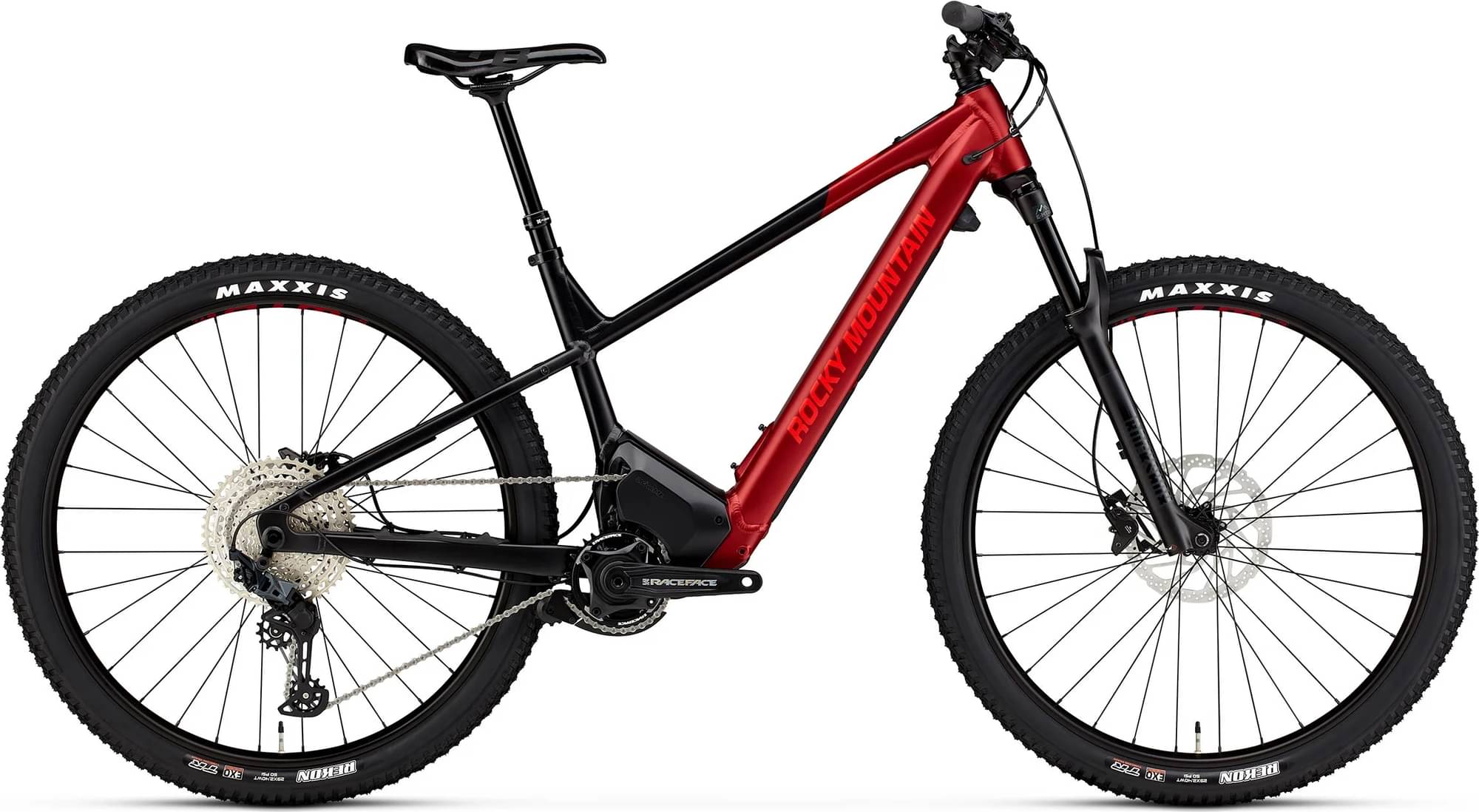

  • Rocky Mountain Fusion Powerplay 30 2024 - Black / Red/red

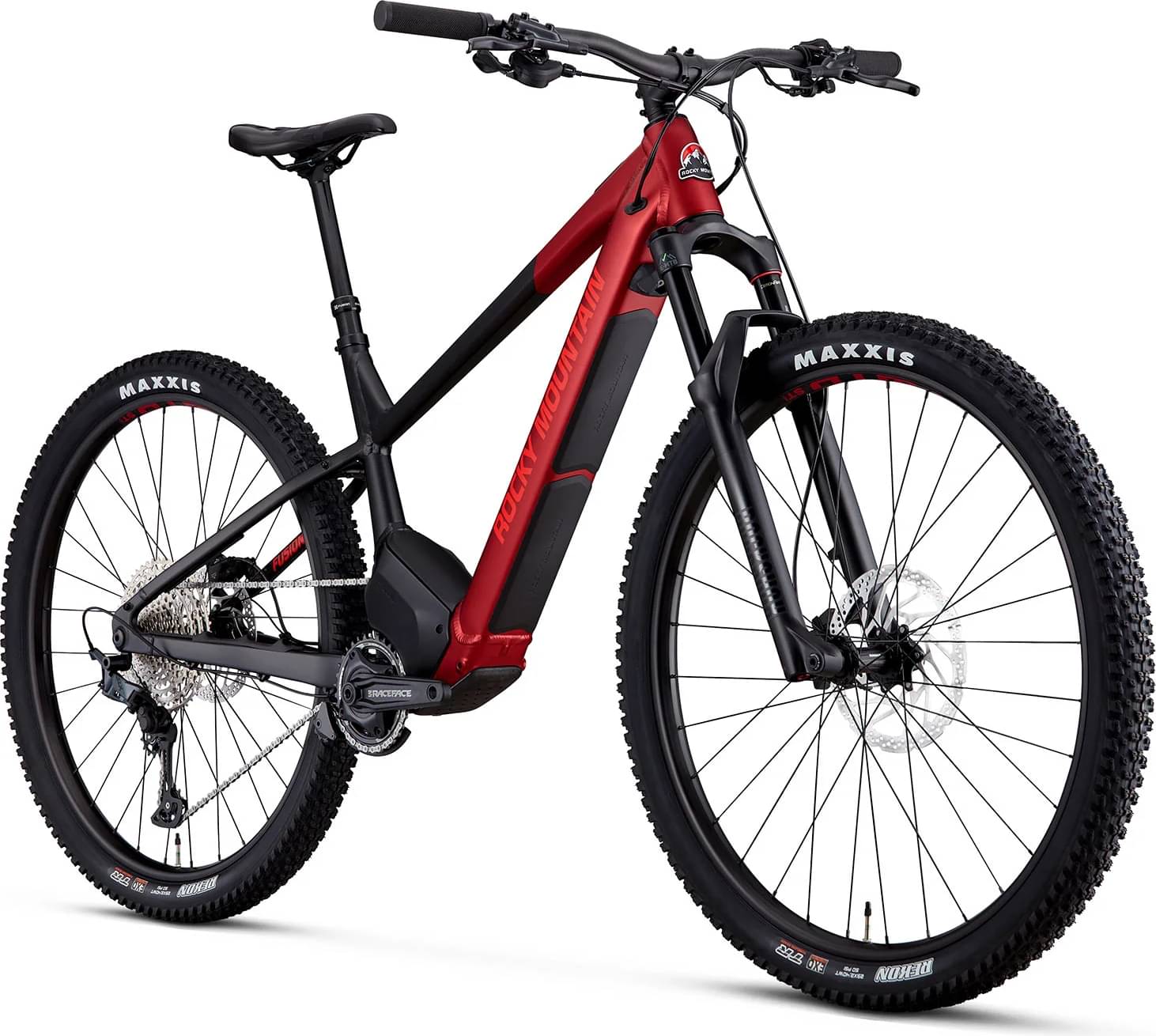

  • Rocky Mountain Fusion Powerplay 30 2024 - rockymountain-fusion-powerplay-30-2024-1.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Travel Front 120mm
  • Fork RockShox Recon Gold RL
  • Groupset SLX, Deore
  • Suspension Hardtail
  • Motor Dyname 700W 108Nm mid-drive
  • Battery 480 Wh Removable Integrated Li-Ion | 100% Charged in 2:35 (4A) / 5:05 (2A) | 80% Charged in 1:55 (4A) / 4:00 (2A)
  • Drivetrain 1 × 12
  • Brakes Shimano Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

FORM™ Alloy | Press Fit BB |Integrated Display | Internal Cable Routing | Boost 148mm | Tapered Zerostack Headtube | Dropper Post Compatible. Rear Triangle

Suspension Fork

RockShox Recon Gold RL 29 = 120mm 42mm Offset | 27.5 = 100mm 37mm Offset

Drivetrain

Rear Derailleur

Shimano SLX

Shift Levers

Shimano Deore 12spd

Cassette

Shimano Deore 10-51T 12spd

Crank

Race Face Ride Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm

Bottom Bracket

Shimano SM-BBMT500

Chain

Shimano M6100

Wheels

Front Hub

Shimano MT410 | 15mm Boost

Rear Hub

Shimano MT410 Boost 148mm

Rims

WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl

Spokes

2.0 Stainless

Tires

F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready //

Brakes

Brakes

Shimano MT4100 2 Piston | Resin Pads

Cockpit

Stem

Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm

Handlebar

Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

Grips

Rocky Mountain Lock On Light

Headset

FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

Seat

Saddle

WTB Volt 142

Seatpost

X Fusion Manic Composire 30.9mm | XS = 100mm | SM = 100mm | MD = 125mm | LG - XL = 150mm

Motor & Battery

Motor

Dyname 4.0 Mountain Bike Drive | 700W Max Power | 250W Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada

Battery

480 Wh Removable Integrated Li-Ion | 100% Charged in 2:35 (4A) / 5:05 (2A) | 80% Charged in 1:55 (4A) / 4:00 (2A)

Remote

Rocky Mountain Micro Remote

Charger

Rocky Mountain Powerplay FAST Charger V1 | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLGXLXS
Wheels29"29"29"29"27"
