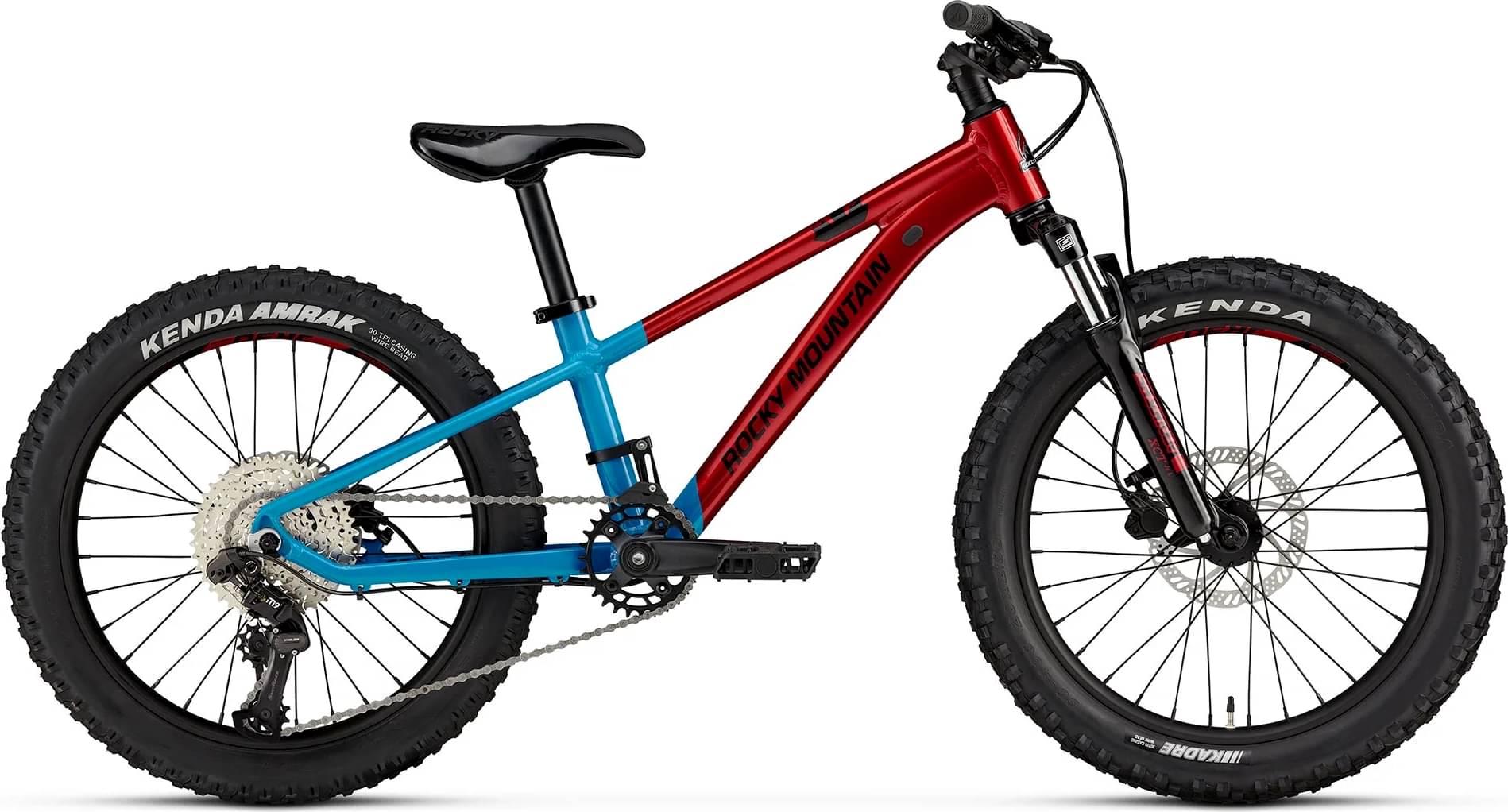

Rocky Mountain Growler Jr 20 SunRace 2024
2024 Youth
Estimate price |
909$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 60mm -
Fork Suntour XCT
-
Groupset SunRace M9 -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rocky Mountain 6061 Alloy | Threaded BB | Zerostack Headtube | Dropper Post Compatible
Suspension Fork
Suntour XCT JR 63mm
Drivetrain
Rear Derailleur
SunRace RDM903 With Clutch
Shift Levers
SunRace DLM403 Trigger
Cassette
SunRace CSM680 11-40T
Crank
Rocky Mountain Microdrive 3PC | 28T |SRAM 76mm BCD |Crank Length: 127mm
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC Z8.3
Wheels
Front Hub
Shimano QC300
Rear Hub
Shimano QC300
Rims
Rocky Mountain JR30 | 32H |
Spokes
2.0 Stainless
Tires
Kenda Kadre 20 x 2.6 | Kenda Amrak 20 x 2.4 |
Brakes
Brakes
Tektro HD-J285 | Short Reach Lever | Shimano Pad Compatible
Cockpit
Stem
Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 40mm
Handlebar
Rocky Montain Jr | 600mm Width | 25mm rise | 9° Backsweep | 5° Upsweep | 31.8 | For 19mm Grips
Grips
Rocky Mountain Lock On Jr 19mm
Headset
Rocky Mountain | Loose Ball Bearings | 1-1/8" Crown Race
Seat
Saddle
Rocky Mountain Pivotal Jr
Seatpost
Rocky Mountain Pivotal 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 20" | 20" | 20" | 20" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
